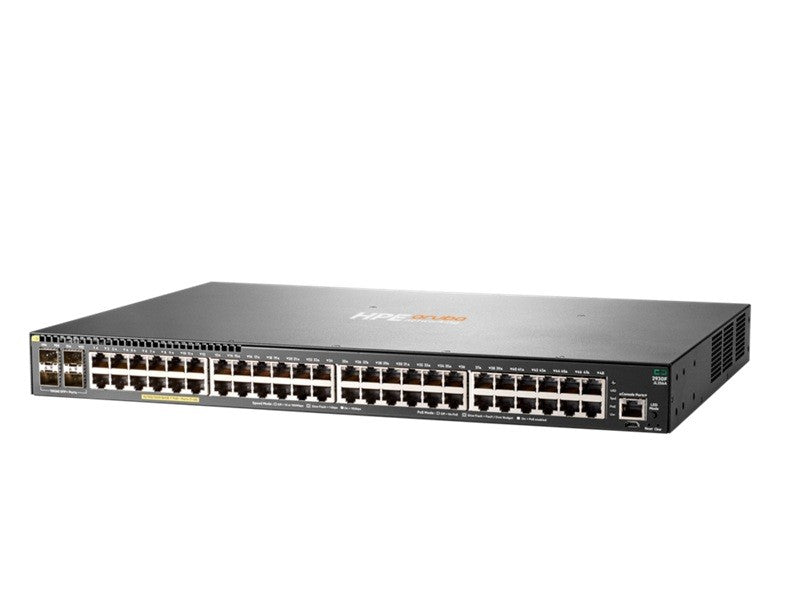

Hewlett Packard Enterprise HPE ARUBA 2930F 48G PoE + 4SFP+ Switch JL256
Specifications
| Description | HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch The HPE Aruba Networking 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L3 |
| Network architecture | GigabitEthernet |
| Number of 10/100/1000 Mbps ports | 48 |
| Number of 10Gb ports | 4 |
| Number of PoE+ ports | 48 |
| Number of SFP+ ports | 4 |
| Console port | Yes |
| Forwarding mode | Store-and-forward |
| Throughput | 176 |
| Forwarding rate | 112 |
| Packet buffer | 12.38 |
| MAC address table size | 32768 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 9.2 |
| Stackability | Yes |
| Maximum number of units per stack | 8 |
| Number of VLAN groups | 4094 |
| Supported protocols and standards | IEEE 802.1AX-2008 Link Aggregation IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1v VLAN classification by Protocol and Port IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.3ab 1000BASE-T IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3af Power over Ethernet IEEE 802.3at PoE+ IEEE 802.3az Energy Efficient Ethernet IEEE 802.3x Flow Control IEEE 802.1ad Q-in-Q |
| QoS | Traffic prioritization (IEEE 802.1p) Layer 4 prioritization Class of Service (CoS) Rate limiting Large buffers Unknown Unicast Rate Limiting |
| Security | Control Plane Policing Multiple user authentication methods Authentication flexibility: Multiple IEEE 802.1X users per port Authentication flexibility: Concurrent IEEE 802.1X, Web, and MAC authentication schemes per port TPM-based Security Access control lists (ACLs) Source-port filtering RADIUS/TACACS+ Secure shell Secure Sockets Layer (SSL) Port security Radius over TLS (RadSec) MAC address lockout Secure FTP Switch management logon security Custom banner STP BPDU port protection DHCP protection Dynamic ARP protection STP root guard Identity-driven ACL Per-port broadcast throttling Private VLAN Open authentication role Critical authentication role MAC pinning Enrollment over Secure Transport (EST) |
| Management, monitoring, configuration | Dual flash images Friendly port names Find-Fix-Inform feature Supports multiple configuration files RMON, XRMON, and sFlow Troubleshooting Unidirectional link detection (UDLD) IP service level agreements (SLA) for voice |
| L2 features | IEEE 802.1ad Q-in-Q VLAN Support and Tagging Jumbo packet suport IEEE 802.1v protocol VLANs Rapid Per-VLAN Spanning Tree (RPVST+) GVRP and MVRP VxLAN |
| L3 features | DHCP server Static IP routing 256 static and 10,000 RIP routes Routing Information Protocol (RIP) Access OSPF Policy-based routing |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 459 |
| Environment requirements | Operating temperaturę: 0°C to 45°C Operating relative humidity: 15% to 95% Non-operating/Storage temperature: -40°C to 70°C Non-operating/Storage temperature: 15% to 95% noncondensing |
| Power supply | 100-127 / 200-240 V AC Maximum power rating: 459 W Idle power: 48.6 W PoE power: 370 W PoE+ |
| Dimensions | 44.25 x 30.42 x 4.39 cm |
| Weight | 4.46 |
