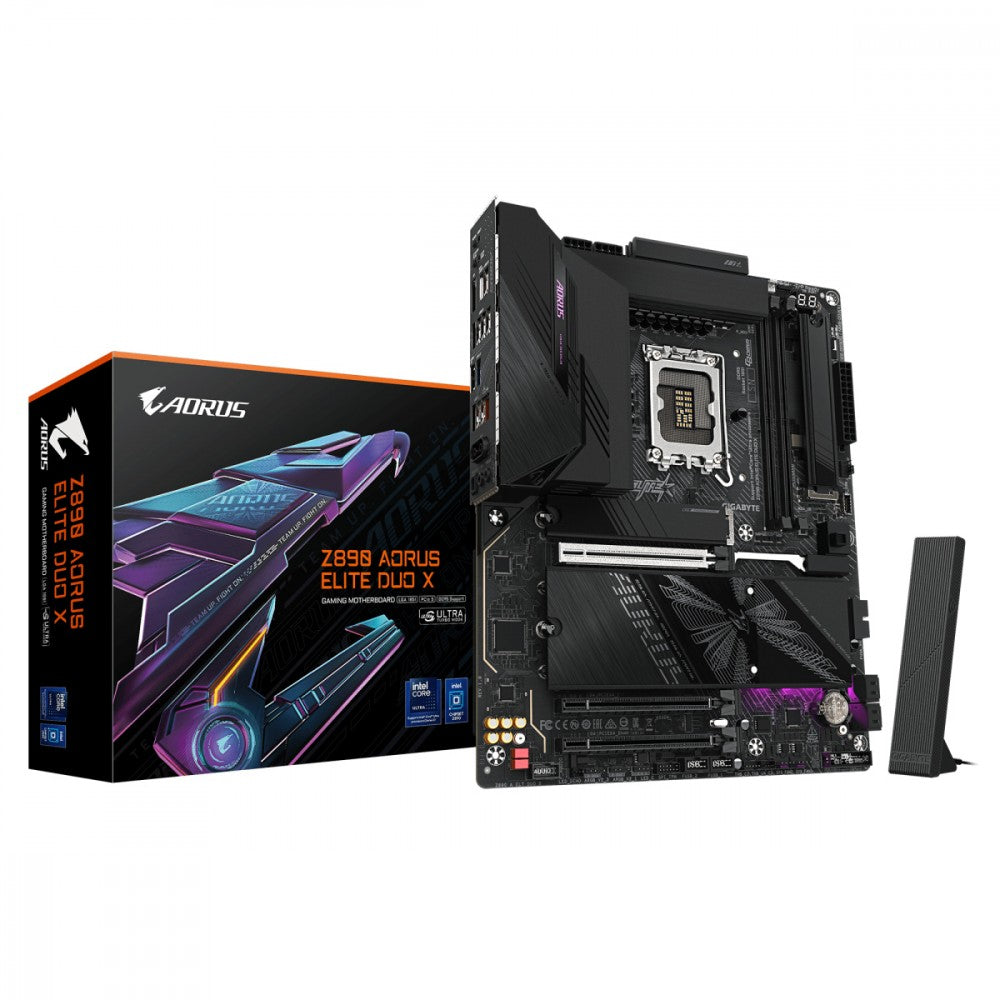

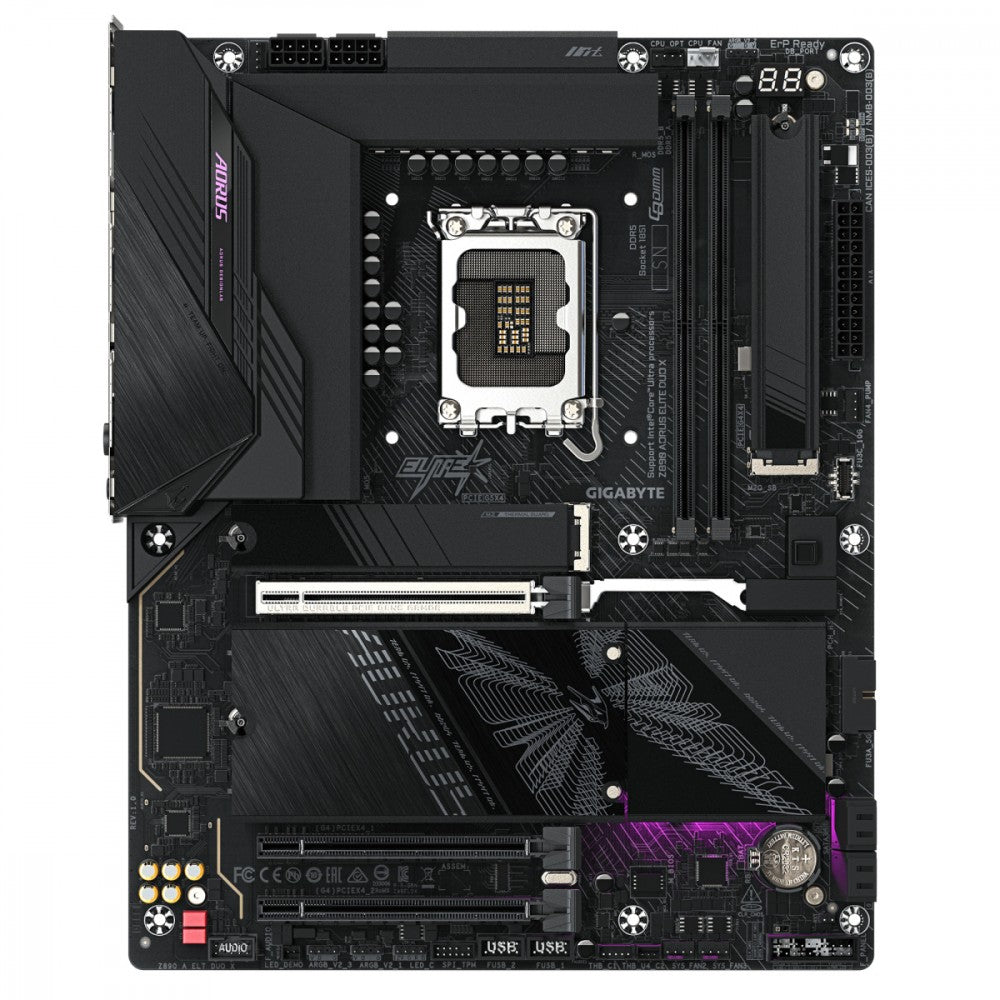

Gigabyte Motherboard Z890 AORUS ELITE DUO X S1851 4DDR5 ATX
Specifications
| Description | Z890 AORUS ELITE DUO X Ultra Turbo Mode: Unlock the Hidden performance D5 DUO X Technology for Infinite Memory Performance CQ-DIMM Support Supports Intel(R) Core(TM) Ultra processors (Series 2) Digital twin 16+1+2 phases VRM solution AI Perfdrive: Provides optimal and customized BIOS preset profile for users Premium Compatibility: 2*DDR5 with the all new CQ-DIMM & XMP Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click: M.2 heatsinks with screwless design Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage: 5*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card High-Res Audio: ALC1220 Audiophile Grade Capacitors |
|---|---|
| Model | Z890 AORUS ELITE DUO X |
| CPU socket | LGA1851 |
| Processor family | Intel Core Ultra |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| Chipset type | Intel Z890 Express |
| Memory type | DDR5 |
| Number of DDR5 slots | 2 |
| Memory bus frequency | 10266 MHz |
| Max memory size | 256 |
| Expansion slots | 2 x PCIe 4.0 x 16 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) (M2L_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Graphics | Integrated Graphics Processor-Intel(R) HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 4096x2304@144 Hz - Support for DisplayPort 2.1 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz - Support for DisplayPort 2.1 version and HDCP 2.3 |
| Sound card | Realtek(R) ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Bluetooth |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | LAN: Realtek(R) 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel(R) Wi-Fi 7 BE200NGW 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 320MHz wireless standard |
| USB ports at back panel | 11 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 5 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 3 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

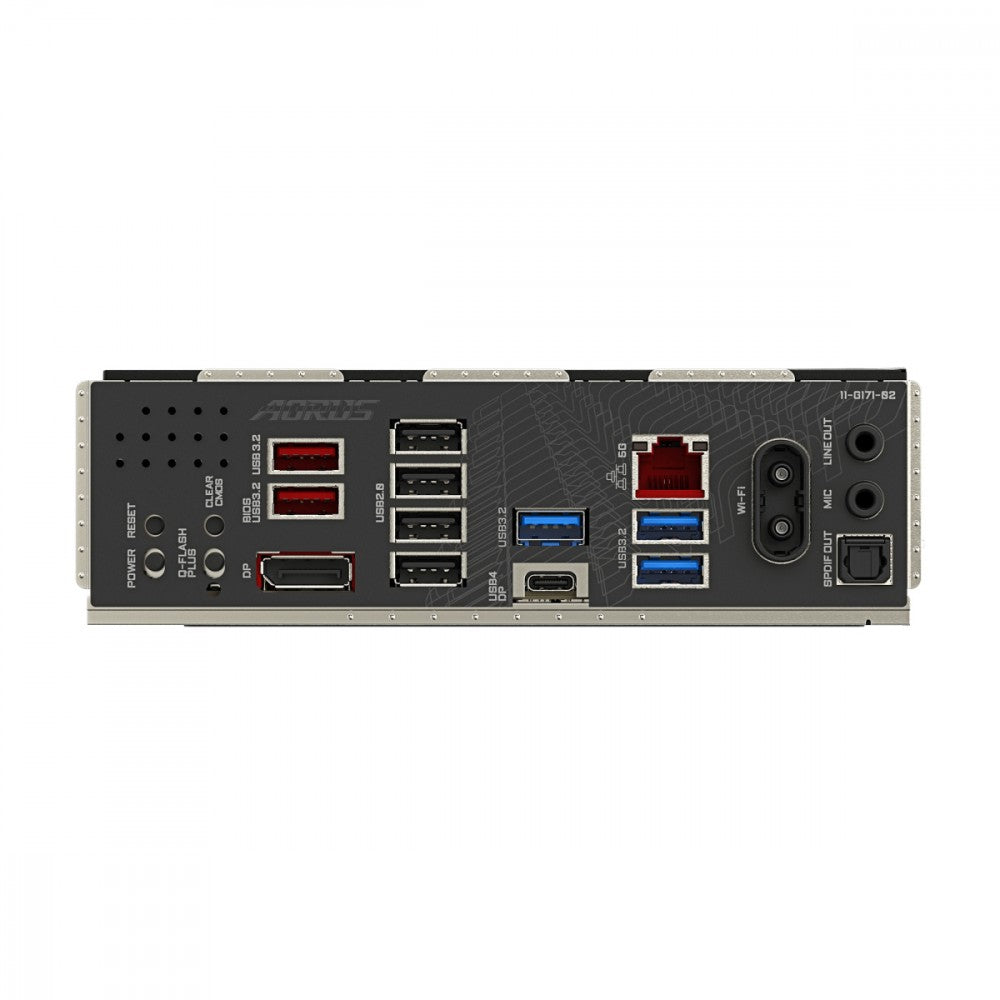

| External connectors | 1 x RJ-45 |
| External connectors | 1 x Line Out |
| External connectors | 2 x SMA |
| External connectors | 1 x DisplayPort |
| External connectors | 4 x USB 2.0 |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x Q-Flash Plus button |
| External connectors | 2 x USB 3.2 Gen 2 Type-A |
| External connectors | 3 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x USB4 Type-C |
| External connectors | Power button |
| External connectors | Reset button |
| External connectors | 1 x MIC |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 1 x Reset jumper |
| Onboard connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 5 x M.2 |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x Thunderbolt |
| Onboard connectors | 2 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 3 x 4pin Chassis fan |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x Front panel audio header |
| Special functions | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| BIOS | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | ATX |
| Dimensions | 30.5 x 24.4 cm |
| Supported operating systems | Windows 11 |
| Software | Norton Internet Security (OEM version) |
