Beschreibung

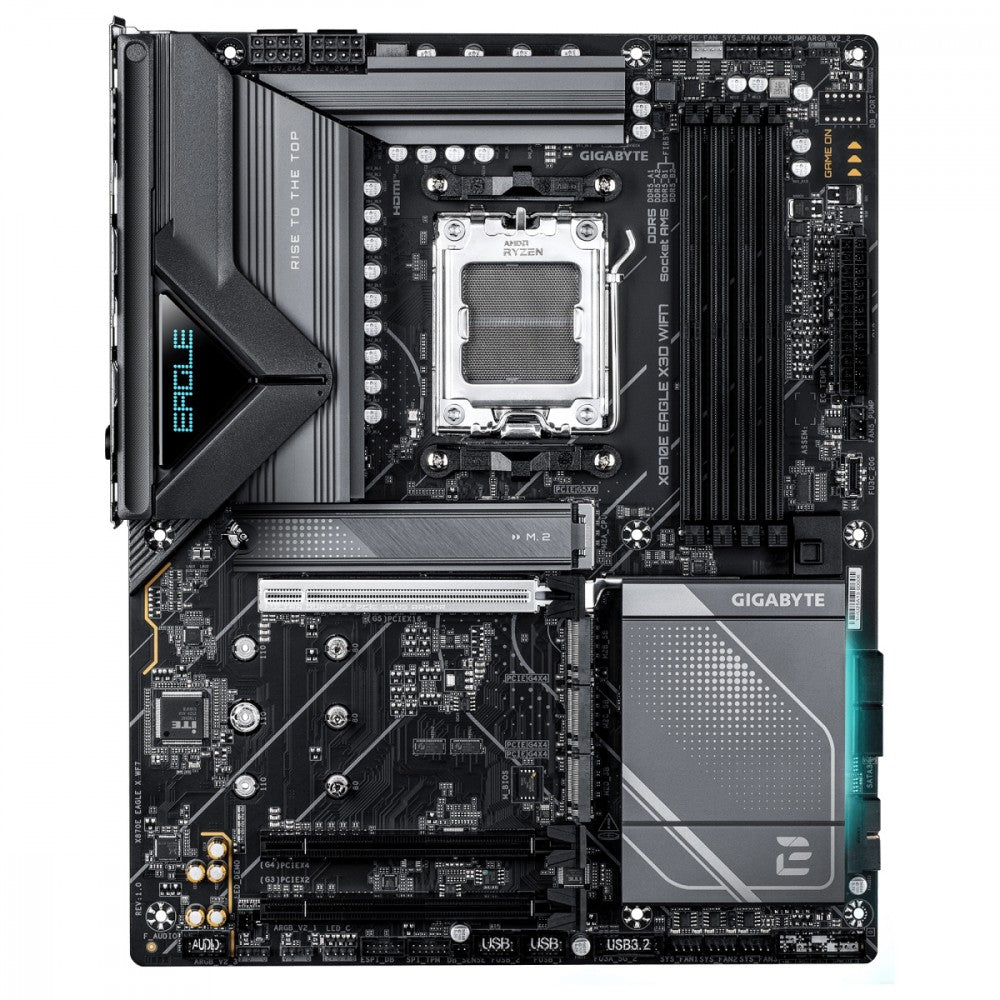

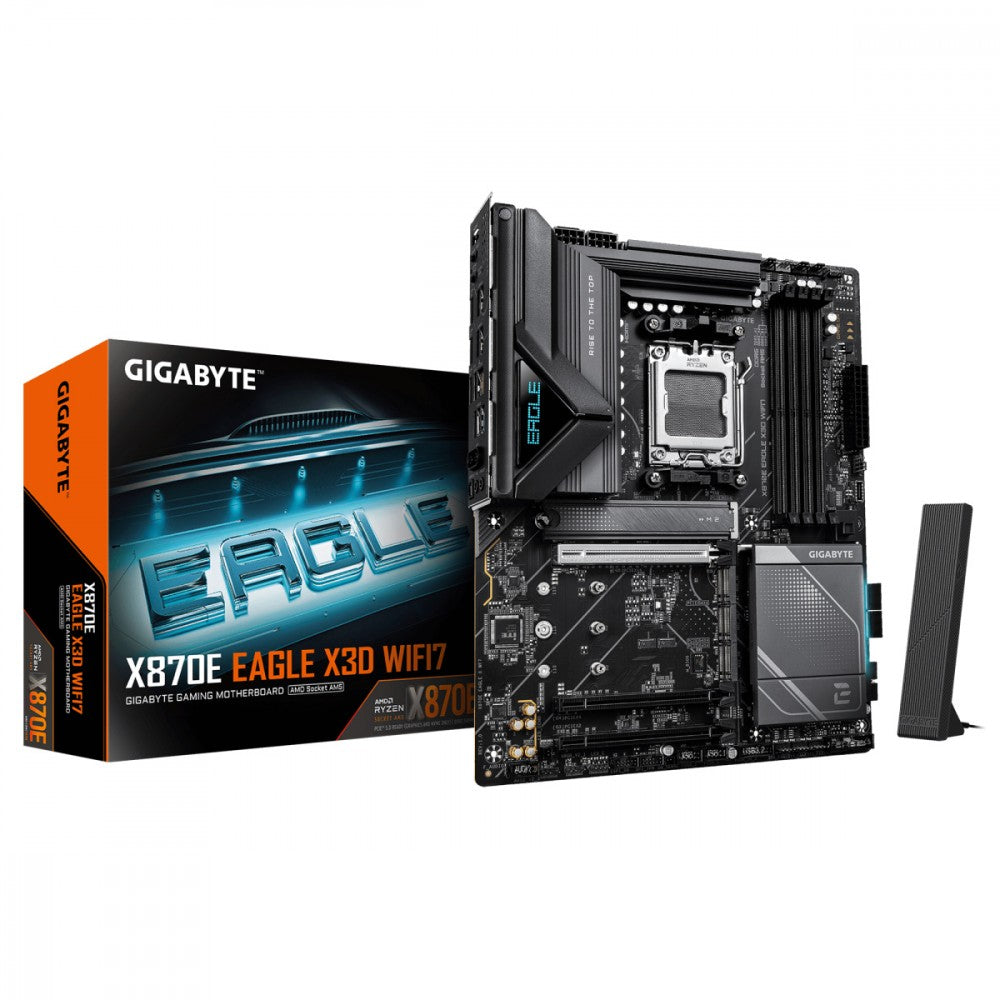

Gigabyte Motherboard X870E EAGLE WIFI7 AM5 4 DDR5 ATX
Specifications
| Description | X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI DDR5 OC up to 9000MT/s DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network. AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support M.2 EZ-Flex : high-efficiency heat dissipation & flexible baseplate for M.2 SSD (Exclusive Patented Design) WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design EZ-Latch Plus : M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4 Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext. Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt PCIe UD Slot : PCIe 5.0 x16 slot with 10X strength for graphics card |
|---|---|
| Model | X870E EAGLE X WF7 |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 5 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | SODIMM DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8600 MHz |
| Memory bus frequency | 7800 MHz |
| Memory bus frequency | 9000 MHz |
| Memory bus frequency | 8800 MHz |
| Memory bus frequency | 8400 MHz |
| Memory bus frequency | 8000 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 6600 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 5200 MHz |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 4400 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 5600 MHz |
| Max memory size | 256 |
| Expansion slots | 4 x M.2 |
| Expansion slots | 1 x PCIe x 16 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 1 x PCIe 4.0 x 8 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Złącza rozszerzeń 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) Złącza SATA 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen(TM) 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Sound card | Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Bluetooth |
| Network interface | LAN Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 320MHz wireless standard |
| USB ports at back panel | 11 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 8 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 8 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

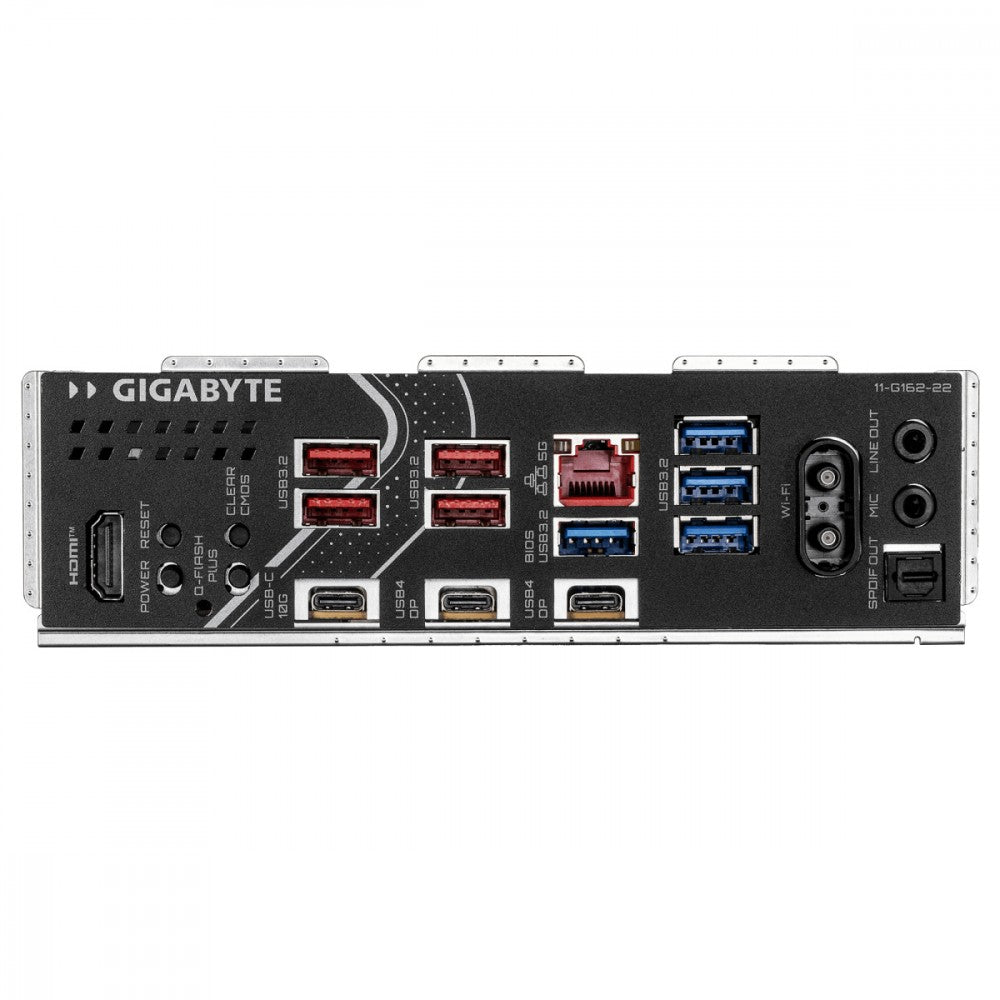

| External connectors | 1 x RJ-45 |
| External connectors | 2 x USB4 Type-C |
| External connectors | 4 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 4 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x USB 3.2 Gen 2 Type-C |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x Q-Flash Plus button |
| External connectors | 1 x Line In |
| External connectors | 2 x SMA |
| External connectors | 1 x Line Out |
| External connectors | 1 x HDMI |
| External connectors | Power button |
| External connectors | Reset button |
| Onboard connectors | 1 x Thermal sensor connector |
| Onboard connectors | 2 x 4pin case fan liquid cooling |
| Onboard connectors | 1 x Noise detection header |
| Onboard connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 1 x Reset jumper |
| Onboard connectors | 4 x 4pin Chassis fan |
| Onboard connectors | 4 x M.2 |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 2 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Special functions | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| BIOS | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | ATX |
| Dimensions | 30.5 x 24.4 cm |
| Supported operating systems | Windows 11 |
| Software | Norton Internet Security (OEM version) |
