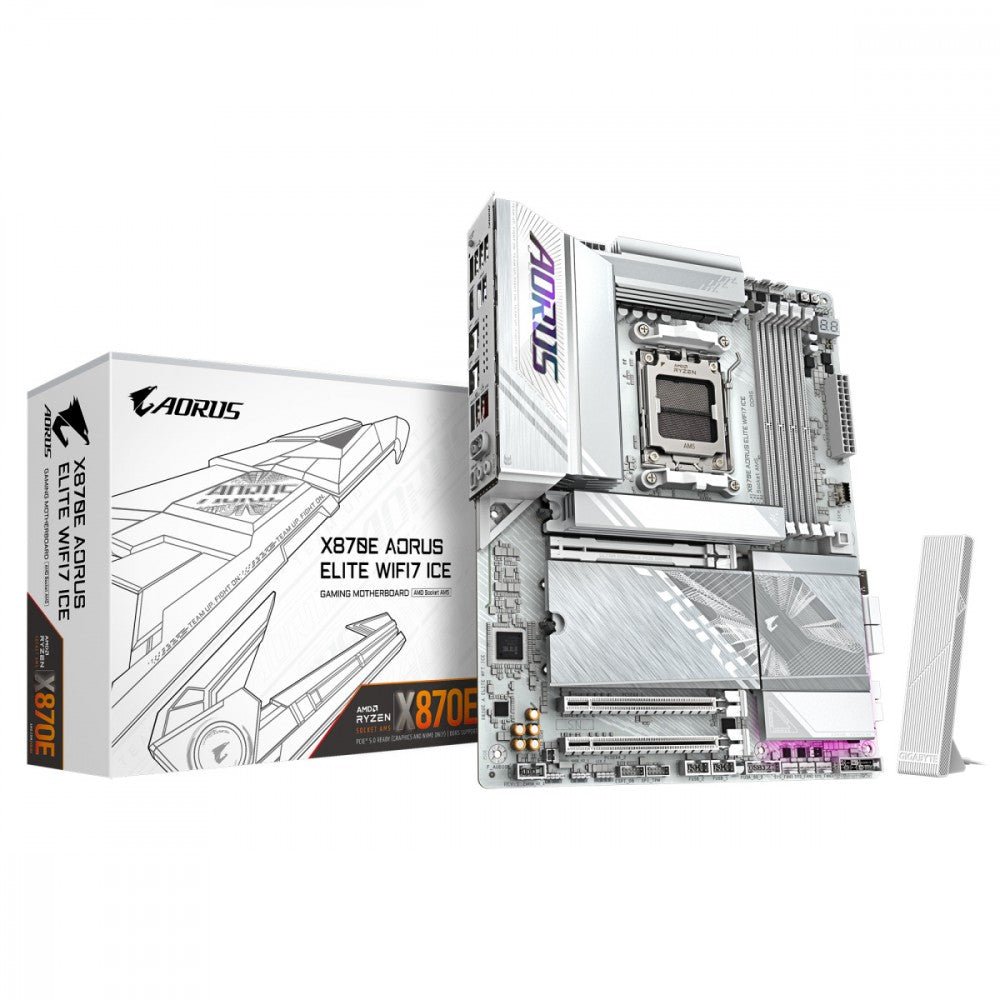

Gigabyte Motherboard X870E AORUS ELITE WIFI7 ICE AM5 4DDR5 ATX
Specifications
| Description | AMD Socket AM5:Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 16+2+2 phases VRM solution Dual Channel DDR5:4*DIMMs with AMD EXPO Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click:M.2 heatsinks with screwless design Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4 Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card |
|---|---|
| Model | X870E A ELITE WF7 ICE |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 5 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | SODIMM DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 5200 MHz |
| Memory bus frequency | 8200 MHz |
| Memory bus frequency | 6666 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 8000 MHz |
| Memory bus frequency | 7800 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 6600 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 6400 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 4 x M.2 |
| Expansion slots | 1 x PCIe x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Złącza rozszerzeń 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen(TM) 9000/7000 Series Processors support PCIe 5.0 x16 mode When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen(TM) 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen(TM) 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) Złącza SATA 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen(TM) 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen(TM) 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen(TM) 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen(TM) 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
| Sound card | Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Network interface | Bluetooth |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax |
| Network interface | LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek Wi-Fi 7 RTL8922AE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard |
| USB ports at back panel | 12 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 8 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 5 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

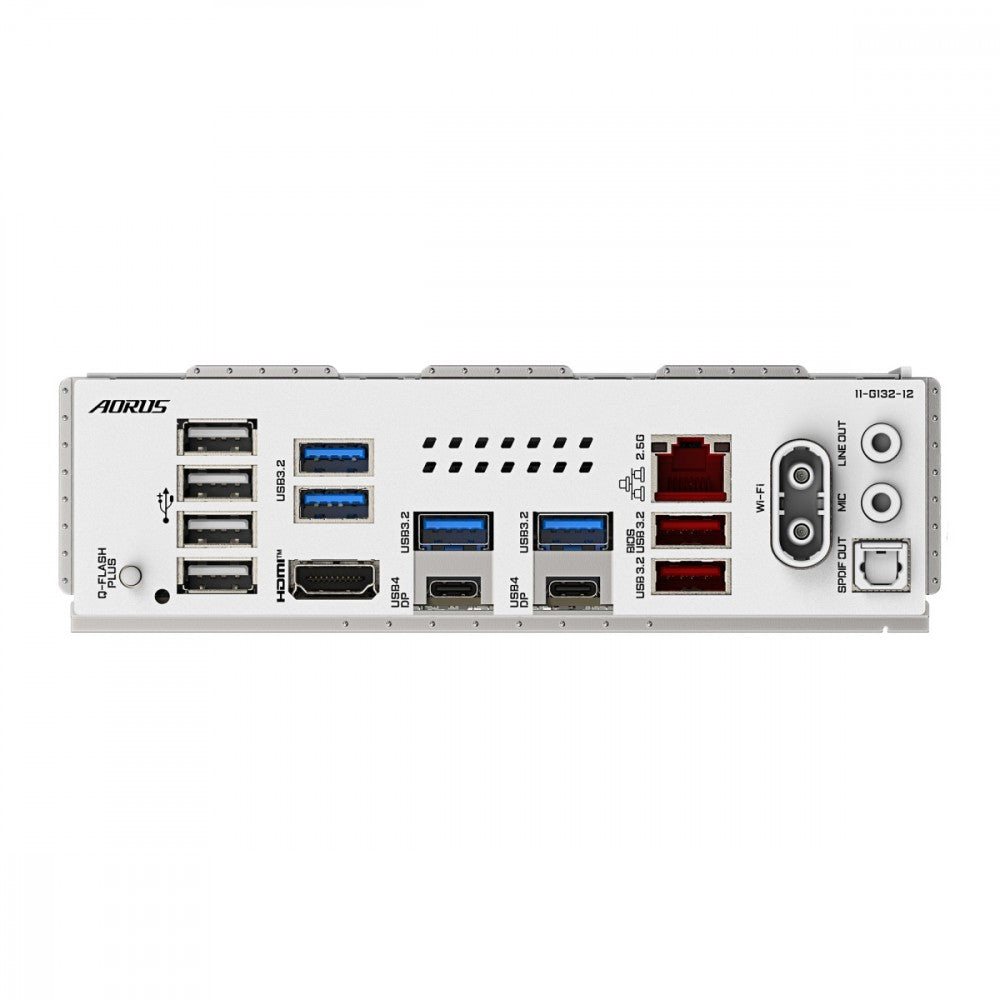

| External connectors | 4 x USB 2.0 |
| External connectors | 1 x Line Out |
| External connectors | 1 x Q-Flash Plus button |
| External connectors | 1 x Line In |
| External connectors | 1 x S/PDIF |
| External connectors | 4 x USB 3.2 Gen 1 Type-A |
| External connectors | 2 x USB4 Type-C |
| External connectors | 2 x USB 3.2 Gen 2 Type-A |
| External connectors | 2 x SMA |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x HDMI |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x HDMI |
| Onboard connectors | 1 x Power button |
| Onboard connectors | 1 x Reset button |
| Onboard connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 3 x 4pin Chassis fan |
| Onboard connectors | 2 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x Reset jumper |
| Onboard connectors | 4 x M.2 |
| Special functions | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support Smart Backup |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | ATX |
| Dimensions | 30.5 x 24.4 cm |
| Supported operating systems | Windows 11 |
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
