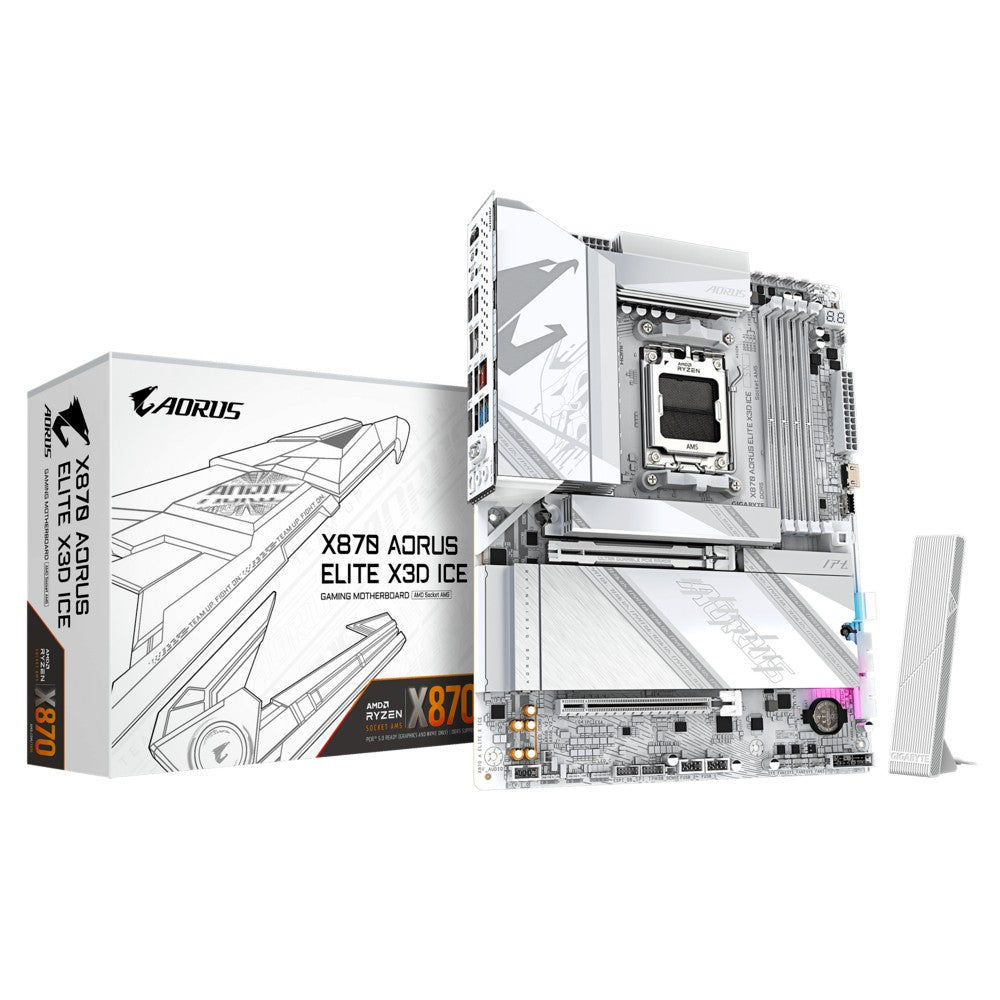

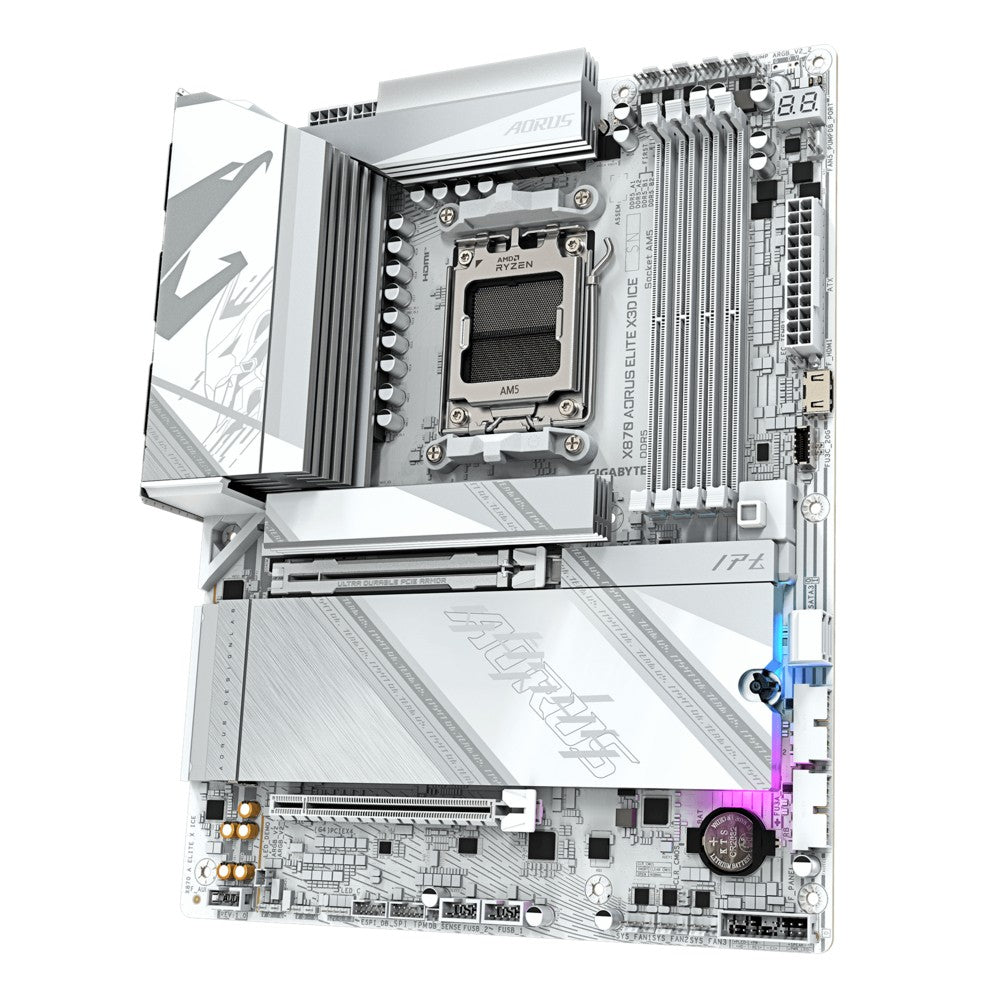

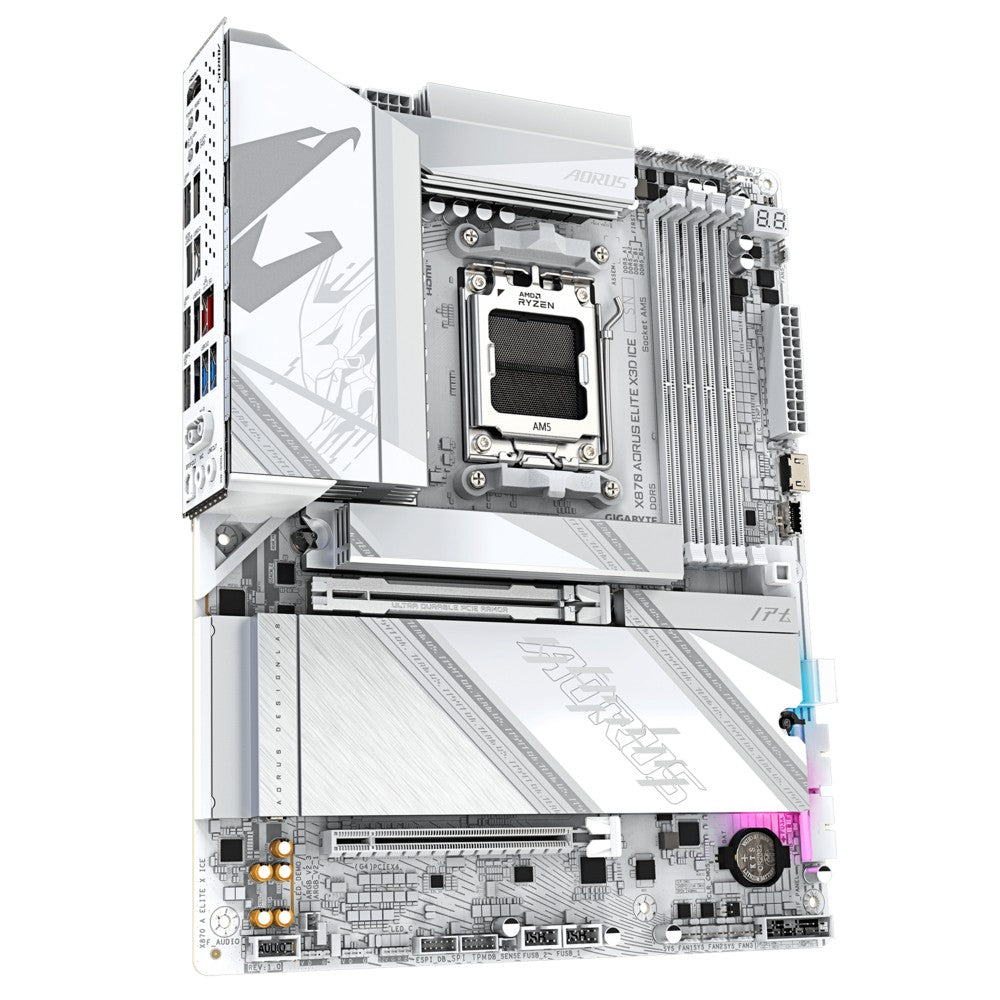

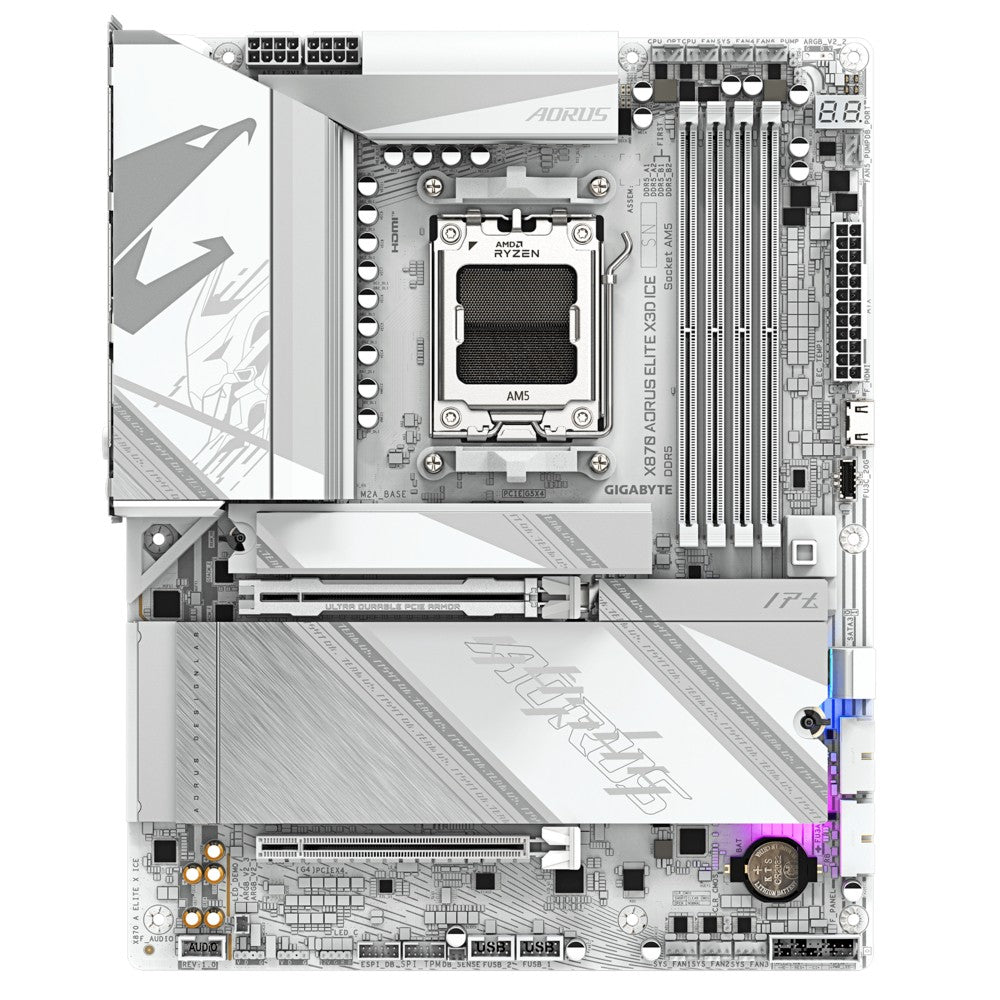

Gigabyte Motherboard X870 AORUS ELITE X3D ICE AM5 4DDR5 HDMI ATX
Specifications
| Description | X870 AORUS Elite X3D ICE Motherboard Turbo X3D 2.0 Mode: Incredible X3D performance with AI; DDR5 OC up to 9000 MT/s DriverBIOS: Pre-installation of Wi-Fi driver, power-on, and easy network setup AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 series processors Digital Twin VRM Solution: 16+2+2 phase design Dual-Channel DDR5 Memory: 4 DIMM slots supporting AMD EXPO memory modules M.2 EZ-Flex: High-performance heat dissipation and flexible, patented motherboard design for M.2 SSDs Wi-Fi EZ-Plug: Quick and easy Wi-Fi antenna installation M.2 EZ-Latch Click & Plus: Fast, screwless installation for M.2 slots and heatsinks User-Friendly Interface: Multi-theme UI, AIO fan control, and automatic Q-Flash scanning in BIOS and software Ultra-Fast Storage: 4 M.2 slots, including PCIe 5.0 x4 Efficient Cooling: Advanced VRM Thermal Armor and M.2 Thermal Guard L/Ext. High-Speed Networking: 5 GbE LAN and Wi-Fi 7 with ultra-high gain directional antenna Expanded Connectivity: HDMI, two USB4 Type-C ports with DP-Alt PCIe UD X Slot: PCIe 5.0 x16 slot delivering 10× more power for graphics cards |
|---|---|
| Model | X870 Aorus Elite X3D |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8800 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 8000 MHz |
| Memory bus frequency | 6600 MHz |
| Memory bus frequency | 8600 MHz |
| Memory bus frequency | 7800 MHz |
| Memory bus frequency | 8200 MHz |
| Memory bus frequency | 8400 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 9000 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 5200 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 4800 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Max. number of SATA devices | 2 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics Support + ASMedia USB4 Controller 2 × USB4 Type-C ports: Support USB4 video output and DisplayPort, with a maximum resolution of 3840 × 2160 at 240 Hz Integrated Graphics Processor: Supports AMD Radeon graphics 1 × HDMI port: Supports a maximum resolution of 4096 × 2160 at 60 Hz 1 × Front HDMI port: Supports a maximum resolution of 1920 × 1080 at 30 Hz |
| Sound card | Realtek ALC1220 codec High Definition Audio support Audio channels: 2/4/5.1/7.1 S/PDIF Out support |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Realtek 5GbE LAN chip: 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps Qualcomm Wi-Fi 7 QCNCM865 Supports 802.11a/b/g/n/ac/ax/be, Frequency bands: 2.4 / 5 / 6 GHz Bluetooth 5.4 |
| USB ports at back panel | 10 |
| USB ports on motherboard | 4 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 4 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 3 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

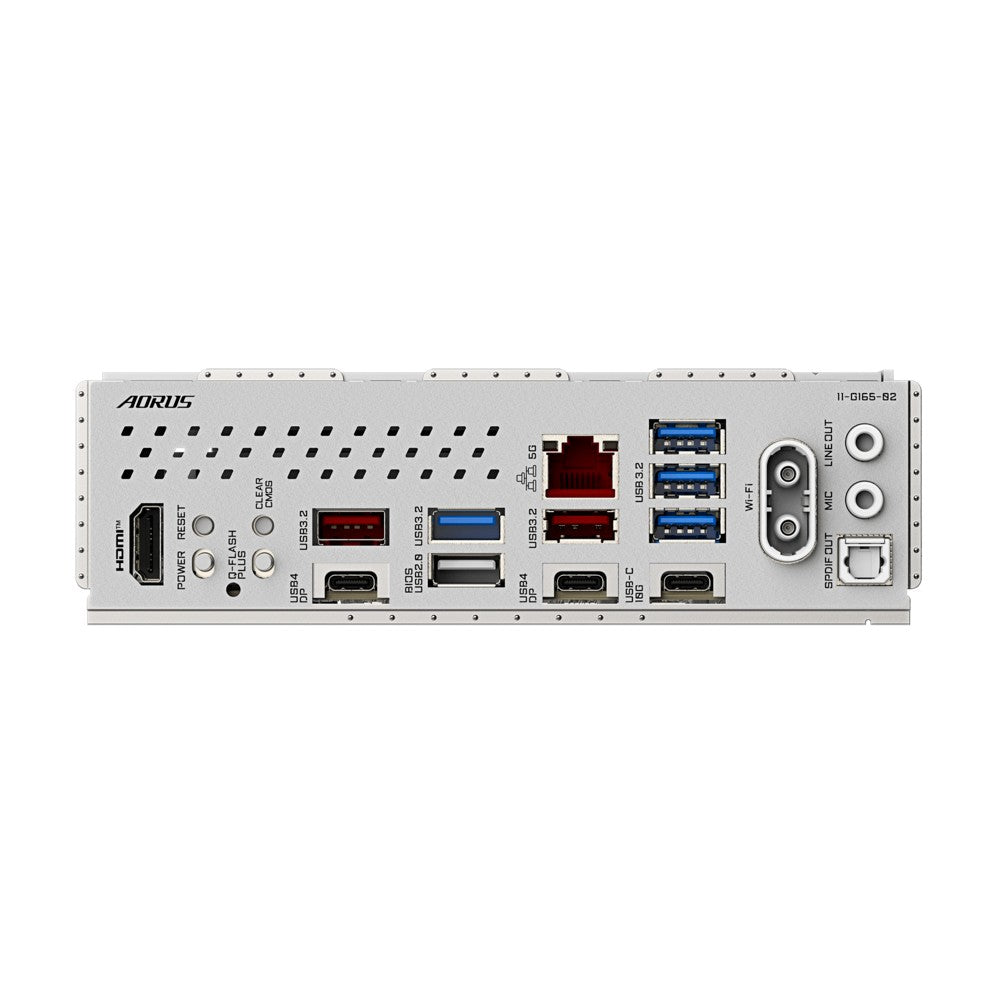

| External connectors | 1 x USB 2.0 |
| External connectors | 1 x USB 3.1 Type-C |
| External connectors | 1 x Q-Flash Plus button |
| External connectors | 1 x MIC |
| External connectors | 1 x HDMI |
| External connectors | 2 x SMA |
| External connectors | 1 x S/PDIF |
| External connectors | 4 x USB 3.0 |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 2 x USB4 Type-C |
| External connectors | 2 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x Line Out (front) |
| External connectors | 1 x RJ-45 |
| Onboard connectors | 2 x SATA III 6Gb/s |
| Onboard connectors | 4 x M.2 |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 2 x USB 3.0 header |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x HDMI |
| Onboard connectors | 2 x temperature sensor |
| Onboard connectors | 1 x Noise detection header |
| Special functions | Supports GIGABYTE Control Center (GCC) Supports Q-Flash Supports Q-Flash Plus Supports Smart Backup feature |
| BIOS | 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | ATX |
| Dimensions | 30,5 x 24,4 cm |
| Supported operating systems | Windows 11 |
| Software | Norton Internet Security (OEM version) |
