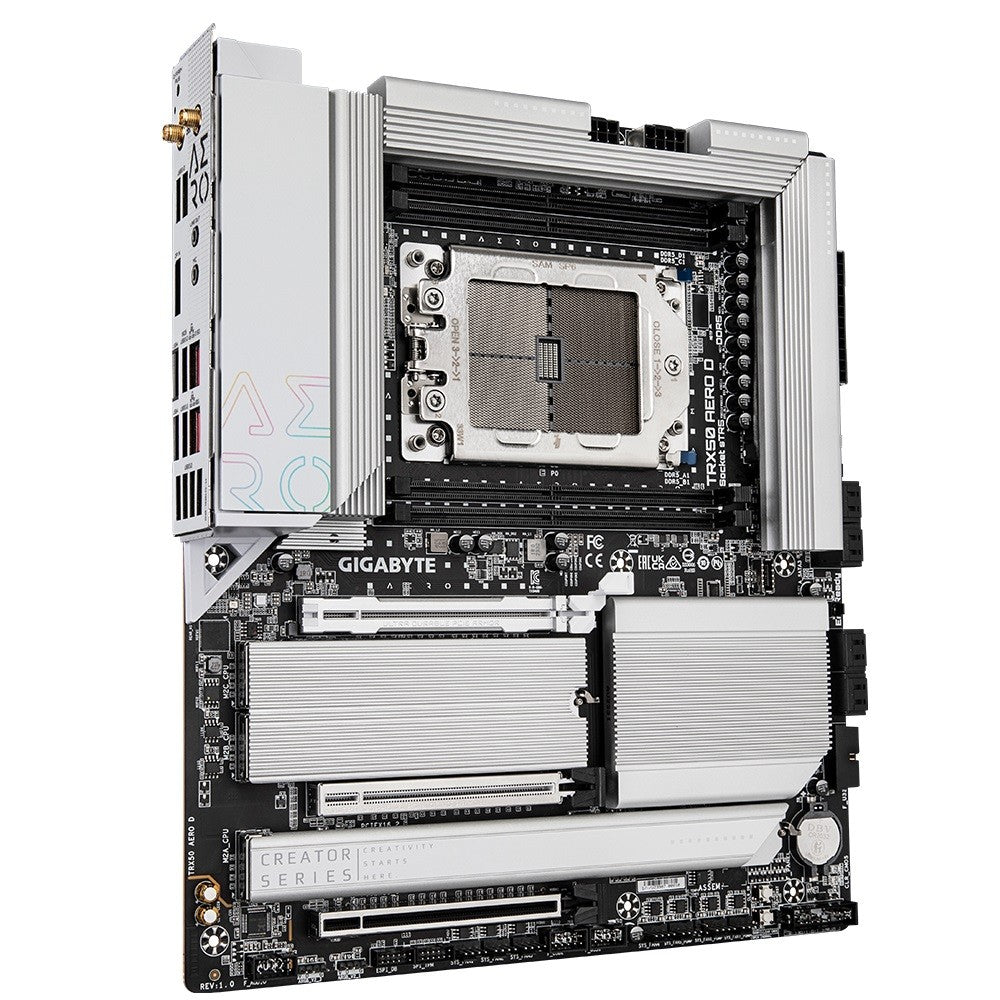

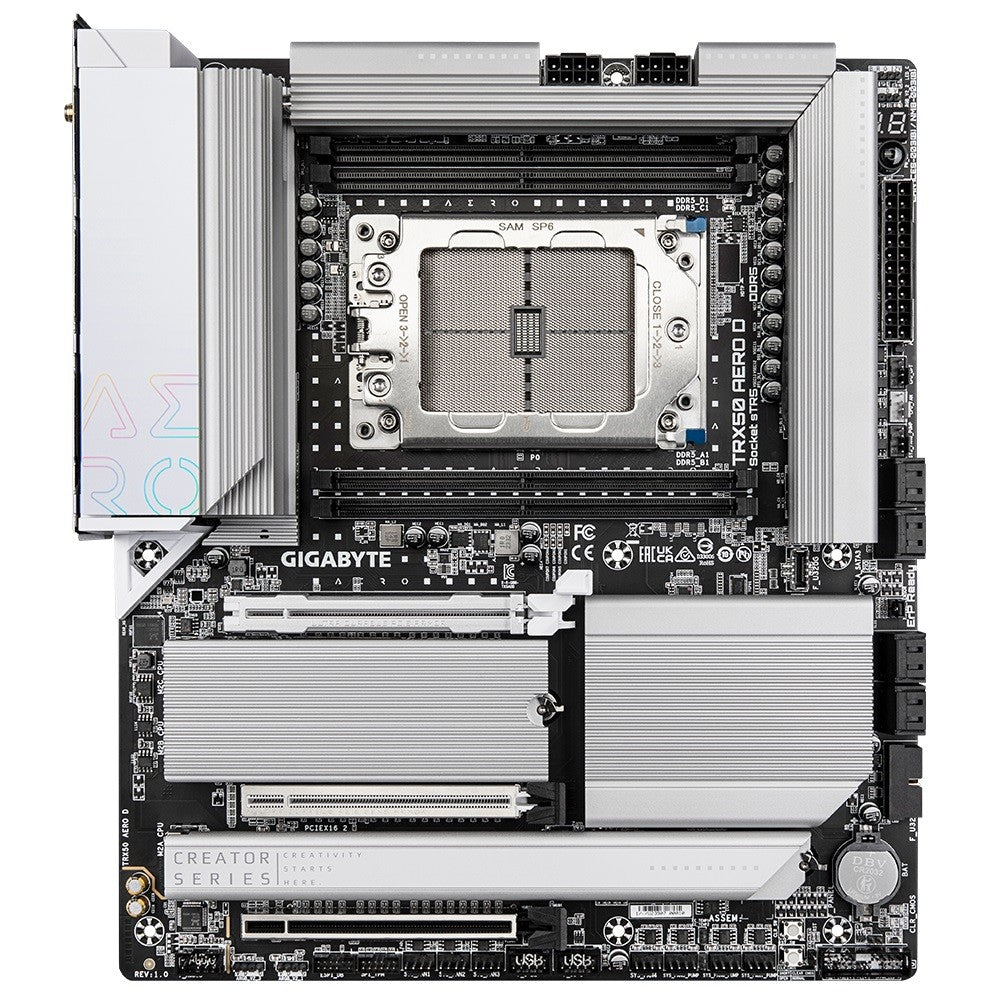

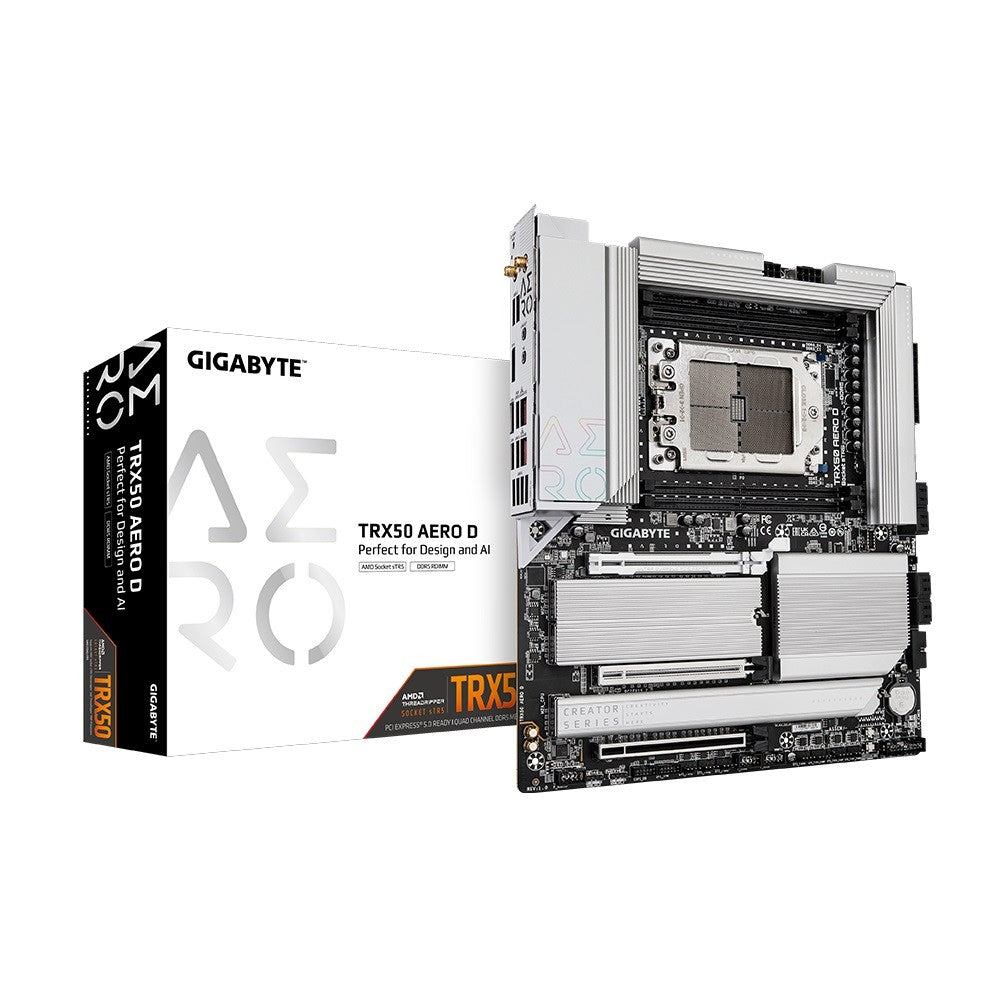

Gigabyte Motherboard TRX50 AERO D sTR5 4DDR5 HDMI USB/4M.2 eATX
Specifications
| Description | TRX50 Aero D motherboard Supports AMD Ryzen Threadripper PRO 7000 series/Ryzen Threadripper 7000 series processors Breakthrough performance: 16+8+4 phase digital VRM solution Quad-channel DDR5 memory: 4xSMD R-DIMM with support for AMD EXPO and Intel XMP memory modules Enhanced overall thermal protection: VRM Advanced thermal armour and M.2 thermal shield Ultimate scalability: 3 x PCIe x16 slots for multiple GPUs and 4 x PCIe x4 M.2 slots Next-generation connectivity: two USB4 Type-C ports Incredibly fast networking: 10GbE + 2.5GbE, dual LAN and Wi-Fi 7 PCIe UD Slot X: 10x PCIe 5.0 x16 slot for graphics cards EZ-Latch Click: M.2 heat sinks with screwless design EZ-Latch Plus: M.2 slots with quick-release design Hi-Fi audio with DTS:X Ultra codec: ALC4080+ALC897 UC BIOS: Intuitive user-oriented interface with quick-release function |
|---|---|
| Model | TRX50 Aero D |
| CPU socket | Socket sTR5 |
| Processor family | AMD Ryzen |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD TRX50 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 5200 MHz |
| Memory bus frequency | 4400 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 7800 MHz |
| Max memory size | 1 |
| Expansion slots | 1 x PCIe 4.0 x 16 |
| Expansion slots | 3 x PCIe x 16 |
| Expansion slots | 2 x PCIe 5.0 x16 |
| Max. number of SATA devices | 8 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | CPU: 1 x M.2 connector (Socket 3, M key, supports PCIe 5.0 x4/x2 type 25110/2280 SSDs) (M2C_CPU) 2 x M.2 connectors (Socket 3, M key, support for PCIe 5.0 x4/x2 SSDs type 22110/2280) (M2A_CPU/M2B_CPU) 1 x M.2 connector (Socket 3, M key, support for 2280 PCIe 4.0 x4/x2 SSDs) (M2D_CPU) Processor + chipset: 8 SATA 6 Gb/s connectors RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices |
| Sound card | Realtek ALC4080 codec (back panel audio) DTS:X Ultra support High quality sound 2-channel Realtek ALC897 codec (front panel audio) |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Marvell AQtion AQC113C 10GbE LAN Chip (10Gb/s/5Gb/s/2.5Gb/s/1Gb/s/100Mb/s) (LAN1) Realtek 2.5GbE LAN (2.5 Gb/s/1 Gb/s/100 Mb/s) (LAN) Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Bluetooth 5.3 Support for the 11be 320 MHz wireless standard |
| USB ports at back panel | 10 |
| USB ports on motherboard | 4 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 5 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 5 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 4 x USB 3.0 |
| External connectors | 2 x SMA |
| External connectors | 1 x DisplayPort |
| External connectors | 1 x MIC |
| External connectors | 1 x Line In |
| External connectors | 2 x USB4 Type-C |
| External connectors | 1 x Q-Flash Plus button |
| External connectors | 2 x RJ-45 |
| Onboard connectors | 1 x Reset button |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x USB 3.0 header |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 4 x M.2 |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 8 x SATA III 6Gb/s |
| Onboard connectors | 2 x temperature sensor |
| BIOS | Flash memory 1 x 256 Mbit Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | E-ATX |
| Dimensions | 30.5 x 26.4 cm |
| Supported operating systems | Windows 11 |
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
