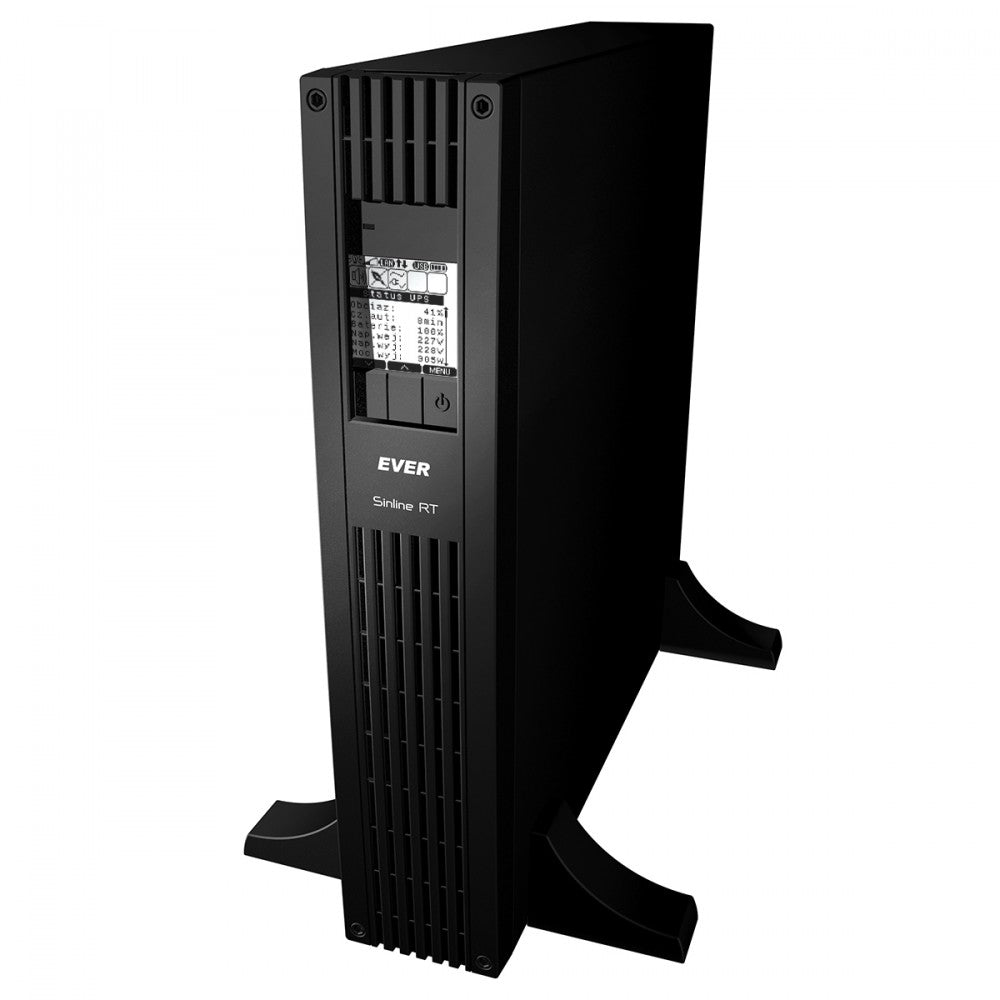

EVER UPS SINLINE RT 1200
Specifications
| Description | SINLINE RT is the latest series of high-end power supplies for servers, small computer networks and workstations as well as other electrical, electronic and IT products. Thanks to the universal solution of the housing (Rack / Tower) it is possible to change the way of installation of the device in a simple and quick way. Built-in automatic voltage regulation (AVR) (adjustable and adjustable) allows the input voltage to be adjusted to acceptable levels without consuming battery power. The integrated battery charging system with thermal compensation further protects internal batteries, extending their service life, thus reducing operating costs. The SINLINE RT series has the ability to replace the battery by the user and a system of extended communication through an integrated network interface as standard (SNMP, HTTP) and a HID USB communication interface that allows the UPS to work with other devices without the need for software installation. The extensive LCD graphic display gives the user full control over the device, along with real-time UPS autonomy (predictive hold time). In addition, this series allows you to start the device from the battery without having to connect the UPS to the mains supply. "Cold start". |
|---|---|
| Apparent power | 1200 VA |
| Active power | 850 |
| UPS Architecture | line-interactive |
| Number of phases input | 1 (230V) |
| No. of batteries | 2 |
| Voltage | 12 |
| Battery capacity | 7 |
| Hold-up time (maks) | 3 |
| Backup time (100% load) | 3 |
| Charging time | 4 |

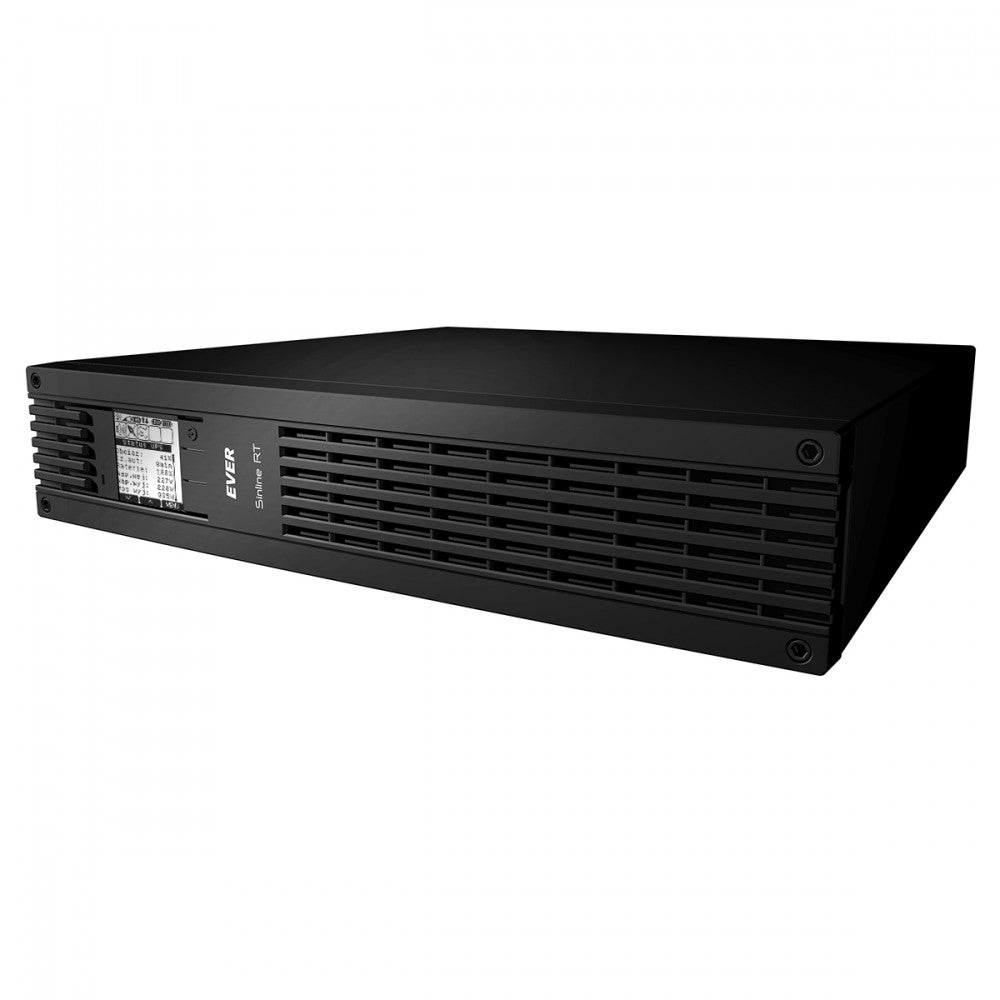

| Chassis type | Rack |
| Chassis type | Tower |
| Filters / protection | Circuit |
| Filters / protection | Overload |
| Filters / protection | Surge |
| Special functions | - Rack / Tower housing - Voltage regulation system AVR (boost and lower) - Graphical LCD display - Battery charging system with thermal compensation - Predictive hold time - Cold start - Battery replacement by the user - Network interface as standard (SNMP / HTTP) - HID USB communication interface - Firmware update (by user) |
| Software | PowerSoft Professional monitoring and management software |

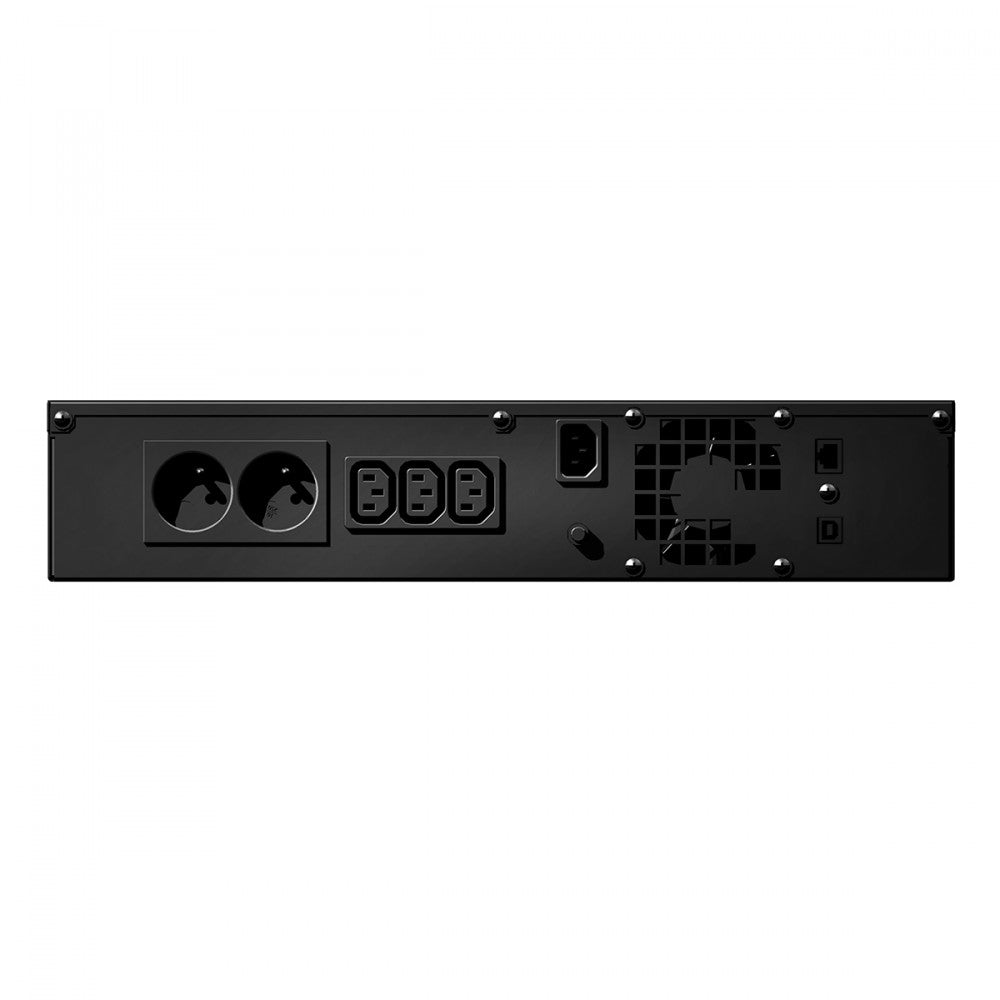

| Input power ports | IEC-C14 |
| Output power ports | 3 x IEC-C13 |
| Output power ports | 2 x C/E type |
| Connectors | RJ-45 |
| Connectors | 1 x USB (Typ B) |
| Environment requirements | - Working temperature: 0 - 40 degrees Celsius - Storage temperature: 0 - 45 degrees Celsius - Operating relative humidity: 20 - 80% (non-condensing) - Storage relative humidity: 20 - 95% (non-condensing) - Height up to 1000 m |
| Color | Black |
| Dimensions | - Rack: 88 x 440 x 430 mm (mounting kit available optional) - Tower (+ stands): 450 x 260 x 430 mm |
| Weight | 15 |
| Other features | - Degree of protection IP20 - Designed for office / industrial premises with low pos. pollution - Built-in cooling fans - Input: 230V AC 50Hz (178 ~ 281V AC) - Output: 230V AC 50Hz (195 ~ 253V AC) - Battery back time (80/50%): 4/7 minutes - Maximum output cable length: |
| Warranty | - Door-to-door service - 3 year warranty on UPS electronics - 2 year battery warranty - Repair work done in 2 working days |
