Beschreibung
General Information
- SKU: 1465315
- Manufacturer Product Page: ELKO
- Manufacturer Code: N/A
- Catalog: N/A
- EAN: N/A
- Warranty: N/A months
- Currency: N/A
- Packaging Quantity: N/A
Specifications
| Category Code | PSU |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.325 |
| Unit Box Width | 0.235 |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Combined power (+12V) | 1299.96 |
| Combined power (+3.3V) | 120 |
| Combined power (+5V) | 120 |
| Combined power (+5Vsb) | 15 |
| Max output current (+12V) | 108.33 |
| Max output current (+3.3V) | 22 |
| Max output current (+5V) | 22 |
| Max output current (+5Vsb) | 3 |
| Maximum input current (@110V) | 15 |
| Maximum input current (@220V) | 10 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Short circuit/Under voltage |
| Total power | 1300 |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 600 |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| PCI Express power connectors (6+2 pin) | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.1 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 135 |
| Illumination | No |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | Black |
| Depth | 150 |
| Height | 86 |
| Width | 190 |
| Country of origin | China |
| Units per Pallet | 0 |
| Units per Shipping Box | 2 |
| Unit Calculated Volume | 0.01367 |
| Unit Calculated Weight | 4.9 |
Description

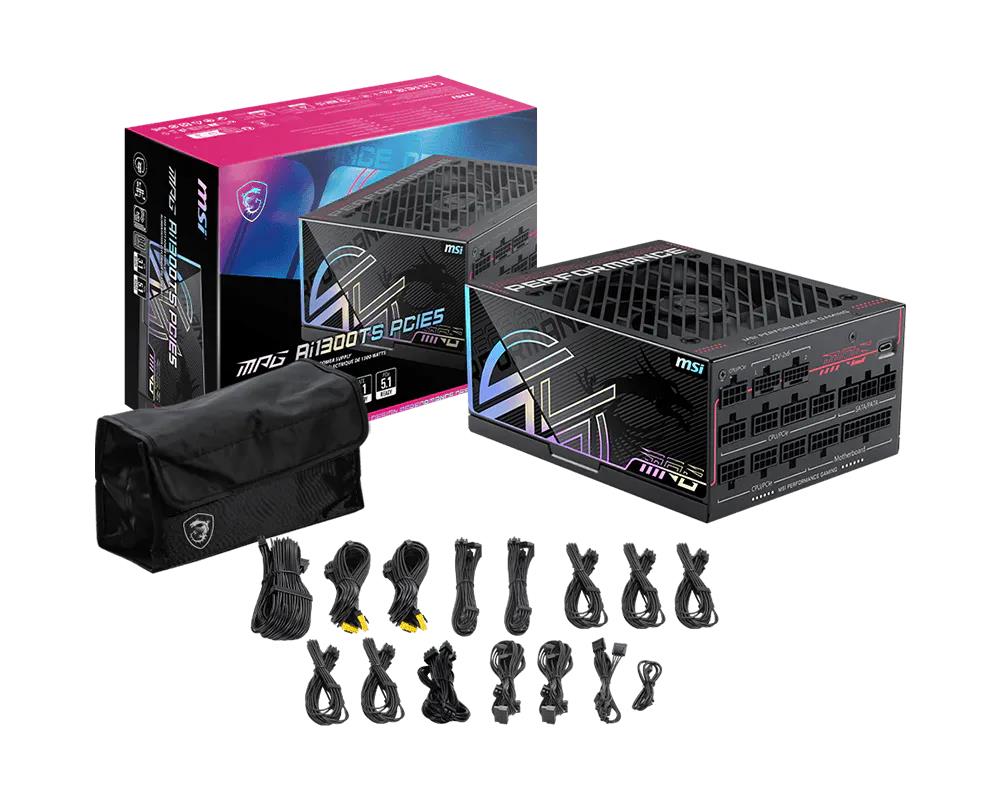

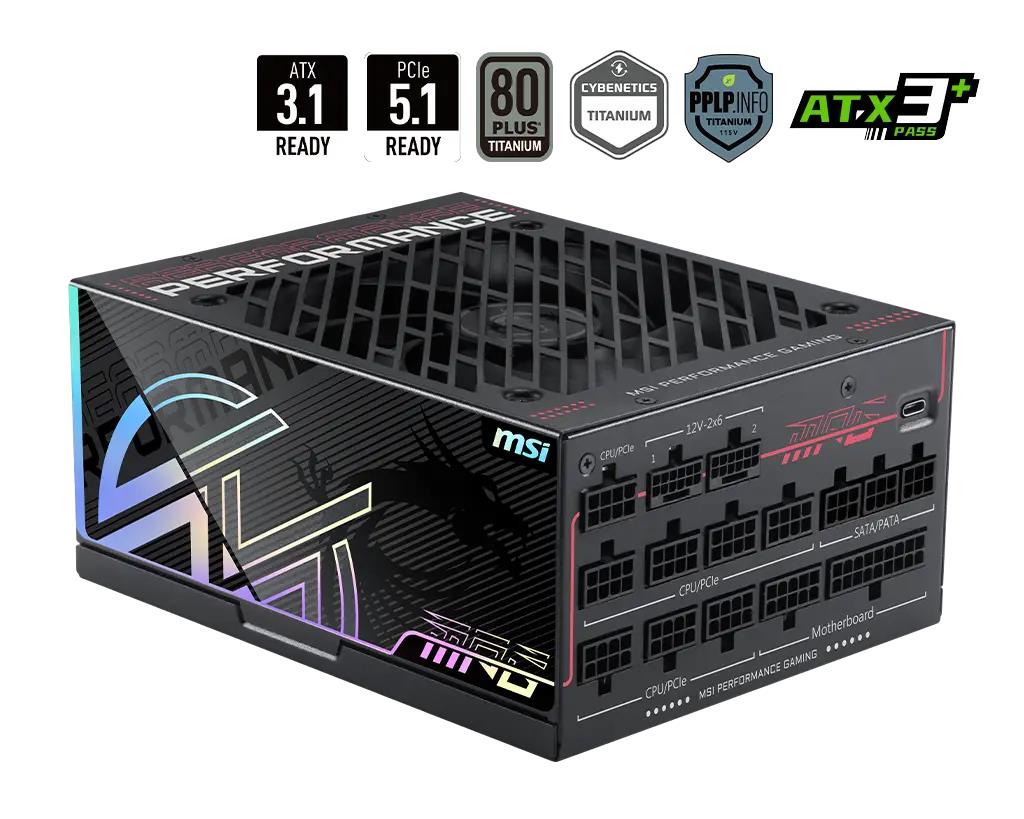

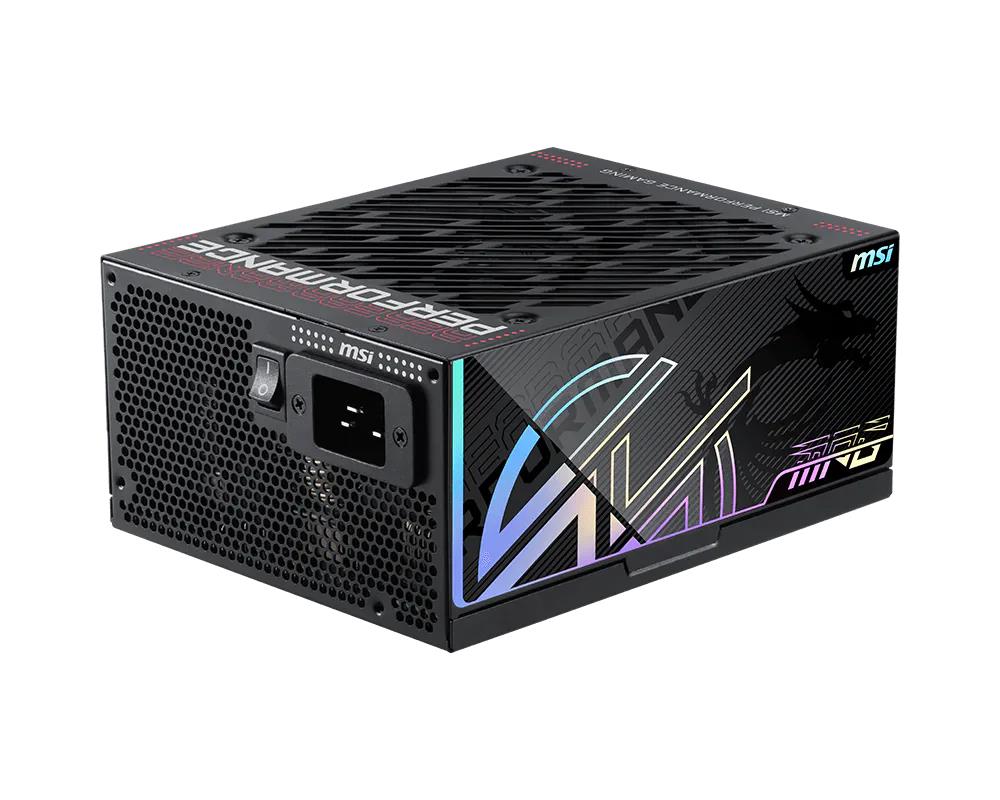

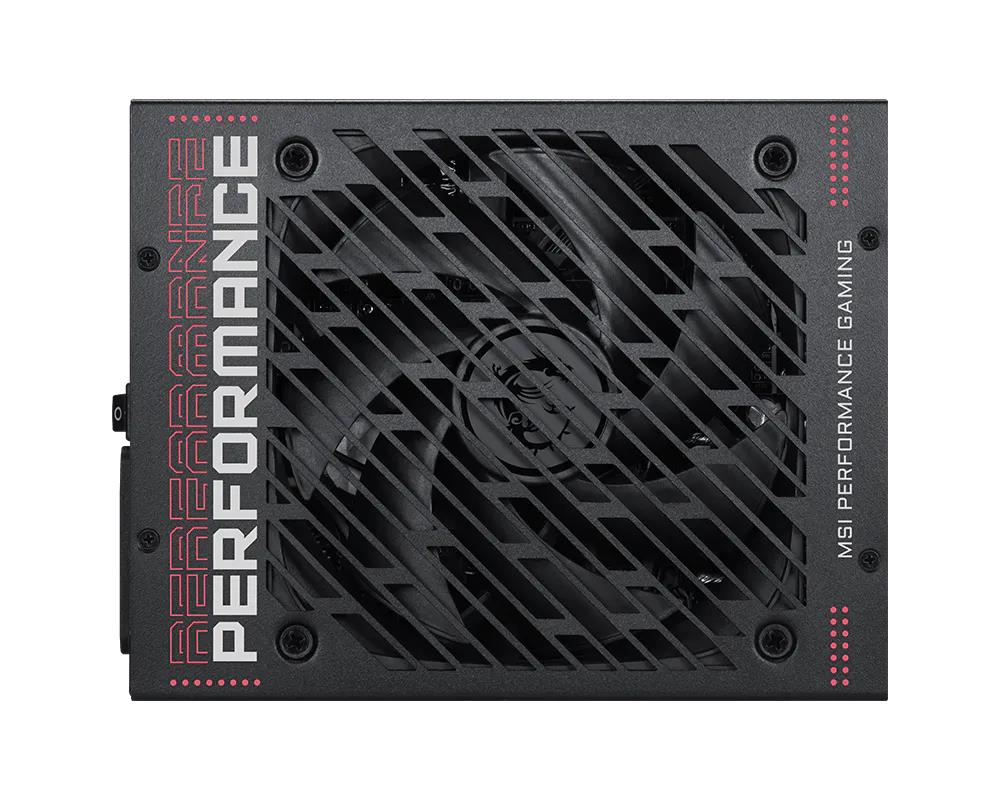

MSI MPG Ai1300TS PCIE5. Total power: 1300 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 190 mm, Depth: 150 mm, Height: 86 mm
MSI MPG Ai1300TS PCIE5. Total power: 1300 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 190 mm, Depth: 150 mm, Height: 86 mm
Over current/Over power/Over voltage/Short circuit/Under voltage
- Premium protection, GPU Safeguard+ and Fan Safeguard
- Server-grade materials, SiC interleaved PFC MOSFET
- Supports Nvidia® GeForce RTX™ 50 series graphics cards

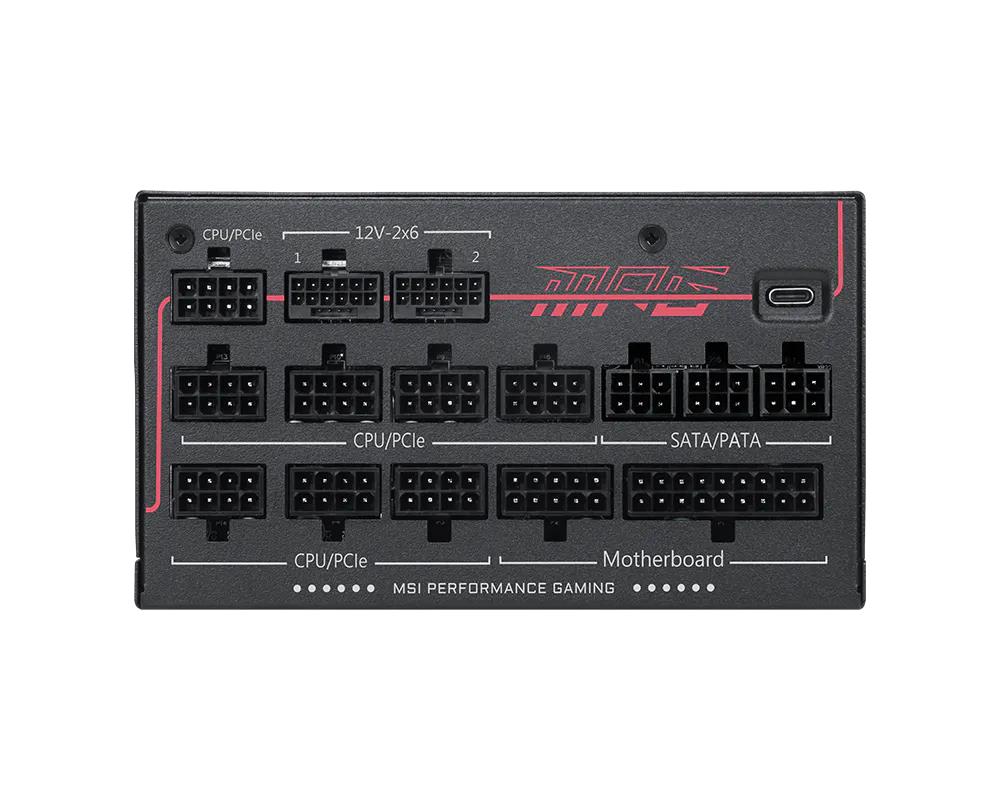

- 2 x native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Titanium certified
- Optimized the sound level
- 100% all Server-grade 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
