ELKO 1465312

General Information

• SKU: 1465312
• Manufacturer Product Page: ELKO
• Manufacturer Code: N/A
• Catalog: N/A
• EAN: N/A
• Warranty: N/A months
• Currency: N/A
• Packaging Quantity: N/A

Specifications

Category Code	PSU
Unit Box Height	0.13
Unit Box Length	0.3
Unit Box Width	0.225
AC input frequency	50/60
AC input voltage	100 - 240
Combined power (+12V)	999.6
Combined power (+3.3V)	100
Combined power (+5V)	100
Combined power (+5Vsb)	15
Max output current (+12V)	83.3
Max output current (+3.3V)	20
Max output current (+5V)	20
Max output current (+5Vsb)	3
Max output current (-12V)	0.3
Number of +12V rail(s)	1
Power Factor Correction (PFC) type	Active
Power protection features	Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power	1000

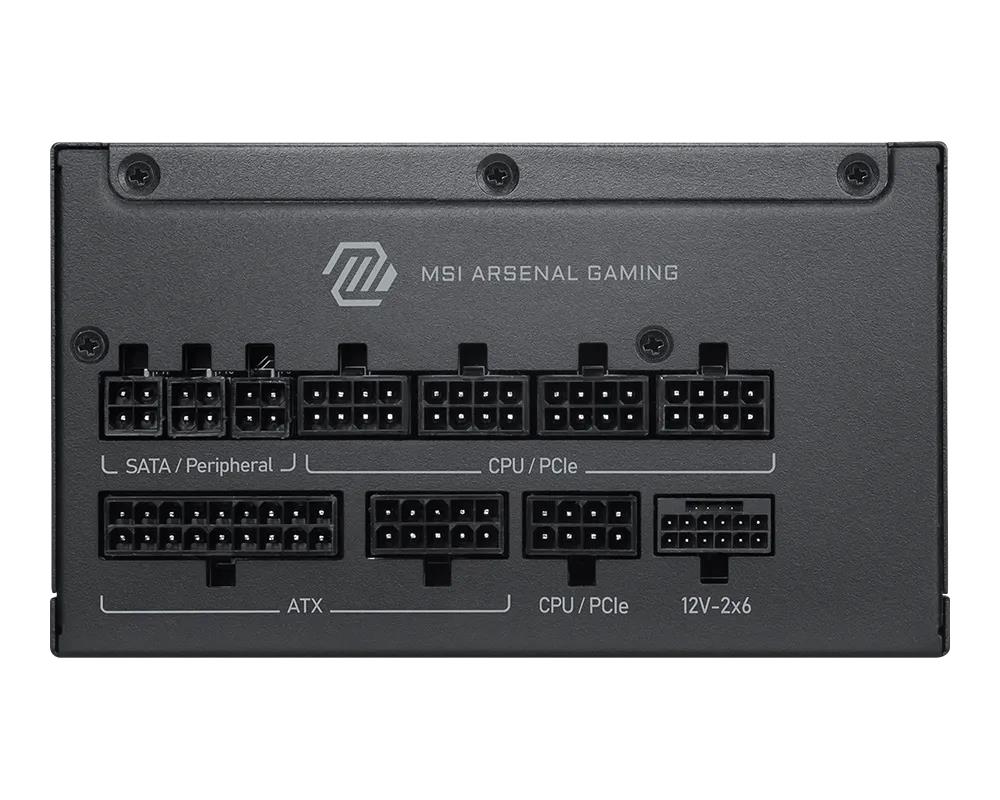

Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
EPS power connector (8-pin)	No
Motherboard power cable length	600
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6
PCI Express power connectors (16-pin)	1
PCI Express power connectors (6+2 pin)	4
Peripheral (Molex) power cable length	450/500
Peripheral (Molex) power connectors (4-pin)	1
SATA power cable length	150/500
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	FDB
Power supply unit (PSU) form factor	ATX
Purpose	PC
Cooling type	Active

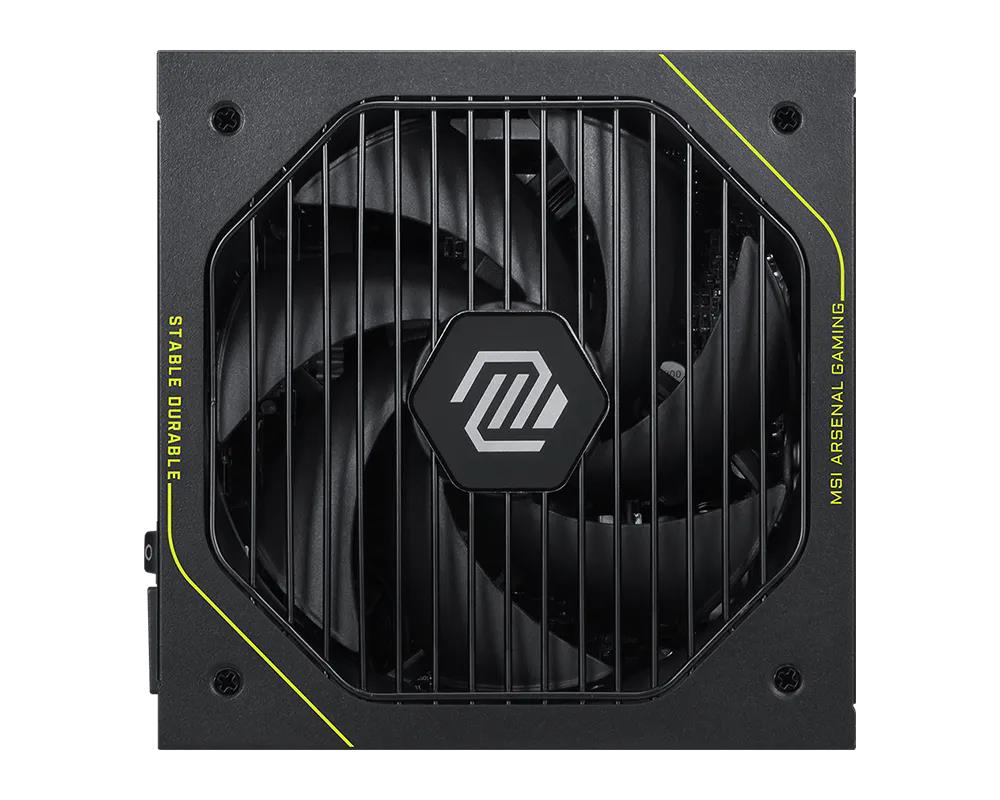

Fan diameter	135
Illumination	No
Number of fans	1
On/off switch	Yes
Product colour	Black
Depth	150
Height	86
Width	150
Units per Pallet	0
Units per Shipping Box	4
Unit Calculated Volume	0.011
Unit Calculated Weight	3.3

Description

Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components./

Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

• Premium protection, GPU Safeguard and Fan Safeguard
• Supports Nvidia® GeForce RTXTM 50 series graphics cards
• Native 12V-2x6 connector
• Dual-color 12V-2x6 cable
• 80 PLUS Platinum certified
• Optimized the sound level
• Main 105oC capacitor
• Embossed Jacket Cables, the cables are more bending and routing
• Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

MSI MAG A1000PLS PCIE5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm

MSI MAG A1000PLS PCIE5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm

Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage

• Premium protection, GPU Safeguard and Fan Safeguard
• Supports Nvidia® GeForce RTXTM 50 series graphics cards
• Native 12V-2x6 connector
• Dual-color 12V-2x6 cable
• 80 PLUS Platinum certified
• Optimized the sound level
• Main 105oC capacitor
• Embossed Jacket Cables, the cables are more bending and routing
• Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
