ELKO 1462918
ELKO 1462918

ELKO 1462918

ELKOSKU: 1462918
Keine Bewertungen
Preis:
€63,99
Lagerbestand:
Verfügbar (5 Stück), versandbereit

Beschreibung

General Information

  • SKU: 1462918
  • Manufacturer Product Page: ELKO
  • Manufacturer Code: N/A
  • Catalog: N/A
  • EAN: N/A
  • Warranty: N/A months
  • Currency: N/A
  • Packaging Quantity: N/A

Specifications

Category Code MCO
Unit Box Height 0.165
Unit Box Length 0.21
Unit Box Width 0.07
Auto-negotiation Yes
Copper ethernet cabling technology 1000BASE-T/10GBASE-T/2.5GBASE-T
Data transfer rate 10000
Duplex system Full/Half
Maximum data transfer rate 10000
Networking standards IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3an/IEEE 802.3aq/IEEE 802.3x/IEEE 802.3z
Fiber mode structure Multi-mode/Single-mode
Maximum transfer distance 100
Internal No
LED indicators Activity/Link/Power
Product colour Black
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber optic connector SFP+
Fiber ports quantity 1
Power consumption (max) 4.12
Depth 73
Height 27
Width 94.5
Operating relative humidity (H-H) 10 - 90
Operating temperature (T-T) 0 - 50
Storage relative humidity (H-H) 5 - 90
Storage temperature (T-T) -40 - 70
AC adapter included Yes
Manual Yes
Compliance certificates RoHS/UL
Units per Pallet 0
Units per Shipping Box 1
Unit Calculated Volume 0.002426
Unit Calculated Weight 0.46

Description

What This Product Does

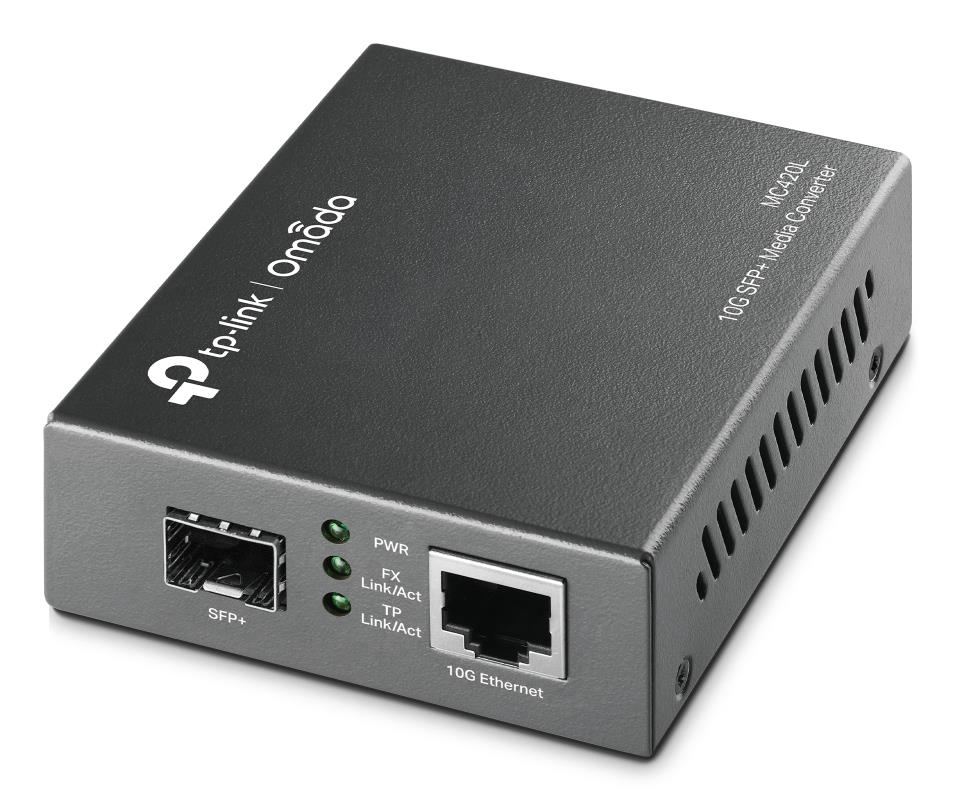

The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

  • 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
  • FX port supports hot-swappable
  • Maximum transmission distance depends on the inserting SFP

TP-Link Omada 10G Multi-Gigabit SFP Media Converter. Maximum data transfer rate: 10000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z, Copper ethernet cabling technology: 2.5GBASE-T, 10GBASE-T, 1000BASE-T. Maximum transfer distance: 100 m, Fiber mode structure: Multi-mode, Single-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SFP+, Connectivity technology: Wired. Power consumption (max): 4.12 W

1000BASE-T/10GBASE-T/2.5GBASE-T

IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3an/IEEE 802.3aq/IEEE 802.3x/IEEE 802.3z
