Beschreibung
General Information
- SKU: 1460679
- Manufacturer Product Page: AXIS 03188-002
- Manufacturer Code: 03188-002
- Catalog: Network Cameras
- EAN: 7331021090392
- Warranty: 60 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.3 |
| Fog proof | Yes |
| Form factor | Dome |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling |
| Product colour | Black/White |
| Protection features | Wear resistant |
| Auto-tracking | Yes |
| Certification | CE, FCC, ICES, KC, VCCI |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | Preset point |
| Tour recording | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera pan control | Yes |
| Camera pixel size | 2.9 |
| Camera shutter speed | 1/49500 - 2 |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 61.5 |
| Lens viewing angle, vertical | 37.3 |
| Minimum illumination | 0.009 |
| Pan range | 0 - 360 |
| Pan speed | 500 |
| Tilt angle range | -90 - 0 |
| Tilt speed | 500 |
| Number of sensors | 1 |
| Optical sensor size | 1/2 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Closest focusing distance | 3 |
| Detect distance (tele) | 3118.4 |
| Detect distance (wide) | 92.6 |
| Digital zoom | 12 |
| Focal length range | 6.64 - 225.5 |
| Identify distance (tele) | 311.8 |
| Identify distance (wide) | 9.3 |
| Maximum aperture number | 5.1 |
| Minimum aperture number | 1.7 |
| Number of lenses | 1 |
| Observe distance (tele) | 1237.5 |
| Observe distance (wide) | 36.7 |
| Optical zoom | 32 |
| Recognize distance (tele) | 623.6 |
| Recognize distance (wide) | 18.5 |
| Zoom capability | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 60 |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution | 2688 x 1512 |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Supported graphics resolutions | 2688 x 1512/640 x 360 |
| Text caption overlay | Yes |
| Total megapixels | 4 |
| Video compression formats | H.262/H.264/H.265/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3bt |
| Streaming method | Multicast |
| Card reader integrated | Yes |
| Compatible memory cards | SD/SDHC/SDXC |
| Flash memory | 8192 |
| RAM capacity | 4096 |
| Ethernet LAN (RJ-45) ports | 1 |
| Alert notification type | |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object/Crossing line |
| Password protection | Yes |
| Pixel counter | Yes |
| Power consumption (max) | 51 |
| Power consumption (typical) | 10 |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 - 100 |
| Operating temperature (T-T) | -50 - 55 |
| Storage relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -40 - 65 |
| Depth | 264 |
| Height | 279 |
| Weight | 4100 |
| Width | 264 |
| Compliance certificates | REACH/RoHS/Trade Agreements Act (TAA) |
| Number of cameras | 1 |
| Doesn't contain | CFR/PVC/BFR |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.03441 |
| Unit Calculated Weight | 6.1 |
Description

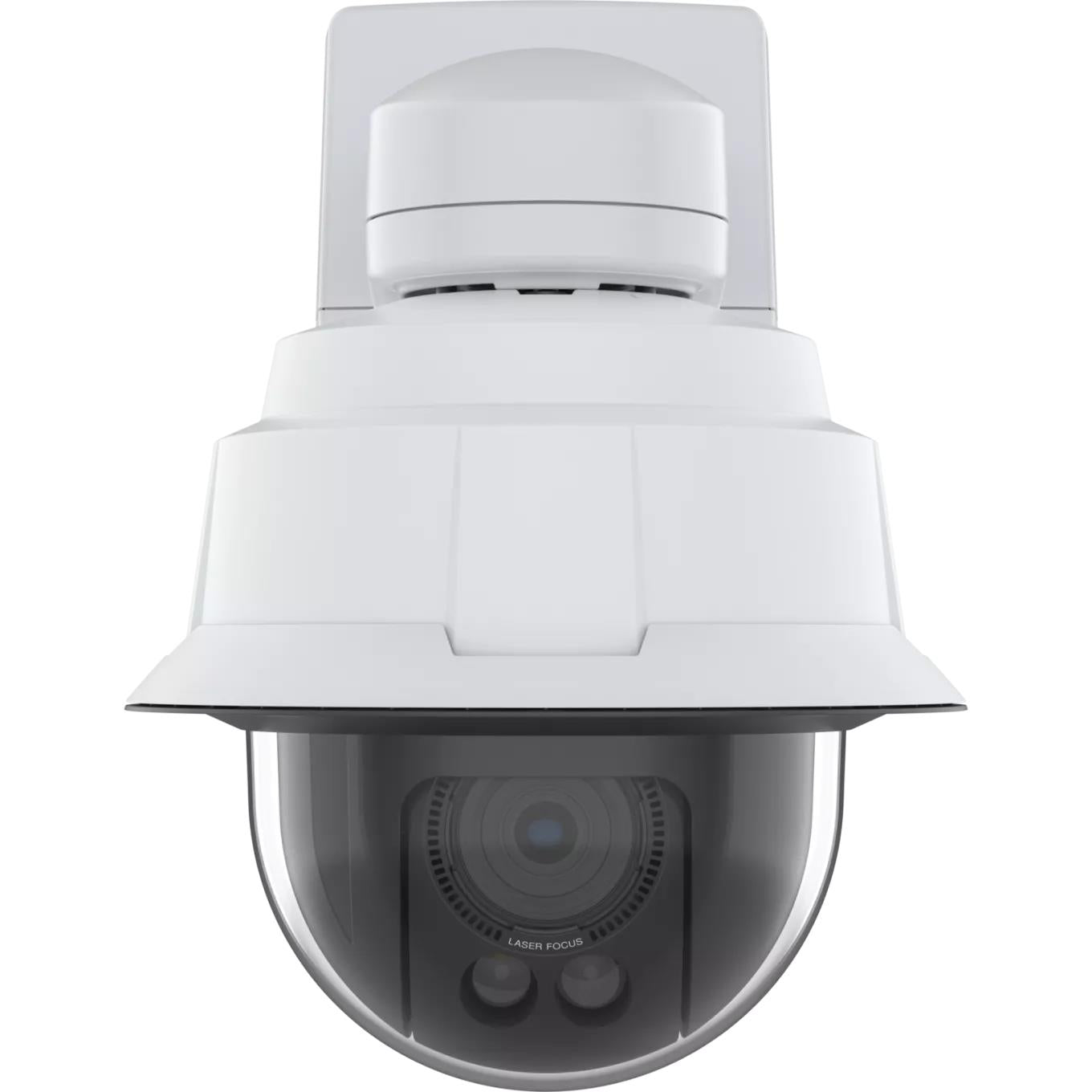

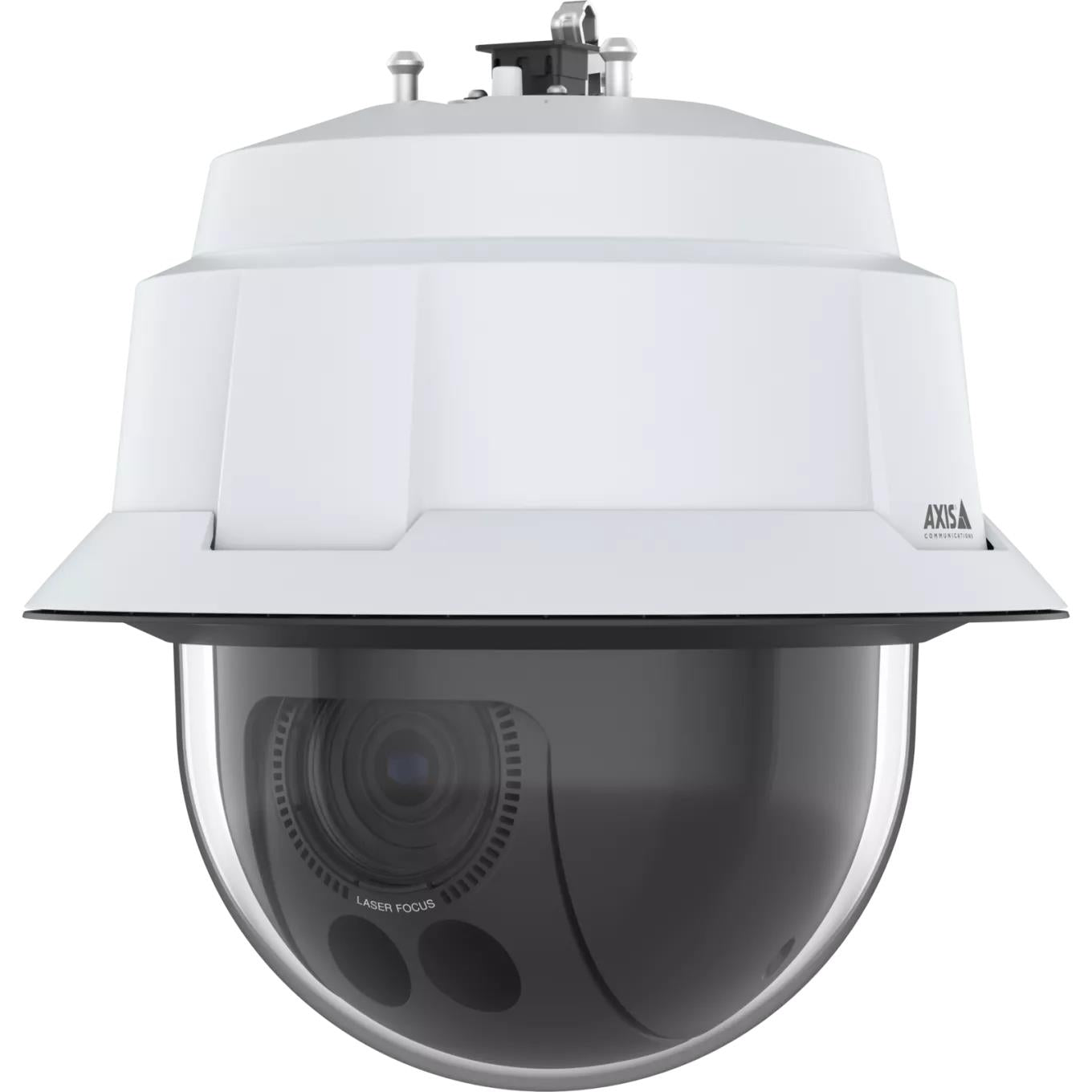

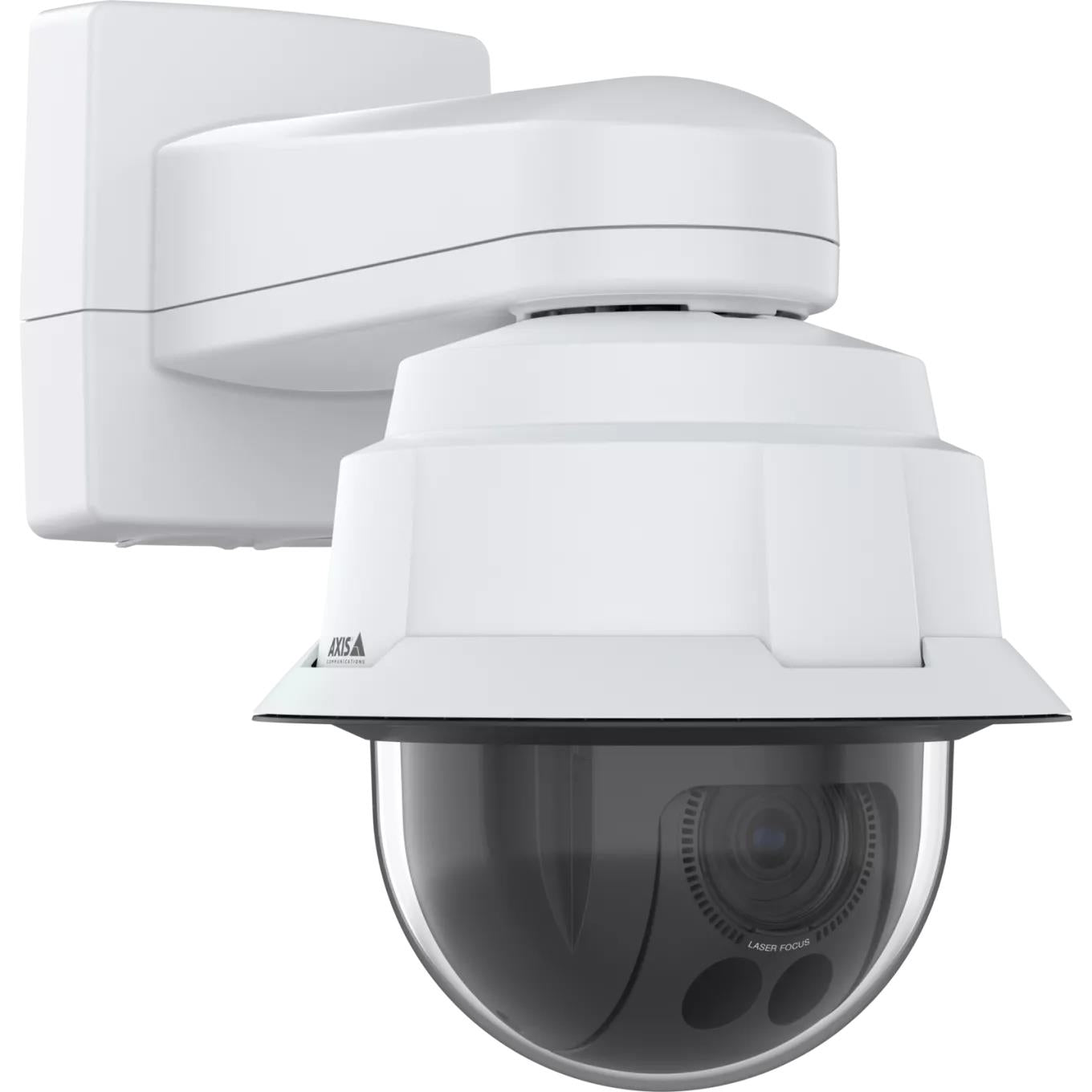

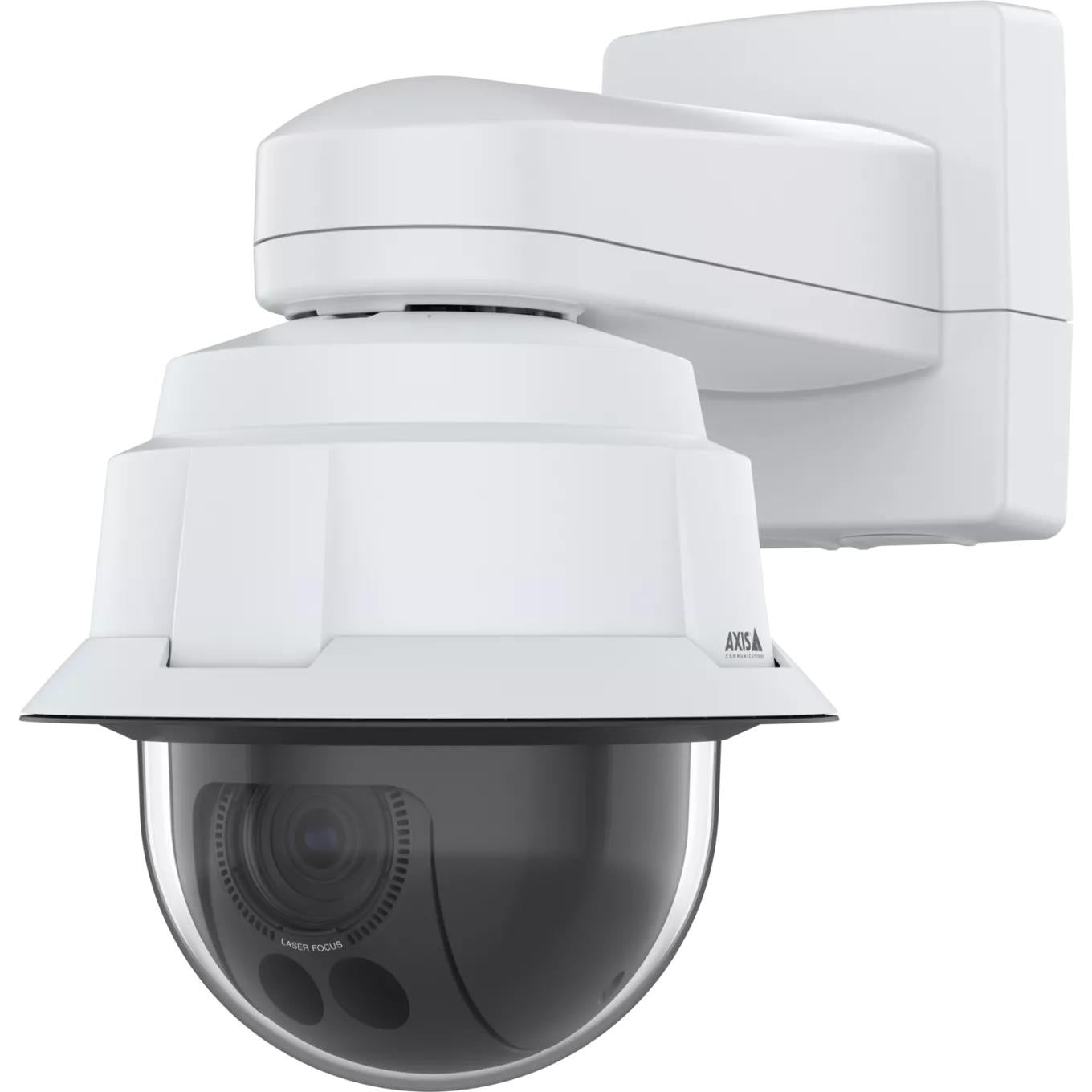

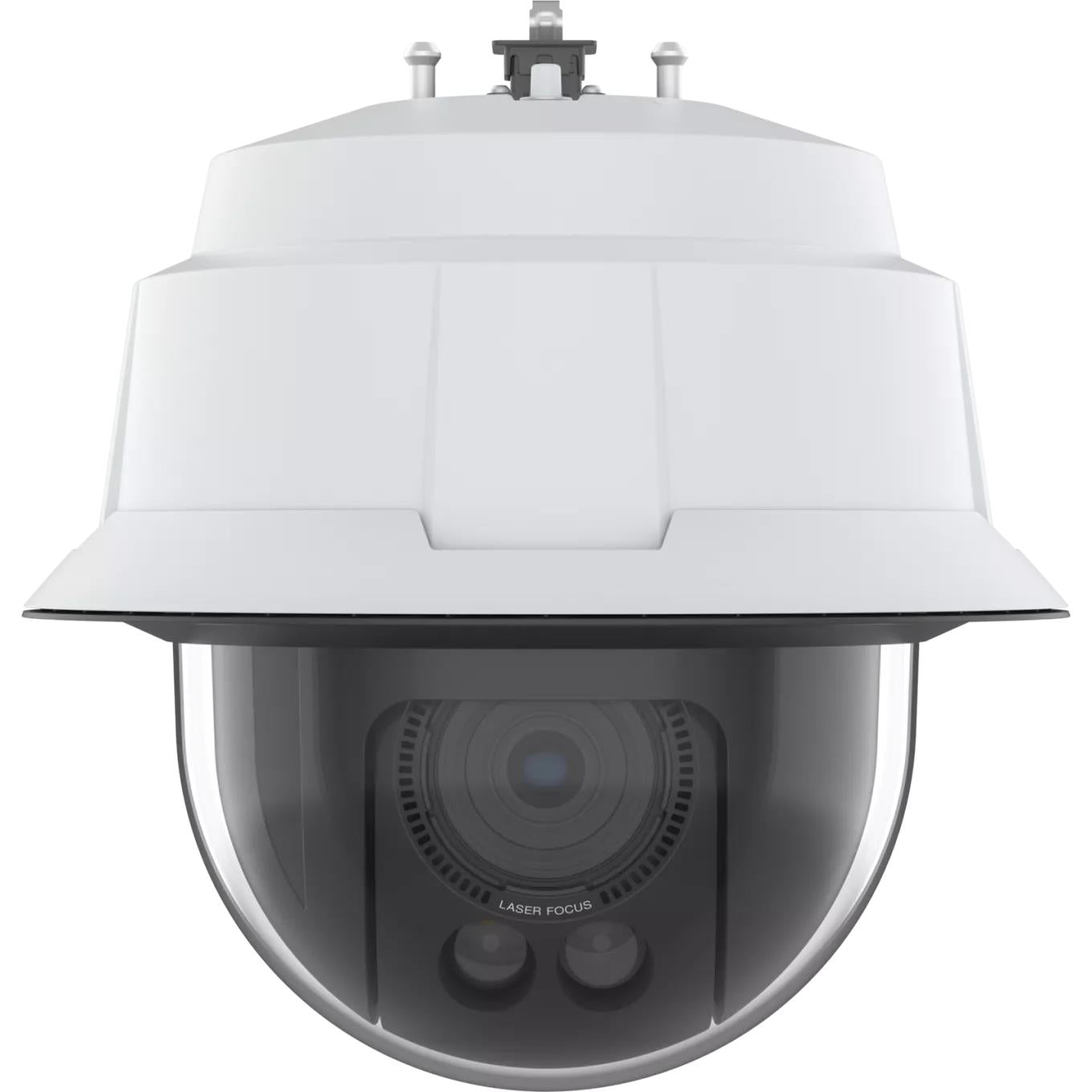

Axis Q6086-E PTZ. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Form factor: Dome. Minimum illumination: 0.009 lx, Lens viewing angle, horizontal: 61.5°, Lens viewing angle, vertical: 37.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2 mm (1 / 2"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 6.64 - 225.5 mm
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
H.262/H.264/H.265/M-JPEG/MPEG4
IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3bt
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4
