General Information
- SKU: 1459792
- Manufacturer Product Page: DAHUA IPC-HDBW5559E1-ZHE-IL-27135-BLACK
- Manufacturer Code: IPC-HDBW5559E1-ZHE-IL-27135-BLACK
- Catalog: Network Cameras
- EAN:
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Form factor | Dome |
| Housing material | Metal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black |
| Protection features | Vandal proof |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 |
| People counting function | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 355 |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 134 - 37 |
| Lens viewing angle, horizontal | 110 - 32 |
| Lens viewing angle, vertical | 57 - 18 |
| Minimum illumination | 0.0005 |
| Pan range | 0 - 355 |
| Tilt angle range | 0 - 80 |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Optical sensor size | 1/2.7 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.3 |
| Detect distance (tele) | 202 |
| Detect distance (wide) | 65.4 |
| Focal length range | 2.7 - 13.5 |
| Identify distance (tele) | 20.2 |
| Identify distance (wide) | 6.5 |
| Maximum aperture number | 1.6 |
| Observe distance (tele) | 80.8 |
| Observe distance (wide) | 26.1 |
| Recognize distance (tele) | 40.4 |
| Recognize distance (wide) | 13.1 |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 60 |
| Number of illumination LEDs | 4 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Frame rate | 30 |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 2960 x 1668 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Total megapixels | 5 |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3at |
| Number of users | 20 |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 |
| RAM capacity | 2048 |
| ROM capacity | 4096 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 2 |
| Alarm output channels | 1 |
| Digital watermark | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion/People counting/Tripwire |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 12.9 |
| Power consumption (typical) | 3.7 |
| Power source type | PoE,DC |
| Operating temperature (T-T) | -40 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Diameter | 159 |
| Height | 118 |
| Weight | 1160 |
| Compliance certificates | CE |
| Package weight | 1360 |
| Manual | Yes |
| Number of cameras | 1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003288 |
| Unit Calculated Weight | 1.3 |
Description

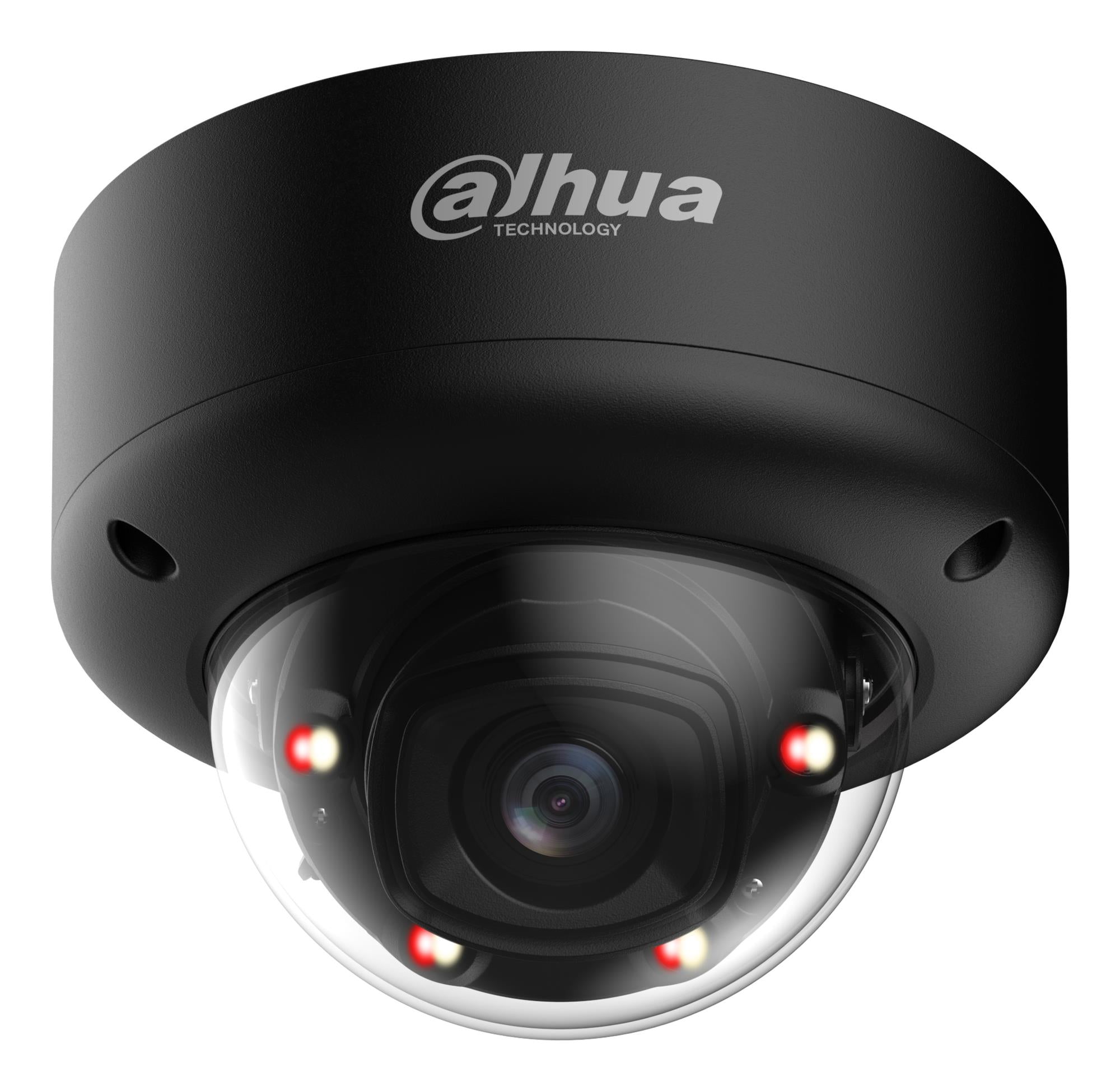

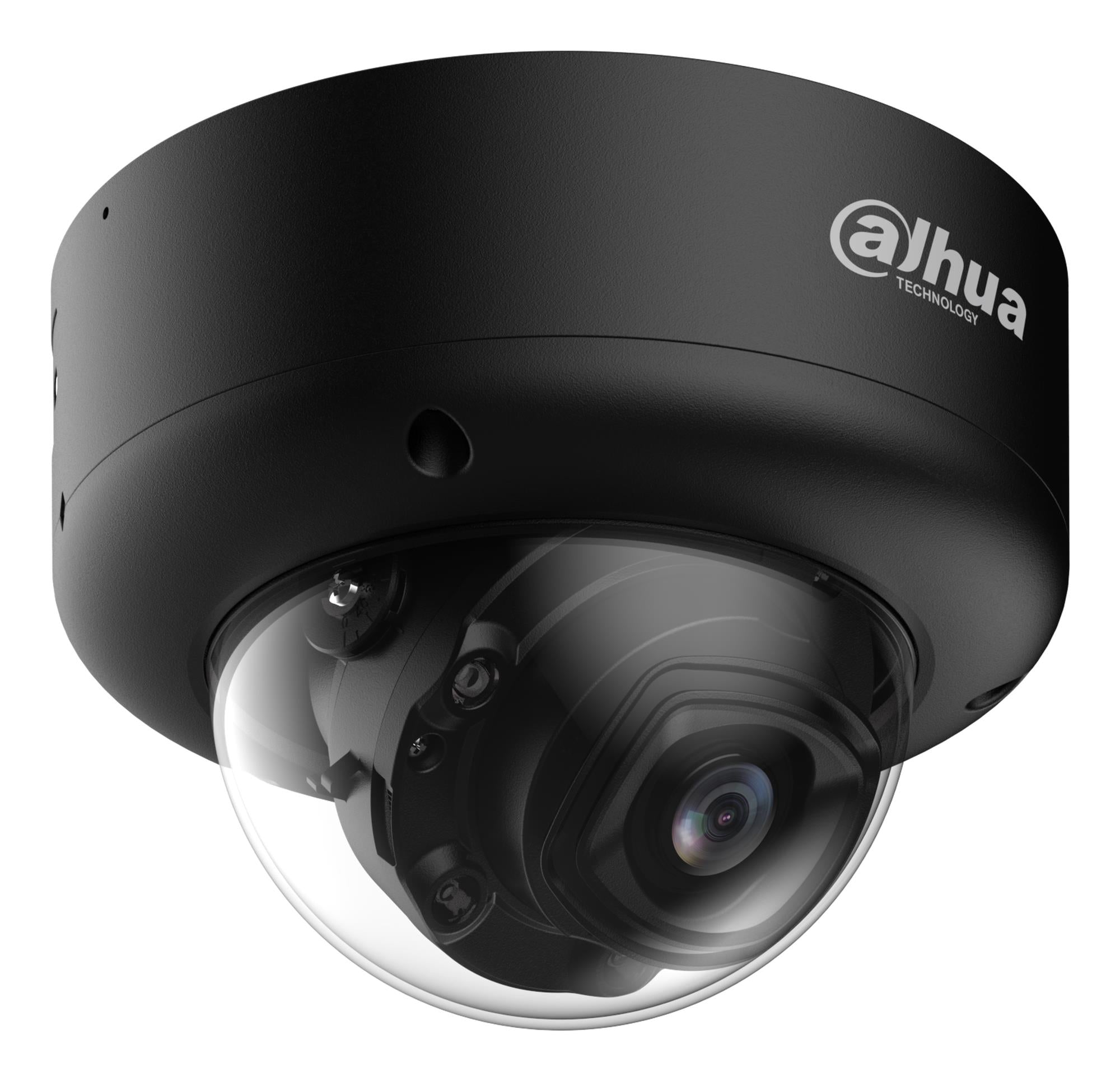

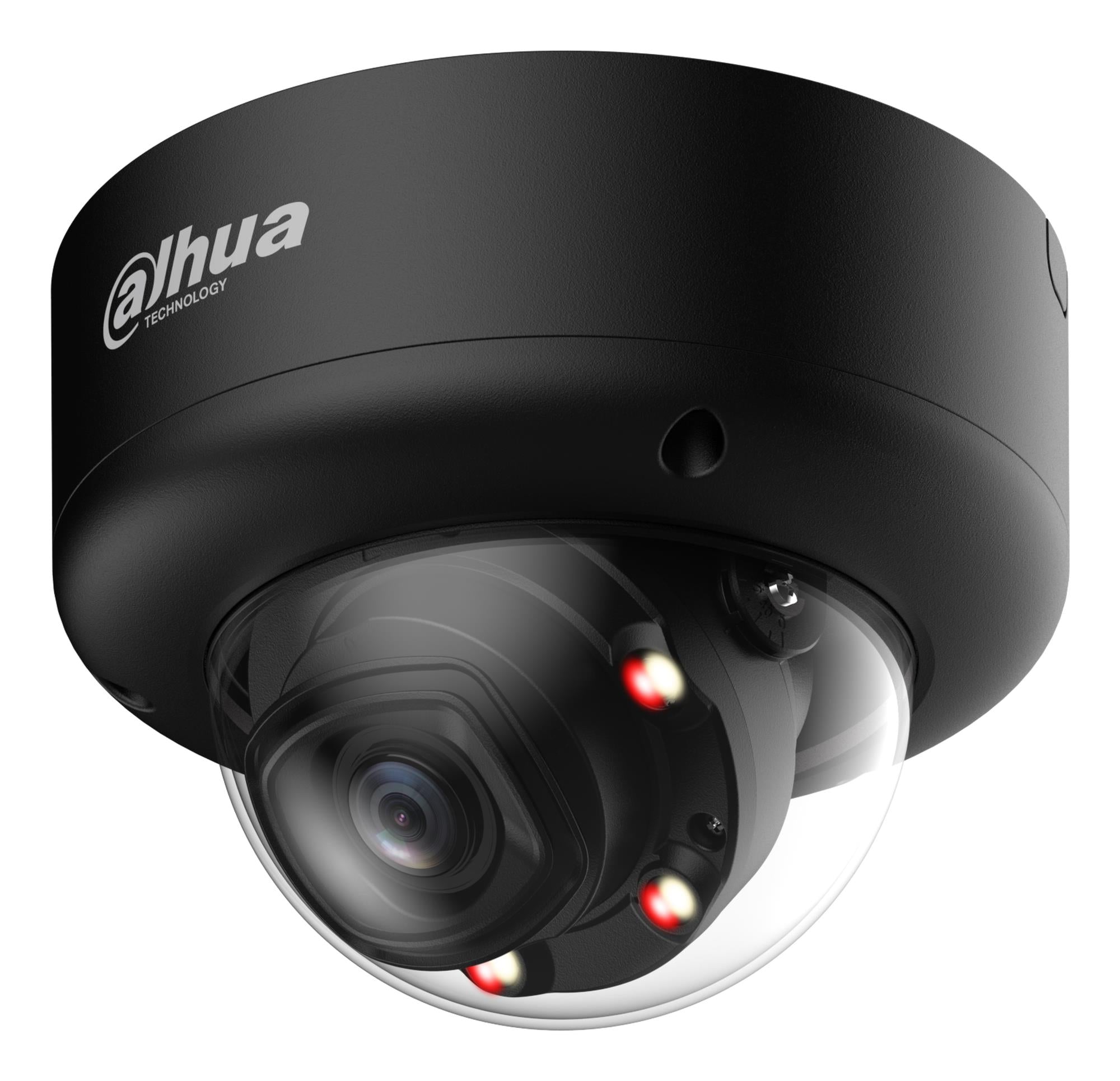

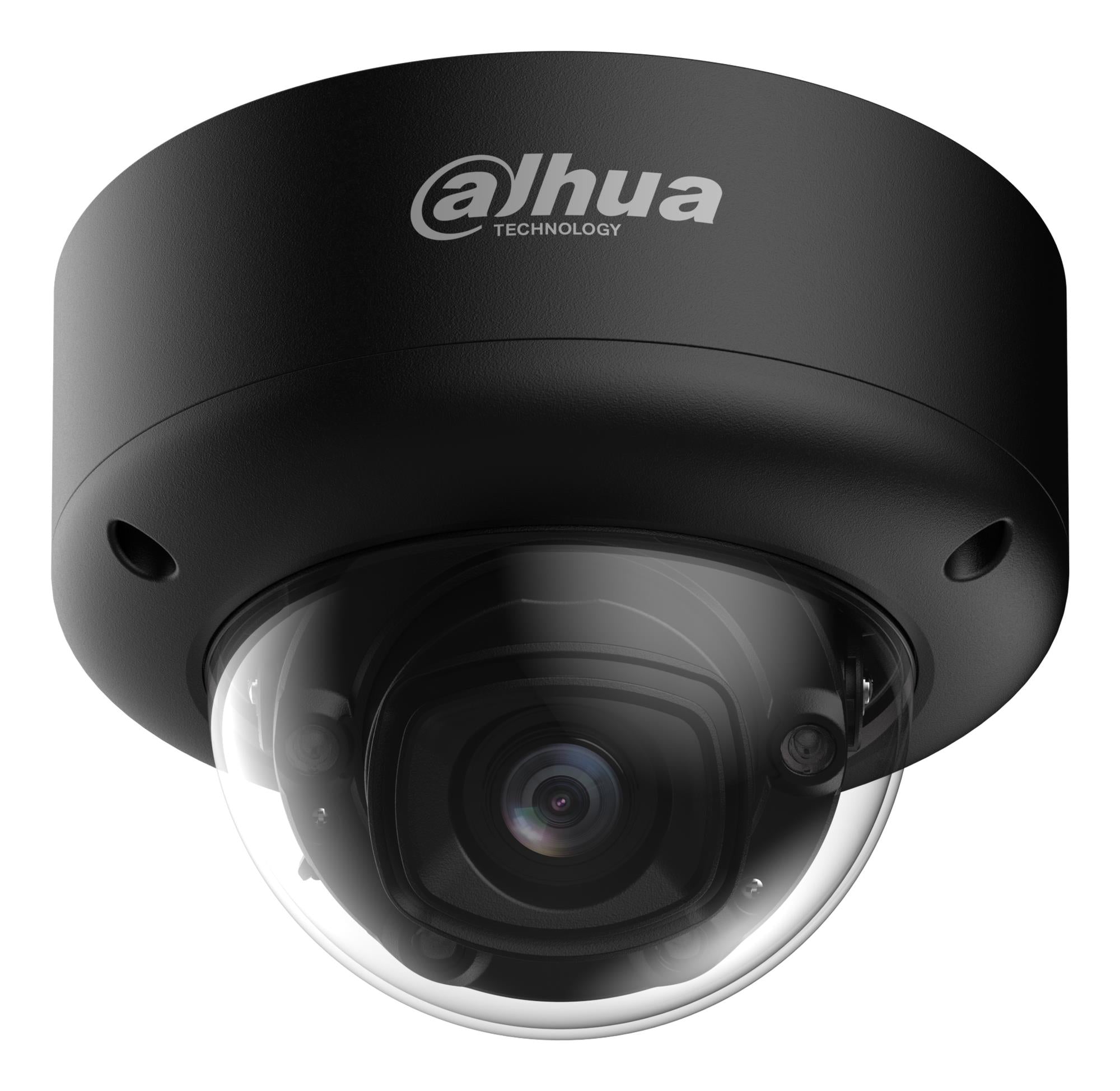

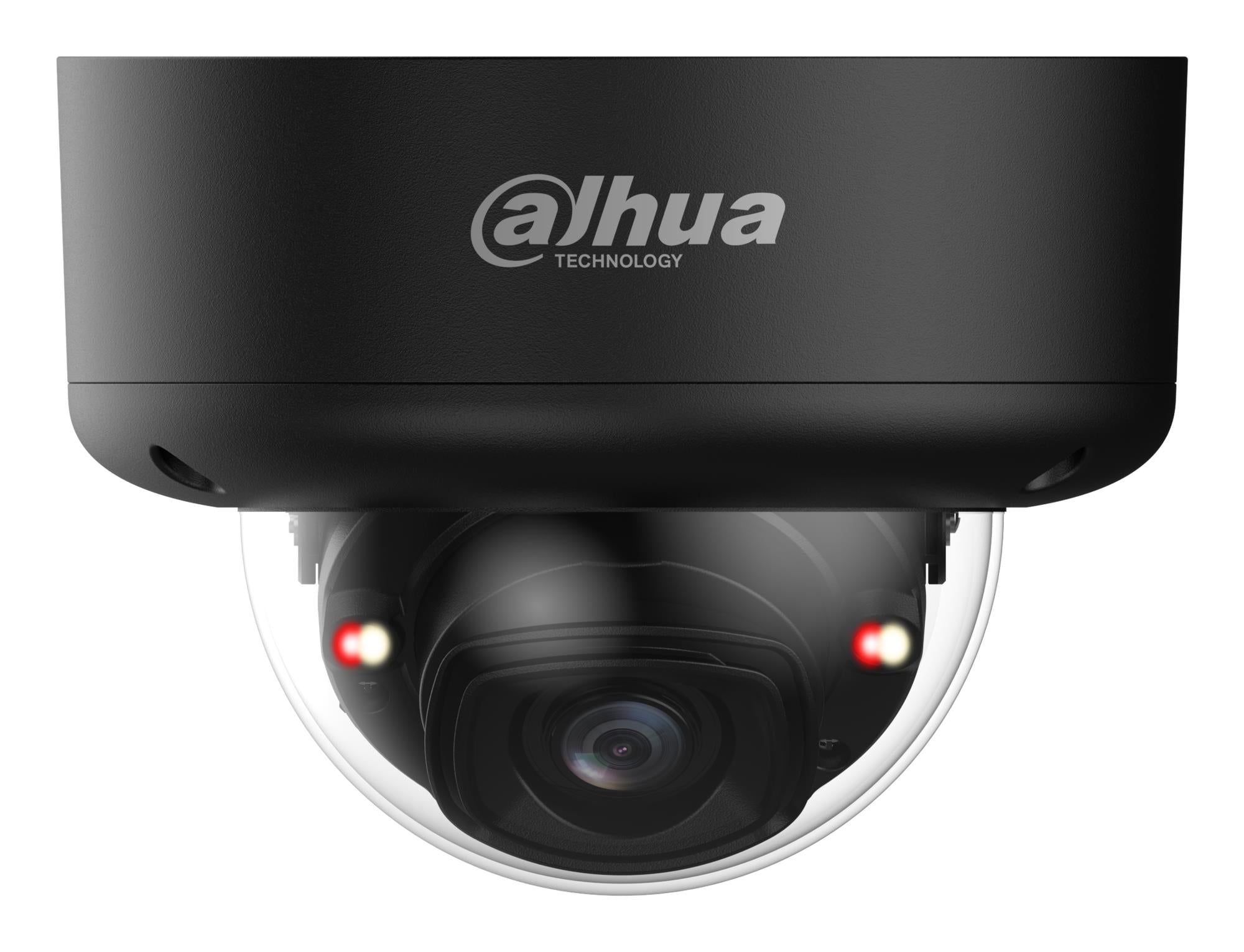

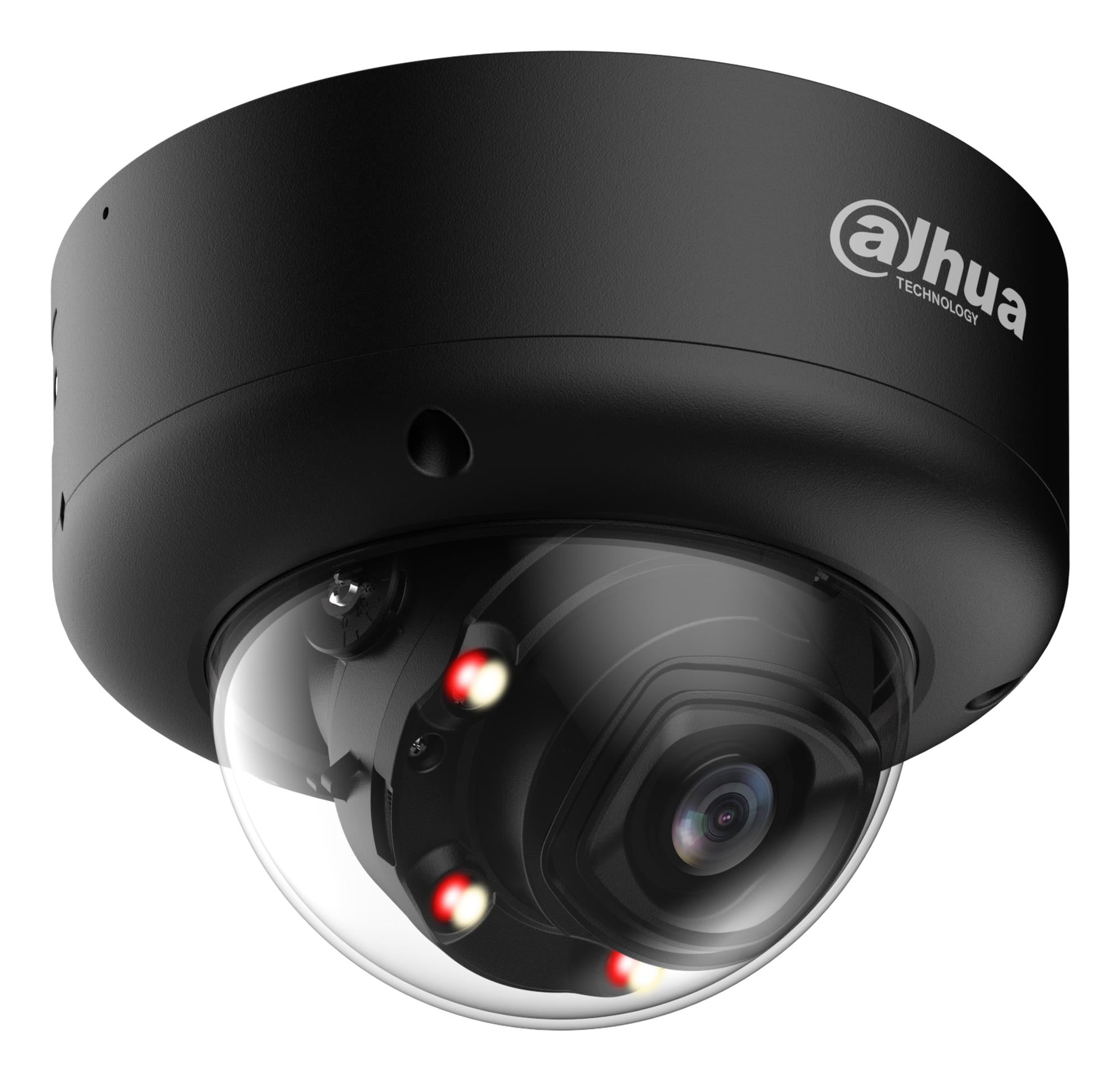

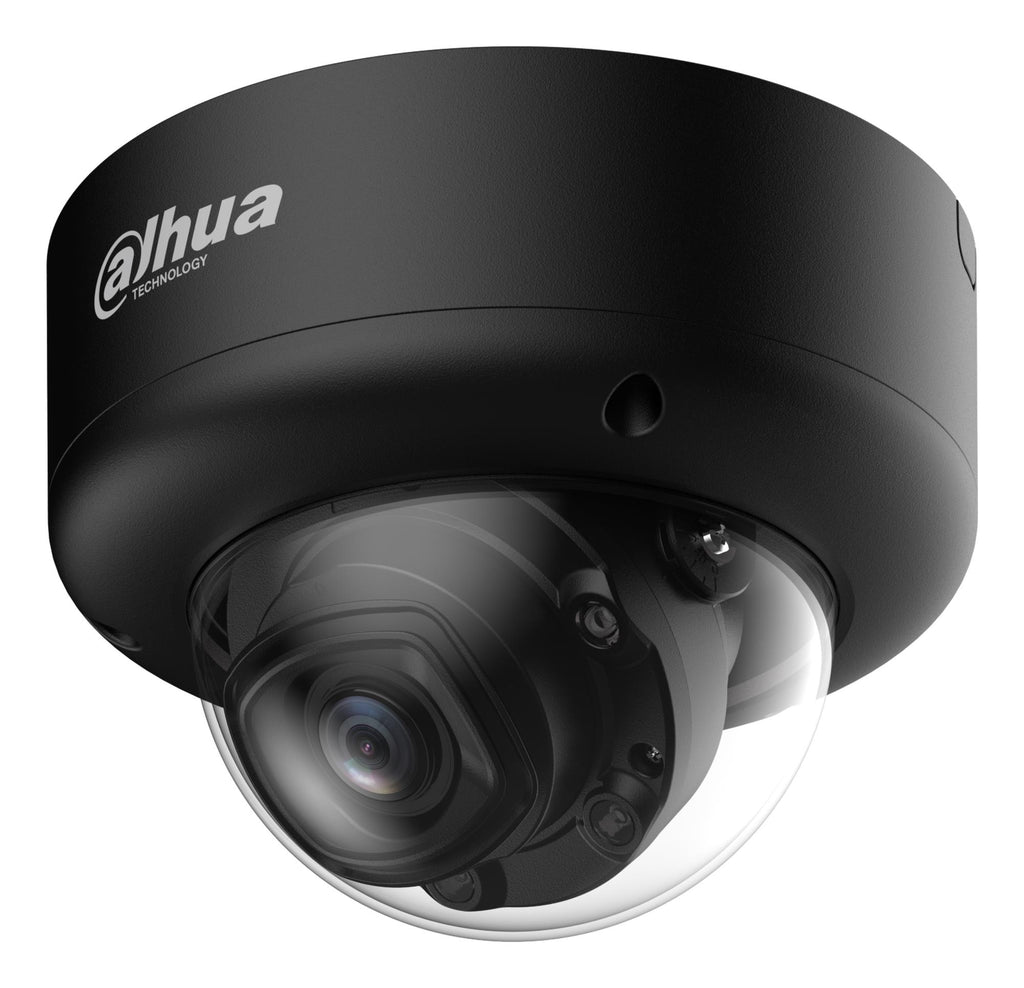

Dahua Technology WizMind IPC-HDBW5559E1-ZHE-IL-27135-Black. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Dome. Minimum illumination: 0.0005 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 110 - 32°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.7 - 13.5 mm, Detect distance (wide): 65.4 m, Detect distance (tele): 202 m
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
H.264/H.264B/H.264H/H.265/M-JPEG
G.711 µ-law/G.711 A-law/G.723/G.726/PCM
IEEE 802.1x/IEEE 802.3at
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
