Beschreibung
General Information
- SKU: 1459786
- Manufacturer Product Page: DAHUA IPC-HFW5859E-ASE-IL-0280B
- Manufacturer Code: IPC-HFW5859E-ASE-IL-0280B
- Catalog: Network Cameras
- EAN:
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Fog proof | Yes |
| Form factor | Bullet |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Alarm input/output | Yes |
| Built-in light | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 |
| People counting function | Yes |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 |
| Camera shutter speed | 1/3 - 1/100000 |
| Camera shutter type | Electronic/Mechanical |
| Lens viewing angle, diagonal | 134 |
| Lens viewing angle, horizontal | 110 |
| Lens viewing angle, vertical | 56 |
| Minimum illumination | 0 |
| Pan range | 0 - 360 |
| Tilt angle range | 0 - 90 |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Optical sensor size | 1/1.8 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 2.1 |
| Detect distance | 89.2 |
| Fixed focal length | 2.8 |
| Fixed focus | Yes |
| Identify distance | 8.9 |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance | 35.7 |
| Recognize distance | 17.8 |
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 50 |
| Number of illumination LEDs | 4 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 kbps-16384 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3840 x 2160 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| Total megapixels | 8 |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video streaming | Yes |
| Audio codecs | G.711a; G.711Mu; PCM; G.726; G.723 |
| Audio input channels | 1.0 |
| Audio output channels | 1.0 |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 |
| Bluetooth | No |
| Cabling technology | 10/100Base-T(X) |
| Client interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3at |
| Wi-Fi | No |
| Wi-Fi standards | Not supported |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 |
| RAM capacity | 2000 |
| ROM capacity | 4000 |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Face detection/Heat map/Intrusion/Moving object/Tripwire |
| Mirror | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
| Management software | DSS; DMSS; DoLynk Care |
| Web browser | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 13.3 |
| Power consumption (Power over Ethernet (PoE)) | 6.3 |
| Power consumption (typical) | 4.2 |
| Power source type | DC |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | -40 - 60 |
| Storage relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Height | 66.4 |
| Length | 192.7 |
| Weight | 610 |
| Width | 70.5 |
| Package weight | 770 |
| Number of cameras | 1 |
| Data transfer rate | 100 |
| Iris | Yes |
| Lens mount interface | M12 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003758 |
| Unit Calculated Weight | 0.75 |
Description

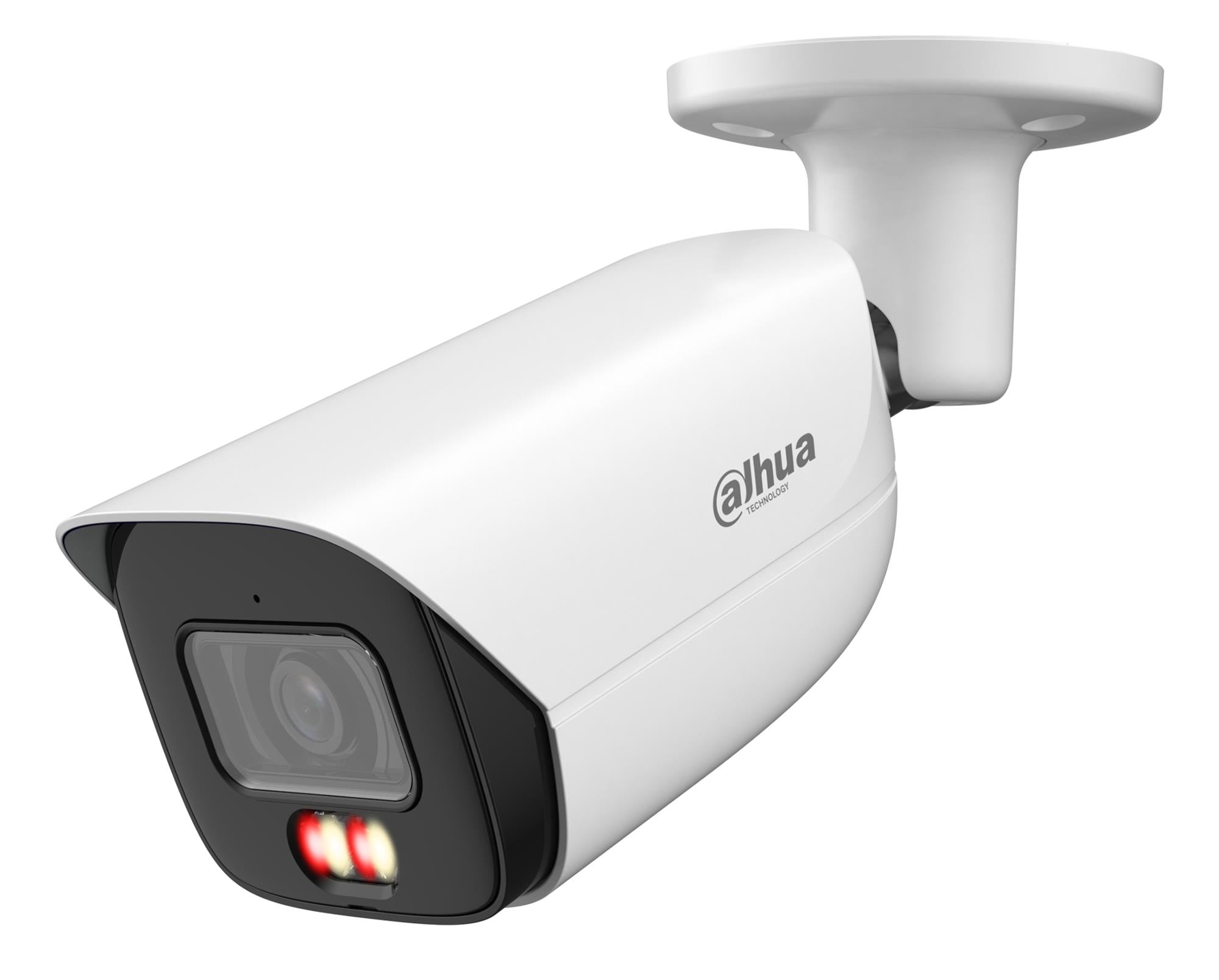

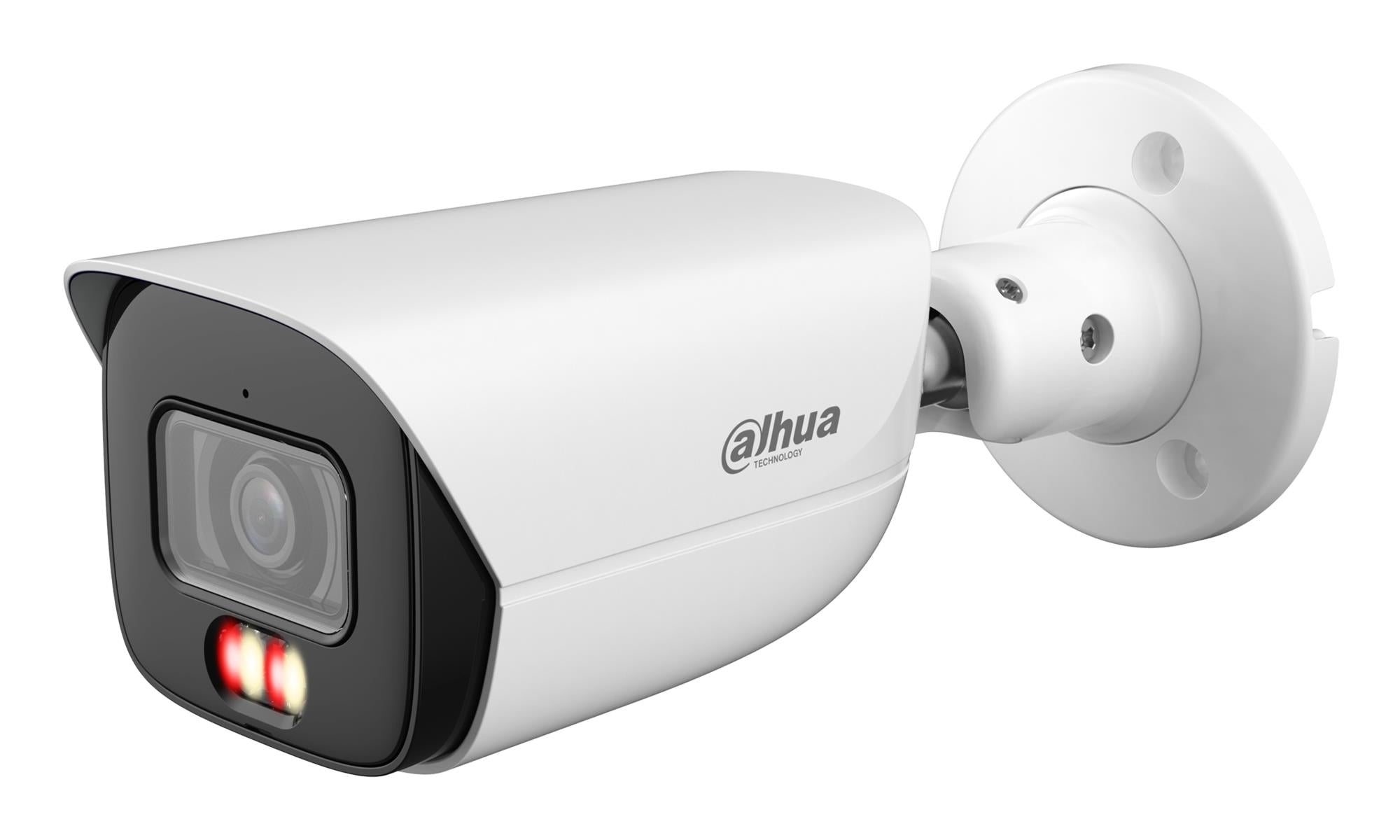

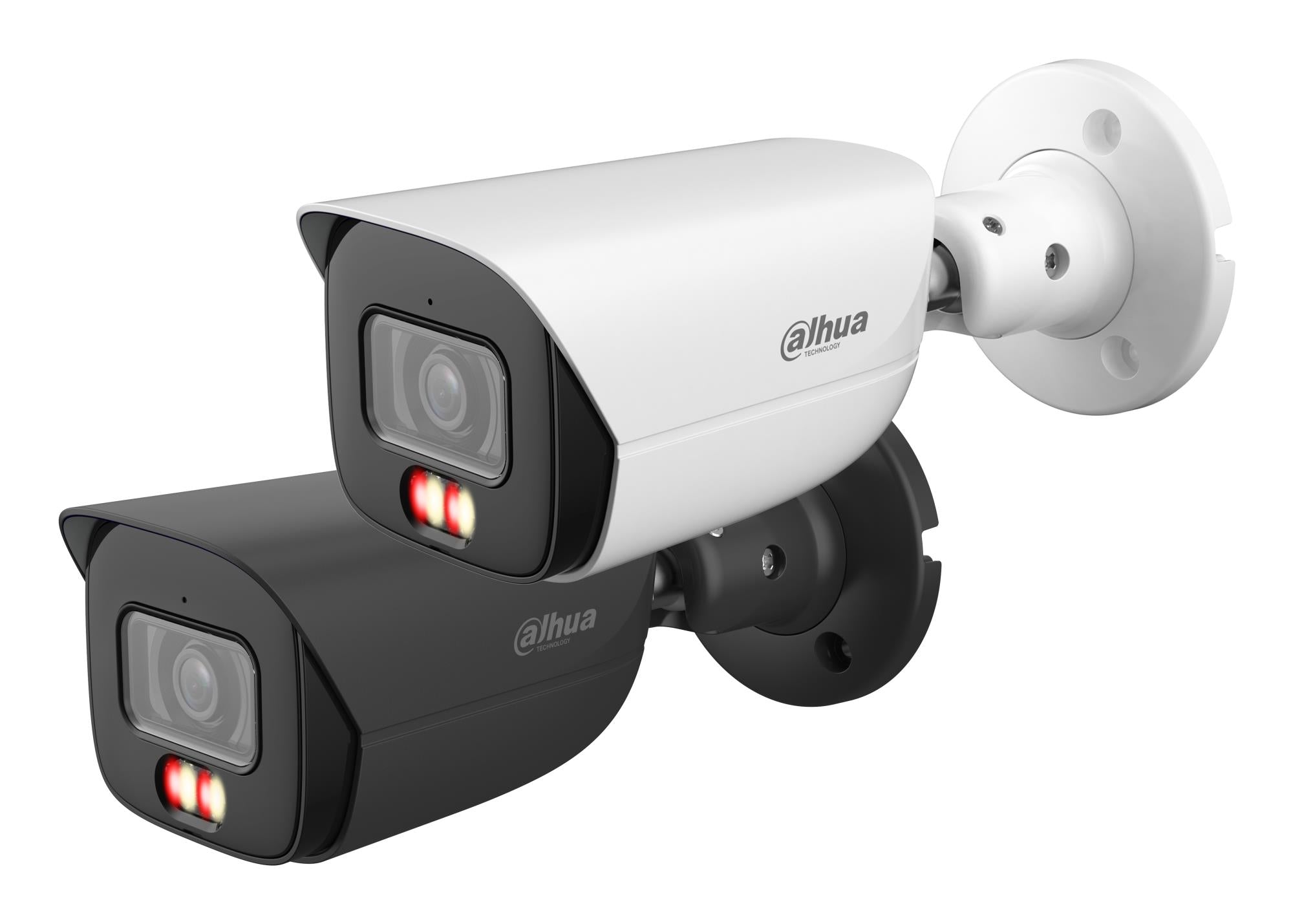

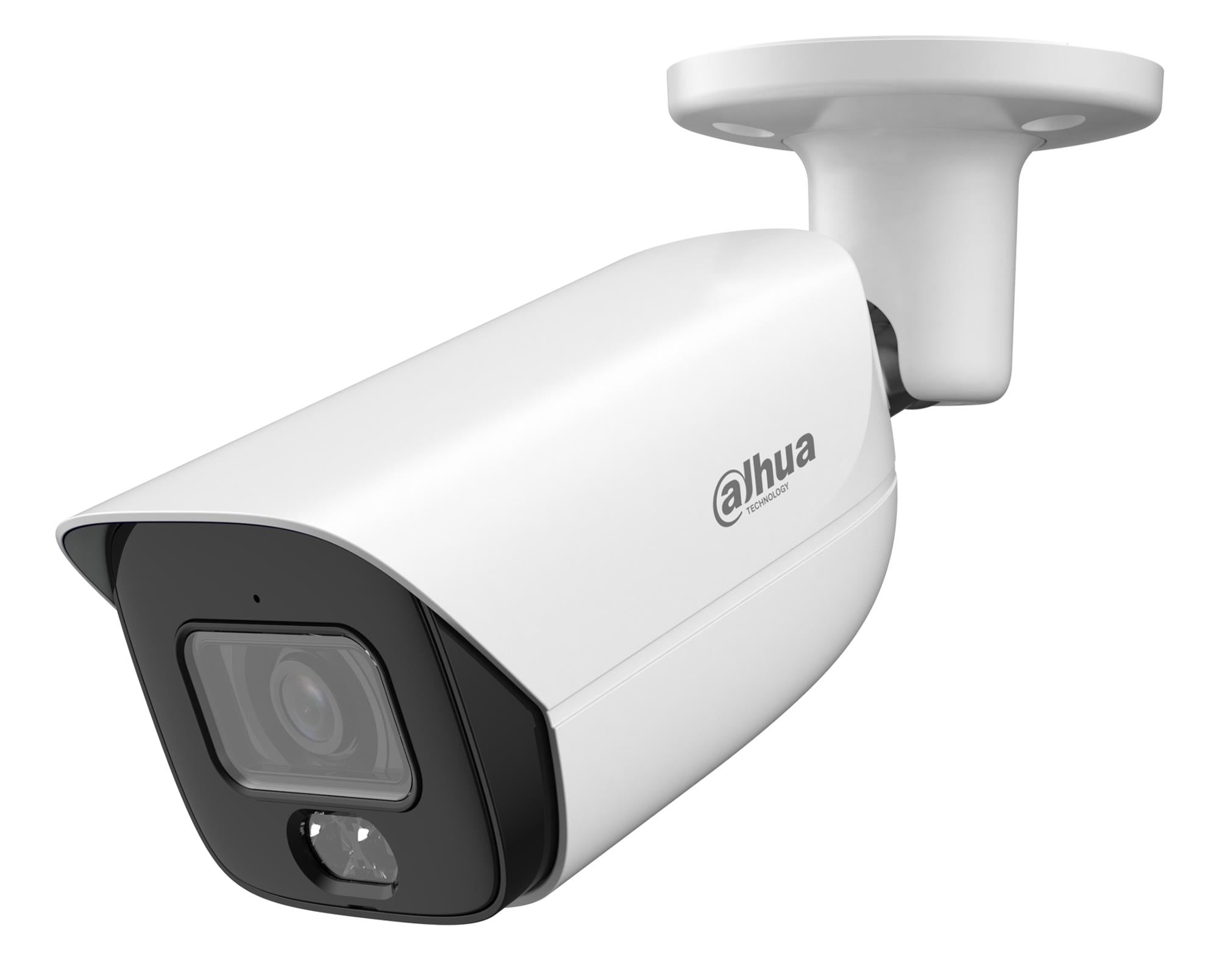

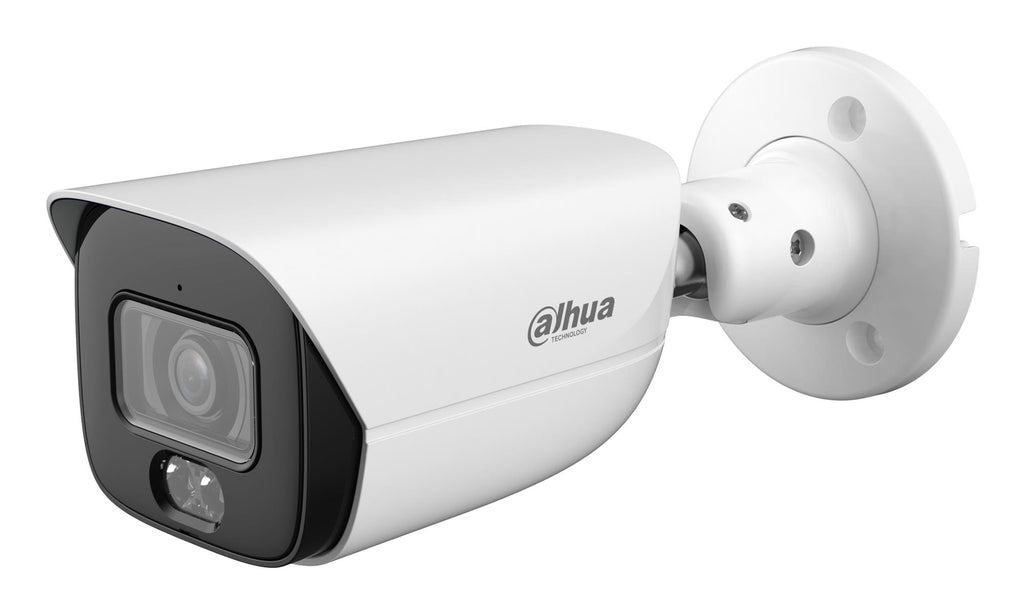

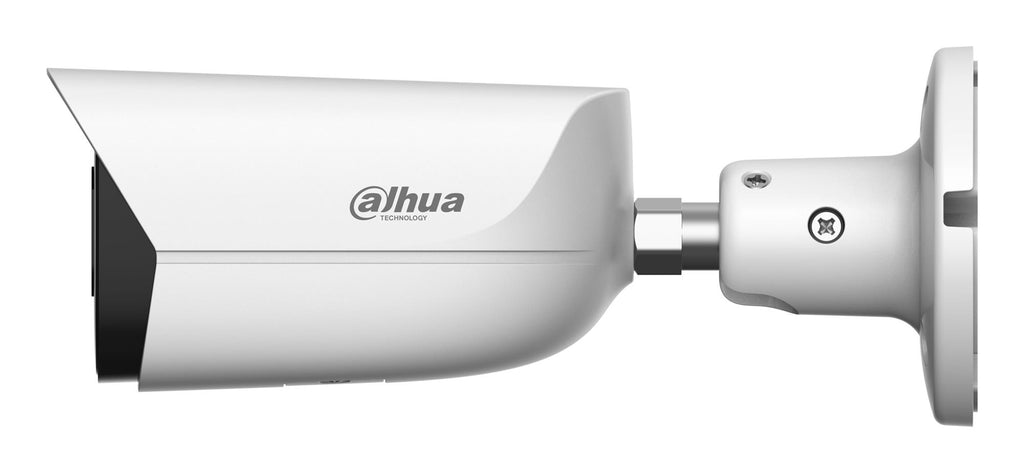

Dahua Technology WizMind 8MP Smart Dual Light Fixed-focal Bullet Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 110°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 89.2 m, Observe distance: 35.7 m, Recognize distance: 17.8 m
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
H.264/H.264B/H.264H/H.265/M-JPEG
G.711a; G.711Mu; PCM; G.726; G.723
ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
