Beschreibung
General Information
- SKU: 1458163
- Manufacturer Product Page: ELKO
- Manufacturer Code: N/A
- Catalog: N/A
- EAN: N/A
- Warranty: N/A months
- Currency: N/A
- Packaging Quantity: N/A
Specifications
| Category Code | GWC |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.27 |
| LED indicators | Status |
| Mounting type | Rack/Desktop/Wall |
| Product colour | Black |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 5 |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Built-in processor | Yes |
| Control display unit | No |
| Internal memory | 3000 |
| Internal memory type | DDR4 |
| Number of processors installed | 1 |
| Processor family | ARM Cortex |
| Processor frequency | 2200 |
| Processor manufacturer | ARM |
| Data transfer rate | 4.3 |
| Ethernet LAN data rates | 1000/10000/2500 |
| Load balancing | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 1/11/12/1732/18/2/24/2402/36/48/5.5/54/6/6.5/9 |
| Firewall security | Yes |
| Network address translation (NAT) | Yes |
| VLAN support | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Number of simultaneous SIM cards | 2 |
| SFP+ ports quantity | 1 |
| SIM card slot | Yes |
| WAN connection | Ethernet (RJ-45),SFP+ |
| Multicast support | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| DC input voltage | 50 - 57 |
| Electromagnetic (EMP) protection | Yes |
| Electromagnetic (EMP) protection (air) | 8 |
| Electromagnetic (EMP) protection (contact) | 4 |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection (air) | 8 |
| Electrostatic Discharge (ESD) protection (contact) | 4 |
| Heat dissipation | 85 |
| Input voltage | 100 - 240 |
| Power consumption (max) | 28 |
| Power over Ethernet (PoE) | Yes |
| Power supply | 350 |
| Compatible operating systems | Android, iOS |
| Depth | 203.5 |
| Height | 43.7 |
| Weight | 2400 |
| Width | 307.9 |

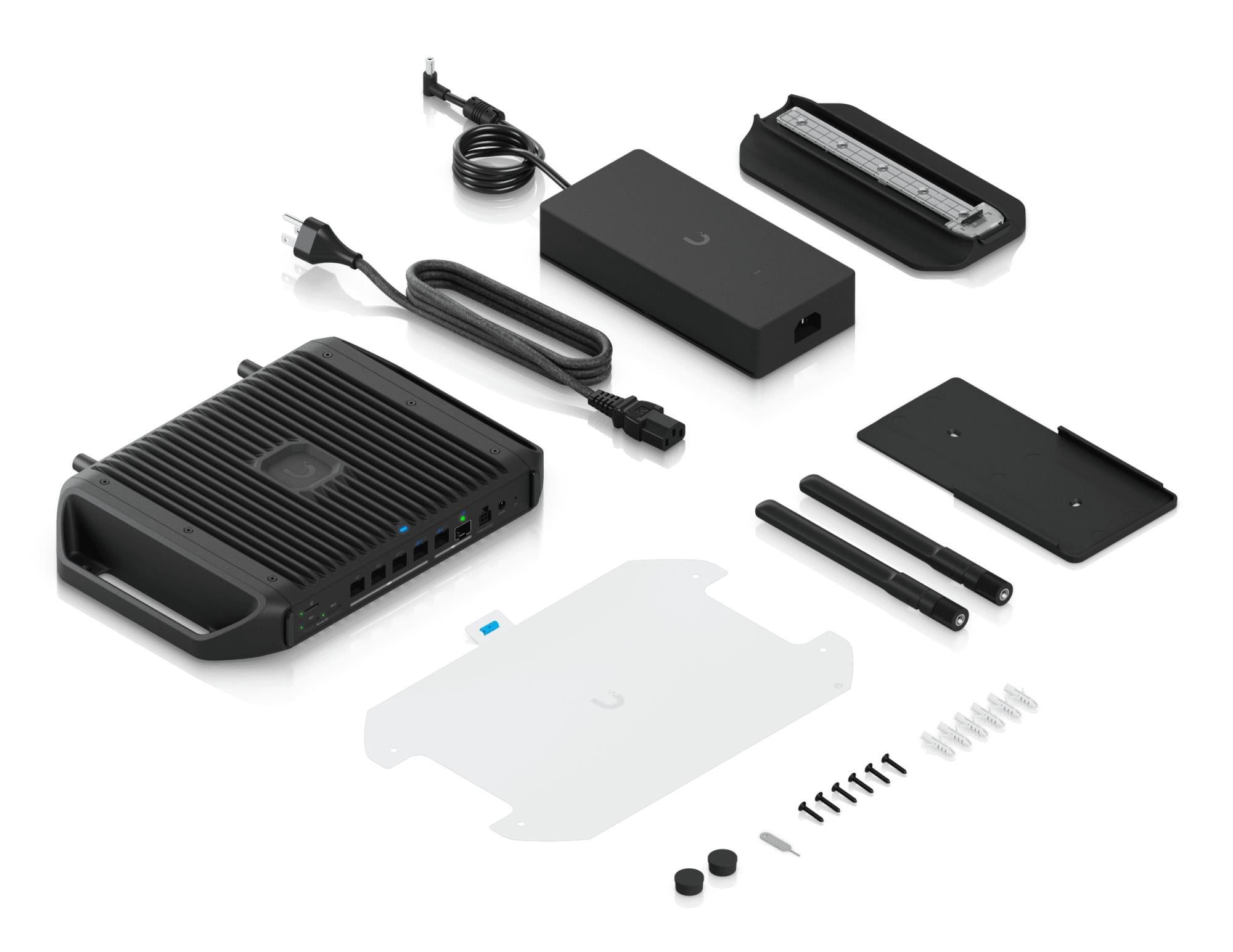

| AC adapter included | Yes |
| Manual | Yes |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating temperature (T-T) | -30 - 50 |
| Units per Pallet | 0 |
| Units per Shipping Box | 2 |
| Unit Calculated Volume | 0.02665 |
| Product Net Weight | 2.4 |
| Unit Calculated Weight | 3.5 |
Description

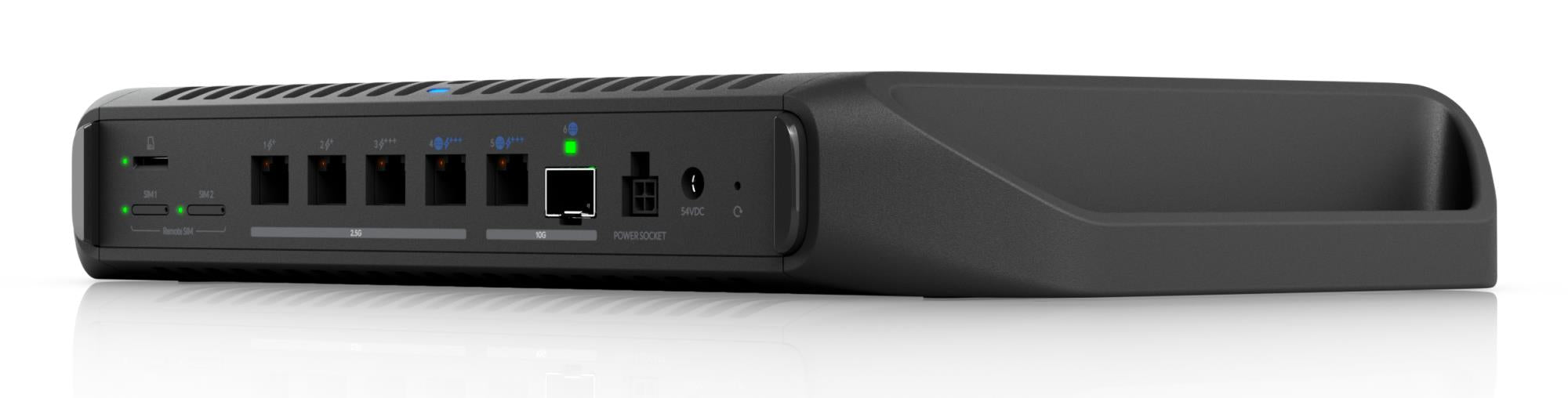

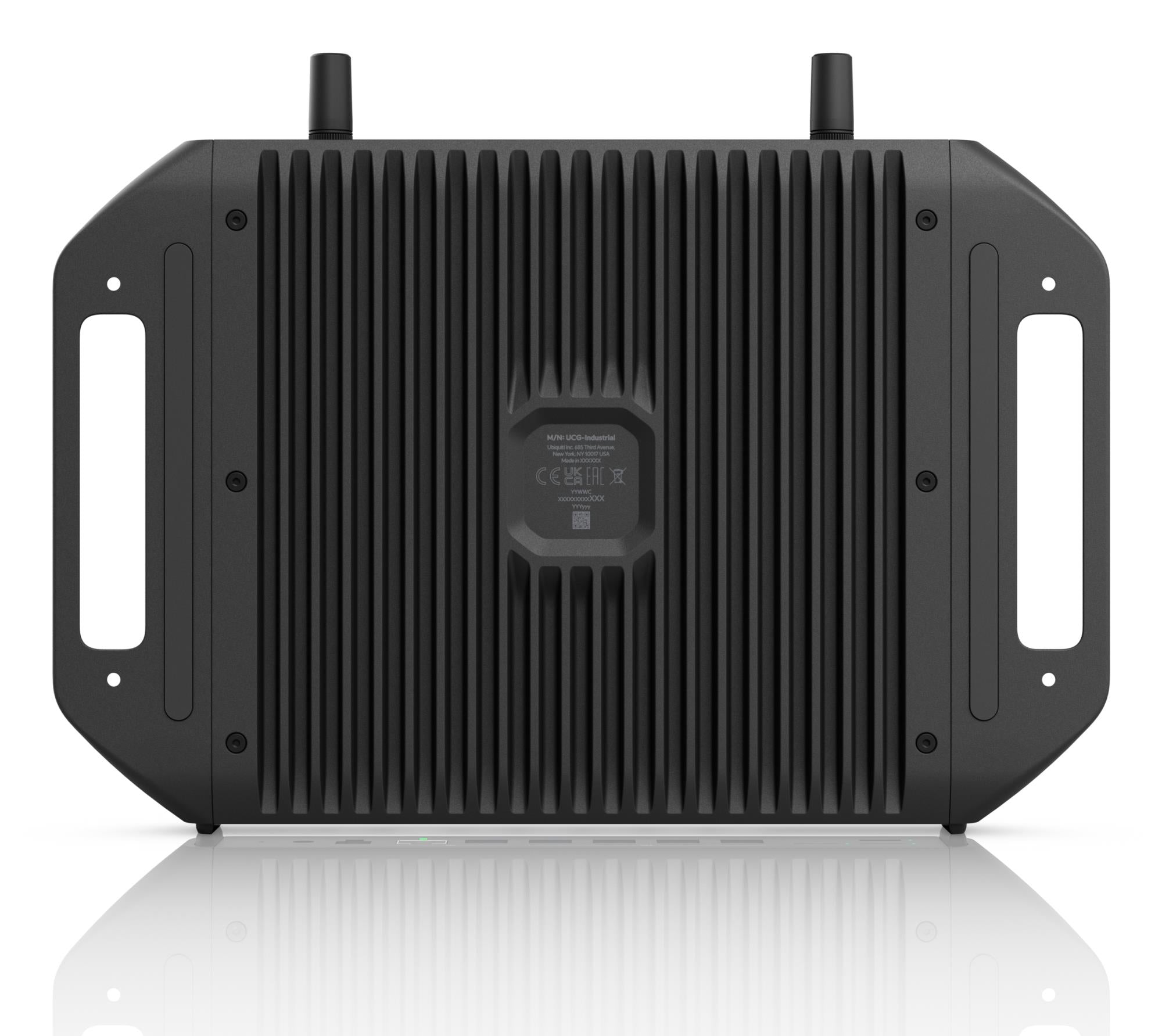

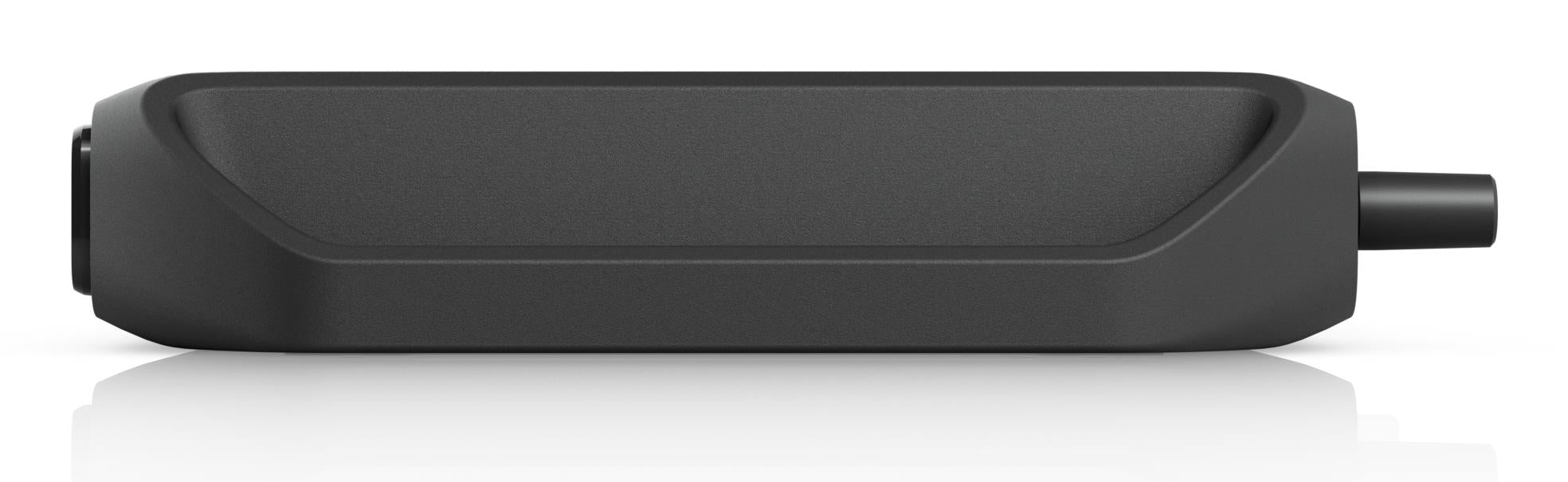

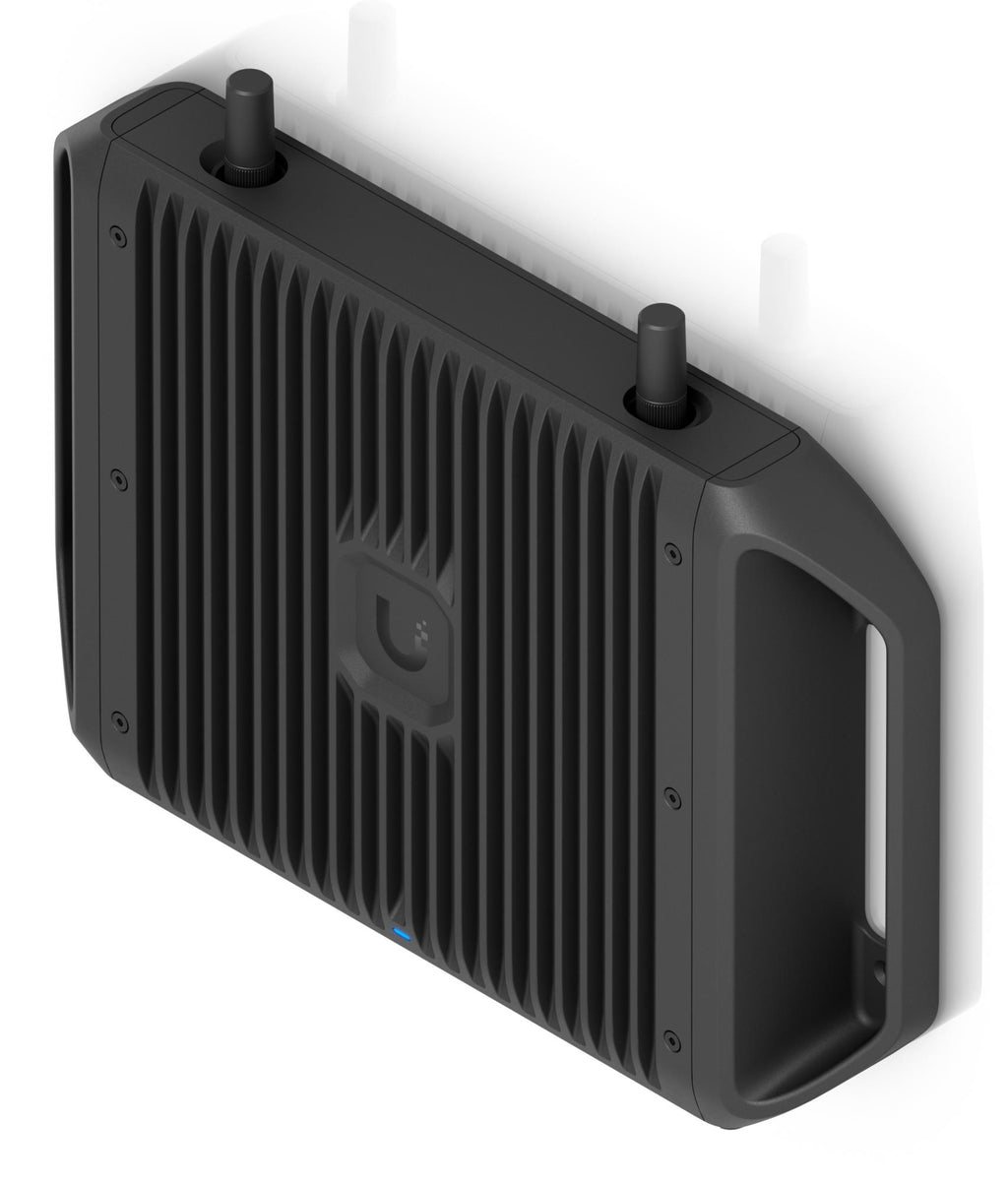

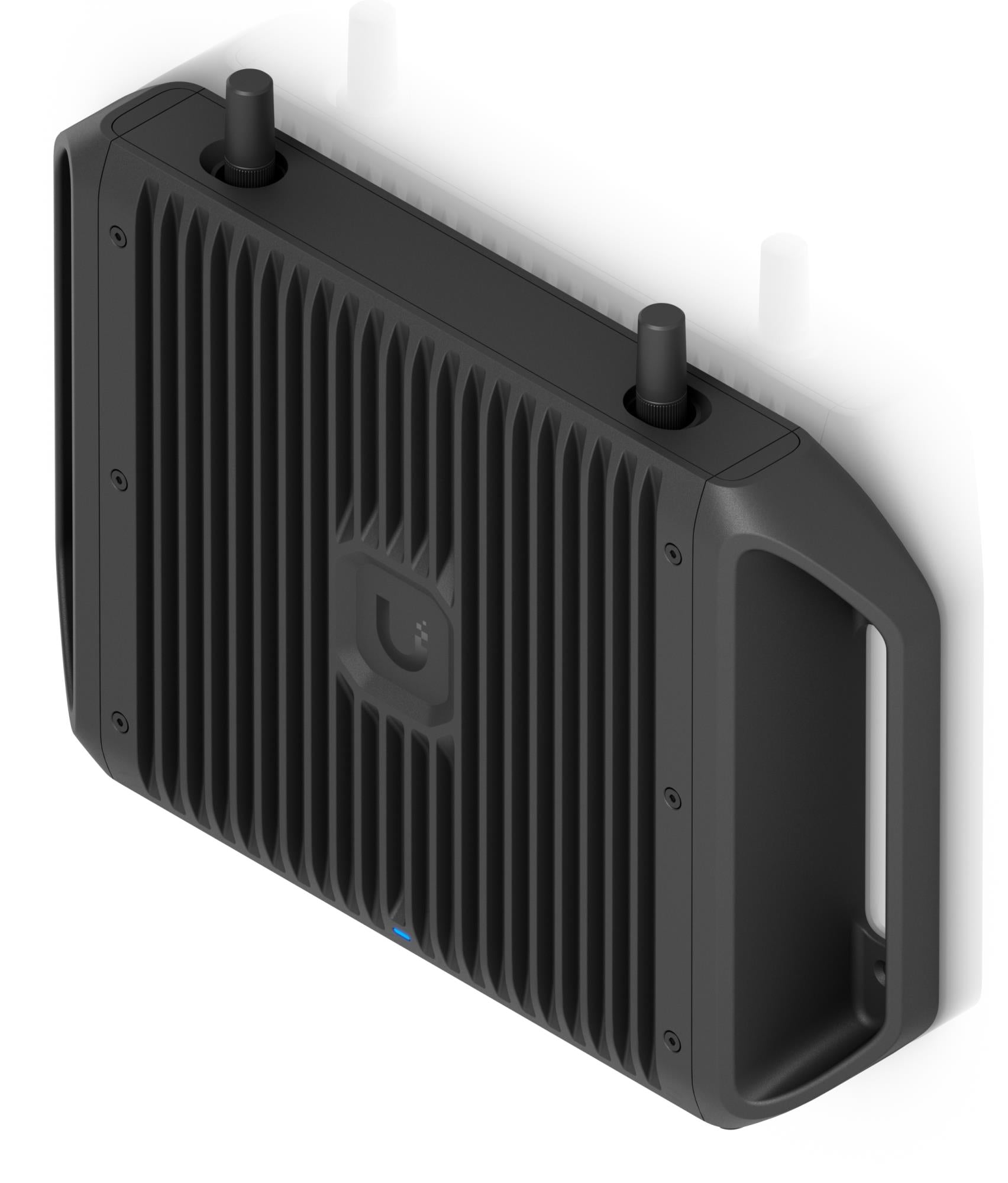

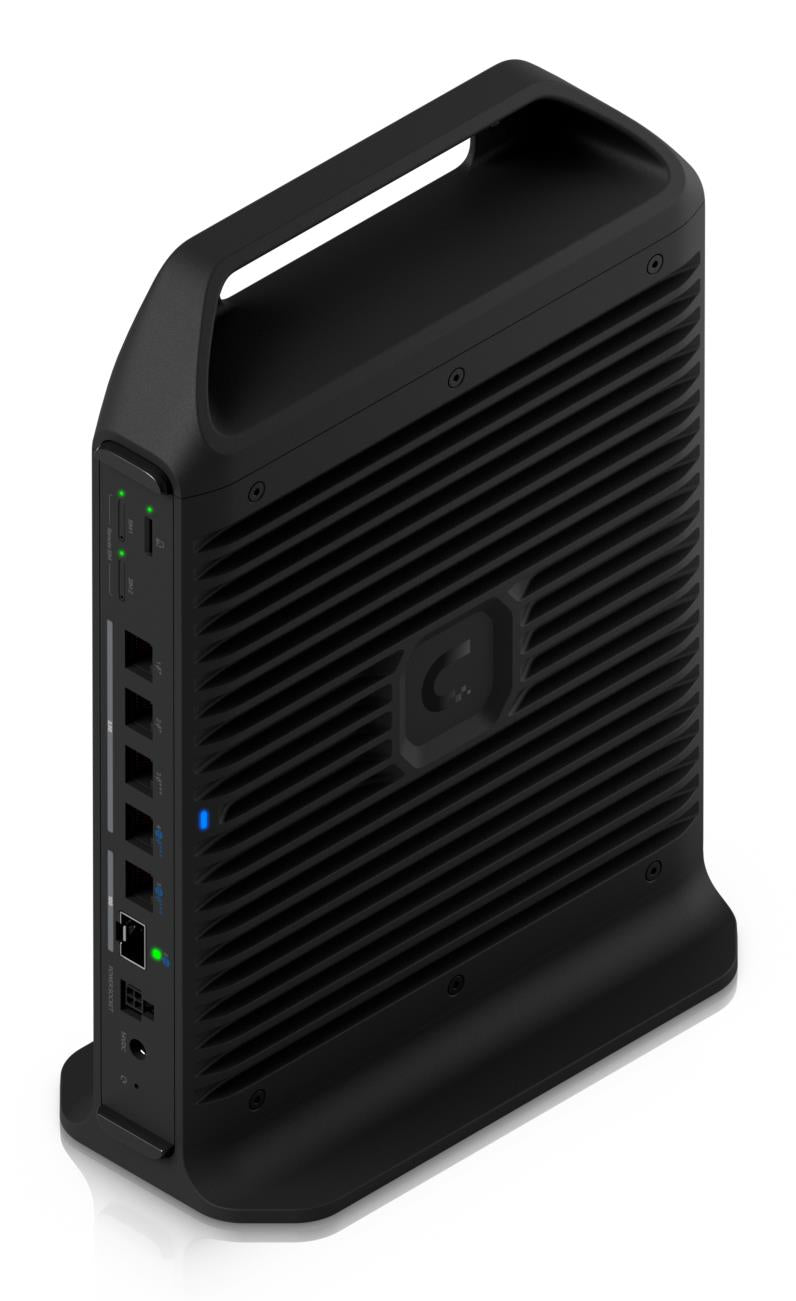

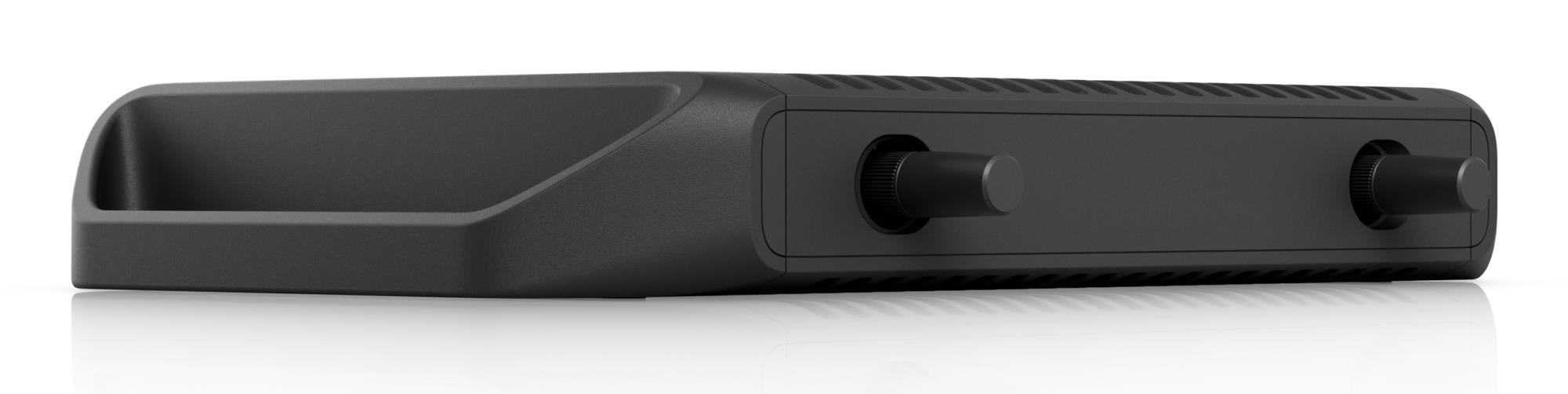

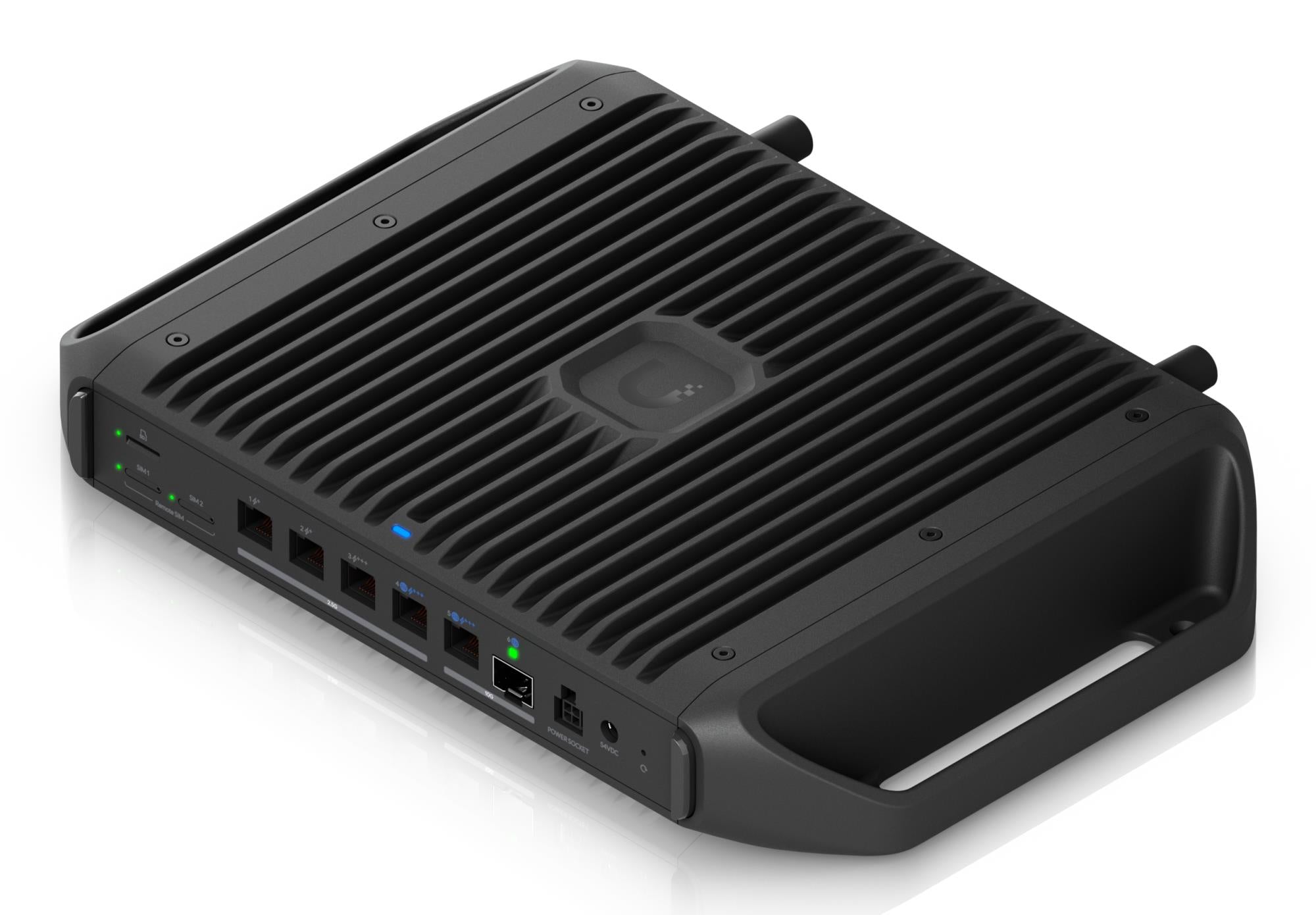

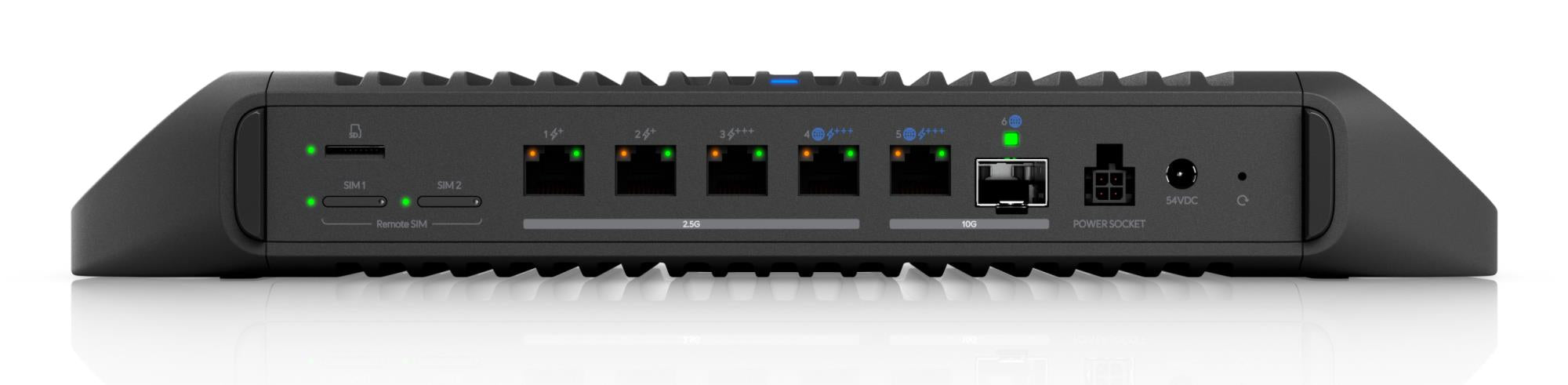

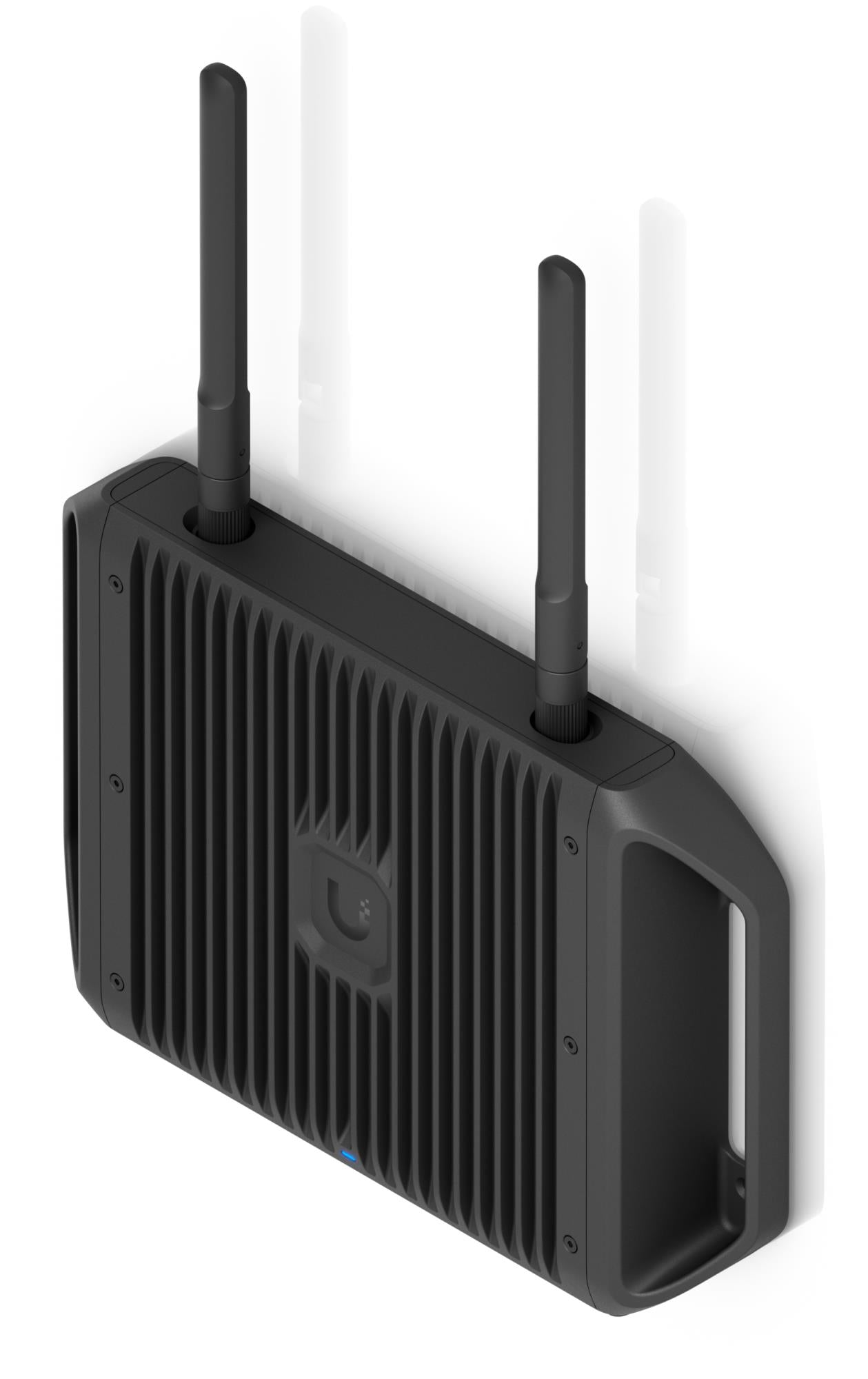

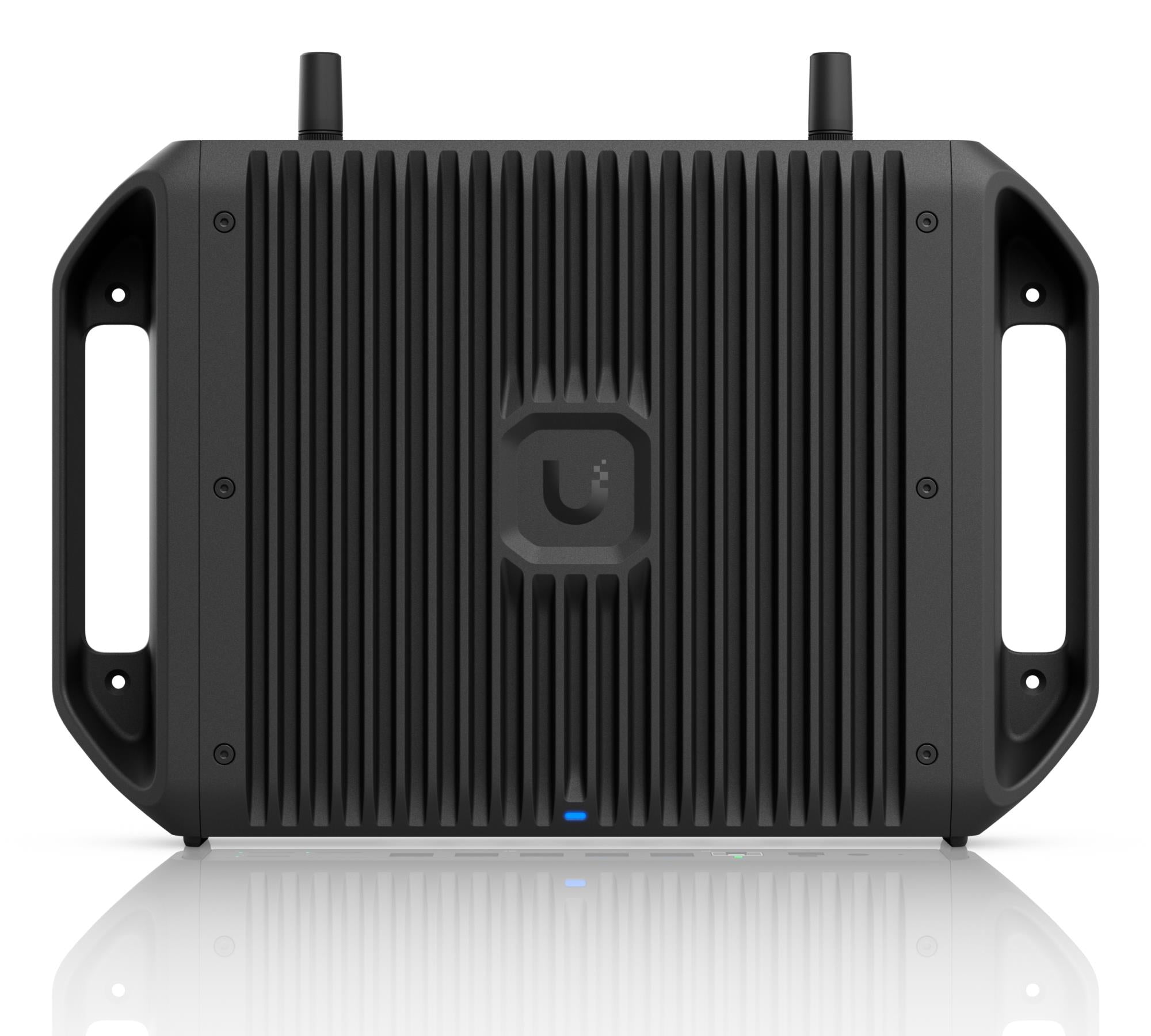

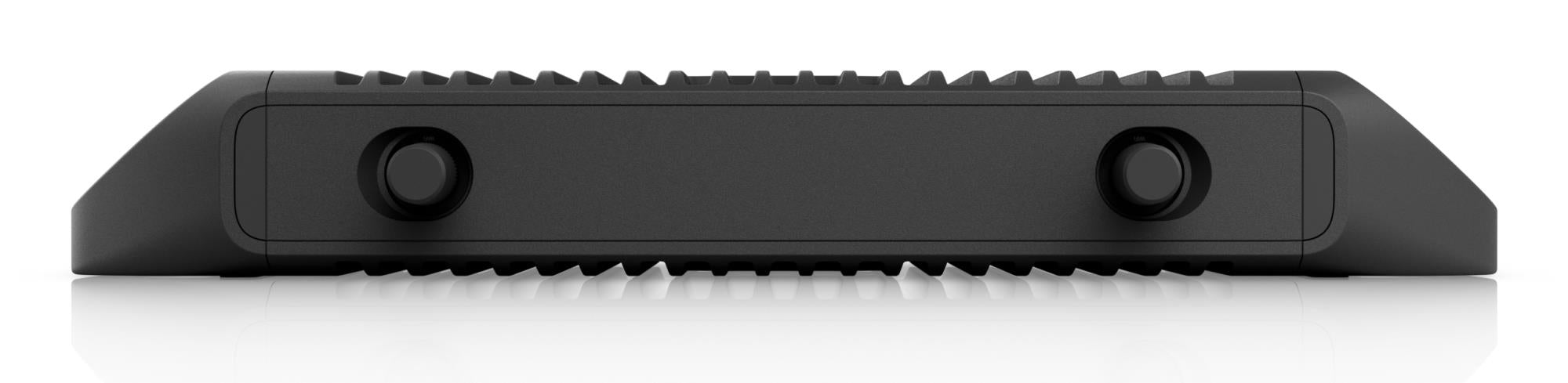

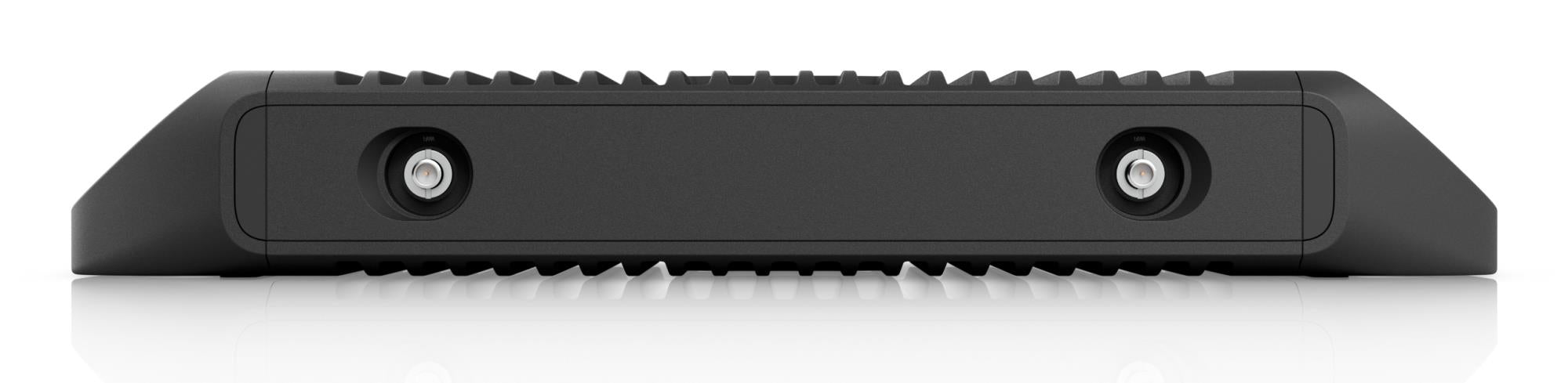

Мережевий шлюз Ubiquiti Cloud Gateway Industrial 270W (UCG-Industrial) Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.
IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n
CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)
