Server Memory Module KINGSTON DDR5 64 GB Registered (buffered) CL 52 1.1 V 288-pin DIMM KSM64R52BD4-64MD
Server Memory Module KINGSTON DDR5 64 GB Registered (buffered) CL 52 1.1 V 288-pin DIMM KSM64R52BD4-64MD
Server Memory Module KINGSTON DDR5 64 GB Registered (buffered) CL 52 1.1 V 288-pin DIMM KSM64R52BD4-64MD
Server Memory Module KINGSTON DDR5 64 GB Registered (buffered) CL 52 1.1 V 288-pin DIMM KSM64R52BD4-64MDServer Memory Module KINGSTON DDR5 64 GB Registered (buffered) CL 52 1.1 V 288-pin DIMM KSM64R52BD4-64MDServer Memory Module KINGSTON DDR5 64 GB Registered (buffered) CL 52 1.1 V 288-pin DIMM KSM64R52BD4-64MD

Server Memory Module KINGSTON DDR5 64 GB Registered (buffered) CL 52 1.1 V 288-pin DIMM KSM64R52BD4-64MD

KINGSTONSKU: 1455620
Keine Bewertungen
Preis:
€3.175,04
Lagerbestand:
Verfügbar (18 Stück), versandbereit

Beschreibung

General Information

  • SKU: 1455620
  • Manufacturer Product Page: KINGSTON KSM64R52BD4-64MD
  • Manufacturer Code: KSM64R52BD4-64MD
  • Catalog: Memory for Servers
  • EAN: 740617347128
  • Warranty: X months
  • Currency: EUR
  • Packaging Quantity: 1

Specifications

Category Code MES
Unit Box Height 0.008
Unit Box Length 0.16
Unit Box Width 0.045
Buffered memory type Registered (buffered)
CAS latency 52
Component for PC/Server
ECC No
Internal memory 64
Internal memory type DDR5
JEDEC standard Yes
Lead plating Gold
Memory data transfer rate 6400
Memory form factor 288-pin DIMM
Memory layout (modules x size) 1 x 64
Memory ranking 2
Memory voltage 1.1
Module configuration 8192M x 80
On-Die ECC Yes
Programming power voltage (VPP) 1.8
Refresh row cycle time 295
Row active time 32
Row cycle time 48
SPD profile Yes
Operating temperature (T-T) 0 - 95
Storage temperature (T-T) -55 - 100
Compliance certificates RoHS
Doesn't contain Halogen
Height 31.25
Width 133.35
Units per Pallet 0
Units per Shipping Box 1
Unit Calculated Volume 5.76E-05
Unit Calculated Weight 0.033

Description

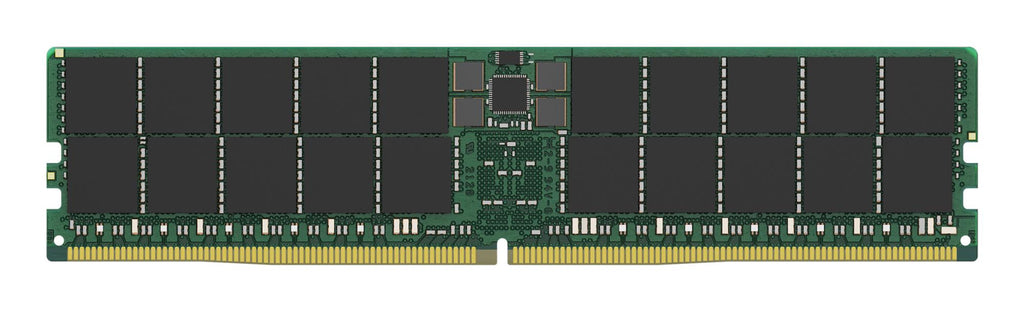

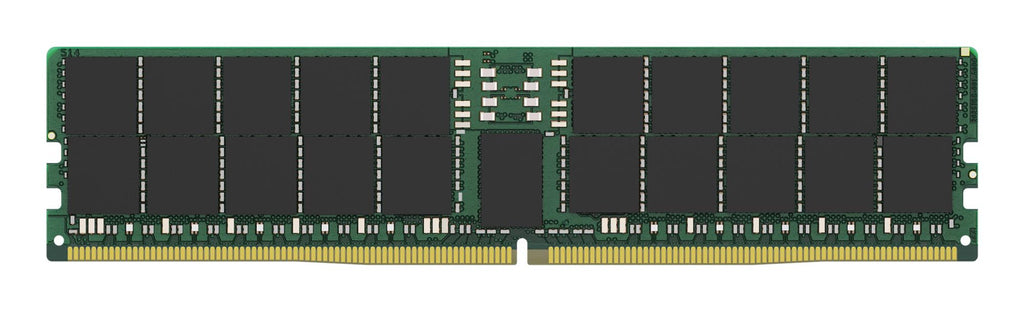

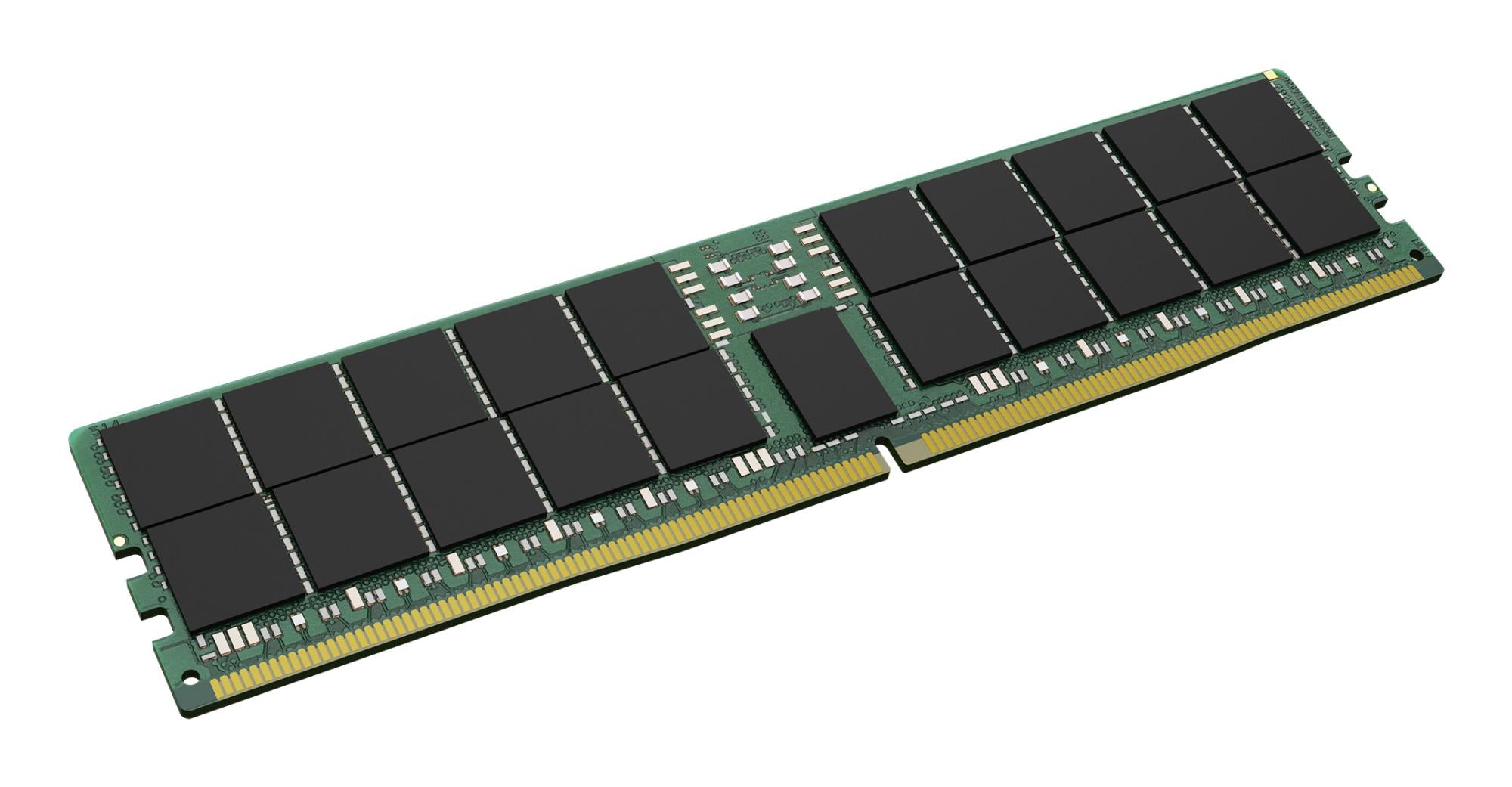

Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

  • On-Die ECC
  • x80 ECC (x40, 2 independent I/O sub channels)
  • 32 internal banks
  • Hard/Soft Post Package Repair
  • Sideband access with I3C/I2C
  • RoHS Compliant and Halogen-Free

Kingston Technology KSM64R52BD4-64MD. Component for: PC/Server, Internal memory: 64 GB, Memory layout (modules x size): 1 x 64 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 52
