Server Memory Module KINGSTON DDR5 32 GB Unregistered (unbuffered) CL 46 1.1 V 288-pin DIMM ECC Yes KSM56E46BD8KM-32HA
Server Memory Module KINGSTON DDR5 32 GB Unregistered (unbuffered) CL 46 1.1 V 288-pin DIMM ECC Yes KSM56E46BD8KM-32HA

Server Memory Module KINGSTON DDR5 32 GB Unregistered (unbuffered) CL 46 1.1 V 288-pin DIMM ECC Yes KSM56E46BD8KM-32HA

KINGSTONSKU: 1451732
Keine Bewertungen
Preis:
€1.173,64
Lagerbestand:
Ausverkauft

Restock information

On the way: 0 pcs.

Beschreibung

General Information

  • SKU: 1451732
  • Manufacturer Product Page: KINGSTON KSM56E46BD8KM-32HA
  • Manufacturer Code: KSM56E46BD8KM-32HA
  • Catalog: Memory for Servers
  • EAN: 740617336023
  • Warranty: X months
  • Currency: EUR
  • Packaging Quantity: 1

Specifications

Category Code MES
Unit Box Height 0.007
Unit Box Length 0.045
Unit Box Width 0.145
Buffered memory type Unregistered (unbuffered)
CAS latency 46
Component for Server
ECC Yes
Internal memory 32
Internal memory type DDR5
JEDEC standard Yes
Lead plating Gold
Memory data transfer rate 5600
Memory form factor 288-pin DIMM
Memory layout (modules x size) 1 x 32
Memory ranking 2
Memory voltage 1.1
Module configuration 4096M x 72
On-Die ECC Yes
Product colour Black/Green
Programming power voltage (VPP) 1.8
Refresh row cycle time 295
Row active time 32
Row cycle time 48
Row Precharge Time (TRP) 16
SPD profile Yes
Operating temperature (T-T) 0 - 95
Storage temperature (T-T) -55 - 100
Compliance certificates RoHS
Doesn't contain Halogen
Sustainability compliance Yes
Height 31.25
Width 133.35
Units per Pallet 0
Units per Shipping Box 1
Unit Calculated Volume 4.567E-05
Unit Calculated Weight 0.029

Description

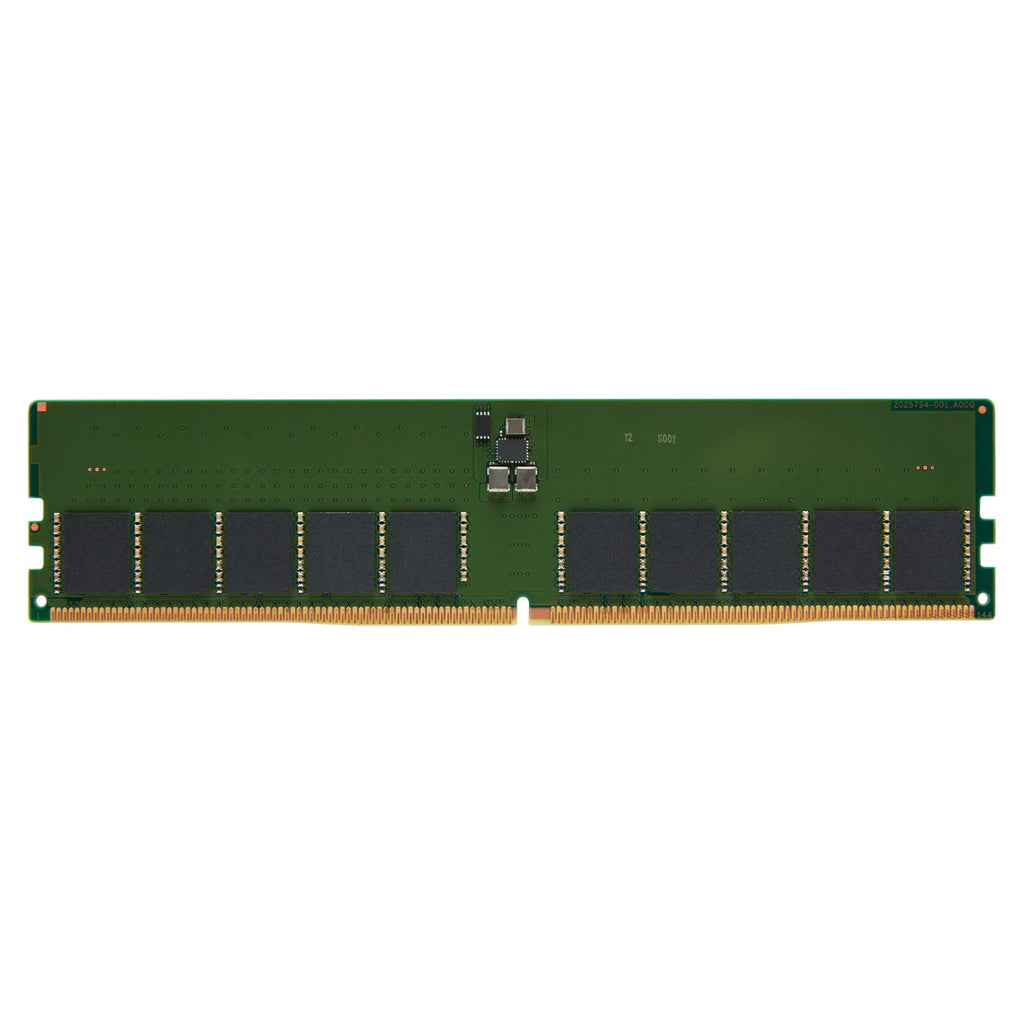

Kingston KSM56E46BD8KM-32HA

is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • x72 ECC (x36, 2 independent I/O sub channels)
  • 32 internal banks
  • Hard/Soft Post Package Repair
  • Sideband access with I3C/I2C
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free

Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green
