General Information
- SKU: 1449937
- Manufacturer Product Page: DAHUA SG4020LP
- Manufacturer Code: SG4020LP
- Catalog: Switches
- EAN: 6939554904592
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | SWI |
| CnCode | 85176200 |
| Desktop/pedestal | Yes |
| 10Base-T / 100Base-TX / 1000Base-T | 2 |
| SFP | 2 |
| IEEE 802.3 | Yes |
| IEEE 802.3ab | Yes |
| IEEE 802.3u | Yes |
| IEEE 802.3x | Yes |
| IEEE 802.3z | Yes |
| Switch type | L2 |
| Primary port count | 20 |
| PoE ports | 16 |
| PoE power budget | 190 |
| Switching capacity | 40 |
| Forwarding rate | 29.76 |
| Power supply | Inbuilt |
| Power options | PoE |
| Power source | 100–240 VAC, 47–63 Hz, max 4A |
| Operating temperature range | –10 °C to +55 °C |
| Dimensions | 440 mm × 220 mm × 44 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000732 |
| Product Net Weight | 2.32 |
| Unit Calculated Weight | 2.97 |
Description

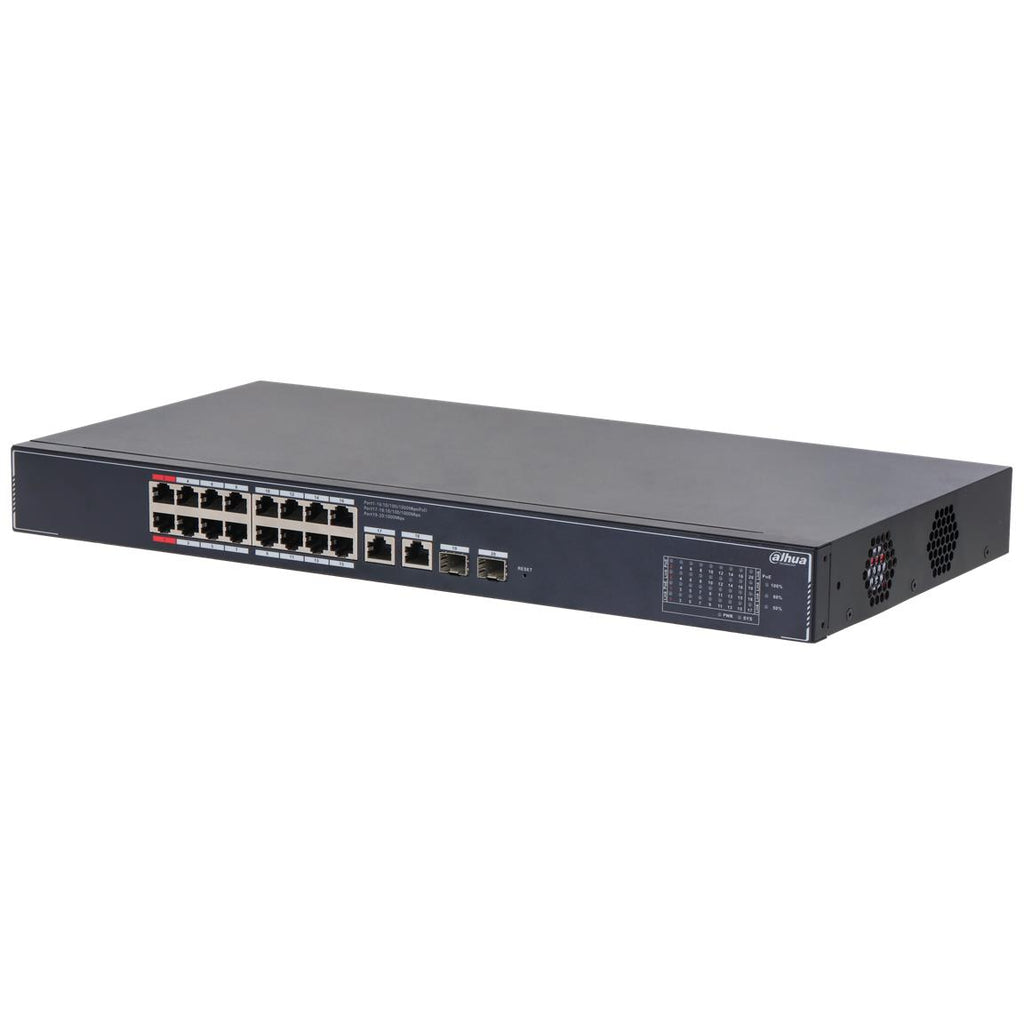

20-Port Cloud Managed Desktop Gigabit Switch with 16-Port PoE > 16 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit ports, 2 × SFP Gigabit ports. > 190 W total PoE budget, 802.3af/at on all PoE ports, additional 802.3 bt on red ports. > Wide operating temperature ranging from –10 °C to 55 °C. > Supports VLAN, STP, RSTP and link aggregation. > WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network. Easy config to auto detect and set up network.
transmission.dahuasecurity.com/en/product-list/Business/Switches/PoESwitchesForIT/SG4020LP
100–240 VAC, 47–63 Hz, max 4A
440 mm × 220 mm × 44 mm
