Beschreibung
General Information
- SKU: 1449272
- Manufacturer Product Page: AXIS 03184-001
- Manufacturer Code: 03184-001
- Catalog: Network Cameras
- EAN: 7331021090347
- Warranty: 60 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.15 |
| Form factor | Bullet |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| LED indicators | Yes |
| Mounting type | Pole clamp |
| Product colour | White |
| Alarm input/output | Yes |
| Built-in processor | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Outdoor |
| Processor model | ARTPEC-9 |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera pixel size | 2.9 |
| Camera shutter speed | 1/66500 - 2 |
| Lens viewing angle, horizontal | 114 - 46 |
| Lens viewing angle, vertical | 62 - 26 |
| Minimum illumination | 0.01 |
| Number of sensors | 1 |
| Optical sensor size | 1/1.2 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Focal length range | 5.9 - 13.8 |
| Maximum aperture number | 2.8 |
| Minimum aperture number | 1.5 |
| Zoom capability | Yes |
| Infra-red wavelength | 850 |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 50 |
| Frame rate | 60 |
| Gain control type | Auto |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness/White balance |
| Image stabilizer | Yes |
| Maximum resolution | 3840 x 2160 |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Text caption overlay | Yes |
| Total megapixels | 8 |
| Video compression formats | AV1/H.264/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 |
| RAM capacity | 2048 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| Network access storage (NAS) | Yes |
| Pixel counter | Yes |
| Video motion detection | Yes |
| Cloud-managed | Yes |
| DC output voltage | 10,12,15,16,24,28 |
| Power consumption (max) | 12.95 |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 10 - 100 |
| Operating temperature (T-T) | -40 - 60 |
| Storage relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -40 - 65 |
| Weight | 1400 |
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.006375 |
| Unit Calculated Weight | 1 |
Description

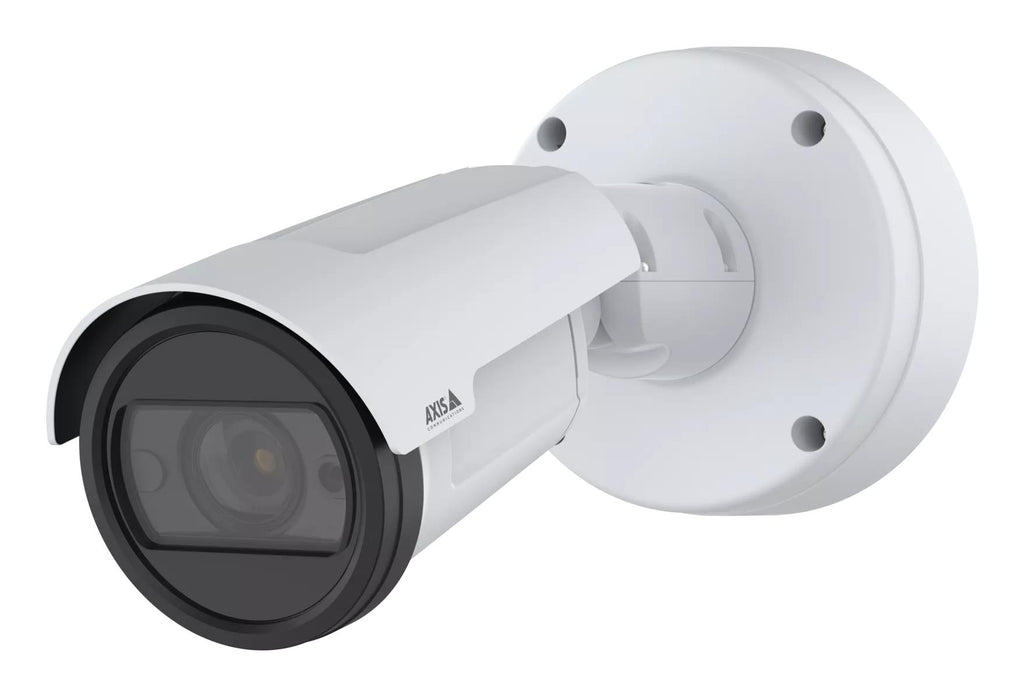

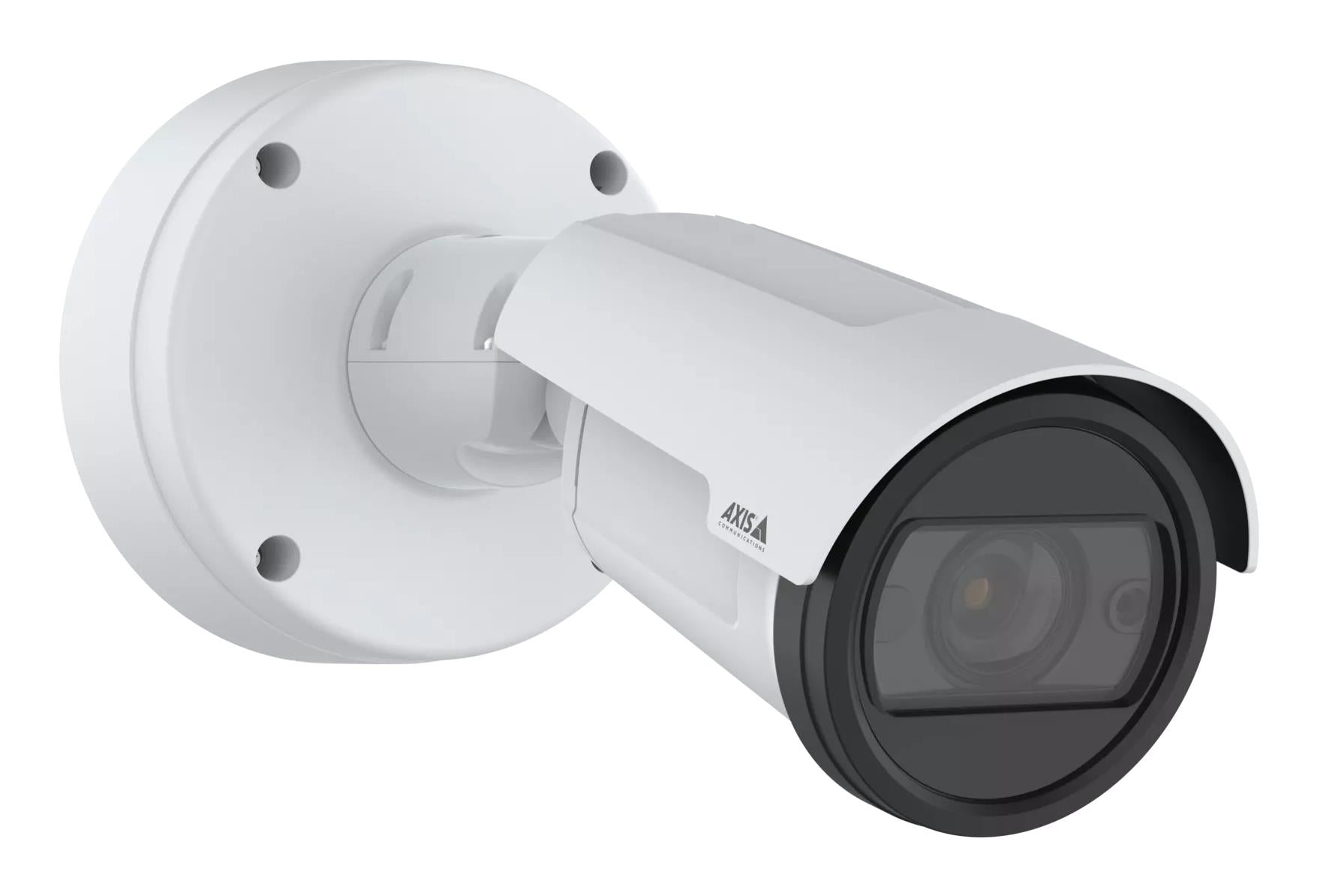

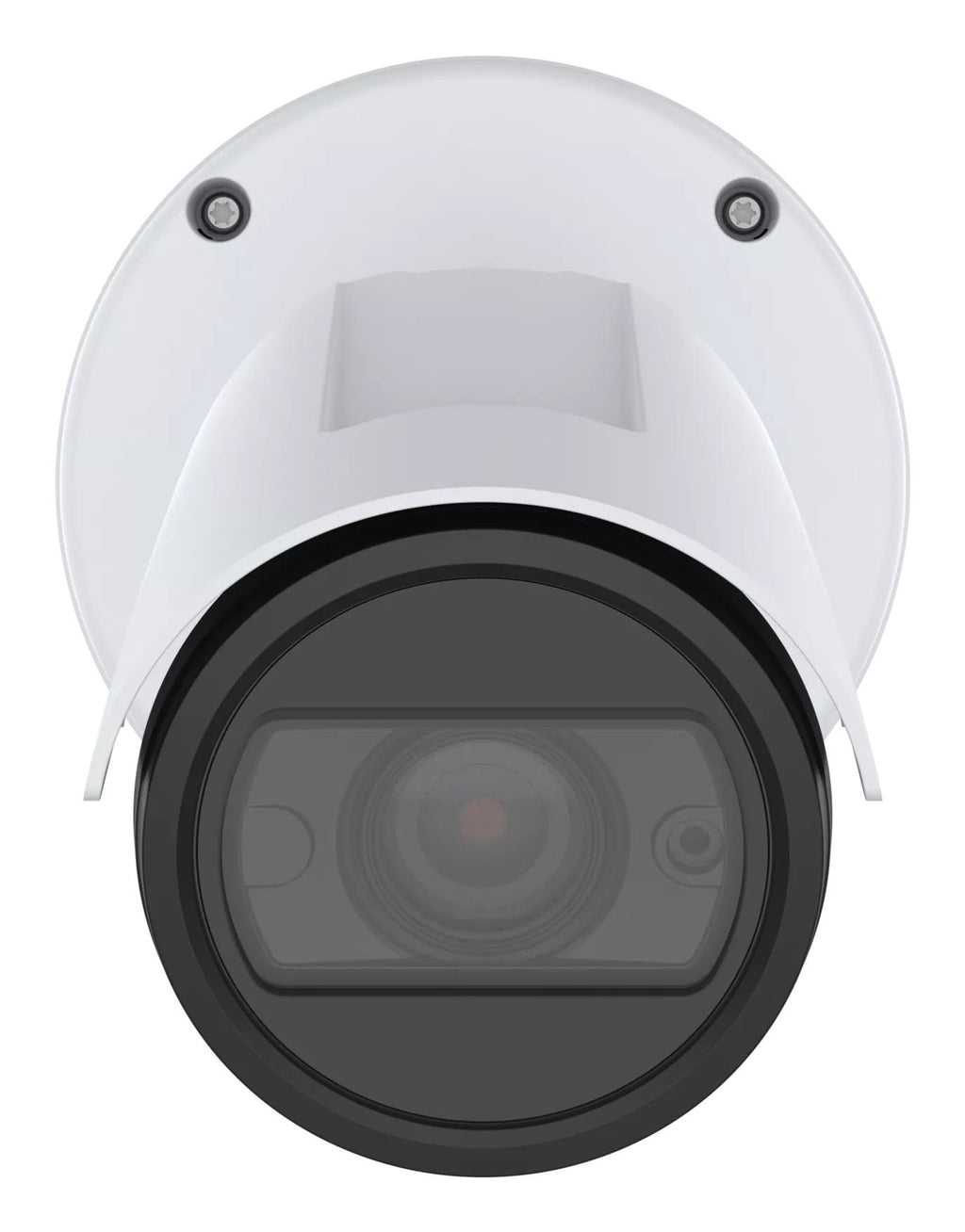

Axis P1488-LE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 114 - 46°, Lens viewing angle, vertical: 62 - 26°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Focal length range: 5.9 - 13.8 mm
AV1/H.264/H.265/M-JPEG
IEEE 802.1AE/IEEE 802.1ar/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at
