ELKO 1448014

General Information

• SKU: 1448014
• Manufacturer Product Page: ELKO
• Manufacturer Code: N/A
• Catalog: N/A
• EAN: N/A
• Warranty: N/A months
• Currency: N/A
• Packaging Quantity: N/A

Specifications

Category Code	SWI
Unit Box Height	0.09
Unit Box Length	0.34
Unit Box Width	0.24
Cloud-managed	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Switch type	Managed
Unified static configuration	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Power connector	AC-in jack
10G support	No
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Fast leave	Yes
Flow control support	Yes
Link aggregation	Yes
Networking standards	IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x
Number of VLANs	32
Port mirroring	Yes
Virtual LAN features	MTU VLAN/Port-based VLAN/Tagged VLAN
VLAN support	Yes
Zero Touch Provisioning (ZTP)	Yes
Forwarding rate	23.8
Jumbo frames	15000
Jumbo frames support	Yes
MAC address table	8000
Packet buffer memory	4
Store-and-forward	Yes
Switching capacity	32
DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
LED indicators	Yes
Product colour	Black
Rack mounting	Yes
Fanless	Yes
Firmware upgradeable	Yes
Flash memory	64
Mean time between failures (MTBF)	2131140
AC input frequency	50/60
AC input voltage	100 - 240
Power consumption (max)	8.4
Power source	AC
Power supply included	Yes
Surge protection	Yes
Surge protection voltage	6
Power over Ethernet (PoE)	No
Heat dissipation	28.52
Operating relative humidity (H-H)	10 - 90
Operating temperature (T-T)	-5 - 50
Storage relative humidity (H-H)	5 - 90
Storage temperature (T-T)	-40 - 70
Depth	140
Height	44
Width	294
Cables included	AC
Rack mount kit	Yes
User guide	Yes
Package type	Box
Compliance certificates	CE/Federal Communications Commission (FCC)/RoHS
Units per Pallet	0
Units per Shipping Box	8
Unit Calculated Volume	0.008379
Unit Calculated Weight	2

Description

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses./

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

• 16× 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
• Automatic Loop Prevention and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/rack mounting design

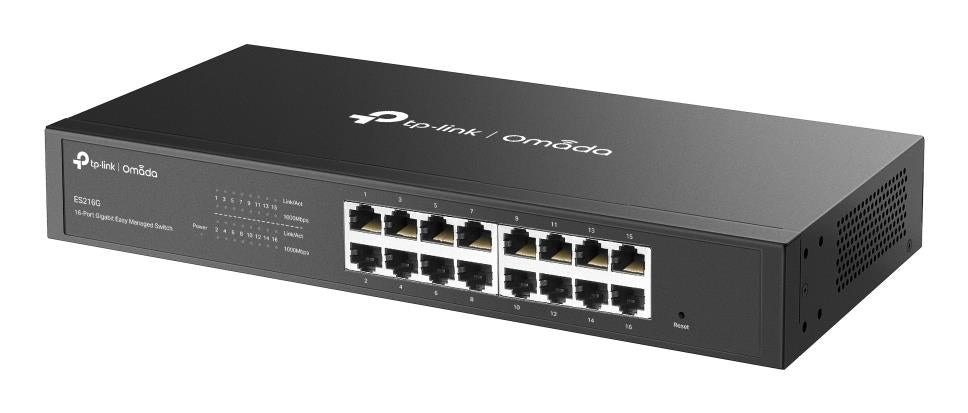

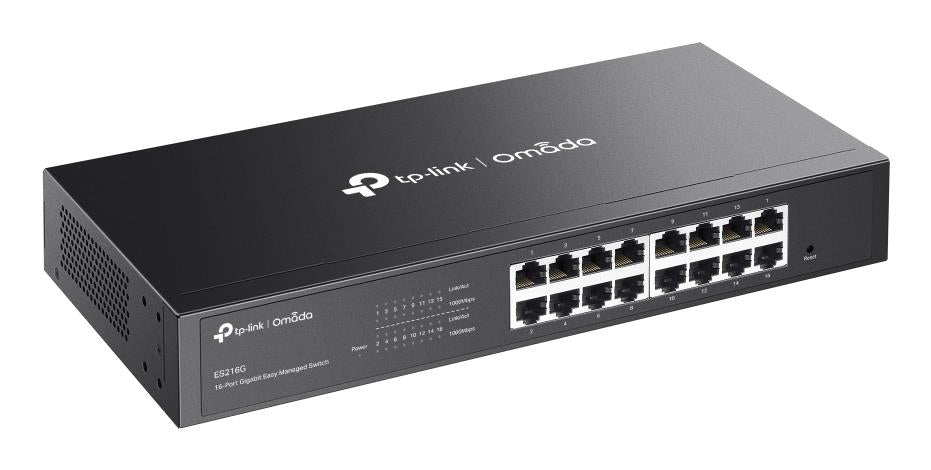

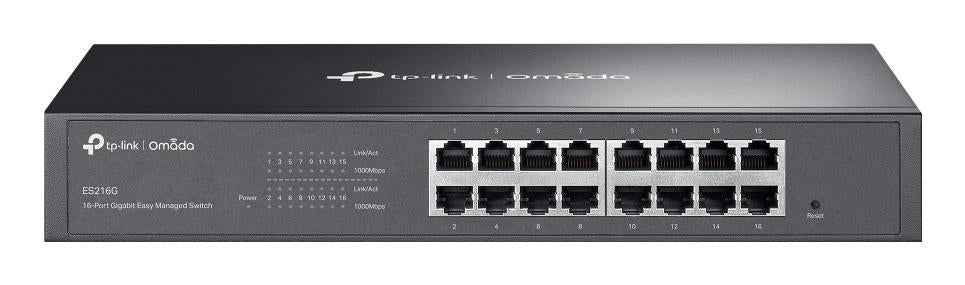

TP-Link Omada ES216G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x. Power connector: AC-in jack. Rack mounting

TP-Link Omada ES216G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x. Power connector: AC-in jack. Rack mounting

IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x

• 16× 10/100/1000Mbps RJ45 ports
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
• Automatic Loop Prevention and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/rack mounting design
