Beschreibung
General Information
- SKU: 1446273
- Manufacturer Product Page: GIGABYTE GP-UD750GM PG5 ICE
- Manufacturer Code: GP-UD750GM PG5 ICE
- Catalog: Desktop Computer PSU
- EAN: 4719331556310
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.12 |
| Unit Box Width | 0.255 |

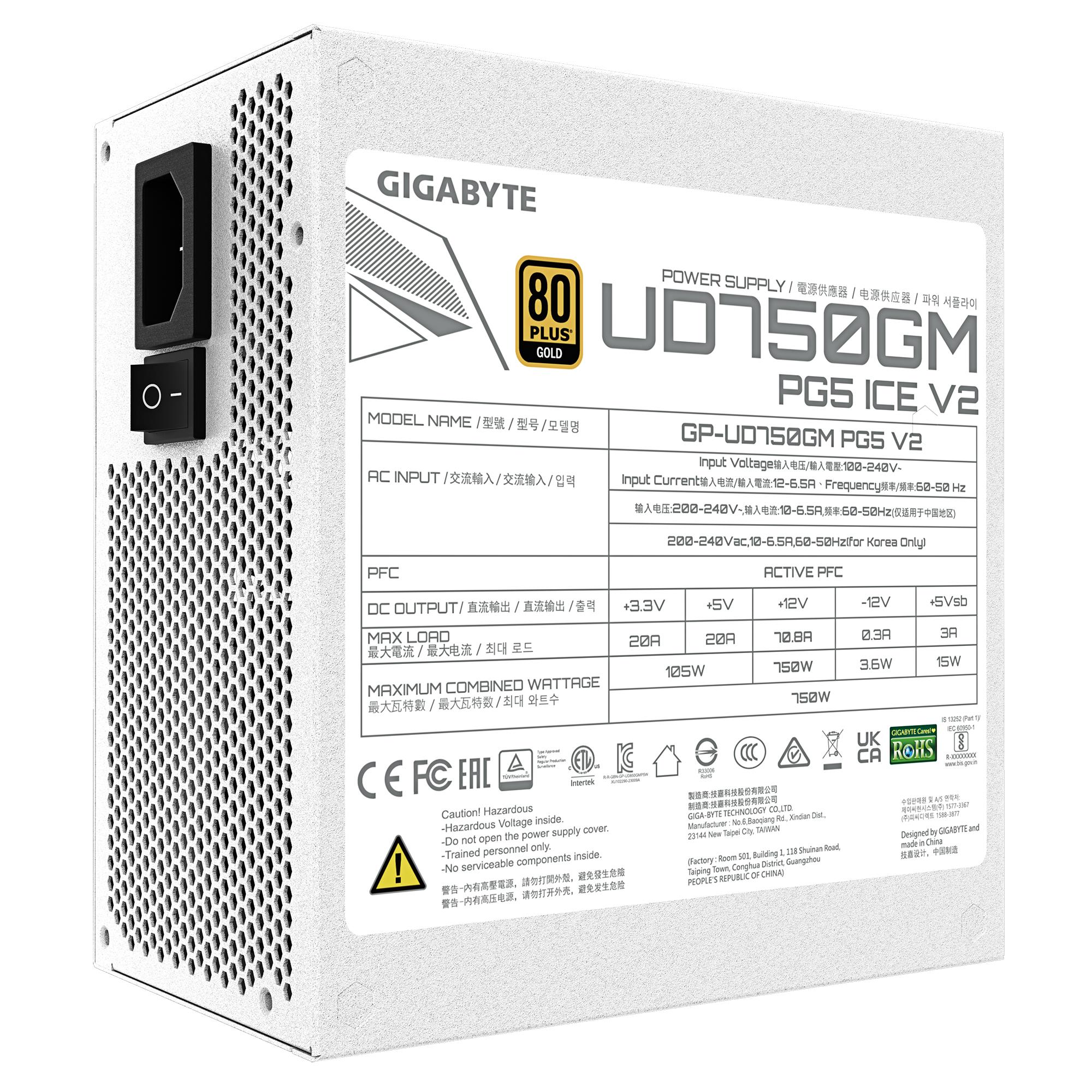

| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Combined power (+12V) | 750 |
| Combined power (+3.3V) | 105 |
| Combined power (+5V) | 105 |
| Combined power (+5Vsb) | 15 |
| Combined power (-12V) | 3.6 |
| Efficiency | 90 |
| Hold time | 16 |
| Input current | 12 - 6.5 |
| Max output current (+12V) | 62.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+5V) | 20 |
| Max output current (+5Vsb) | 3 |
| Max output current (-12V) | 0.3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 750 |
| Cabling type | Fully-Modular |
| CPU power cable length | 650 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 610 |

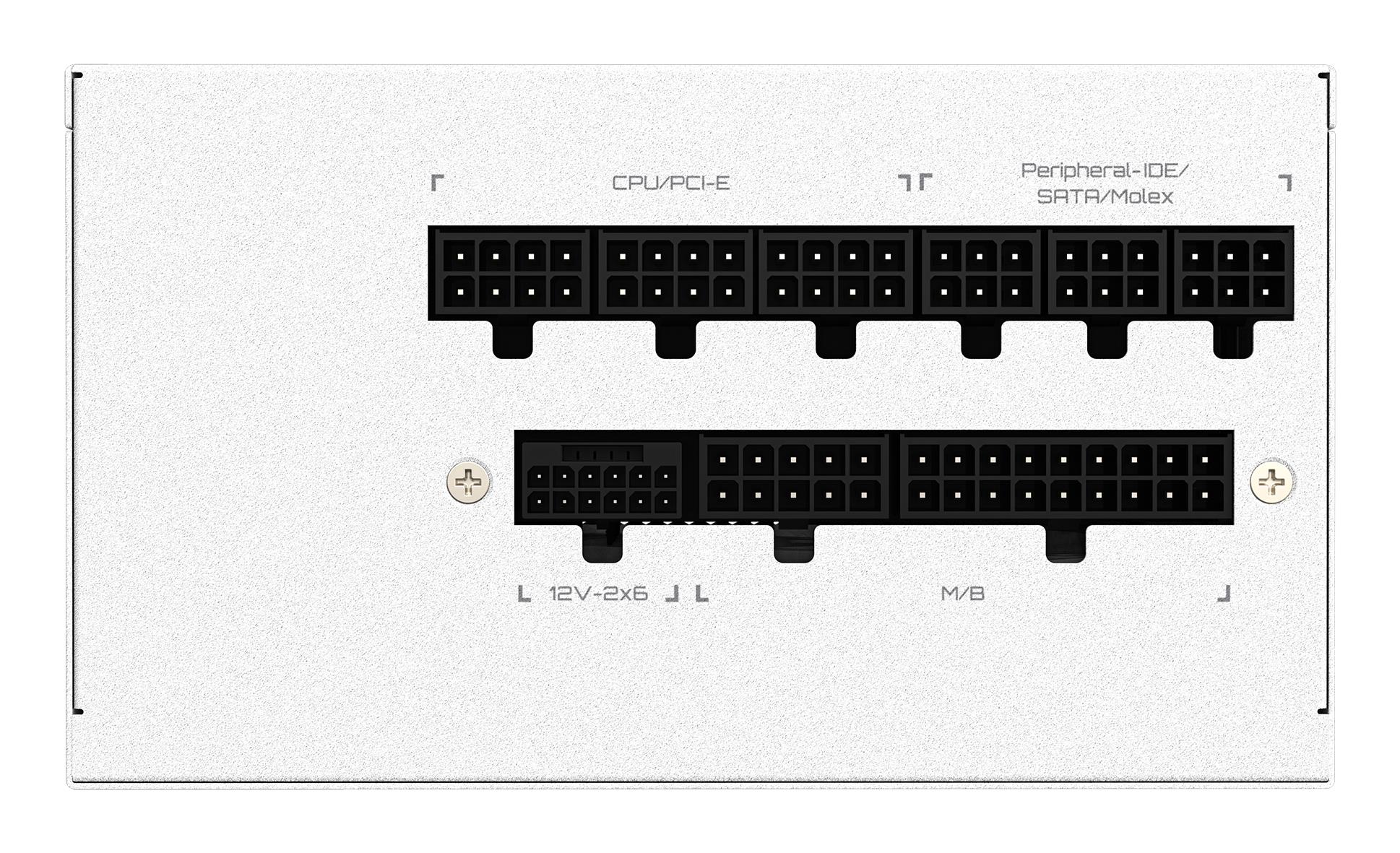

| Motherboard power connector | 20+4 pin ATX |
| Number of EPS connectors | 2 |
| Number of SATA power connectors | 8 |
| PCI Express connector | Yes |
| PCI Express power cable length | 600 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 700 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | White |
| Depth | 140 |
| Height | 86 |
| Weight | 2340 |
| Width | 150 |
| Package depth | 269 |
| Package height | 211 |
| Package type | Box |
| Package weight | 2500 |
| Package width | 618 |
| Warranty period | 5 |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.007986 |
| Unit Calculated Weight | 2.53 |
Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- Intel ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact size
- 100% Japanese capacitors

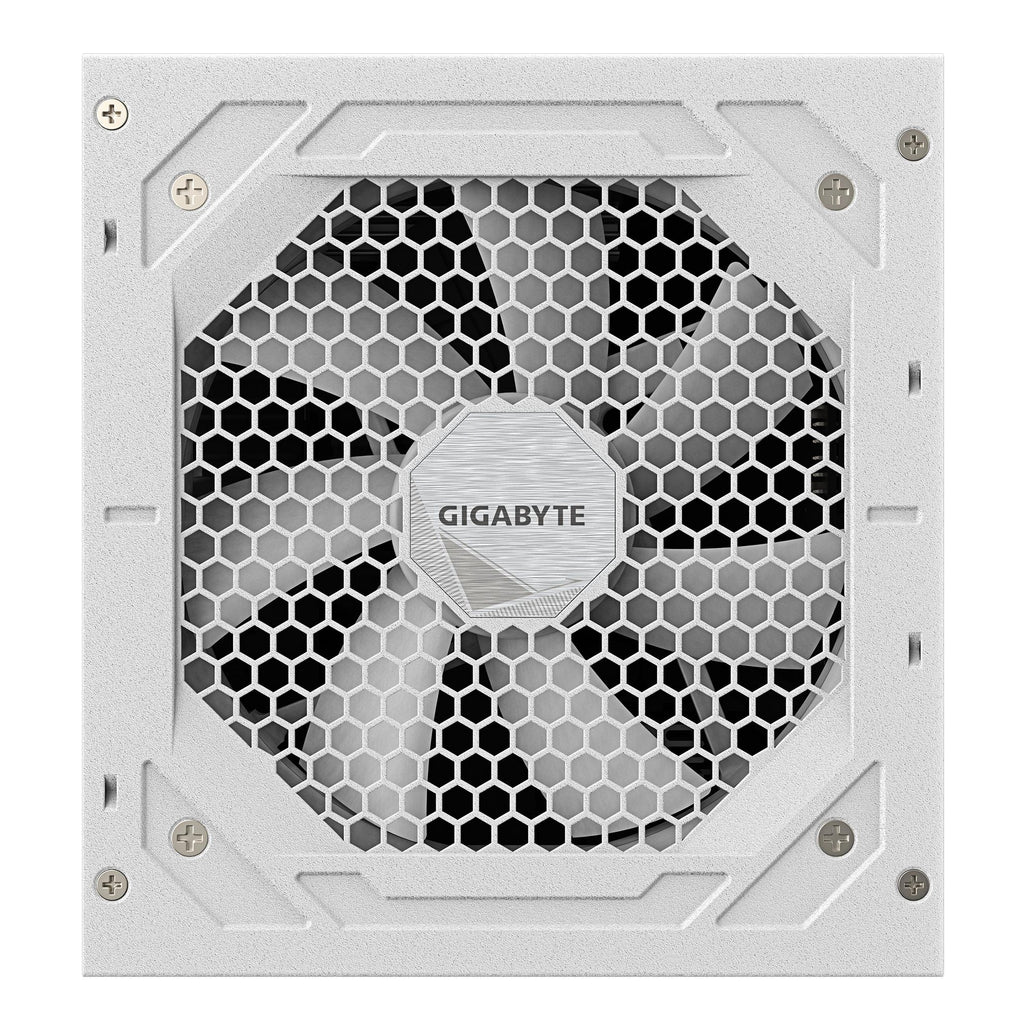

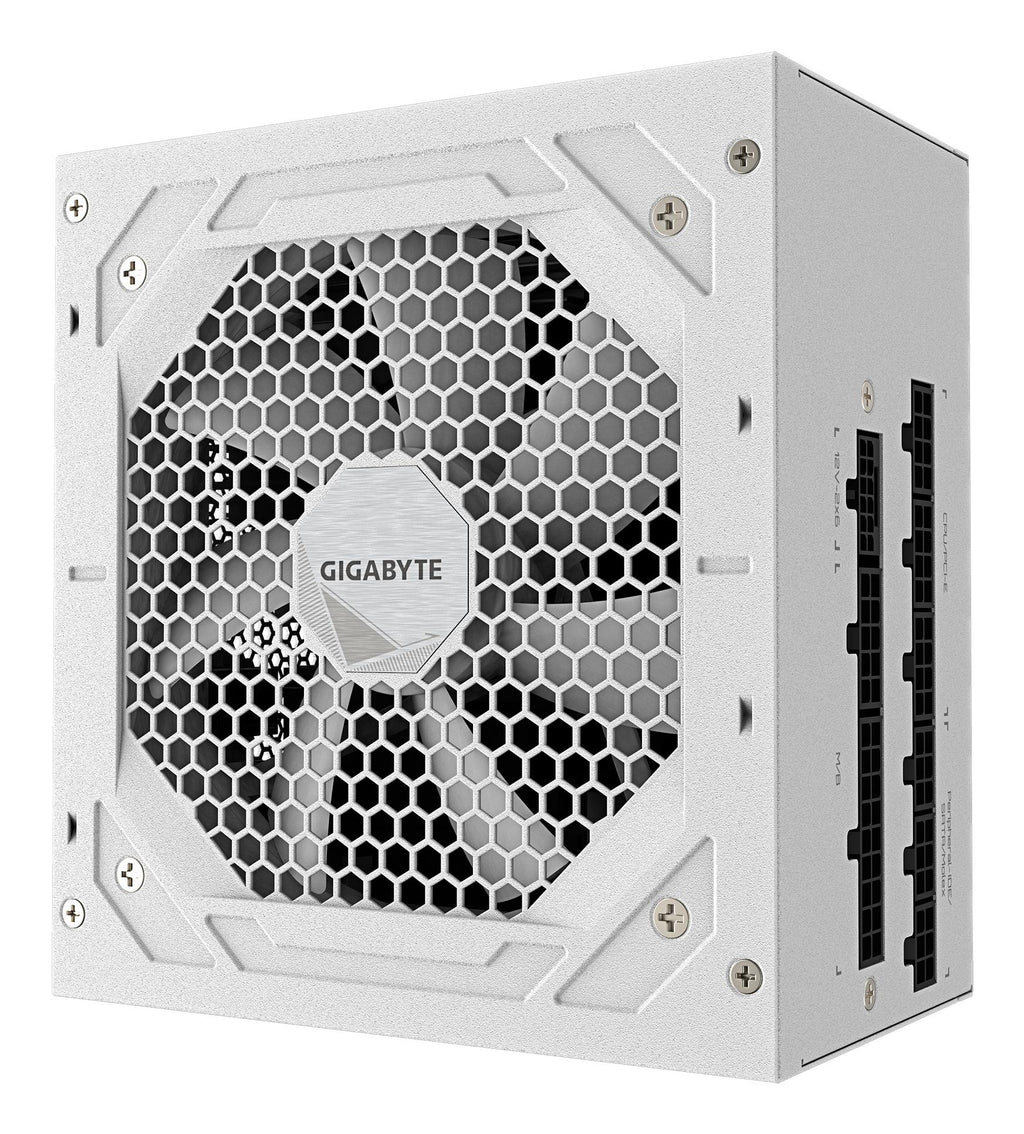

- 120mm smart hydraulic bearing (HYB) fan
- Optimized thermal solution
- OVP/OPP/SCP/UVP/OCP/OTP protection

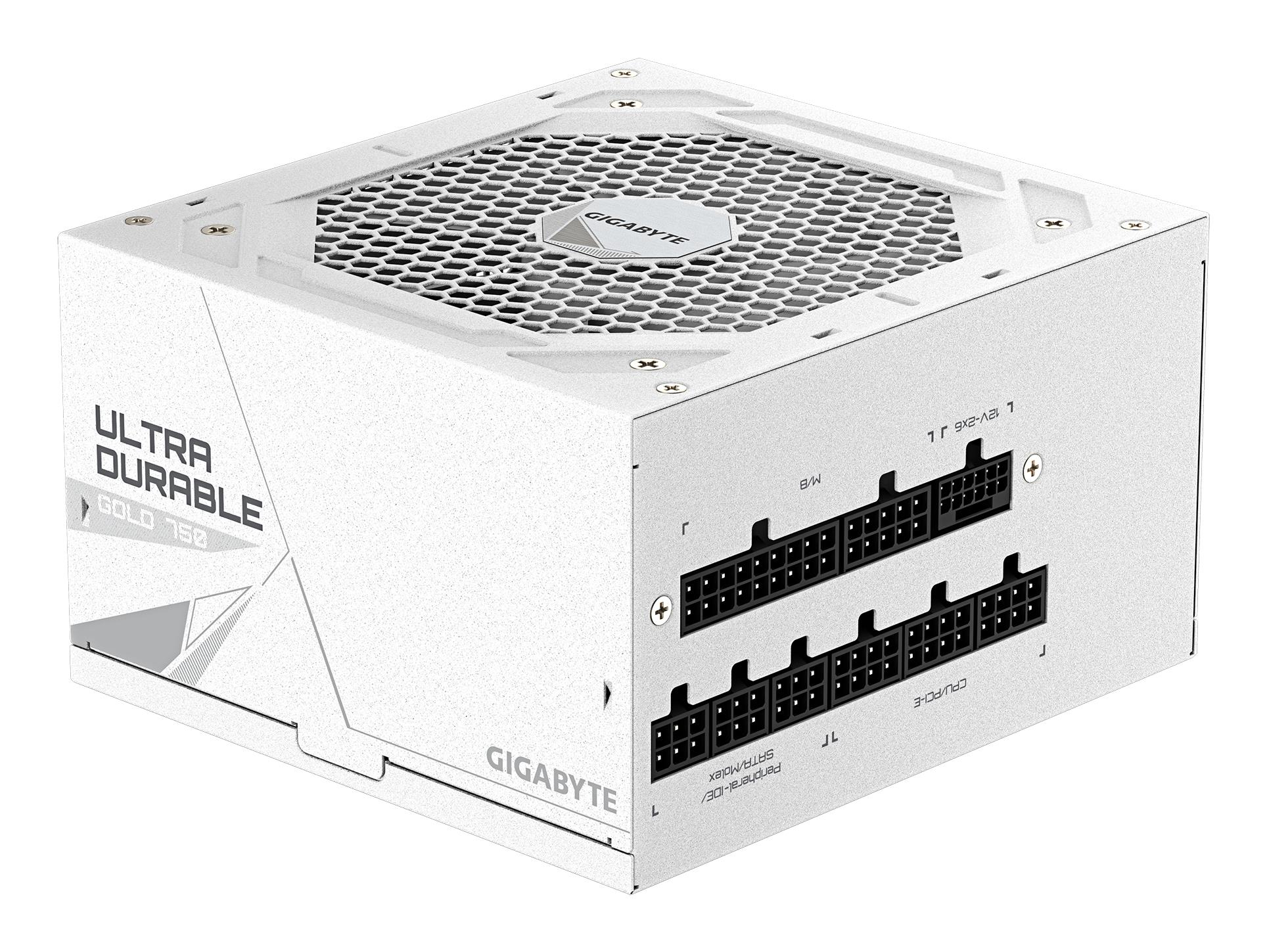

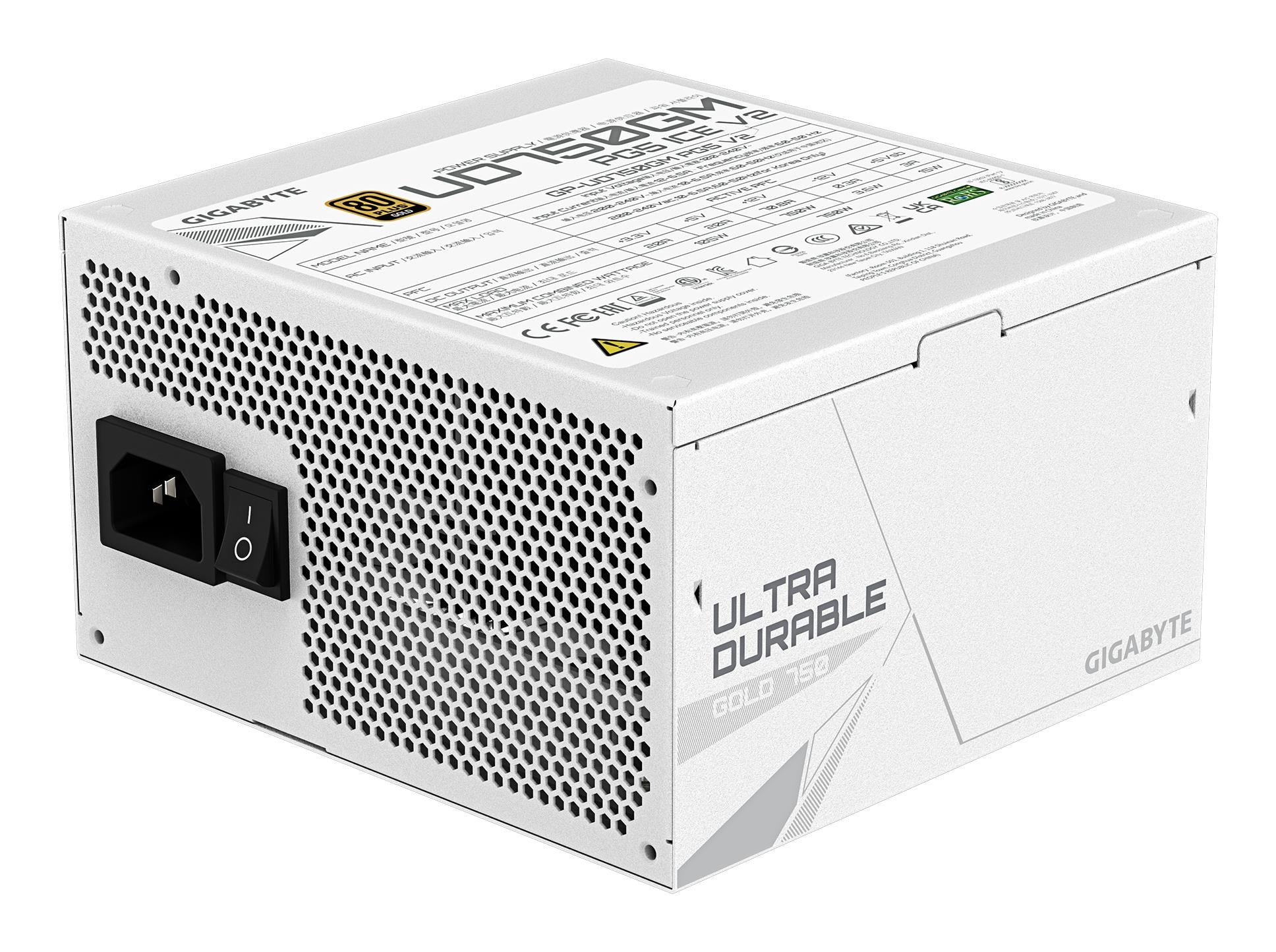

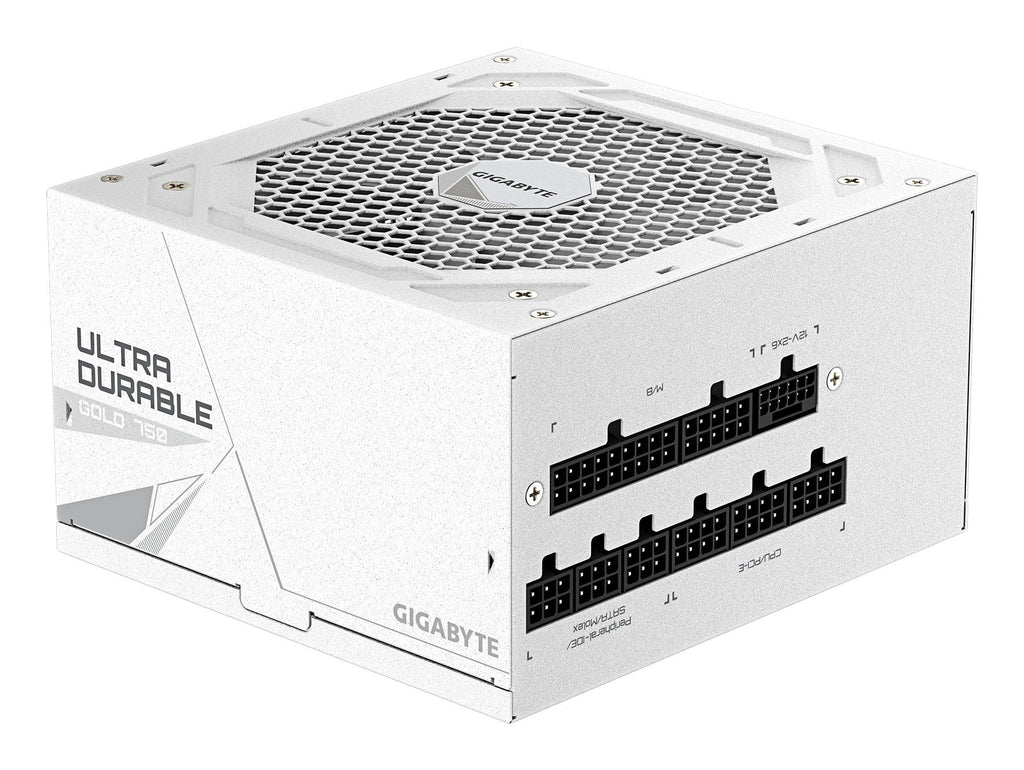

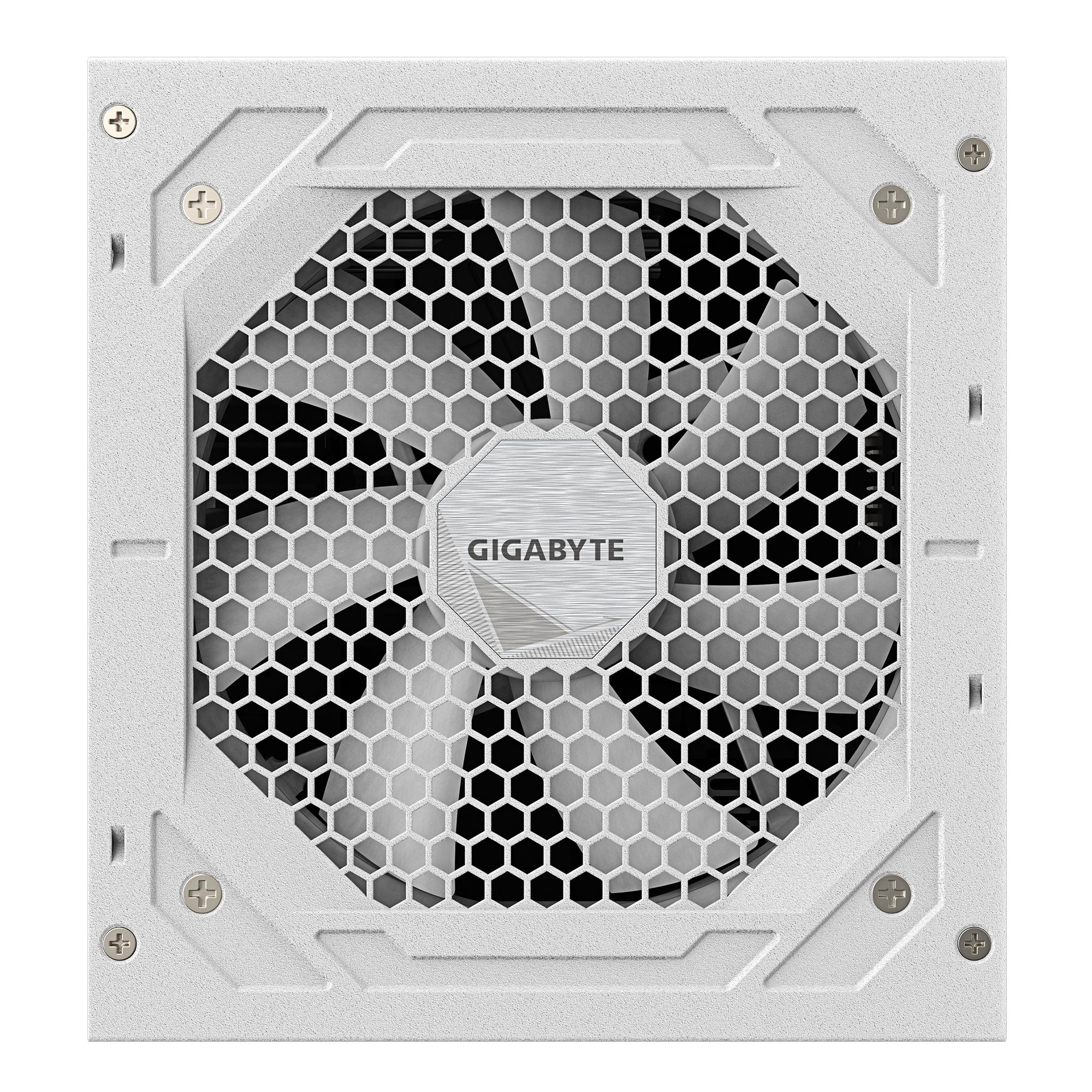

GIGABYTE UD750GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
