Beschreibung
General Information
- SKU: 1437445
- Manufacturer Product Page: DAHUA XVR7104H-4K-I3
- Manufacturer Code: XVR7104H-4K-I3
- Catalog: DVR
- EAN: 6923172581969
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | STD |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.375 |
| Unit Box Width | 0.31 |
| Audio output | 1 |
| HDMI ports quantity | 1 |
| RS-485 ports | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio formats supported | G.711 A-law/G.711u/PCM |
| Backup function | Yes |
| Channels quantity | 4 |
| Dual stream support | Yes |
| Multi-display supported | Yes |
| Playback modes | Event/General/Instant/Smart/Tag |
| Product colour | Black |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| DC current (max) | 2 |
| DC voltage | 12 |
| Power supply type | DC |
| Dimensions (WxDxH) | 325.0 mm × 254.3 mm × 55.0 mm |
| Weight | 1000 |
| Operating temperature (T-T) | –10 °C to +55 °C |
| Storage temperature (T-T) | –20 °C to +60 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01337 |
| Unit Calculated Weight | 1.86 |
Description

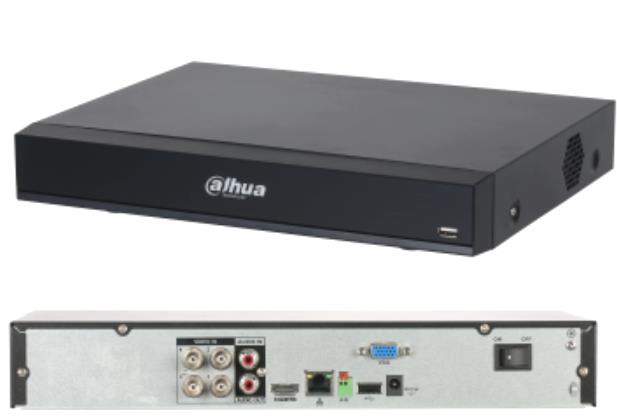

XVR7104H-4K-I3 4CH Penta-brid 4K Mini 1U 1HDD WizSense Digital Video Recorder > 2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval. > 1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time. > 4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. > 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. > 2-channel face recognition for analog channels which supports face comparison. > 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. > Supports HDCVI, AHD, TVI, CVBS and IP video input. > Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps. > Smart H.265+ and H.265 dual-stream video compression.
G.711 A-law/G.711u/PCM
H.264/H.264+/H.265/H.265+
325.0 mm × 254.3 mm × 55.0 mm
