General Information
- SKU: 1414627
- Manufacturer Product Page: BIOSTAR B650MT
- Manufacturer Code: B650MT
- Catalog: Mainboards for AMD CPUs
- EAN: 4712960687622
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.052 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.24 |
| Compatible processor series | AMD Ryzen 7 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| ECC ?ompatibility | non-ECC |
| Maximum internal memory | 96 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 4800/5200/5400/5600/6000 |
| Supported memory module capacities | 16GB/32GB/48GB/8GB |
| Supported memory types | DDR5-SDRAM |
| RAID levels | 0/1/10 |
| RAID support | Y |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Supported storage drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Y |
| Maximum resolution | 4096 x 2160 |
| 12V power connector | Y |
| ATX Power connector (24-pin) | Y |
| Audio connector | Y |
| CPU fan connector | Y |
| Front panel audio connector | Y |
| Front panel connector | Y |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| TPM connector | Y |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |

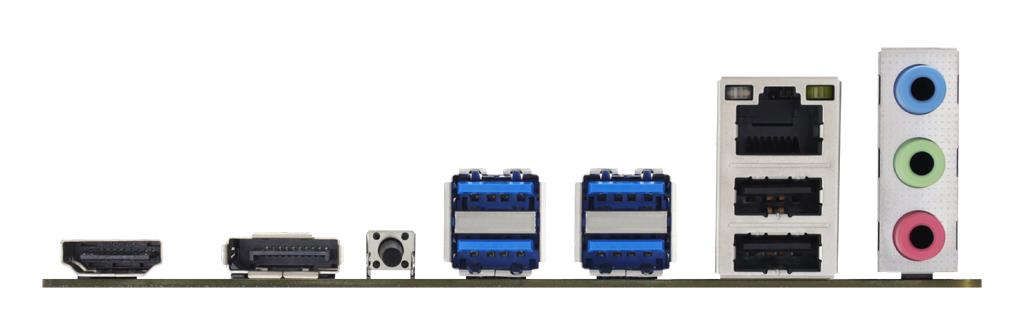

| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Y |
| LAN controller | Realtek RTL8111H |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Component for | PC |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | Micro ATX |
| PC health monitoring | CPU/FAN/Temperature/Voltage |
| Product colour | Black/Silver |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Clear CMOS jumper | Y |
| Depth | 235 |
| Width | 221 |
| Bundled software | BullGuard |
| Cables included | SATA |
| Drivers included | Y |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.003956 |
| Unit Calculated Weight | 0.88 |
Description

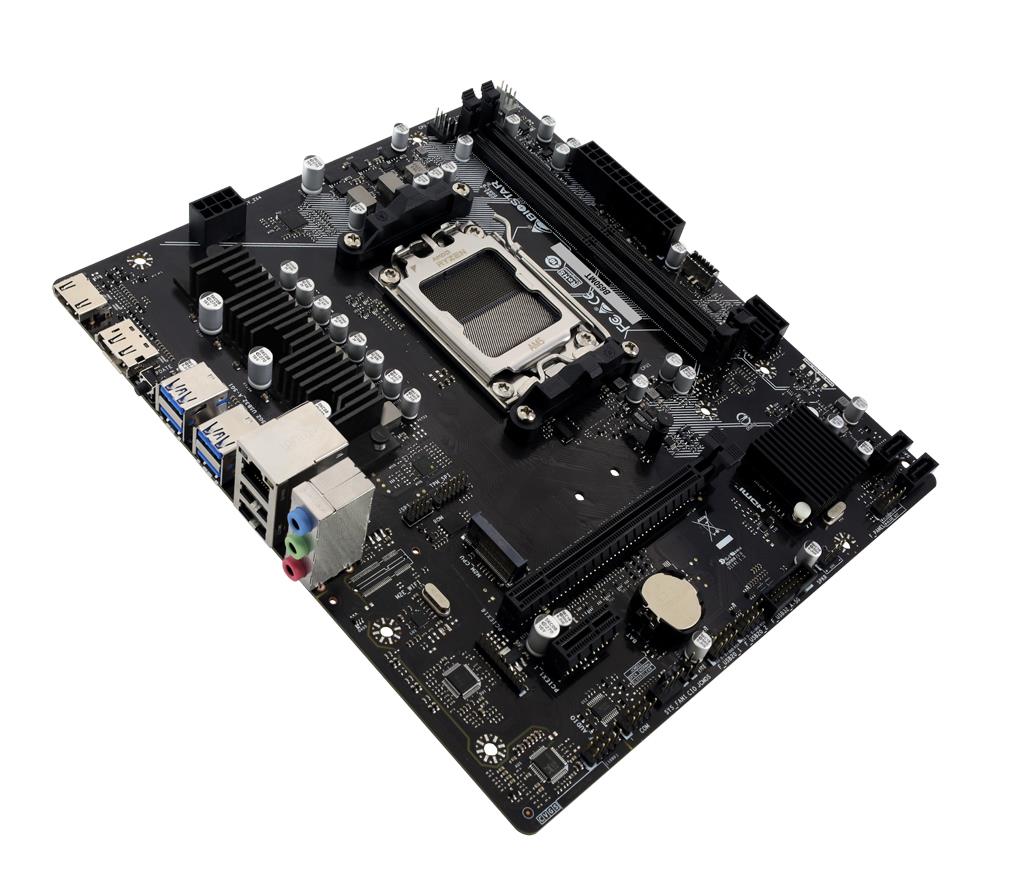

Biostar B650MT. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
M.2,PCI Express 4.0,SATA III
