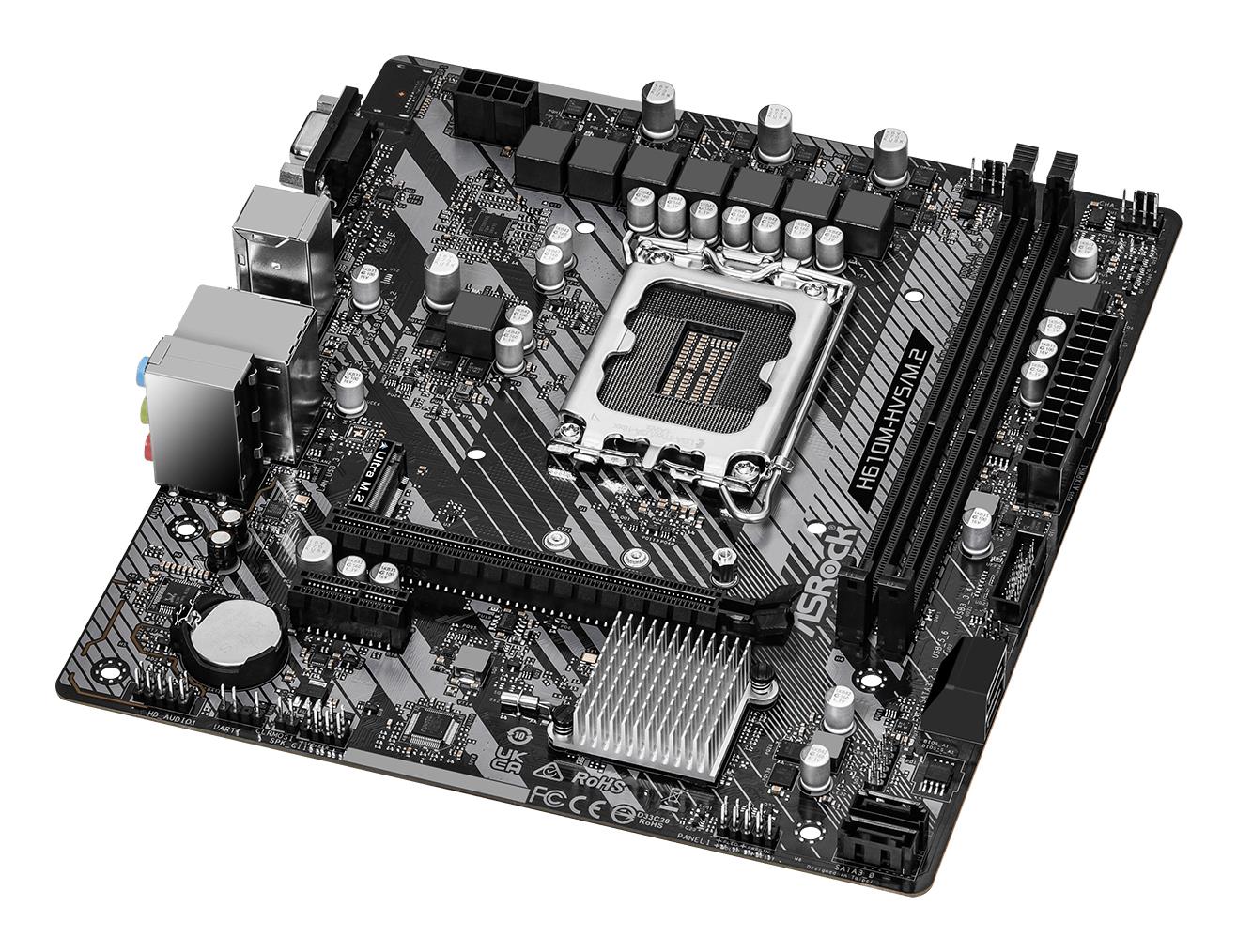

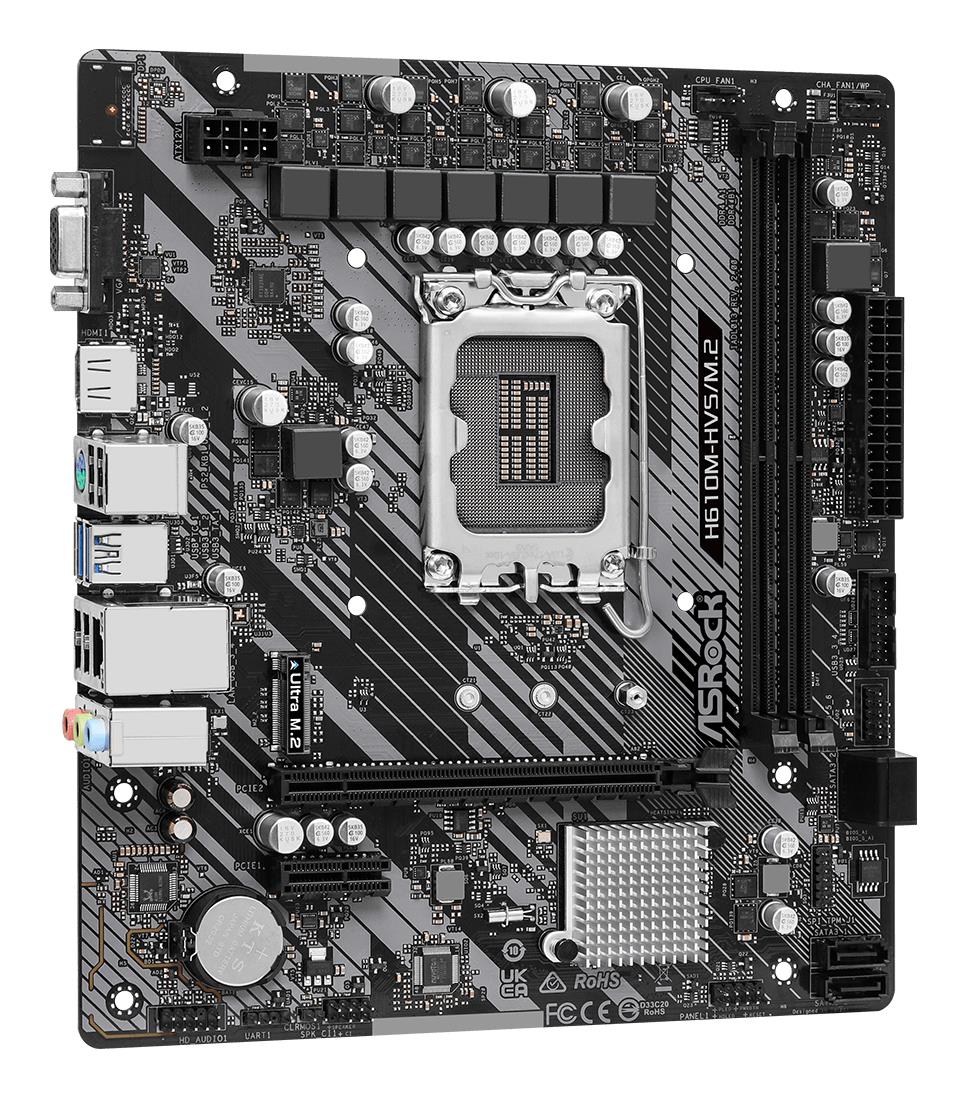

Mainboard ASROCK Intel H610 LGA1700 Micro-ATX Memory DDR4 Memory slots 2 1xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 1xM.2 1x15pin D-sub 1xHDMI 1xAudio-In 1xAudio-Out 1xMicrophone 4xUSB 2.0 2xUSB 3.2 1xPS/2 1xRJ45 H610M-HVS/M.2R2.0

General Information

• SKU: 1384767
• Manufacturer Product Page: ASROCK H610M-HVS/M.2R2.0
• Manufacturer Code: H610M-HVS/M.2R2.0
• Catalog: Mainboards for Intel CPUs
• EAN: 4710483939914
• Warranty: 36 months
• Currency: EUR
• Packaging Quantity: 1

Specifications

Description

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

• Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• 7 Phase Power Design
• Supports DDR4 3200MHz
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

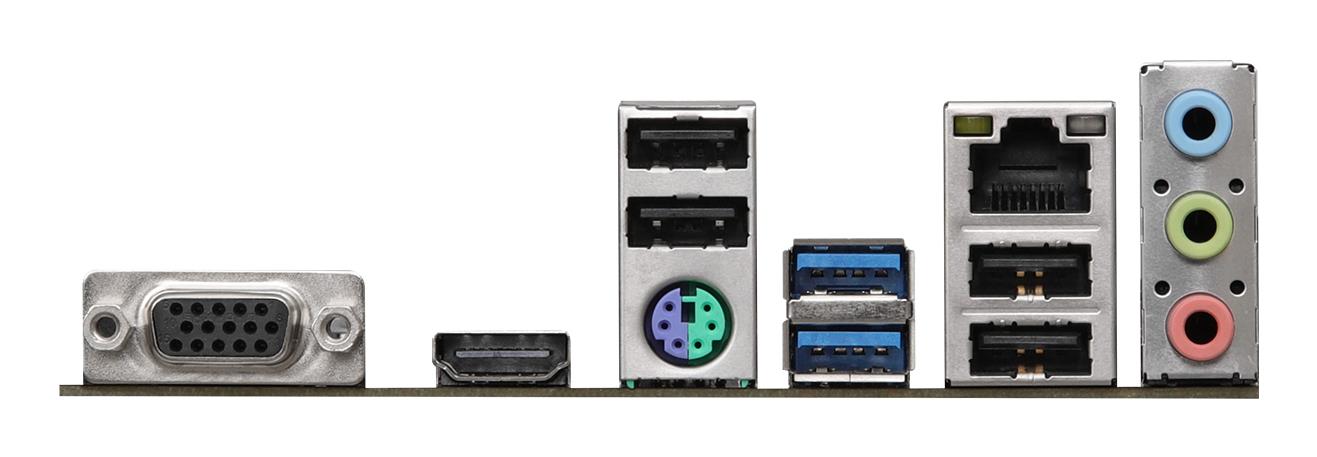

• Graphics Output Options: HDMI, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3
• 1 Ultra M.2 (PCIe Gen3 x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN

Asrock H610M-HVS/M.2 R2.0. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Windows 10 Education x64/Windows 11 x64

Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7
