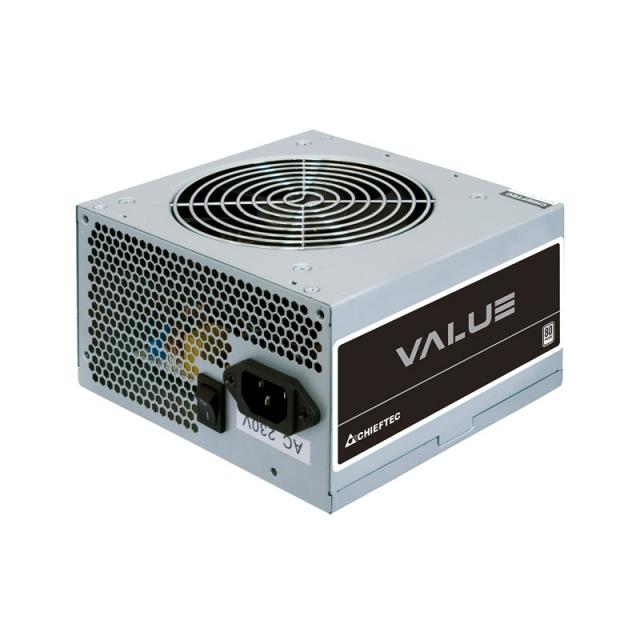

Power Supply CHIEFTEC 600 Watts Efficiency 80 PLUS PFC Active APB-600B8
Power Supply CHIEFTEC 600 Watts Efficiency 80 PLUS PFC Active APB-600B8

Power Supply CHIEFTEC 600 Watts Efficiency 80 PLUS PFC Active APB-600B8

CHIEFTECSKU: 1382015
Keine Bewertungen
Preis:
€55,03
Lagerbestand:
Ausverkauft

Restock information

On the way: 0 pcs.

Beschreibung

General Information

  • SKU: 1382015
  • Manufacturer Product Page: CHIEFTEC APB-600B8
  • Manufacturer Code: APB-600B8
  • Catalog: Desktop Computer PSU
  • EAN: 753263077813
  • Warranty: 24 months
  • Currency: EUR
  • Packaging Quantity: 1

Specifications

Category Code PSU
Unit Box Height 0.09
Unit Box Length 0.22
Unit Box Width 0.15
AC input frequency 47 - 63
AC input voltage 200 - 240
Combined power (+12V) 552
Combined power (+3.3V) 120
Combined power (+5V) 120
Combined power (+5Vsb) 12.5
Combined power (-12V) 3.6
Max output current (+12V1) 46
Max output current (+3.3V) 20
Max output current (+5V) 20
Max output current (+5Vsb) 2.5
Max output current (-12V) 0.3
Maximum input current (@220V) 4.5
Peak power 600
Total power 600
Cabling type Non-Modular
EPS power connector (4+4 pin) Yes
EPS power connector (8-pin) No
Floppy disk drive cable length 150
Floppy disk drive connector Yes
Motherboard power cable length 550
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 4
PCI Express power connectors (6+2 pin) 2
Peripheral (Molex) power cable length 150/500
Peripheral (Molex) power connectors (4-pin) 2
SATA power cable length 150/500
80 PLUS certification 80 PLUS
ATX version 2.3
Power supply unit (PSU) form factor ATX
Purpose PC
Cooling type Active
Fan diameter 120
Fan location Top
Number of fans 1
On/off switch Yes
Product colour Steel
Compliance certificates CE/RoHS
Depth 140
Height 87
Weight 1420
Width 150
Package weight 1560
Harmonized System (HS) code 84733020
Units per Shipping Box 1
Unit Calculated Volume 0.00297
Unit Calculated Weight 1.42

Description

The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!

Chieftec Value APB-600B8. Total power: 600 W, AC input voltage: 200 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Steel, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS
