Beschreibung
General Information
- SKU: 1207566
- Manufacturer Product Page: CHIEFTEC GPA-700S
- Manufacturer Code: GPA-700S
- Catalog: Desktop Computer PSU
- EAN: 4710713233225
- Warranty: 24 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | PSU |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.155 |
| AC input frequency | 47 - 63 |
| AC input voltage | 200 - 240 |
| Combined power (+12V) | 648 |
| Combined power (+3.3V) | 130 |
| Combined power (+5V) | 130 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 3.6 |
| Efficiency | 80 |
| Input current | 5 |
| Max output current (+12V) | 50 |
| Max output current (+3.3V) | 22 |
| Max output current (+5V) | 22 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 700 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| CPU power cable length | 550 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 500 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 500/650/800 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC/Server |
| Cooling type | Active |
| Fan diameter | 120 |
| Fan location | Top |
| Number of fans | 1 |
| Product colour | Silver |
| Compliance certificates | CB/CE/EAC |
| Depth | 150 |
| Height | 87 |
| Weight | 1440 |
| Width | 140 |
| Package type | Box |
| Package weight | 1570 |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004725 |
| Unit Calculated Weight | 1.61 |
Description
The GPA-650S and like all other models in the iARENA Series have a fixed voltage of 230V and are specifically made for Europe. They are the optimal and cost-effective solution for quality-demanding system builders.

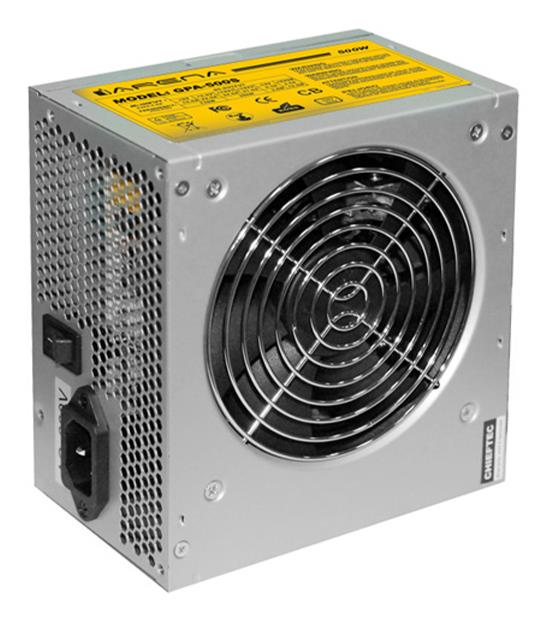

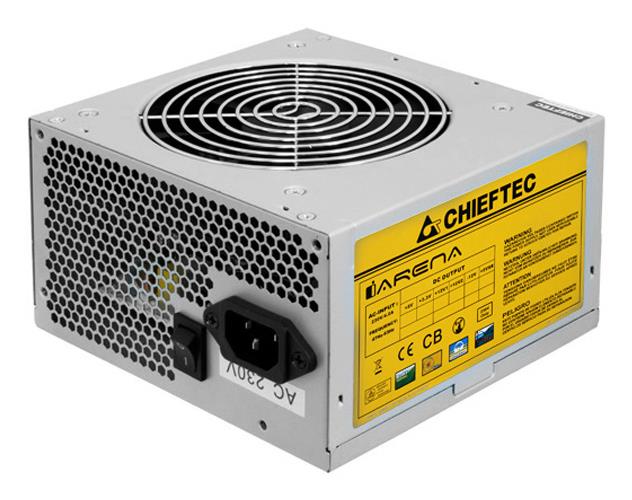

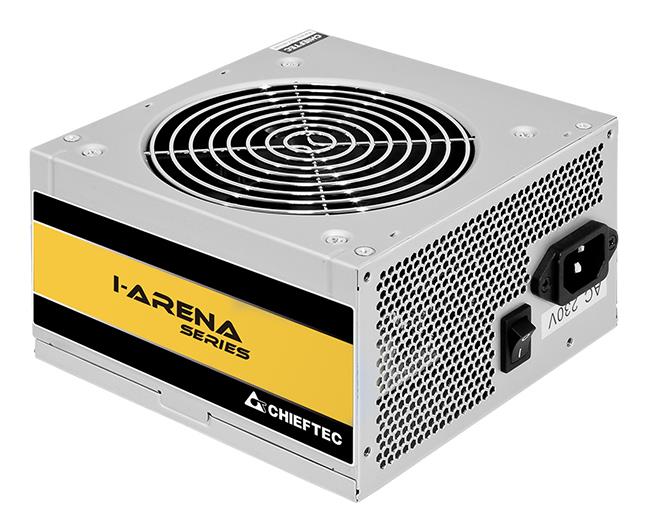

Chieftec iArena GPA-700s. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Peripheral (Molex) power cable length: 500,650,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC
