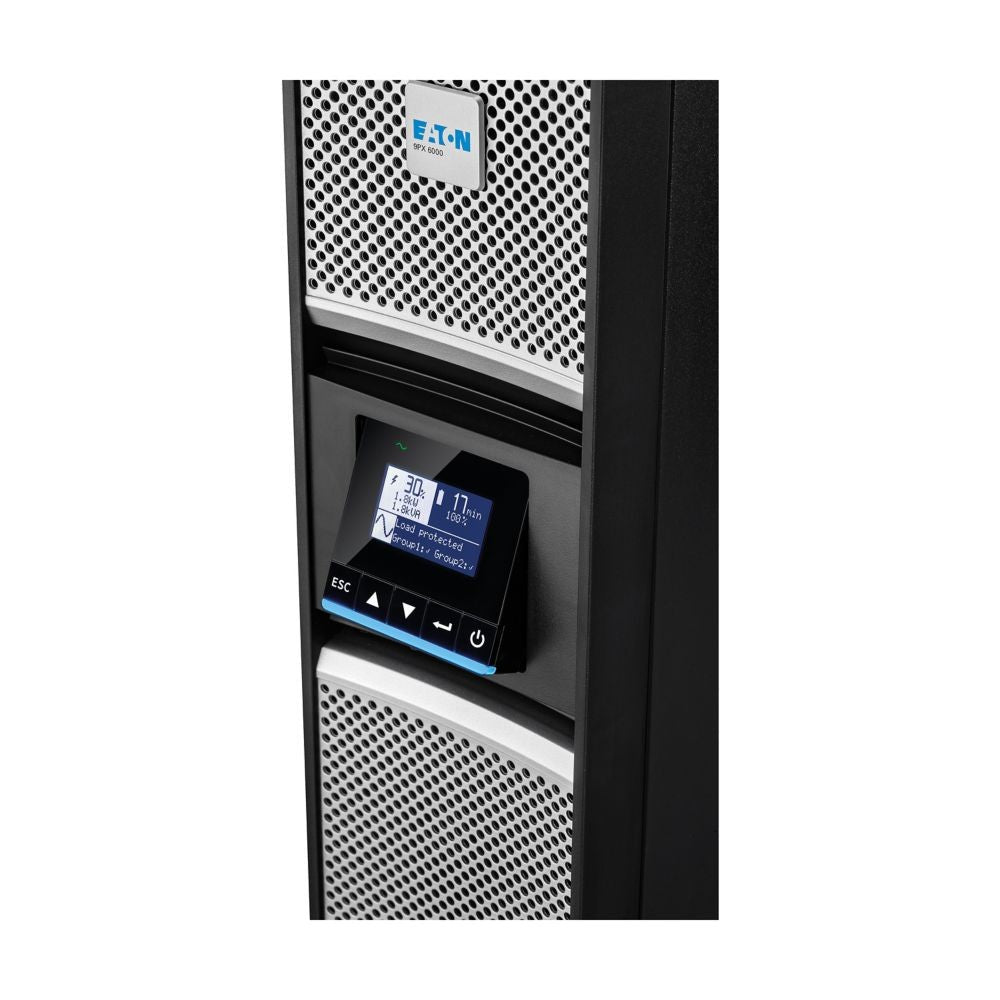

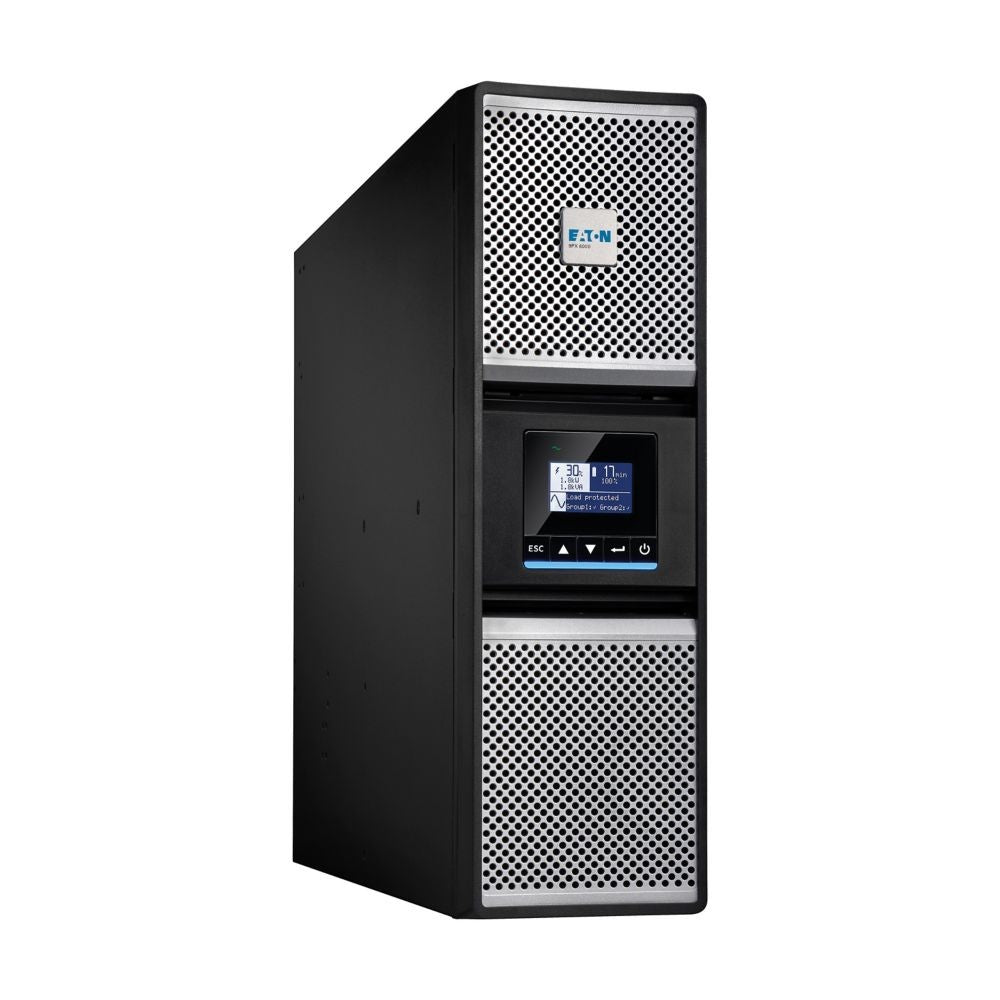

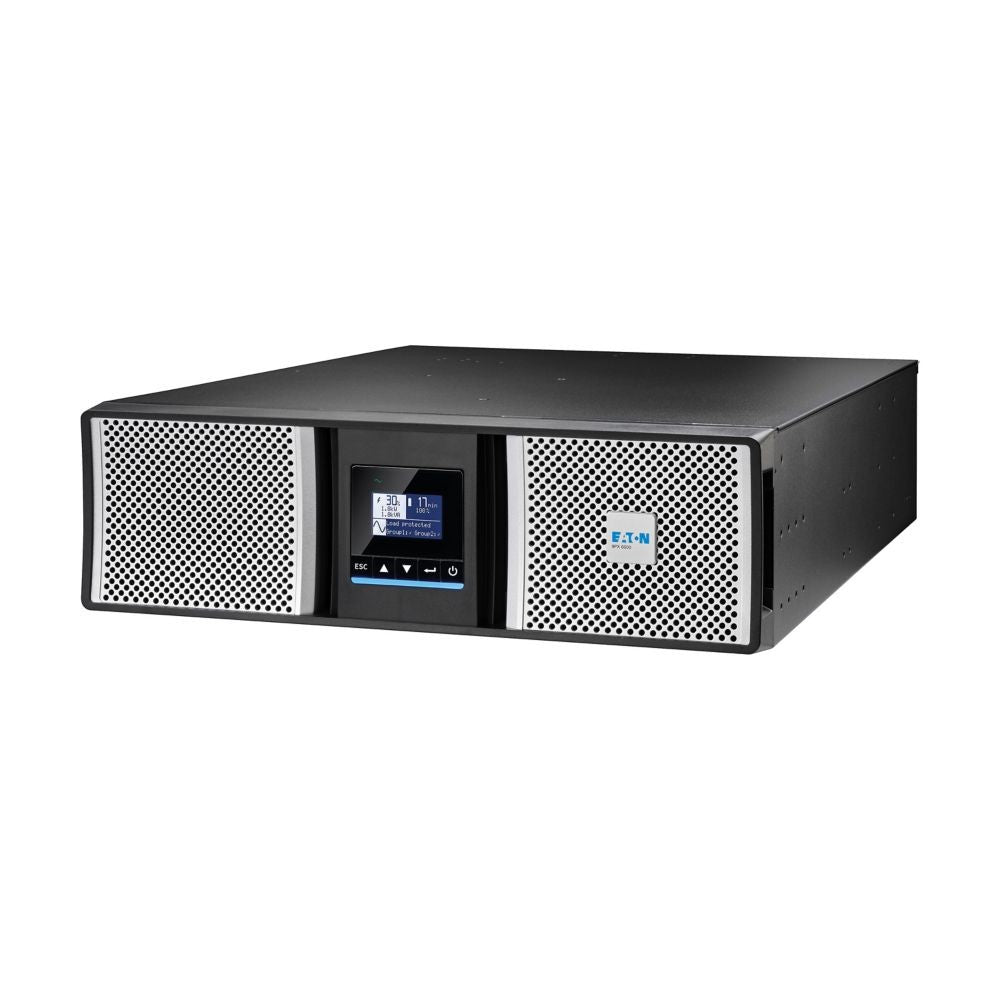

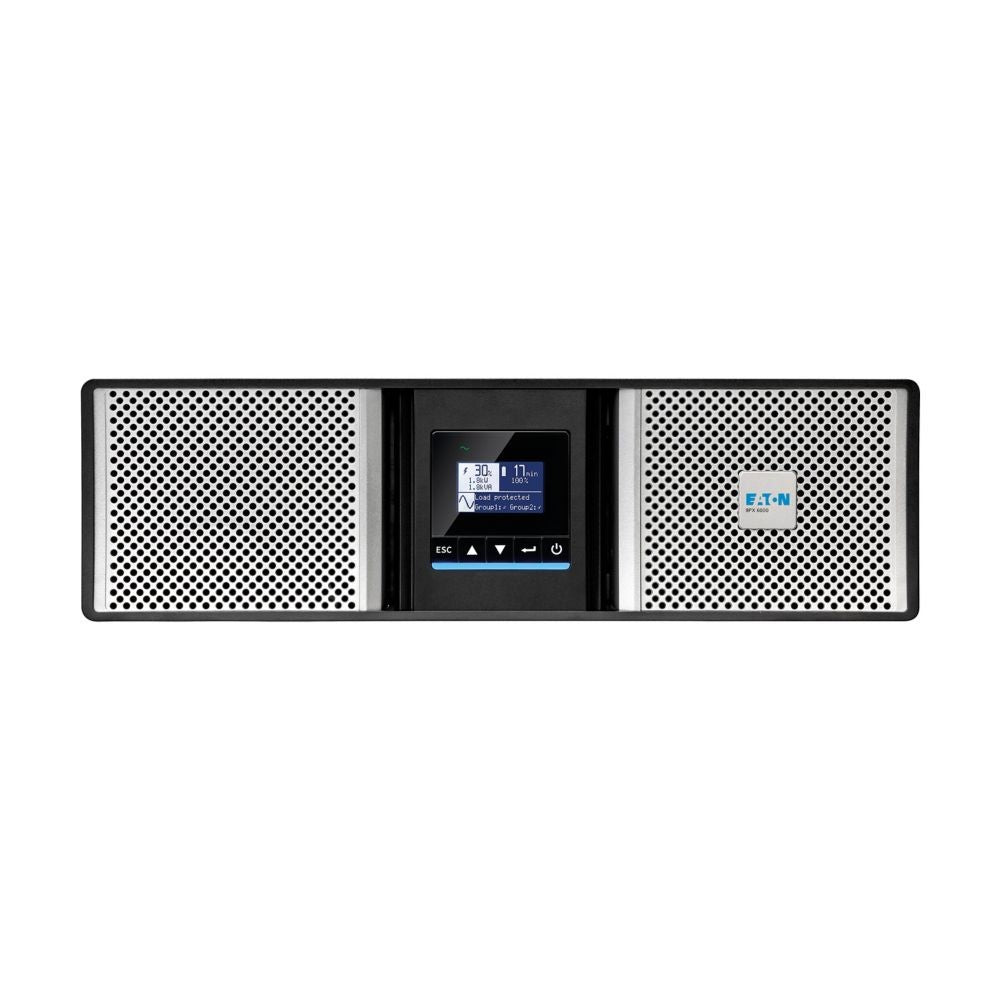

Eaton UPS 9PX 5000i RT3U Netpack G2
Specifications
| Apparent power | 5 kVA |
|---|---|
| Active power | 5000 |
| UPS Architecture | on-line double conversion |
| The shape of the output voltage | Full sine wave |
| Number of phases input | 1 (230V) |
| No. of batteries | 15 |
| Voltage | 12 |
| Battery capacity | 5 |
| Chassis type | Tower |

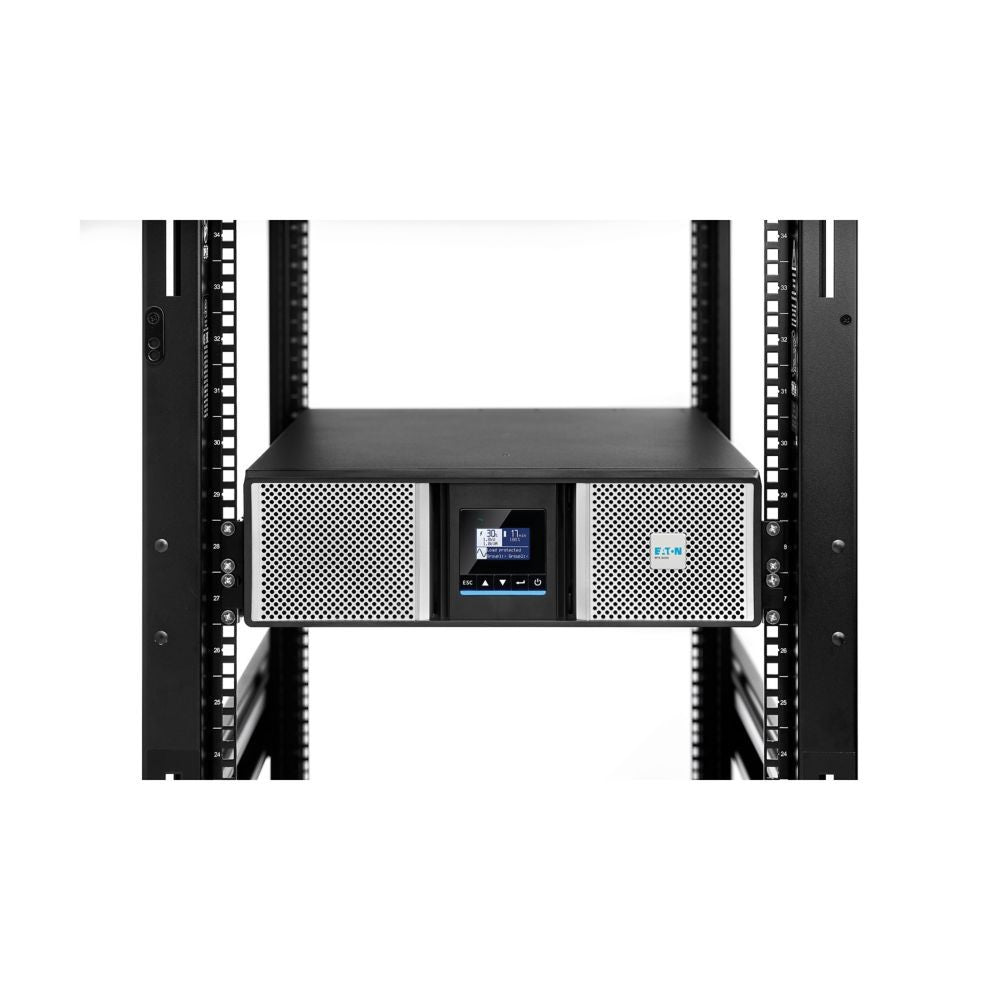

| Chassis type | Rack |
| Filters / protection | Overdischarge |
| Special functions | ABM+ (predictive battery life monitoring) and temperature-compensated charging (user selectable) Automatic battery test Automatic detection of external battery modules |
| Software | Eaton Brightlayer Software suite |

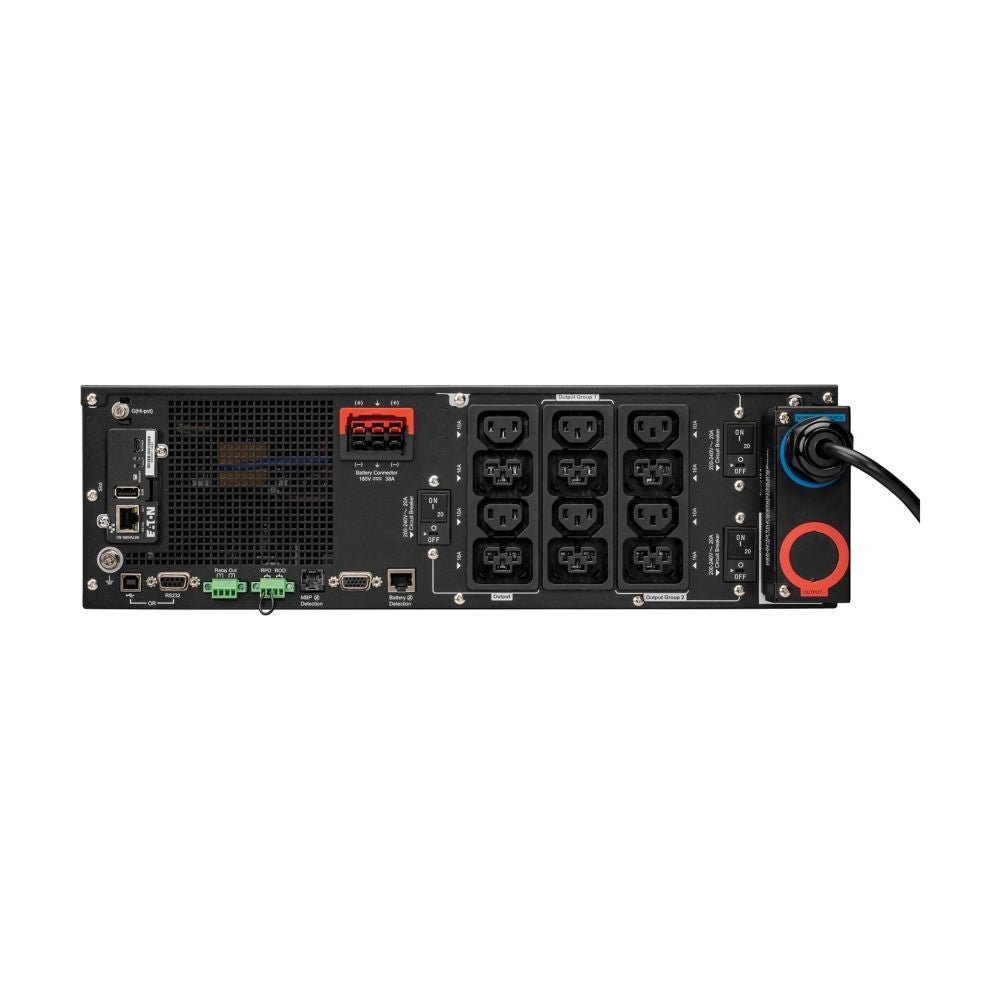

| Input power ports | Input terminal |
| Output power ports | 6 x IEC-C39 |
| Output power ports | Output terminals |
| Output power ports | 6 x IEC-C13 |
| I/O connectors | 1 x USB (Type B) |
| I/O connectors | 1 x RS-232 (COM) |
| Environment requirements | Altitude: 3,000 m Noise level: below 40 dB at a distance of 1 m Relative humidity: 0-95%, non-condensing Operating temperature range: 0°C to 40°C (32°F to 104°F) |
| Accessories included | UPS power supply 2 × cable glands 2 × IEC-to-IEC output cables (1.2 m) USB cable (1.8 m) Network card Tower mounting brackets Rack mounting kit with brackets and UPS rails Safety instructions Quick start guide |
| Color | Black |
| Color | Silver |
| Warranty | 3-year warranty on electronics and 2-year warranty on batteries; upon registration, a full 3-year warranty applies. |
| Dimensions | 130 x 440 x 684 mm |
| Weight | 43.1 |
