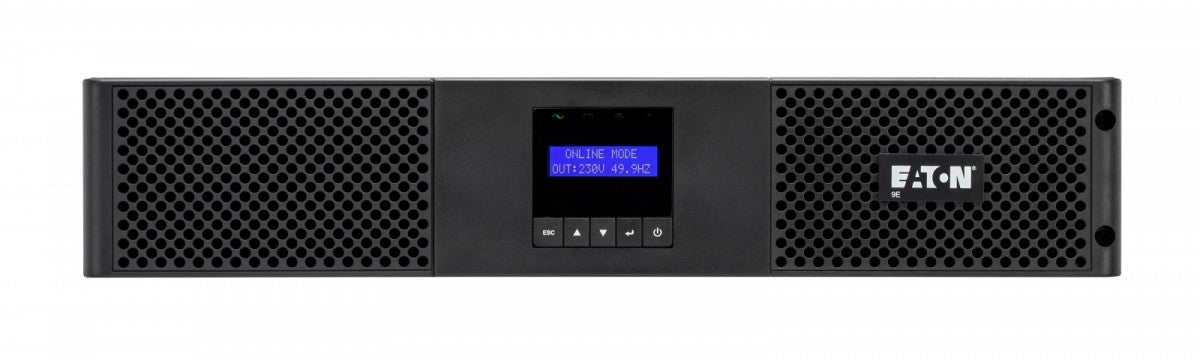

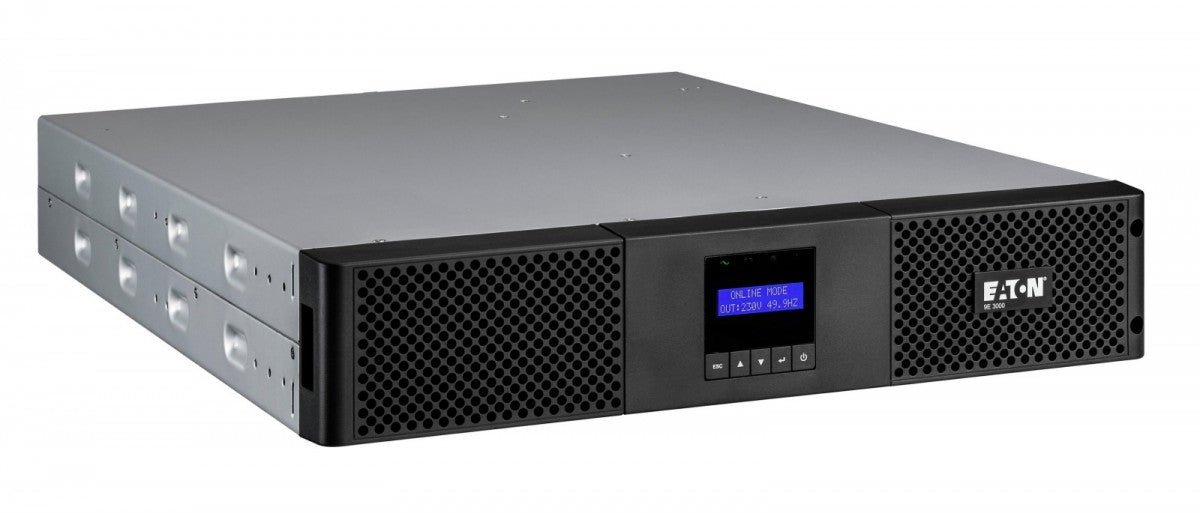

Eaton 9E2000IR UPS Online 2000 VA / 1800 W 2U
Specifications
| Important | The power supply has a menu in Polish. |
|---|---|

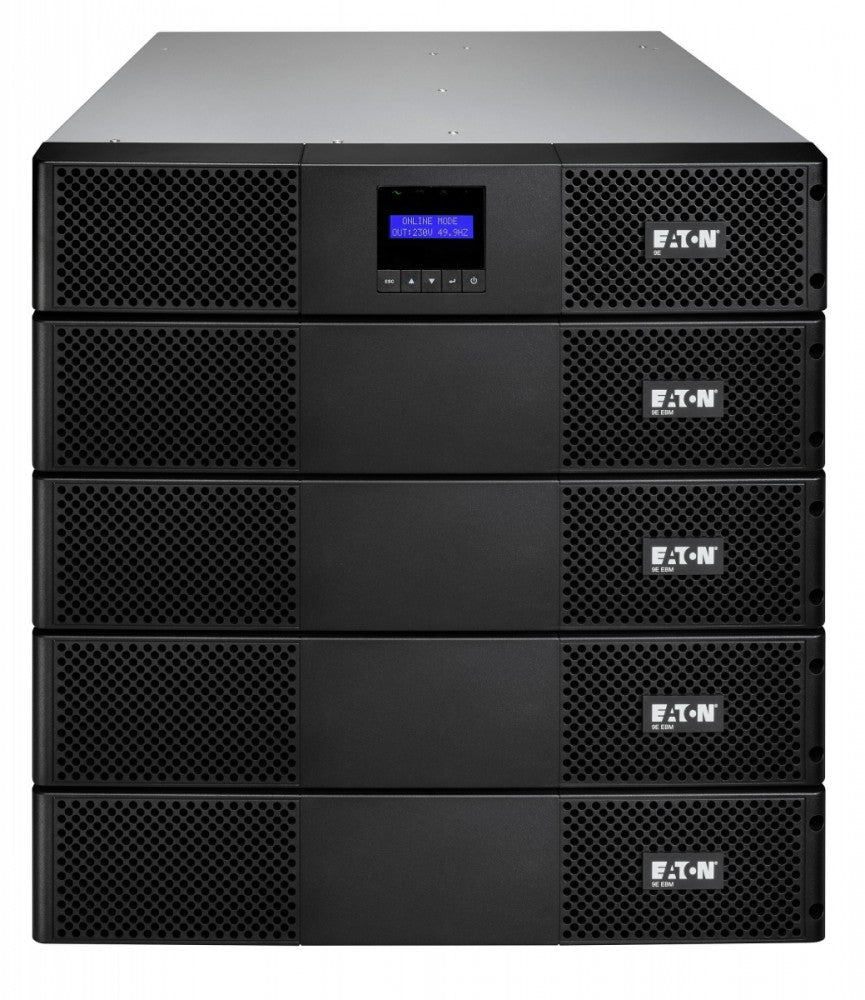

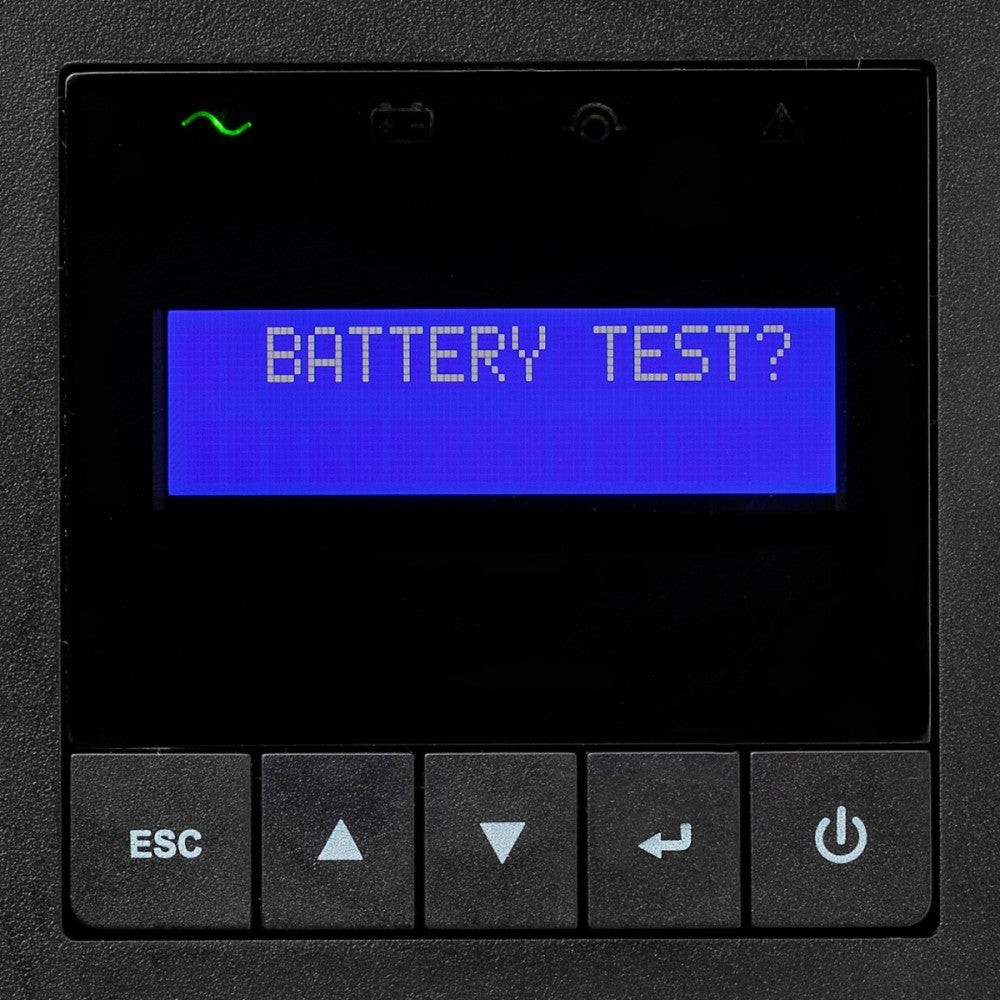

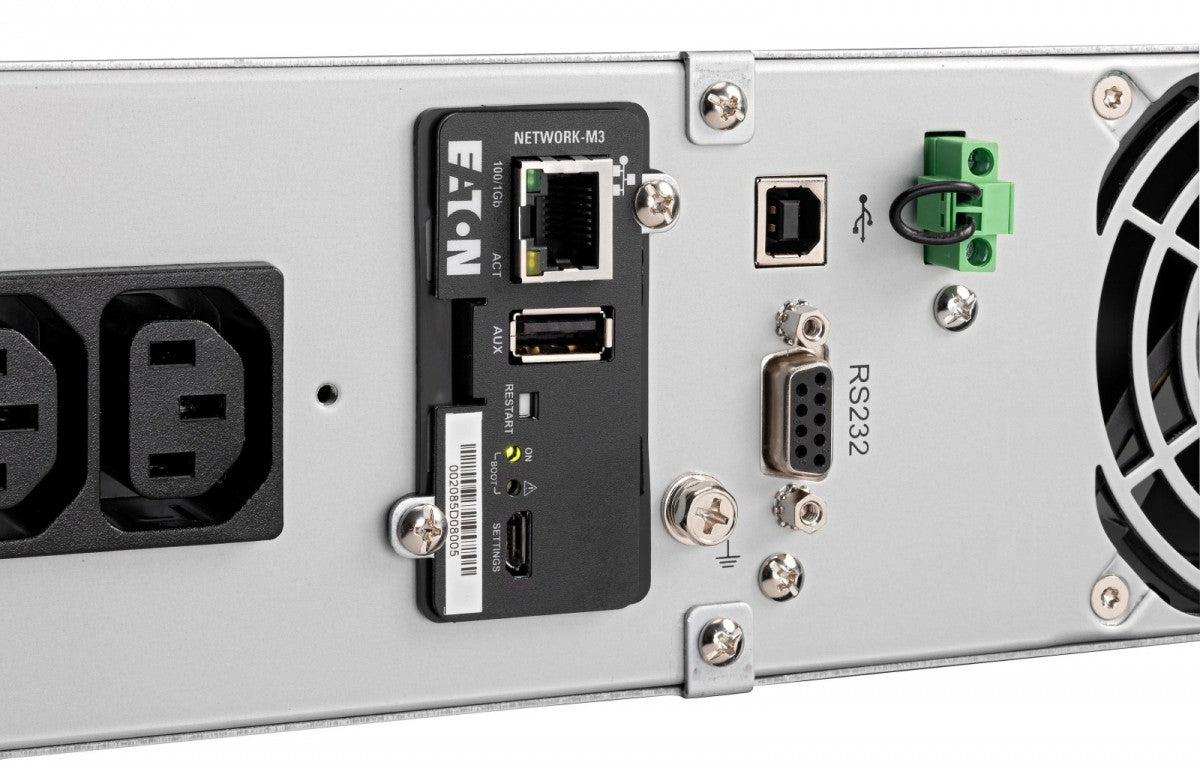

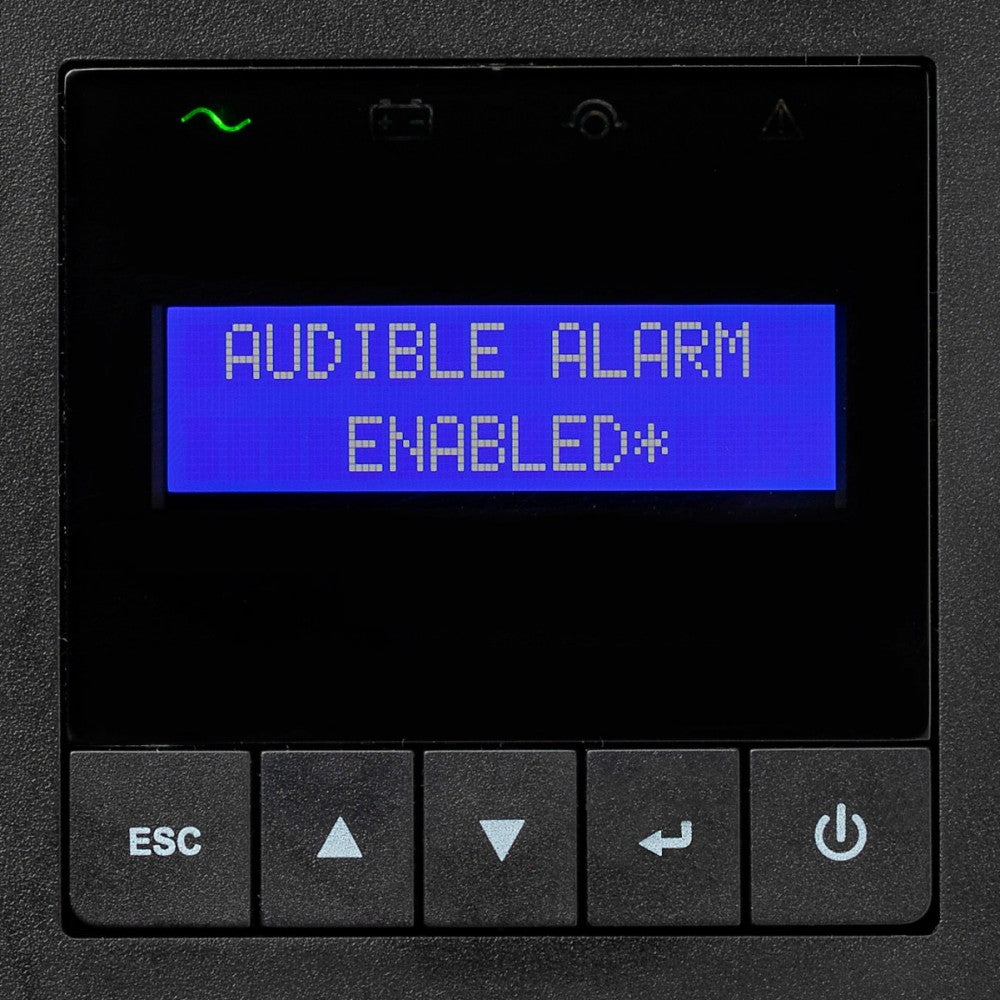

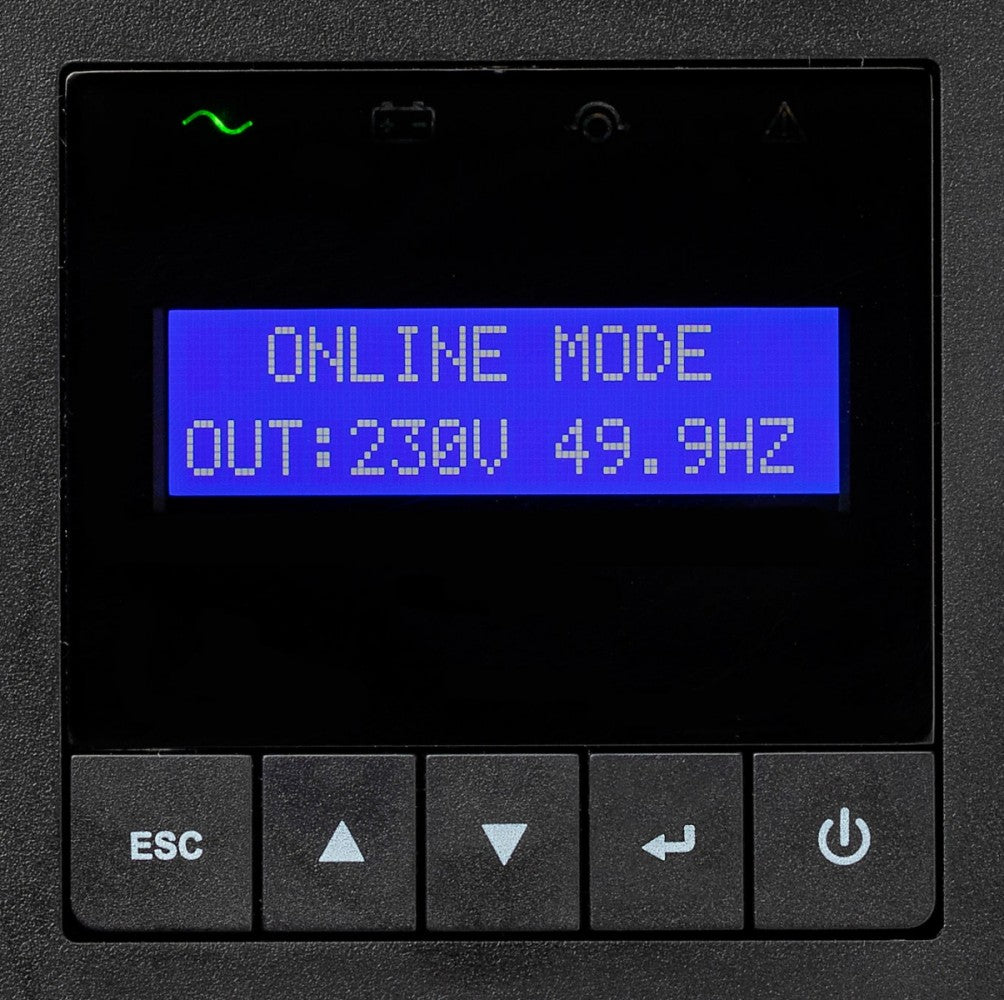

| Description | Basic online rack UPS Reliability Eaton 9E Rack constantly monitors power parameters and regulates voltage and frequency accordingly thanks to its online double conversion topology. Internal bypass ensures continued operation in the event of an internal fault. Optionally, a service bypass is also available, allowing for easy replacement of the UPS without turning off key loads. Trust a leading manufacturer with decades of experience and high quality standards: compliance with CE standards confirmed by a third party (CB report). Flexibility With a power factor of 0.9, 9E Rack is able to power more servers and follows the latest industry trends. The backup time can be extended with up to 4 external battery modules (2 and 3 kVA models), providing power for up to many hours. Access to the batteries from the front panel means there is no need to remove the UPS from the rack during service. Management Available in 6 languages (including Polish), the menu on the 9E Rack's LCD display provides an easy view of its status, measurements and configuration options. Easy communication with the UPS via USB port, RS232 port or over the network via an optional network card (Network-M3). All models are also equipped with an RPO connector. The Eaton 9E Rack UPS is compatible with Eaton Brightlayer software for integration with all major operating systems, leading virtual environments and cloud orchestration tools. |
| Apparent power | 2000 VA |
| Active power | 1800 |
| UPS Architecture | on-line double conversion |
| The shape of the output voltage | Full sine wave |
| Number of phases input | 1 (230V) |
| No. of batteries | 6 |
| Voltage | 12 |
| Battery capacity | 7 |
| Chassis type | Rack |
| Filters / protection | Overdischarge |

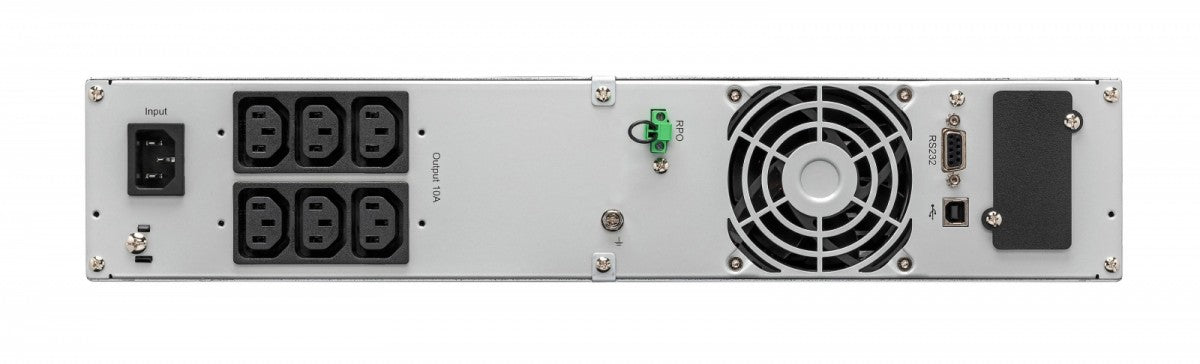

| Input power ports | IEC-C14 |
| Output power ports | 6 x IEC-C13 |
| I/O connectors | 1 x USB (Type B) |
| I/O connectors | 1 x RS-232 (COM) |
| Environment requirements | 0°C to 40°C Relative humidity 0-96%, non-condensing |
| Accessories included | UPS power supply (2) IEC-IEC output cables USB cable Rack mounting kit (rails and brackets) Safety instructions Quick start |
| Color | Black |
| Dimensions | 86,5 x 438 x 608 mm |
| Weight | 29.9 |
