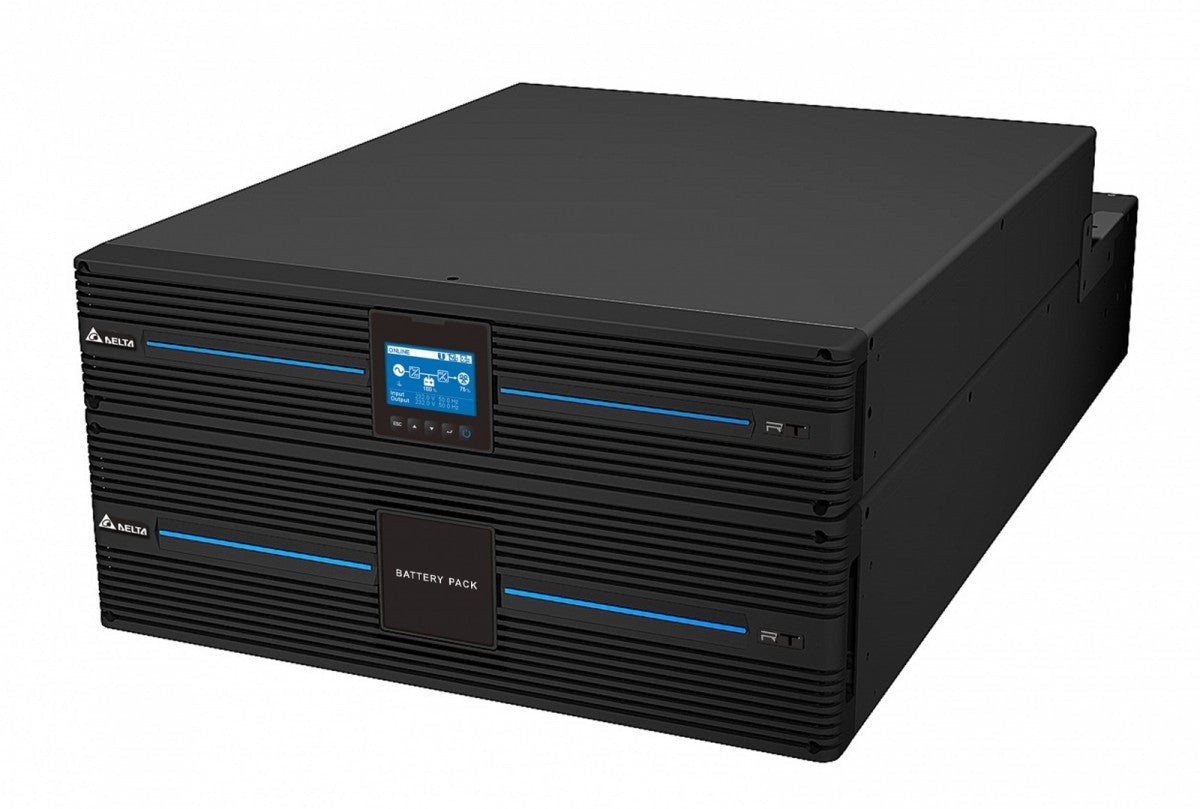

DELTA ELECTRONICS UPS UPS103R2RT0B035 Amplon RT-10K Standard; battery module 20x9Ah and bypass with distribution C13x6; C19x5
Specifications
| Apparent power | 10 kVA |
|---|---|
| Active power | 10000 |
| UPS Architecture | on-line double conversion |
| Number of phases input | 1 (230V) |
| No. of batteries | 20 |
| Battery capacity | 9 |
| Backup time (100% load) | 3.5 |
| Chassis type | Rack |
| Special functions | Graphical LCD display with LED indicators |
| Input power ports | Terminal |
| Output power ports | 6 x IEC-C13 |
| Output power ports | 5 x IEC-C19 |
| I/O connectors | 1 x REPO |
| I/O connectors | 3 x output dry contact |
| I/O connectors | 1 x RS-232 (COM) |
| I/O connectors | 1 x inpot dry contact |
| I/O connectors | 1 x RS-485 |
| I/O connectors | 1 x Mini Slot |
| I/O connectors | 1 x USB (Type B) |
| Environment requirements | Operating temperature: 0 - 55 degrees C (40-50 degrees C after reducing the UPS parameters to 75% of its capacity) Operating humidity: 5 - 95% RH non-condensing Noise level: 50 dB |
| Color | Black |
| Dimensions | 440 x 750 x 218 mm |
| Weight | 85.5 |
