Defenzo Wallbox AC22 SMART

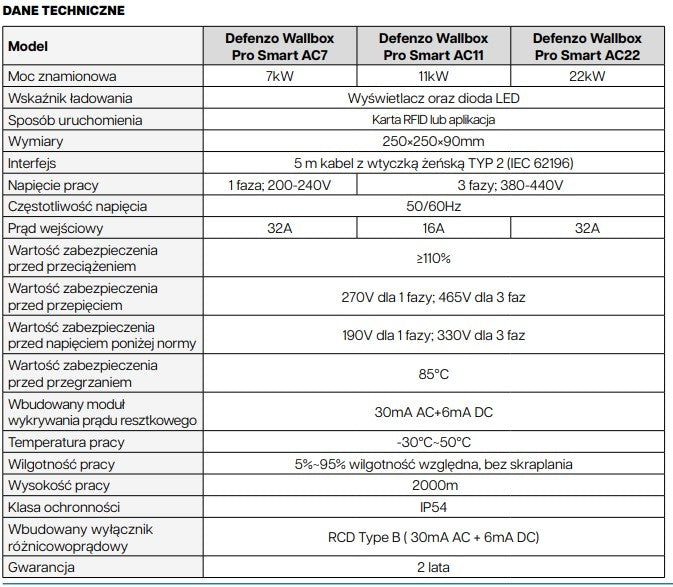

Specifications

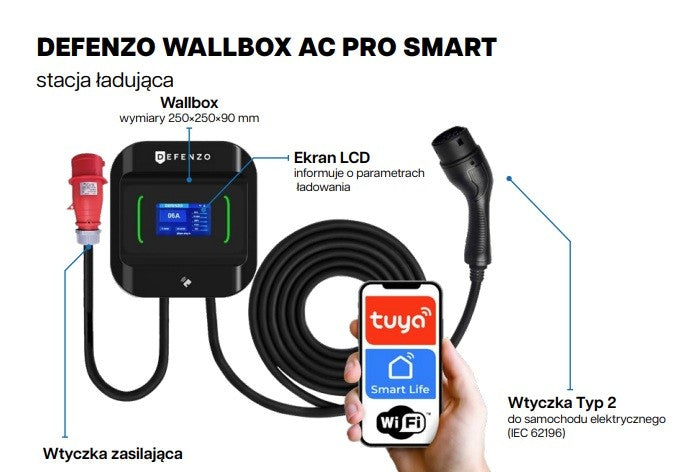

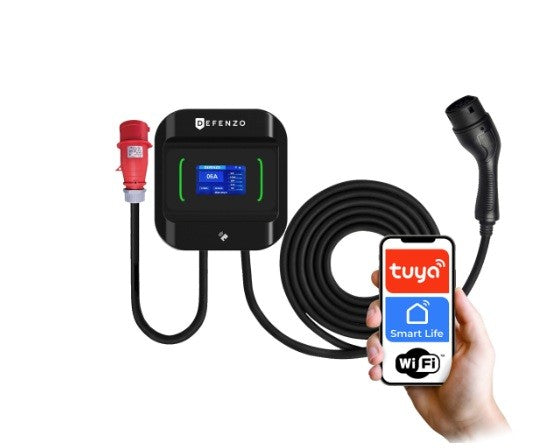

| Description | Defenzo Wallbox AC Pro Smart Modern charging station for home and semi-public use A modern charging station for home and semi-public use, ideal for garages, residential community parking spaces, or company car parks. With a power output of 22 kW and intelligent control, the Defenzo Wallbox AC22 Pro Smart enables fast and safe charging of electric vehicles using AC alternating current. The sleek black housing with a modern design is equipped with a color LCD screen displaying key charging parameters: current, voltage, session time, and energy consumption. Additionally, the device status is indicated by colored LED lighting around the screen and an illuminated Defenzo logo. The charger is equipped with a cable ending in a Type 2 connector (IEC 62196) and a red CEE industrial plug, allowing quick connection to an existing three-phase installation. Smart features: Mobile app control (Tuya / Smart Life): remote start/stop, scheduling, charging power adjustment, session history RFID reader - allows access control for selected users only (e.g., in shared residential parking) Charging delay function and physical button for current adjustment directly on the device Safety and reliability: Built-in RCD type B residual current device (30 mA AC + 6 mA DC) and full protection system safeguarding the device and user against: voltage surges and drops overload and overheating leakage currents and improper grounding mechanical damage and moisture (IP54 protection class) |
|---|---|
| Type | Car |
| Type | Wall |
| Power | 22 |
| Power | 0 |
| Output voltage | 0 |
| Output current (max) | 0 |
| Cable length | 0 |
| Connectors | None |
| Color | Black |
| Color | Not applicable |
| Dimensions | 250 × 250 × 90 mm |
| Weight | 4.2 |
| Weight | 0 |
| Other features | Defenzo mobile app (Tuya Smart / Smart Life) Free application for full management of Defenzo charging stations (Android / iOS). The device works with the popular Tuya Smart and Smart Life platforms, enabling integration with smart home ecosystems. Charging control Charging current adjustment (amperage) - set the maximum charging current directly from the app Charging mode selection: automatic after connection, manual unlock via app, or RFID card unlock Charging schedule: set charging start and end times, define target charge level, and limit maximum session duration Safety and monitoring Ground fault protection - automatic charging lock when improper grounding is detected Available power indicator - view real-time available charging power Charger temperature indicator - monitor current device temperature Error history view - access recorded errors and warnings generated by the charger User and history management RFID user management - add, remove, and edit RFID cards assigned to the charger Charging history per user - detailed view of sessions assigned to individual users Export charging history - download session data (e.g., for billing or archiving) Error history view - access recorded errors and warnings generated by the charger Supported applications Tuya Smart (Android / iOS) Smart Life (Android / iOS) Smart home integration: Google Home Amazon Alexa The application is available on the App Store and Google Play. |
