Beschreibung

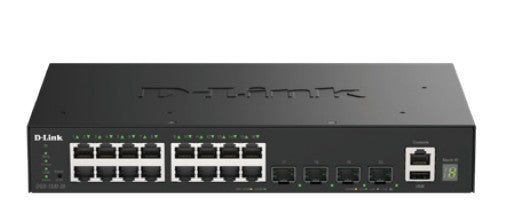

D-Link Switch managed DGS-1530-20/E 16 Ports GE + 4 Ports 10G SFP+ Smart
Specifications
| Description | Quality of Service (QoS) The DGS-1530 Series offers a comprehensive set of multi-layer QoS/CoS features that ensure high priority for critical network services such as VoIP, video conferencing, IPTV, and IP surveillance. Flexible packet classification can be based on various header fields, helping administrators prioritize network traffic. Traffic Shaping ensures adequate bandwidth for mission-critical services during periods of high network congestion. Multi-layer QoS/CoS features allow IT administrators to more effectively manage network resources in enterprise environments. Identity-Driven Network Policies The DGS-1530 Series supports authentication mechanisms such as 802.1X Port-based Access Control (Port-based Access Control), Web-based Access Control (WAC), and MAC-based Access Control (MAC), providing strict access control to network resources. Once authenticated, individual policies, such as VLAN membership, QoS policies, and ACL rules, can be assigned to each host. Furthermore, the switches support Microsoft(R) Network Access Protection (NAP), which protects network resources from threats originating from compromised computers by enforcing device compliance with security and network health policies. Manageability D-Link Single IP Management (SIM) simplifies and accelerates network management tasks by allowing configuration, monitoring, and maintenance of multiple switches from a web browser, provided network connectivity is maintained. All switches can be managed as a single virtual stack, allowing physically separated switches to be managed through a single IP address. The DGS-1530 Series also supports management tools such as a web UI, SSH, Telnet, and console, as well as standards-based protocols such as SNMP, RMON, and TLS. Security & Authentication The DGS-1530 Series offers user and device authentication, including host-level authentication and authorization, enabling granular network access control for every device. Advanced features such as RADIUS Accounting allow the switches to be integrated with back-end systems for billing or advanced access control. The DGS-1530 series also supports address and interface binding features such as IP-MAC-Port Binding and ARP Spoofing Prevention, which help protect the network against Man-in-the-Middle (MitM) attacks and ARP Spoofing attacks. |
|---|---|
| Switch class | SMART |
| Application | Medium and large companies |
| Switch layer | L3 |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | 16 |
| 10/100/1000/2500 Mbps ports | None |
| Number of ports 1G/2.5G/5G/10G | None |
| Number of 10Gb ports | None |
| Number of ports 25Gb | None |
| Number of 32Gb ports | None |
| Number of 100Gb ports | None |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | None |
| Number of PoE++ ports | None |
| Number of COMBO ports | None |
| Number of SFP ports | None |
| Number of SFP+ ports | 4 |
| SFP28 ports | None |
| Number of SFP56 ports | None |
| Number of QSFP ports | None |
| Number of QSFP+ ports | None |
| Number of QSFP28 ports | None |
| Console port | Yes |
| Forwarding mode | Store-and-forward |
| Throughput | 112 |
| Forwarding rate | 83.33 |
| Packet buffer | 1.5 |
| MAC address table size | 16000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 10.24 |
| Stackability | Yes |
| Number of VLAN groups | 4094 |
| VLAN | Port-based VLAN MAC-based VLAN GVRP (GARP) VLAN Registration Protocol Max. 255 dynamic VLANs 802.1v Protocol VLAN Dual VLAN (Q-in-Q) Port-based Q-in-Q Selective Q-in-Q 802.1Q Tagged VLAN ISM VLAN VLAN Translation VLAN Trunking VLAN Voice Private VLAN |
| Security | SSH v2 TLS 1.2 Port Security Up to 6656 MAC addresses per port Broadcast/Multicast/Unicast Storm Control IP-MAC-Port Binding (IMPB) ARP Inspection IP Inspection DHCP Snooping DHCPv6 Snooping DHCPv6 Guard IPv6 Router Advertisement Protection (IPv6 RA Guard) IPv6 ND Snooping IPv6 ND Inspection Traffic Segmentation D-Link Safeguard Engine Layer 3 Control Packet Filtering (L3 Control Packet Filtering) NetBIOS/NetBEUI Filtering DHCP Server Screening ARP Spoofing Prevention BPDU Attack Protection DoS Attack Prevention |
| Chassis type | Rack |
| Fan | No |
| Power supply | Internal |
| Power consumption | 26.1 |
| Mean time between failures (MTBF) | 630098 |
| Environment requirements | Operating temperature: -5 to 50°C Storage temperature: -20 to 70°C Operating humidity: 0% to 95%, non-condensing Storage humidity: 0% to 95%, non-condensing |
| Certificates | BSMI, CE, FCC, IC, RCM, UKCA-EMC, VCCI |
| Power supply | AC Power: 100-240V AC, 50/60Hz |
| Dimensions | 280 x 180 x 44 mm |
| Weight | 2 |
