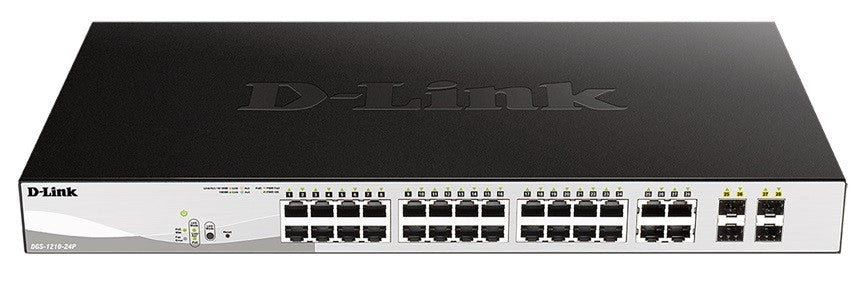

D-Link Switch DGS-1210-24 24GE PoE 4SFP
Specifications
| Description | DGS-1210 Series Gigabit Managed Smart Switches Layer 2 management and security Browser-based graphical user interface PoE option Dual configuration files Lifetime-Limited warranty upon registration A large PoE power budget and extensive Layer 2 features make the DGS-1210 family switches a flexible and cost-effective solution for expanding any business network. Exceptional Layer 2 features The DGS-1210 family switches offer a complete set of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function enables direct connections between servers and switches, resulting in fast and stable data transfers. With a transfer rate of 2,000 Mbit/s in full duplex, the Gigabit ports enable very fast data transfers to the servers with minimal loss. Network maintenance features include Loopback Detection and Cable Connection Diagnostics tools. Loopback Detection automatically detects loops and closes infected ports. Cable Link Diagnostics, designed primarily for administrators and customer service representatives, helps diagnose cable quality and determine the type of error. Fibre optic Uplink ports Network expansion to suit the needs of any business is possible thanks to fibre optic uplink ports with advanced management and security features. PoE The DGS-1210 switch family includes switches with a large PoE power budget to facilitate the installation of IP phones, wireless access points and IP cameras. D-View 7: free network design and management system D-Link's free Network Assistant (DNA) system provides information about all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities. Energy saving D-Link's DGS-1210 family of switches with D-Link Green technology enables energy savings without affecting performance or functionality. Surveillance Mode Select Surveillance Mode in the graphical user interface to take advantage of easy-to-use monitoring features that also allow you to easily manage your surveillance network. The devices that make up the security system are automatically detected and grouped in a dedicated Auto Surveillance VLAN, ensuring that surveillance traffic is secured and is transmitted without hindrance. |
|---|---|
| Switch class | SMART |
| Application | Medium and large companies |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | 28 |
| 10/100/1000/2500 Mbps ports | None |
| Number of 10Gb ports | None |
| Number of PoE ports (PoE & PoE+) | 24 |
| Number of PoE+ ports | None |
| Number of COMBO ports | 4 |
| Number of SFP ports | 4 |
| Number of SFP+ ports | None |
| Number of QSFP+ ports | None |
| Console port | No |
| Forwarding mode | Store-and-forward |
| Throughput | 56 |
| Forwarding rate | 41.7 |
| Packet buffer | 4.1 |
| MAC address table size | 8000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 10 |
| Stackability | No |
| Number of VLAN groups | 256 |
| VLAN | 802.1Q Tagged VLAN VLAN Group Max. 256 static VLAN groups Max. 4094 VIDs Management VLAN Asymmetric VLAN Auto Voice VLAN Auto Surveillance VLAN |
| Supported protocols and standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x Flow Control for Full-Duplex Mode IEEE 802.3af compliance IEEE 802.3at compliance |
| QoS | 802.1p Quality of Service Queue Handling Strict Weighted Round Robin (WRR) 8 queues per port Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 16 Kb/s) CoS based on 802.1p Priority Queues DSCP ToS TCP/UDP port number IPv6 traffic class |
| Security | Port Security Supports up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Static MAC D-Link Safeguard Engine DHCP Server Screening Trusted Host ARP Spoofing Prevention Max. 64 entries SSL Supports v1/v2/v3 Supports IPv4/IPv6 Traffic Segmentation Smart Binding Discover connected devices and click to bind ARP Packet Inspection: 256 entries IP/4/IPv6 Packet Inspection: 127/63 entries Supports DHCP Snooping |
| Management, monitoring, configuration | Web-based GUI Telnet Server TFTP Client IPv6 Neighbor Discovery Configurable MDI/MDIX SNMP Supports v1, v2, v3 SNMP Trap System Log BootP/DHCP Client D-Link Network Assistant support SNTP ICMPv6 IPv4/v6 Dual Stack DHCP Auto Configuration RMON v1 |
| L2 features | MAC Address Table: 8K Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frame up to 10,000 Bytes IGMP Snooping IGMP v1/v2 Snooping IGMP Snooping v3 Awareness Supports 256 IGMP groups Supports at least 64 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier MLD Snooping Supports MLD v1/v2 awareness Supports 256 groups Fast Leave Spanning Tree Protocol 802.1D STP 802.1w RSTP Loopback Detection 802.3ad Link Aggregation Port Mirroring One-to-One, Many-to-One Supports Mirroring for Tx/Rx/Both Multicast Filtering Forwards all unregistered groups Filters all unregistered groups LLDP, LLDP-MED |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 247.4 |
| Mean time between failures (MTBF) | 469262 |
| Dimensions | 440 x 250 x 44 mm |
| Weight | 3.75 |
| Environment requirements | Operating temperature: -5 to 50 C (23 to 122 F) Storage temperature: -20 to 70C (-4 to 158F) Operating humidity: 0% to 95% non-condensing Storage humidity: 0% to 95% non-condensing |
| Certificates | CE Class A cUL CE LVD |
| Other features | PoE standard: IEEE 802.3af and IEEE 802.3at PoE ports: 1 to 24 - up to 30 W Maximum PoE budget: 193 W |
