Beschreibung

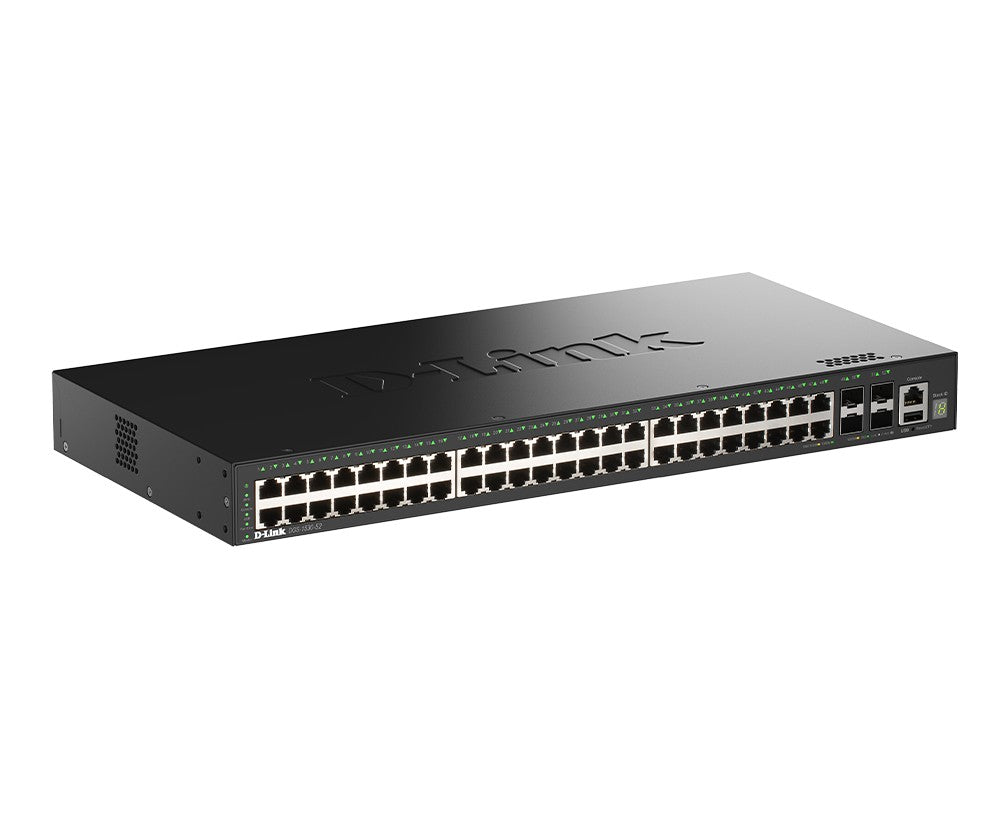

D-Link Smart Managed Switch DGS-1530-52/E 48 Ports GE + 4 Ports 10G SFP+
Specifications
| Description | Gigabit Lite Layer 3 Stackable Smart Managed Switches DGS-1530 Serie s Support 1G for downlink ports Support 10G SFP+ for uplink ports 6kV surge protection on all Gigabit Ethernet ports Physical stack of up to 9 units via 10G ports Supports 802.3ad LACP for link aggregation Support Static Routing and Loopback Detection AAA support for RADIUS/TACACS+ Support D-Link Safeguard Engine Physical Stacking Physical stacking enables simplified management and scalable network expansion. Stay Connected ERPS ensures fast, reliable network recovery and minimal downtime and ensure the continuous connectivity. Rich OAM Support Comprehensive OAM streamlines monitoring, troubleshooting, and boosts network performance. Effortless Protection Robust security strengthens safety, simplifies control, and prevents attacks for efficient operations. Static Routing Static routes offer simplicity, stability, control, and enhanced security for network management. |
|---|---|
| Switch class | SMART |
| Application | Medium and large companies |
| Switch layer | L2+ |
| Network architecture | GigabitEthernet |
| Number of 10/100/1000 Mbps ports | 48 |
| Number of 10Gb ports | 4 |
| Number of SFP+ ports | 4 |
| Console port | Yes |
| Forwarding mode | Store-and-forward |
| Throughput | 176 |
| Forwarding rate | 130.95 |
| Packet buffer | 1.5 |
| MAC address table size | 16000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 10 |
| Stackability | Yes |
| Maximum number of units per stack | 9 |
| Number of VLAN groups | 4094 |
| VLAN | Port-based VLAN MAC-based VLAN GVRP Max. 255 dynamic VLANs 802.1v Protocol VLAN Double VLAN (Q-in-Q) Port-based Q-in-Q Selective Q-in-Q 802.1Q tagged VLAN ISM VLAN VLAN translation VLAN trunking Voice VLAN Private VLAN |
| Supported protocols and standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3ae 10G Ethernet IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation |
| QoS | 802.1p 8 queues per port CoS based on Switch port 802.1p priority Outter VID MAC address EtherType IP address DSCP ToS/IP preference Protocol type TCP/UDP port IPv6 traffic class IPv6 Flow Label Bandwidth control Port-based (ingress/egress, min. granularity 64 Kbps) Flow-based (ingress/egress, min. granularity 64 Kbps) Queue Handling Strict Priority (SP) Weighted Round Robin (WRR) Strict + WRR Deficit Round Robin (DDR) Weighted Deficit Round Robin (WDRR |
| Security | SSH v2 TLS 1.2 Port Security Up to 6656 MAC addresses per port Broadcast/multicast/unicast storm control IP-MAC-Port Binding (IMPB) ARP inspection IP inspection DHCP snooping DHCPv6 Snooping DHCPv6 Guard IPv6 Route Advertisement (RA) Guard IPv6 ND snooping IPv6 ND inspection Traffic segmentation D-Link Safeguard Engine L3 control packet filtering NetBIOS/NetBEUI filtering DHCP server screening ARP spoofing prevention BPDU attack protection DoS attack prevention |
| Management, monitoring, configuration | Web-based GUI (supports IPv4/v6) Command Line Interface (CLI) Telnet server/client TFTP client FTP client (supports IPv4) ZModem Command logging SNMP v1/v2c/v3 (supports IPv4) SNMP Traps System log SMTP (supports IPv4) RMON v1: Supports 1, 2, 3, 9 groups RMON v2 Supports Probe Config group 802.1AB LLDP LLDP-MED DHCP client (supports IPv4) DNS client DHCP auto-configuration Supports Option 6, 66, 67, and 150 DHCP auto-image DHCP relay DHCP relay Option 60, 61, and 82 DHCP client Option 12 PPPoE circuit-ID tag insertion Multiple image Flash file system CPU utilization monitoring Memory usage monitoring SNTP (supports IPv4) Debug command Password recovery Password encryption Ping Traceroute Microsoft NLB (Network Load Balancing) support (supports IPv4) Zero Touch Provisioning (ZTP) sFlow PD Alive D-Link Discovery Protocol (DDP) |
| L2 features | Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frames up to 10,240 bytes Spanning Tree Protocol 802.1D STP 802.1w RSTP 802.1s MSTP BPDU filtering Root Restriction Loopback Detection Link Aggregation Compliant with 802.1AX and 802.3ad Max. 32 groups per device, 8 ports per group Port Mirroring Supports One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both Supports 4 mirroring groups Flow Mirroring Supports Mirroring for Rx VLAN Mirroring Supports Mirroring for Rx RSPAN Ethernet Ring Protection Switching (ERPS) L2 Protocol Tunneling (L2PT) Flex Link |
| L3 features | Max. 1024 ARP entries Supports 255 static ARP entries Gratuitous ARP IPv6 Neighbor Discovery (ND) 64 IP interfaces Default route Static route 64 IPv4 static routes 32 IPv6 static routes |
| Chassis type | Desktop |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 44.1 |
| Mean time between failures (MTBF) | 330520 |
| Environment requirements | Operating Temperature: -5 to 50 C Storage Temperature: -20 to 70 C Operating Humidity: 0% to 95% non-condensing Storage Humidity: 0% to 95% non-condensing |
| Certificates | EMI: BSMI, CE, FCC, IC, RCM, UKCA-EMC, VCCI Safety Certifications: BSMI, CB, cUL, LVD |
| Power supply | AC Input: 100 to 240 VAC 50/60 Hz |
| Dimensions | 440 x 210 x 44 mm |
| Weight | 3.2 |
