Specifications
| Marketing Model Name | CU20AC |
|---|---|

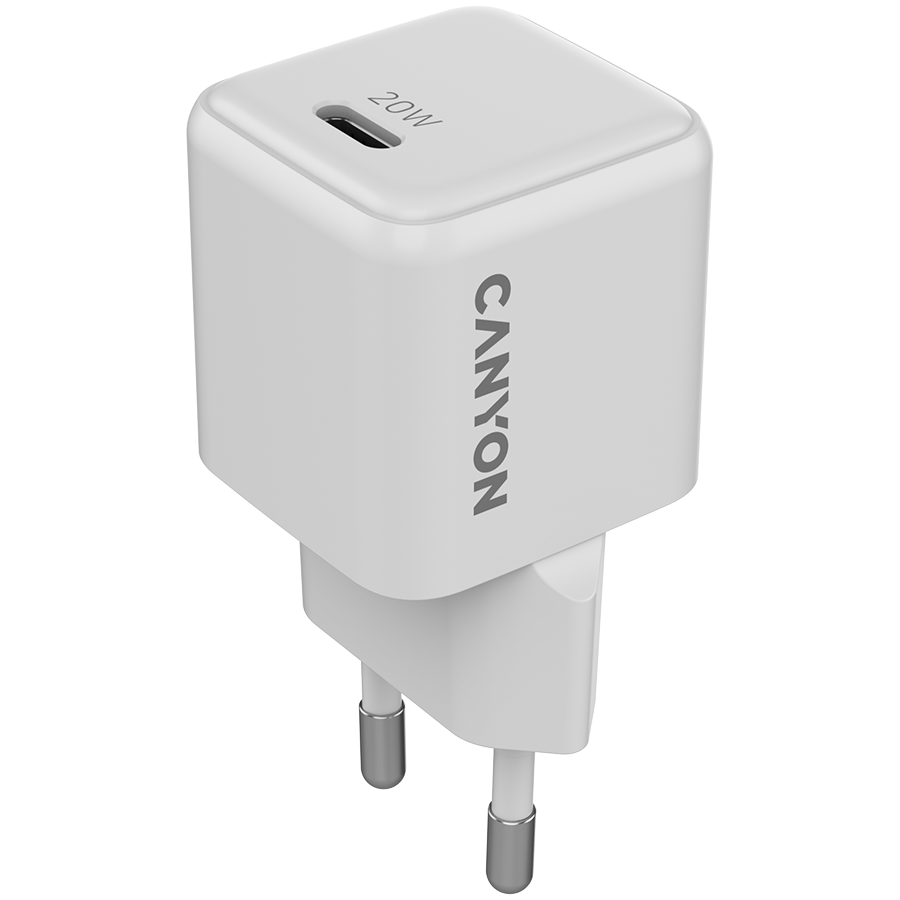

| Commercial Name | CANYON charger CU20AC GaN 20W 1xPD 1xQC EU White |
| Power Device Type | Power Adapter |
| Power Device Location | External |
| Input Voltage | AC 100-240 V |
| Input Frequency | 50 60 Hz |
| Rated Input Current | 0.6 A |
| Input Power Connectors Quantity | 1 |
| Input Power Connectors Type | EU |
| Output Voltage | DC 5 9 12 V |
| Maximum Output Power | 20 W |
| Output Power Connectors Quantity | 1 |
| Output Power Connectors Type | USB-C |
| Circuit Protection | Over Voltage Over Current Short Circuit Protection Overheating Protection |
| Power Adapter and Power Supply Features | Power Delivery GaN Technology |
| Certifications | CE RoHs,ERP |
| USB Type C | DC 5 9 12V 3A 20W (USB Power Delivery) |
| Power Output | 1 (USB Type C) |
| External Color | White |
| Depth (mm) | 32 mm |
| Height (mm) | 32 mm |
| Width (mm) | 31 mm |
| Nominal Weight | 42.3 g |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 24 month(s) |
| Warranty Validation Criteria | Serial Number |
| Pack Length (mm) | 81 mm |
| Pack Width (mm) | 38 mm |
| Pack Height (mm) | 127 mm |
| Pack Weight Brutto (kg) | 0.082 kg |
| Pack Weight Netto (kg) | 0.053 kg |
| Pieces in pack | 1 |
| Box Length (mm) | 496 mm |
| Box Width (mm) | 290 mm |
| Box Height (mm) | 268 mm |
| Box Weight Brutto (kg) | 6.8 kg |
| Retail Packaging Net Weight Carton | 0.029 kg |
| Retail Packaging Net Weight Plastic | 0 kg |
| Packs in Box | 72 |
| Package Type | Retail |
| EAN Code | 5291485016197 |
| Quantity of the boxes per pallet (by air | 8 |
| Quantity of the packs per pallet (by air | 2880 |
| Dimensions of pallet (by air) | 1200x1000x1500 mm |
| Quantity of the boxes per pallet (by sea | 56 |
| Quantity of the packs per pallet (by sea | 4032 |
| Dimensions of pallet (by sea) | 1200x1000x2100 mm |
