Beschreibung

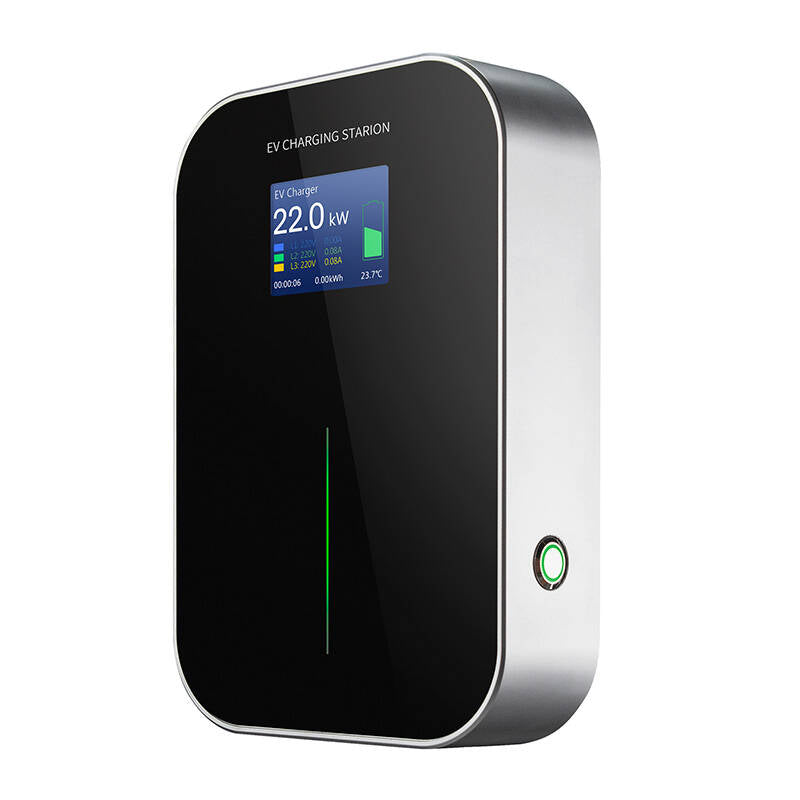

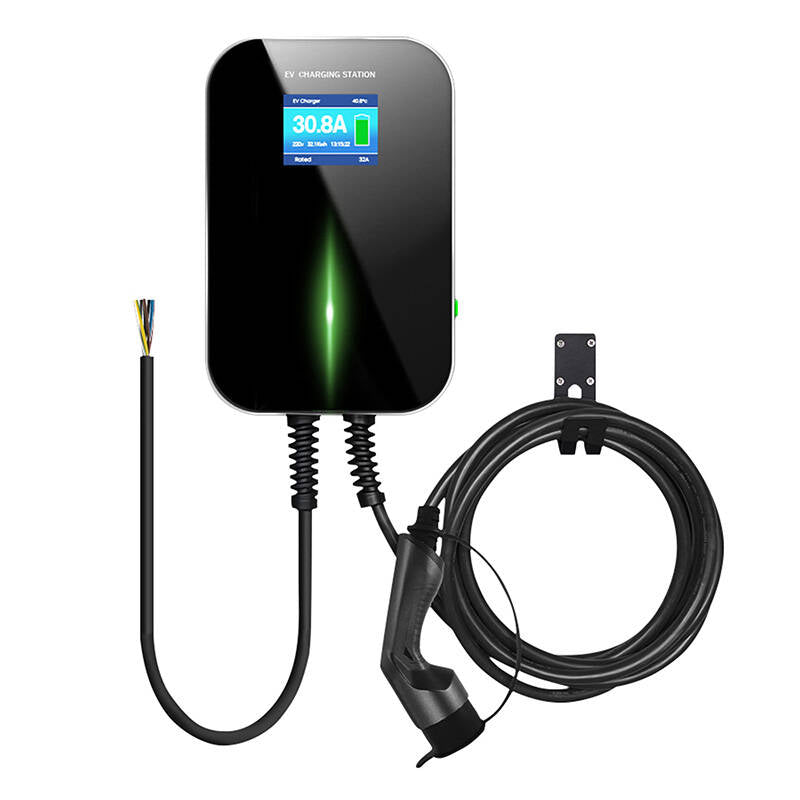

Besen BS20 22kW Wall-Mounted EV Charger
The Besen BS20-BC-22KW is an advanced electric vehicle charger designed for a wide range of applications—from private garages to large commercial parking lots. Offering an output of up to 7.2 kW in single-phase mode and 22 kW in three-phase mode, the charger provides fast and efficient charging for various types of vehicles, including private cars, electric school buses, and electric ambulances. Thanks to various safety features and a carefully designed construction, you can use it comfortably and safely.
Easy installation and user-friendly interface
The Besen BS20-BC-22KW charger is designed for ease of use and installation. Wall or floor mounting is quick and requires no complicated tools, making the device ideal for both home and commercial use. The 3.5-inch color LCD display provides users with detailed information about the charging status, and the smart chip allows the device to identify different electric vehicle models and adjust charging settings to specific needs.
Robust Construction and Weather Resistance
The BS20-BC-22KW features a high-quality construction made of stainless steel and aluminum, ensuring durability and resistance to mechanical damage. The IK10 impact resistance rating confirms that the device is resistant to impacts and damage, which is crucial in commercial and outdoor environments. The IP66 rating guarantees complete resistance to dust and water, making this charger an ideal solution for outdoor use, regardless of weather conditions.
Advanced Safety Features
The Besen BS20-BC-22KW is equipped with a range of advanced safety features, including protection against undervoltage, overload, short circuits, overheating, and lightning strikes. Additionally, the Type A and Type A+6mA DC RCD system provides protection against electric shock, further enhancing safety.
Energy Efficiency and Optional Connectivity
The Besen BS20-BC-22KW features low standby power consumption of less than 8 W, contributing to energy savings and reduced operating costs. Additionally, the charger offers optional connectivity via Ethernet, Wi-Fi, 4G, or Bluetooth, enabling remote monitoring and management of the device. Furthermore, CE, FCC, CSA, RoHS, and ETL certifications confirm that the product meets high safety and quality standards.
Included in the package:
- Charger
- User manual
- Fold-out quick start guide
- Positioning paper
- Mounting screws
- Metal hanger
| Manufacturer | Besen |
|---|---|
| Model | BS20-BC-22KW |
| Input voltage / Output voltage | AC 230V / 400V |
| Input frequency | 47 ~ 63 Hz |
| Output power | 7.2 kW (single-phase) / 22 kW (three-phase) |
| Max. output current | 32 A |
| Connector type | SAE J1772, IEC 62196-2, GB/T |
| Cable length | 5 m |
| Protection rating | IP66 |
| Impact resistance | IK10 |
| Protection Features | Undervoltage protection / Overload protection / Short-circuit protection / Overheating protection / Lightning protection |
| RCD | Type A / Type A + 6 mA DC |
| Ambient Temperature | -25°C ~ 55°C |
| Ambient humidity | 0–95% (non-condensing) |
| Maximum altitude | <2000 m |
| Standby power consumption | <8 W |
| Certifications | CE/FCC/CSA/RoHS/ETL |
| Real-time control | Yes |
| Ethernet/Wi-Fi/4G/Bluetooth | Optional |
| LED indicator | Yes |
| LCD display | 3.5-inch color display |
| Mounting method | Wall-mounted / Floor-mounted |
| Dimensions | 295 x 195 x 65 mm |
| Weight | 6–8 kg |
Producer: Nanjing SHENQl Electronic Technology Co., Ltd. (CN)
Address: Zhongxingxi, 9, 211200, Nanjing
Email: info@besen-group.com
EU Responsible Person: GAVIMOSA CONSULTORIA, SOCIEDAD LIMITADA
Address: Castellana, 9144, 28046, Madryt
Email: compliance.gavimosa@outlook.com
