Audio interface Fifine Ampli 1
The Fifine Ampli 1 is a compact audio interface that works well in the home recording studio, as well as when creating podcasts, live broadcasts or working with instruments. Ampli 1 works with Windows computers, macOS, as well as Android mobile devices. Connection is via a plug-and-play USB-C port - no need to install additional drivers. On the rear panel you'll find stereo (L/R) outputs for connecting studio monitors, and a USB port for power and data transfer. It's ideal for those looking for a functional and easy-to-use tool for high-quality audio recording.
.jpg)
Full support for studio microphones

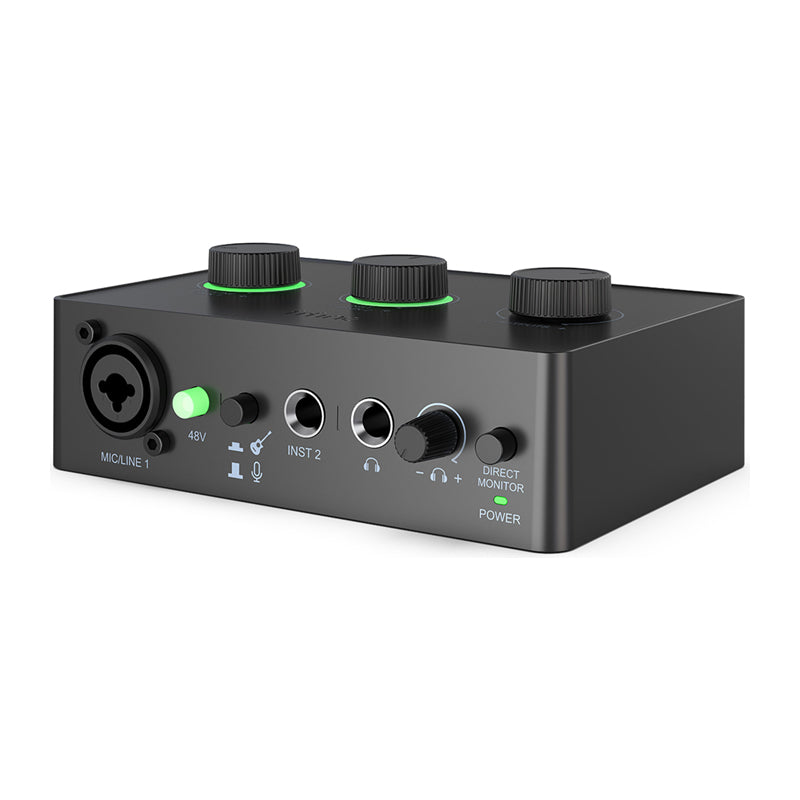

The Ampli 1 features an XLR/TRS combo input with the option to enable 48V phantom power, which means full compatibility with professional condenser microphones. The built-in 50 dB amplifier allows you to get a strong, clean signal even from quieter sources. Whether you're recording vocals or a podcast, the sound will be dynamic and clear.
Support for microphones and instruments simultaneously
In addition to a microphone input, the Ampli 1 also offers two jack connectors (INST) that allow you to record instruments - such as a guitar or MIDI keyboard - simultaneously. A source selector switch allows you to easily control which input you use, greatly simplifying your work with different audio sources.
.jpg)
Monitoring without delay - full control over your recording
The interface is equipped with a direct monitoring function (direct monitoring), so you can listen to the sound without any delay. A dedicated knob allows you to adjust the monitoring volume in real time - especially important when recording vocals or live instruments.
.jpg)
LED indicators - easy level management

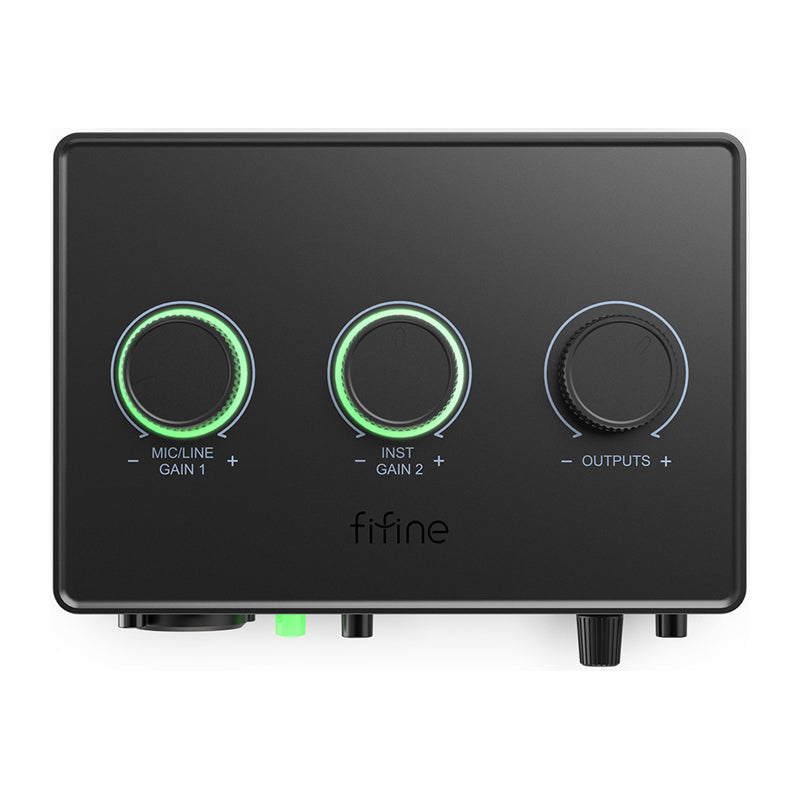

Each of the three main knobs (microphone, instrument, output) has a built-in LED indicator that indicates the current volume level. A green light indicates a safe level, yellow indicates approaching overdrive, and red indicates an overdriven signal. This allows you to react quickly and avoid unwanted distortion in your recording.
.jpg)
Included
- audio interface
- USB cable
- user manual
General
| Manufacturer | Fifine |
|---|---|
| Model | Ampli 1 |
| Color | black |
| Data transmission | USB 2.0 |
| Sampling frequency | 48 kHz / 44.1 kHz |
| Power consumption | DC 5V / 500 mA (input), DC 48V (phantom - output) |
Microphone input
| Frequency response | 20 Hz - 20 kHz |
|---|---|
| Dynamic range | 80 dB |
| Signal-to-noise ratio (S/N) | >75 dB |
| Harmonic distortion (THD+N) | 0,1% |
| Microphone impedance | 6.8 kΩ |
| Gain range | >45 dB |
Headphone output
| Frequency response | 20 Hz - 20 kHz |
|---|---|
| Dynamic range | 85 dB |
| Signal-to-noise ratio (S/N) | >80 dB |
| Harmonic distortion (THD+N) | 0,01% |
| Output power | 30 mW / 32 Ω |
| Supported impedance of headphones | 32-600 Ω |
L/R outputs
| Frequency response | 20 Hz - 20 kHz |
|---|---|
| Dynamic range | 85 dB |
| Signal-to-noise ratio (S/N) | >80 dB |
| Harmonic distortion (THD+N) | 0,01% |
| Maximum output level | +1 dBV |
