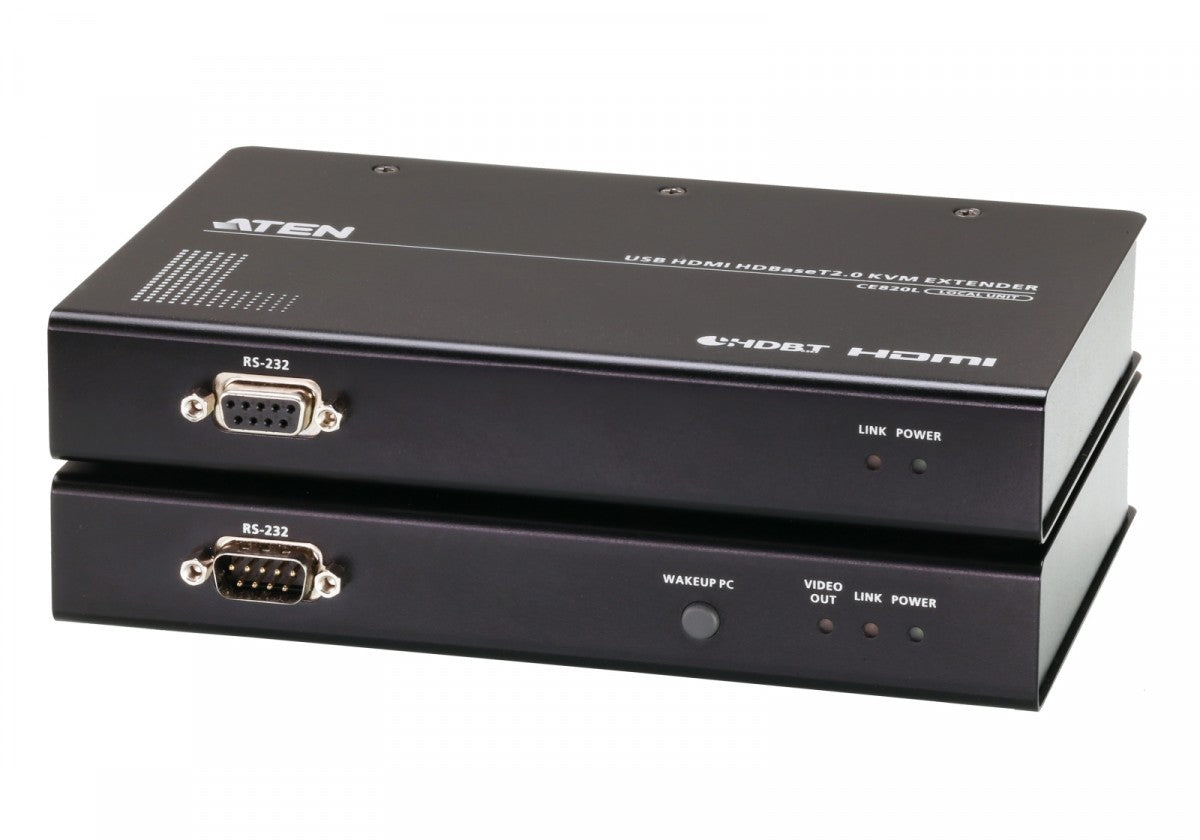

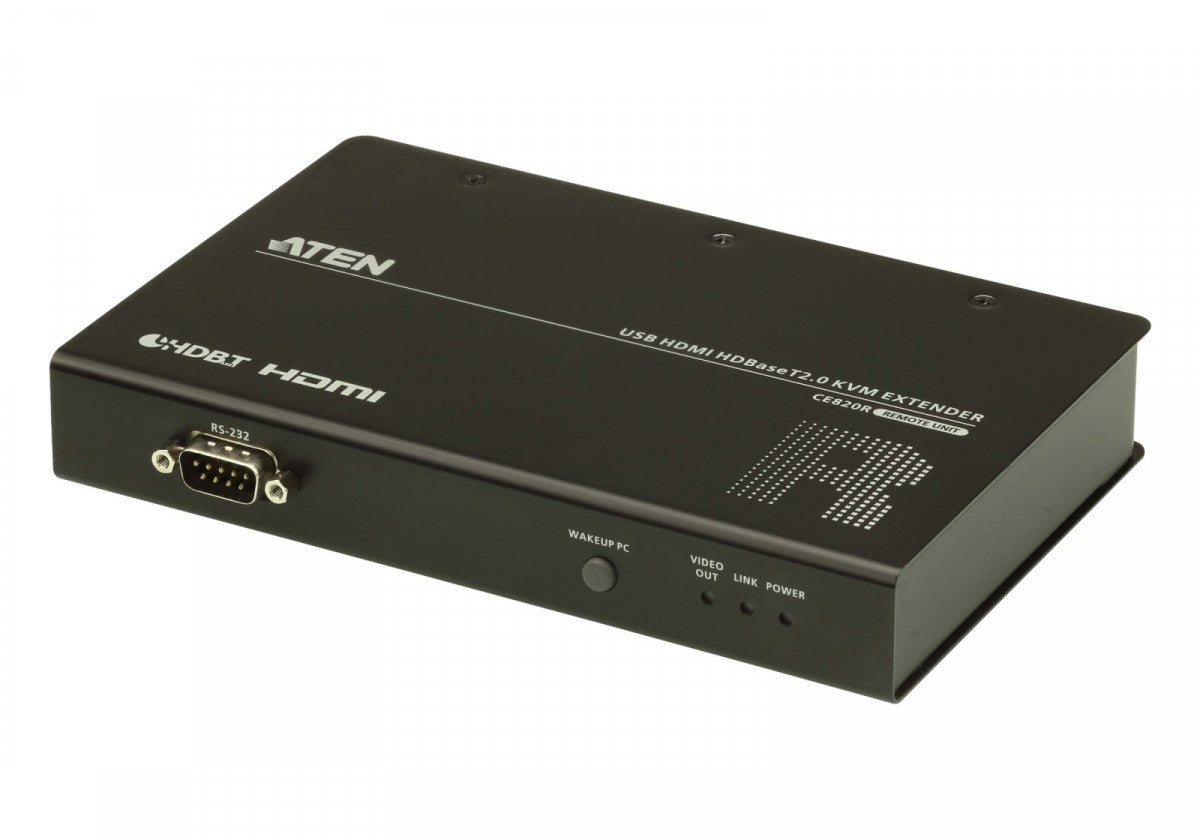

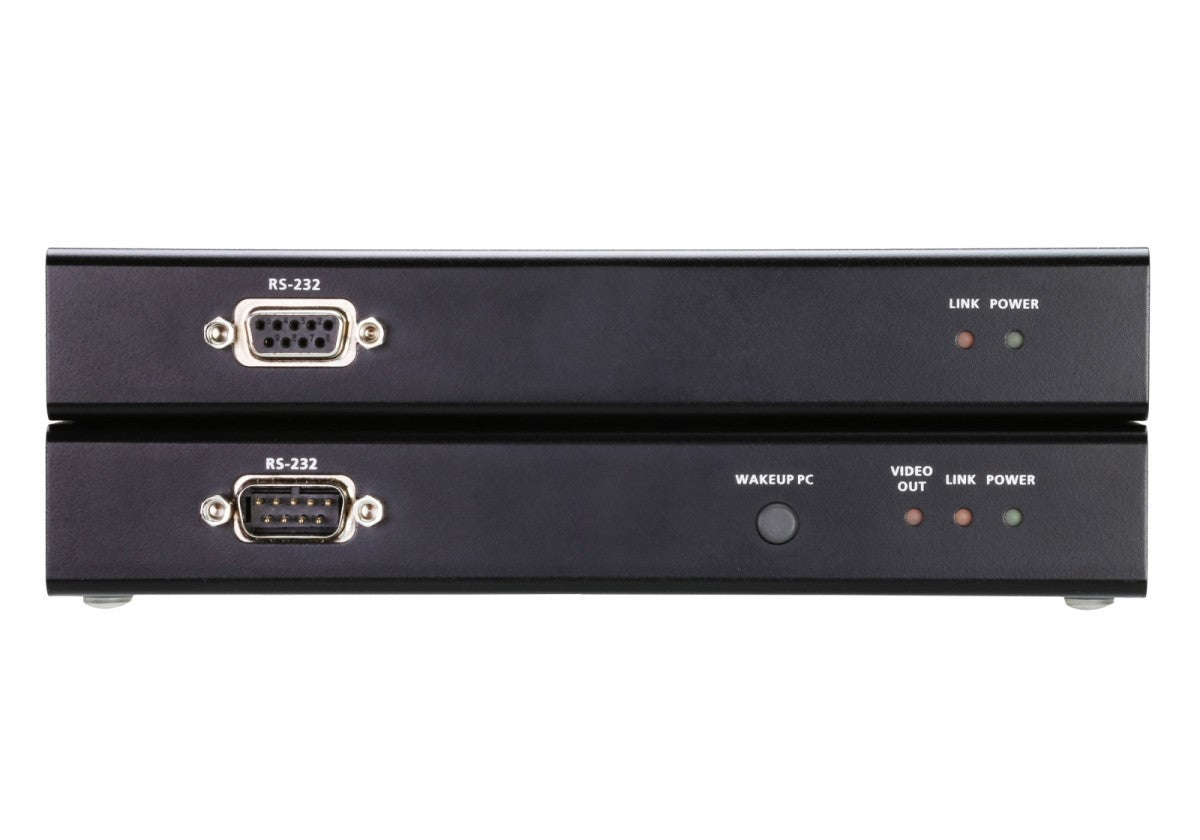

ATEN USB HDMI HDBaseT2.0 KVM Extender w/o Ethernet
Specifications
| Description | USB HDMI HDBaseT 2.0 KVM Extender (4K@100m) The ATEN CE820 USB HDMI HDBaseT 2.0 KVM Extender combines the latest HDBaseT 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters over a single Cat6/2L-2910 Cat 6 cable. HDBaseT 2.0 guarantees the most reliable transmission on the market and also enables long range, extending Full HD 1080P signals up to 150 meters. With easy cable installation supporting various signals, the CE820 is ideal for applications requiring convenient remote access, such as transport control centers, medical facilities, industrial warehouses, and complex workstations. Supports HDBaseT 2.0 technology Extends video, audio, USB, RS-232, and Ethernet signals over a single Cat6/6a/2L-2910 Cat 6 cable Enhanced bit error detection and correction, resistant to signal interference during high-quality video transmission Status detection and LED indication for HDBaseT signal transmission on the remote device EDID buffer for smooth startup and the highest-quality display HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 compatible Highest video quality over long distances HDBaseT Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910) HDBaseT Long-Reach mode up to 1080P @ 150 m Long-Reach mode switch - switches between HDBaseT Standard and Long-Reach modes in the blink of an eye Supports individual 2-channel stereo audio and USB 2.0 full-speed connections Supports single-button computer wake-up Built-in 8 kV/15 kV ESD protection (8 kV contact voltage, 15 kV air voltage) |
|---|---|
| Hot Swap | No |

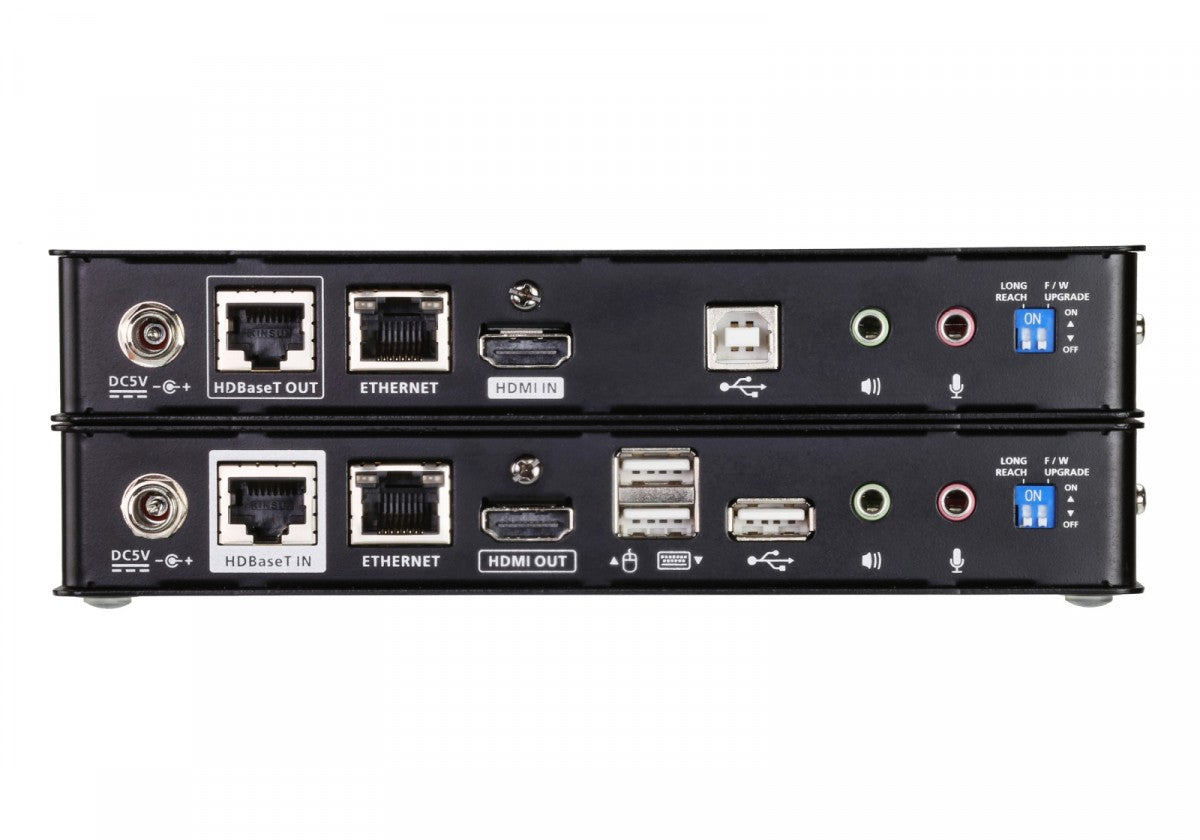

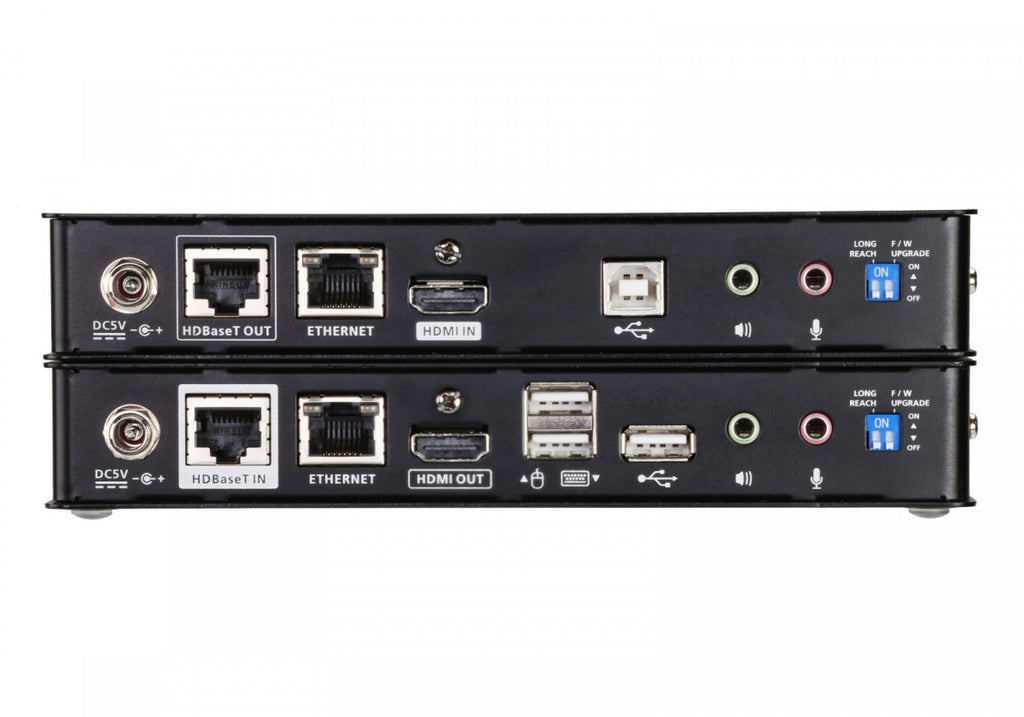

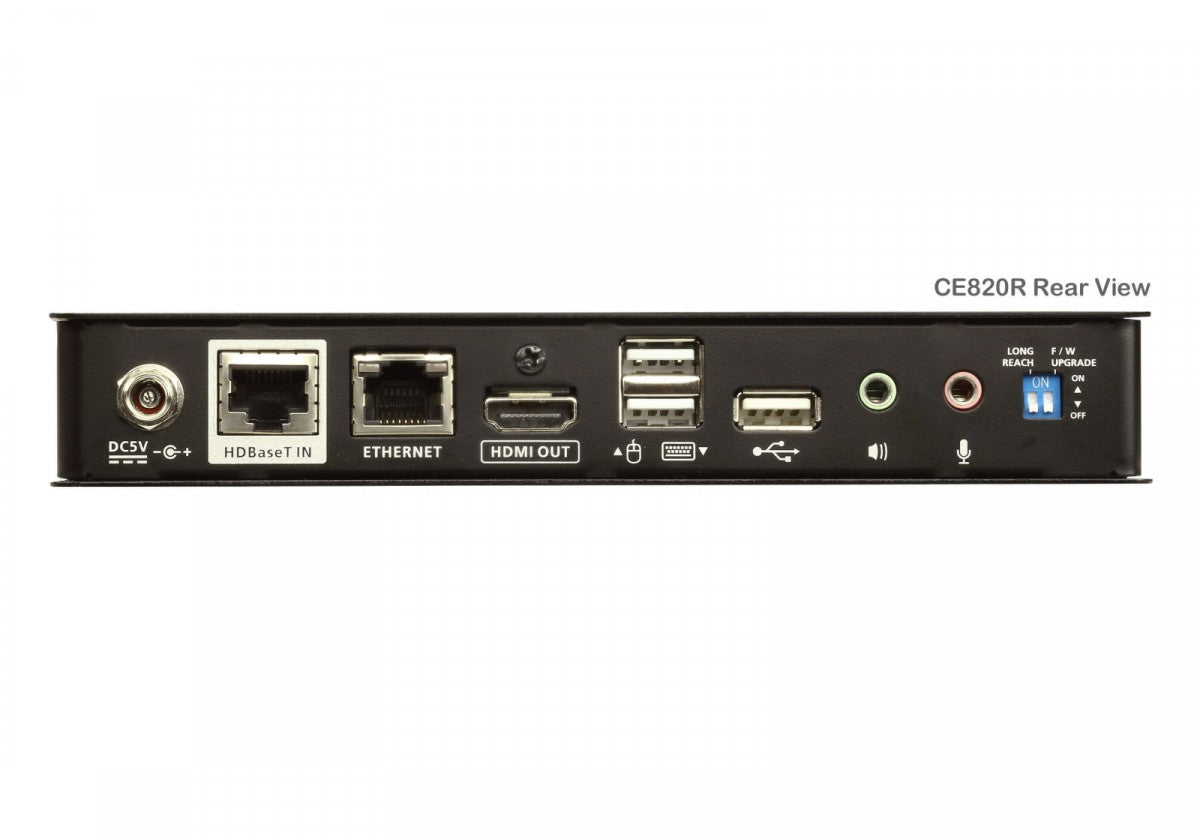

| Console Ports | 1x HDMI Female |
| Console Ports | 1x Audio 3,5mm minijack Female |
| Console Ports | 3x USB Type A Female |

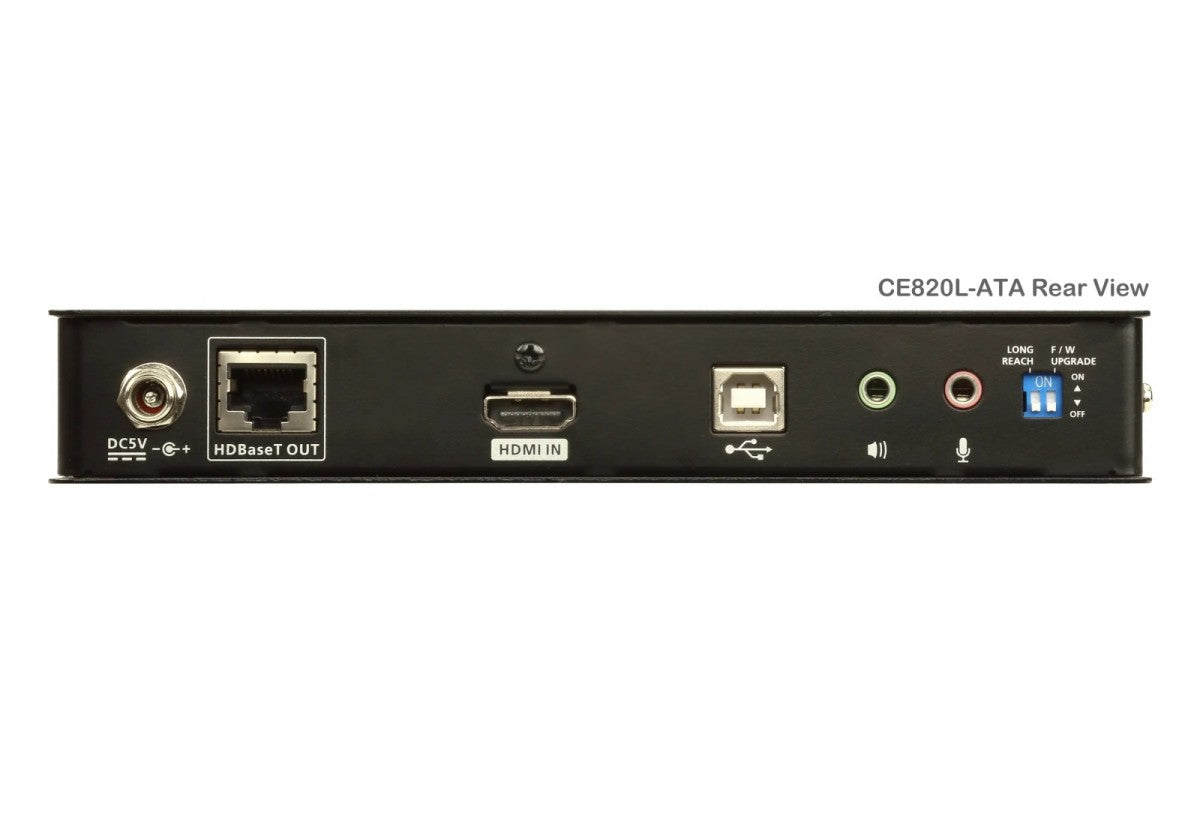

| PC connectors | 1 x HDMI Female |
| PC connectors | 1x USB Type B Female |
| Resolution | 3840 x 2160 |
| Accessories included | 1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit) 1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit) 1x HDMI KVM Cable Set (HDMI, USB, Audio, 1.8m) 2x Power Adapters 2x Mounting Kits 1x Quick Start Guide |
| Other features | Operating temperature: 040°C Storage temperature: -2060°C Humidity: 080% RH, non-condensing CE820L: 0.63 kg 18.20 x 12.19 x 2.87 cm CE820R: 0.65 kg 18.20 x 12.19 x 2.87 cm |
