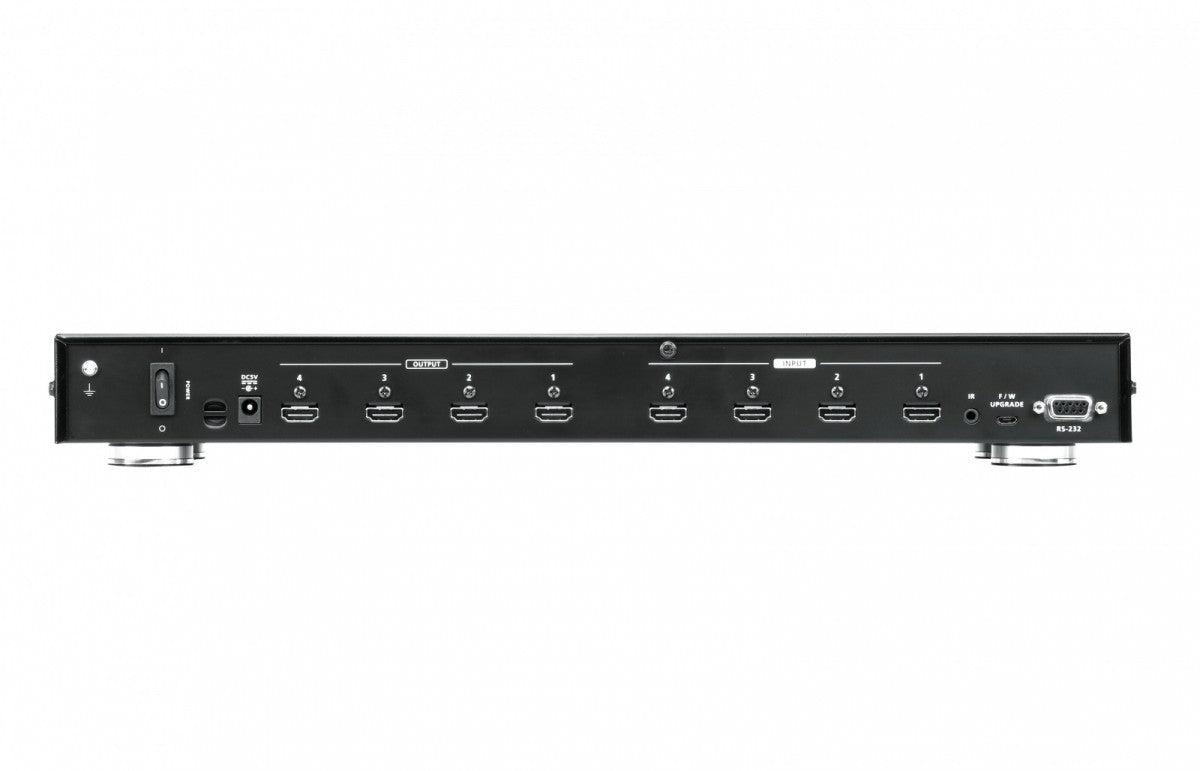

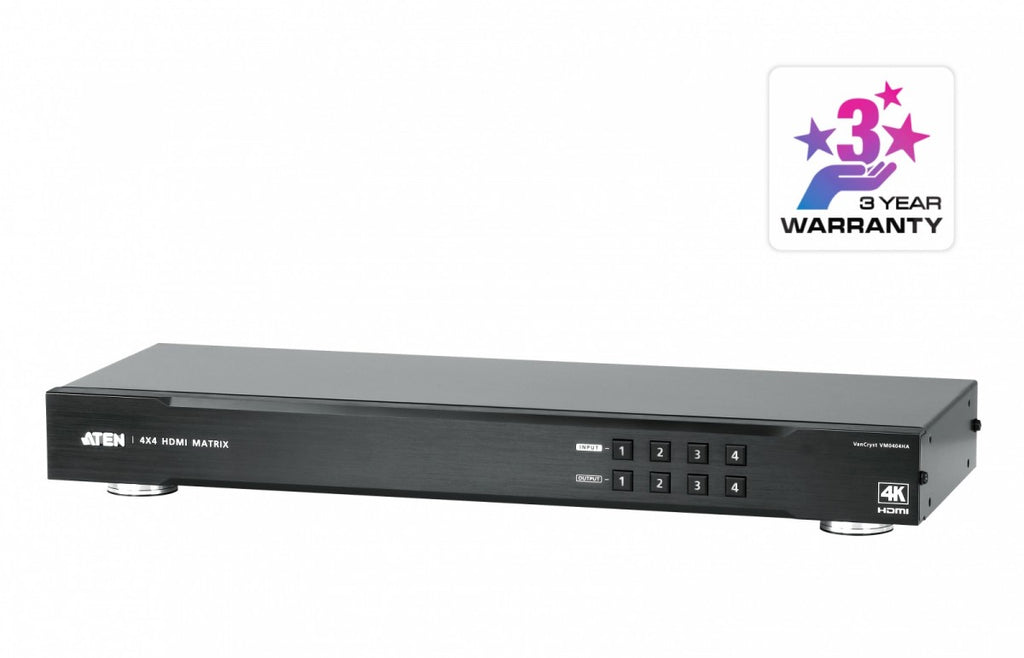

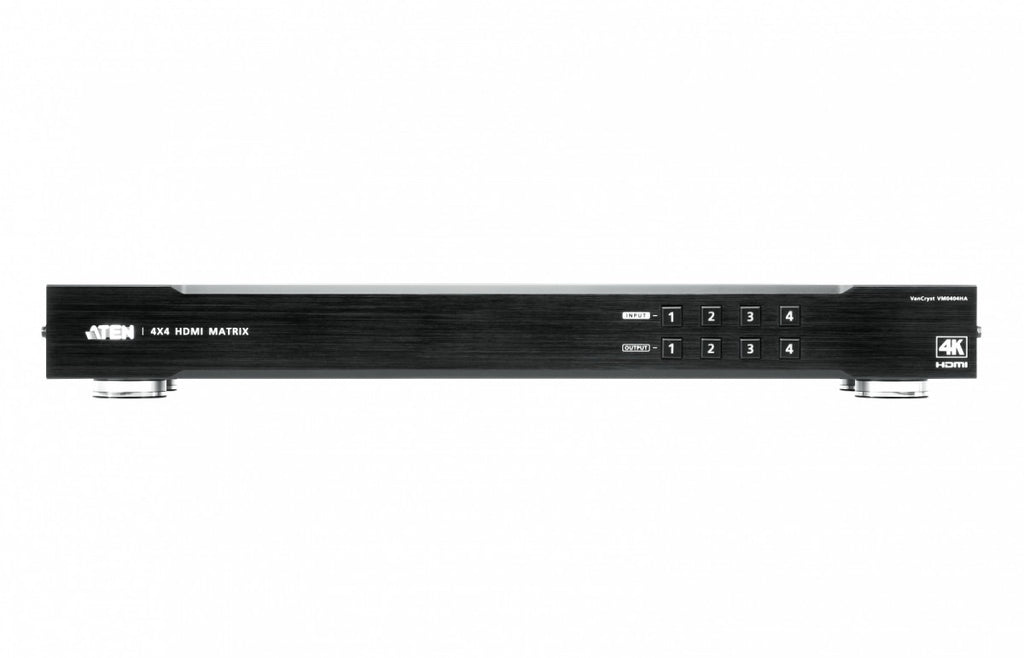

ATEN Matrix Switch 4x4 4K HDMI
Specifications
| Description | HDMI 4x4 4K Matrix Switch Connects any of 4 HDMI sources to any of 4 HDMI displays Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) at refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0) Multiple control methods system management via front panel pushbuttons, IR remote control, and RS-232 Supports signal rates up to 3.4 Gbps for smooth 4K output The ATEN VM0404HA 4x4 HDMI 4K Matrix Switch supports 4K UHD (3840 x 2160) and DCI (4096 x 2160) resolutions at refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). With support for future-ready HD video switching, the VM0404HA is ideal for applications requiring routing of 4K digital signals, such as conference rooms, auditoriums, retail environments, and more. The VM0404HA provides an easy and affordable way to route any of 4 HDMI sources to any of 4 HDMI displays. It can be operated using the front panel pushbuttons, an IR remote control, or RS-232 commands, ensuring optimal HD video display and control. Connects any of 4 HDMI sources to any of 4 HDMI displays Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) at refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0) EDID Expert automatically selects the optimal EDID settings to ensure smooth startup, high-quality display, and the best video resolution for different monitors Multiple control methods system management via front panel pushbuttons, IR remote control, and RS-232 Supports Dolby TrueHD and DTS-HD Master Audio Supports signal rates up to 3.4 Gbps for smooth 4K output HDMI compliant (3D, Deep Color, 4K) and HDCP 1.4 compatible Supports Consumer Electronics Control (CEC) , allowing connected HDMI devices to communicate and respond to a single remote control Supports ATEN LockPro HDMI cable locking to secure HDMI cable connections HDMI ESD protection Firmware upgradeable Rack-mountable (1U form factor) |
|---|---|
| Inputs | 4 x HDMI |
| Outputs | 4 x HDMI |
| Other I/O ports | 1 x IR (3.5 mm mini jack) |
| Other I/O ports | 1 x RS-232 |
| Other I/O ports | 1 x microUSB |
| Accessories included | VM0404HA 4x4 4K HDMI Matrix Switcher Power Supply IR Remote IR Receiver Mounting Kit User Manual |
| Color | Black |
| Dimensions | 43.72 x 16.29 x 4.40 cm |
| Weight | 2.02 |
