Beschreibung

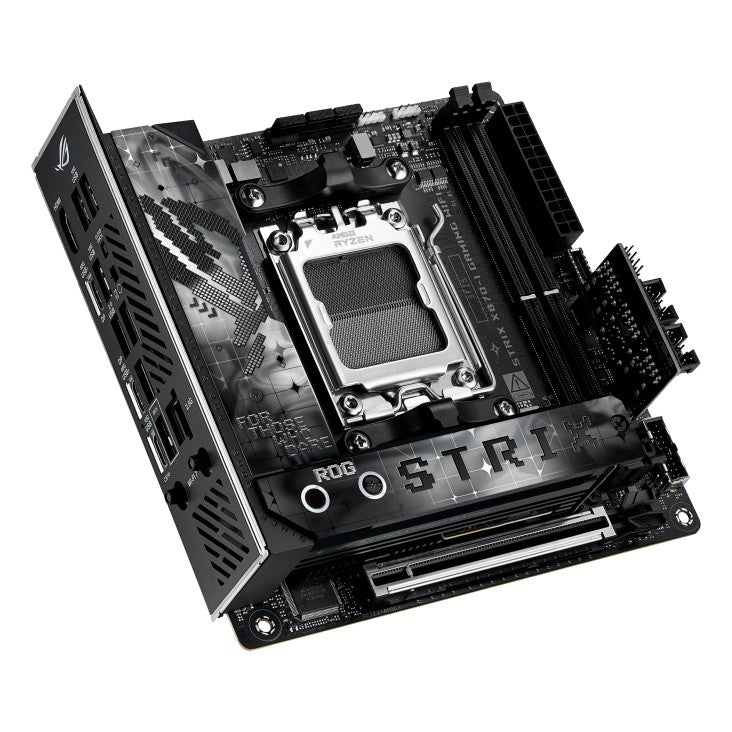

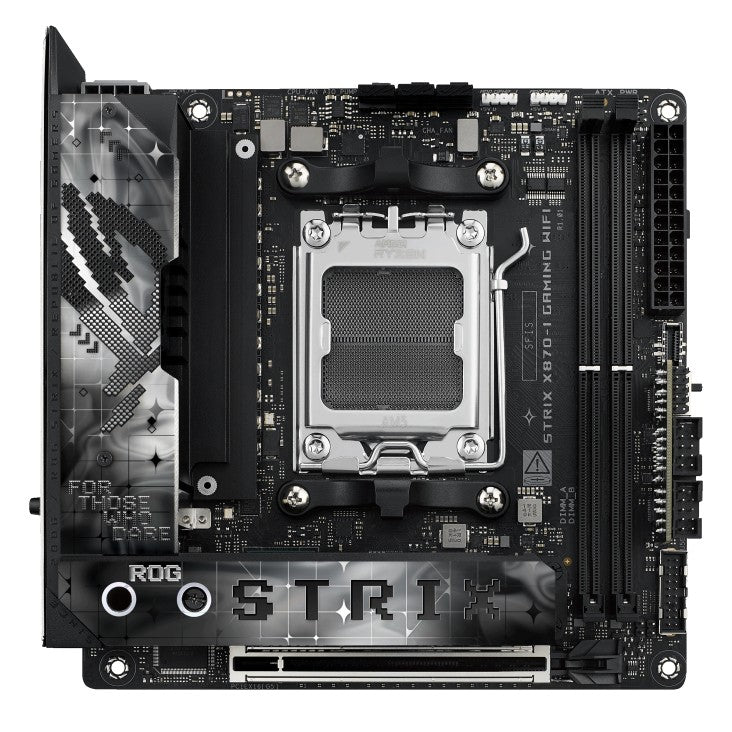

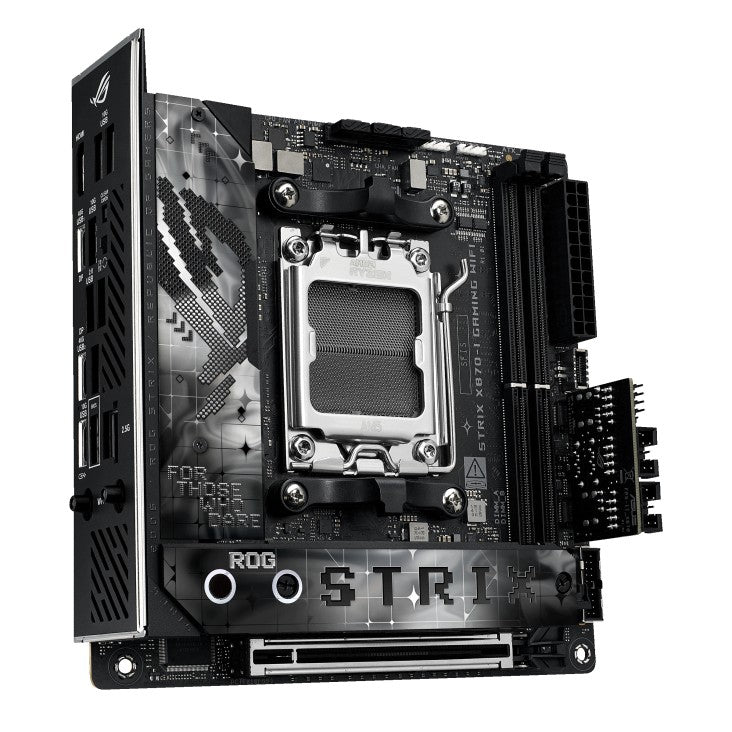

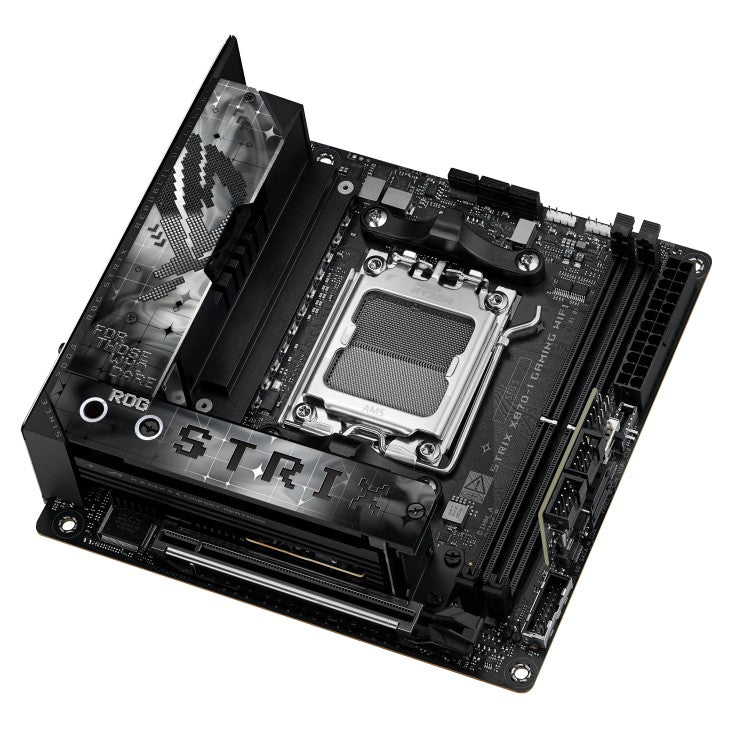

Asus Motherboard ROG STRIX X870-I GAMING WIFI AM5 2DDR5 HDMI/USBC
Specifications
| Description | ROG STRIX X870-I GAMING WIFI AI OVERCLOCKING ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. AI COOLING II Balance the thermals and acoustics of any build with a single click. AI NETWORKING II AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7. Dynamic OC Switcher Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking. Core Flex Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will. PBO ENHANCEMENT AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher. DDR5 DOMINATION The Strix X870-I is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. AEMP ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. ROG STRIX HIVE II The ROG Hive II is an exclusive accessory designed to deliver user-friendly access to hardware and software features. ROG FPS Card The ROG FPS card groups I/O onto a vertically-mounted card, saving valuable motherboard space and tidying cable management. UNDENIABLY ROG STRIX The I/O shield and M.2 heatsink feature a perforated metal mesh that can either reflect the glow of internal RGB components or blend seamlessly into the shadows of a stealthy build. The cyber-style text and sharp, angular details firmly establish this motherboard as a member of the ROG Strix family. BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING When only the fastest will do, a Strix X870E/X870 motherboard delivers. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors. |
|---|---|
| Model | ROG STRIX X870-I GAMING WIFI |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870 |
| Memory type | DDR5 |
| Number of DDR5 slots | 2 |
| Memory bus frequency | 8600 MHz |
| Max memory size | 96 |
| Expansion slots | 1 x PCIe 4.0 x 16 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Max. number of SATA devices | 2 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports |
| Graphics | 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs |
| Sound card | ROG Strix Hive II Audio Features ROG Hyper-Grounding Technology ESS SABRE9260Q DAC Silver-plated audio jacks Dedicated audio PCB layers |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Bluetooth |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | Ethenet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless: Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. Bluetooth v5.4 |
| USB ports at back panel | 10 |
| USB ports on motherboard | 6 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 2 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 10 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 3 x USB 2.0 |
| External connectors | 2 x USB4 Type-C |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x HDMI |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 2 x SMA |
| External connectors | 1 x USB 3.1 Type-C |
| External connectors | 4 x USB 3.1 |
| Onboard connectors | 1 x 4pin Chassis fan |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 2 x M.2 |
| Onboard connectors | 1 x Thermal sensor connector |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 2 x Addressable LED |
| Onboard connectors | 2 x SATA III 6Gb/s |
| Onboard connectors | 1x CPU/DRAM overvoltage jumper |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 2 x USB 3.0 header |
| Onboard connectors | 1 x Power button |
| Onboard connectors | 3 x USB 2.0/1.1 header |
| Onboard connectors | 1 x OC PCIe switch |
| Special functions | ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Code Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink Aluminum backplate ASUS EZ DIY BIOS FlashBack button BIOS FlashBack LED Clear CMOS button ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync -Addressable Gen 2 header(s) ROG STRIX HIVE II 1 x USB Type-C connects to motherboard 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C) 1 x Headphone jack with mic in 1 x Power button 1 x FlexKey button 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | mini ITX |
| Dimensions | 17 x 17 cm |
| Accessories included | Cables Panel cable ROG USB2.0 splitter cable 2 x SATA 6Gb/s cables ROG FPS Card ROG FPS Card ROG STRIX HIVE II ROG STRIX HIVE II USB Type-C power connection cable Miscellaneous ASUS WiFi Q-Antenna Cable ties package M.2 Q-Latch package(s) ROG key chain OG Strix stickers M.2 rubber package(s) Documentation Quick start guide |
| Supported operating systems | Windows 11 |
| Software | WOL by PME, PXE |
