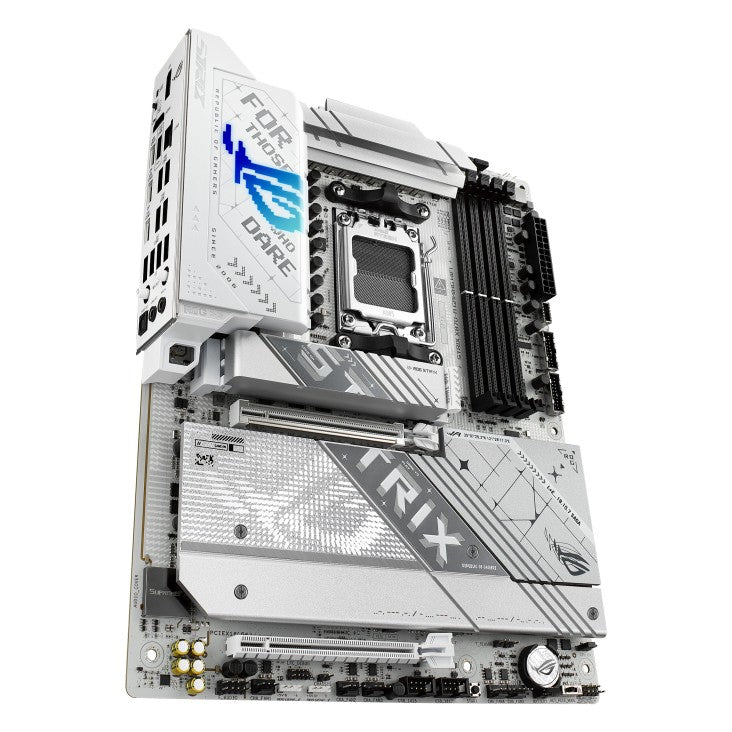

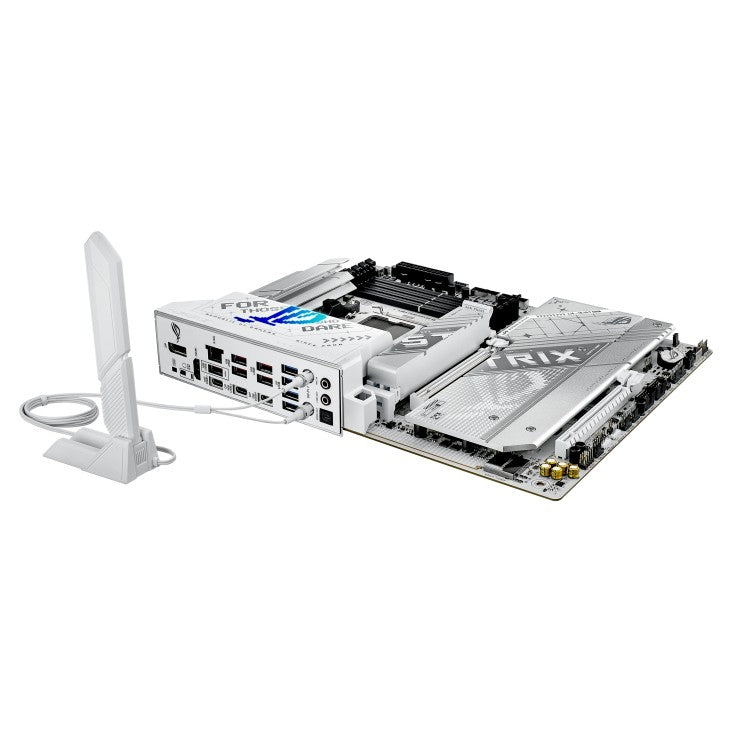

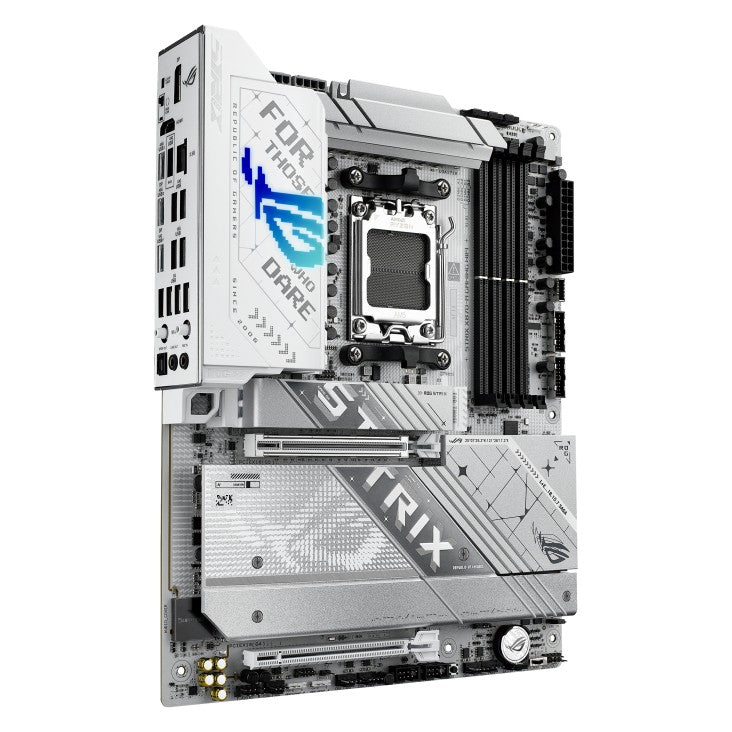

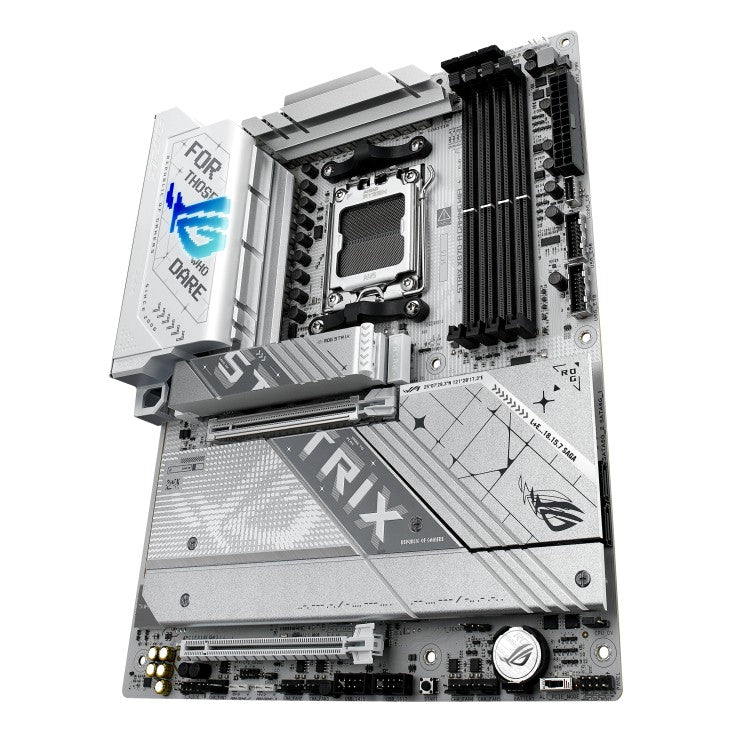

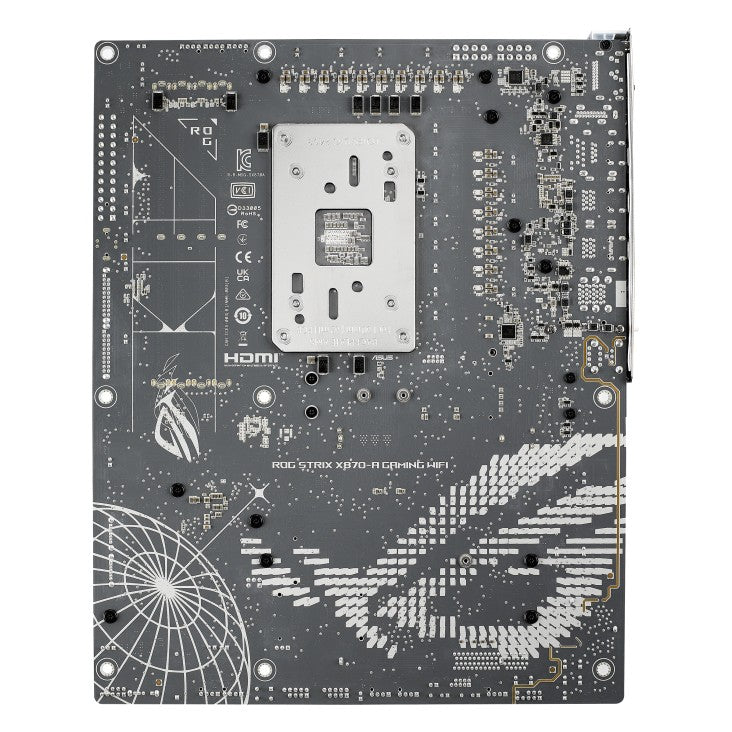

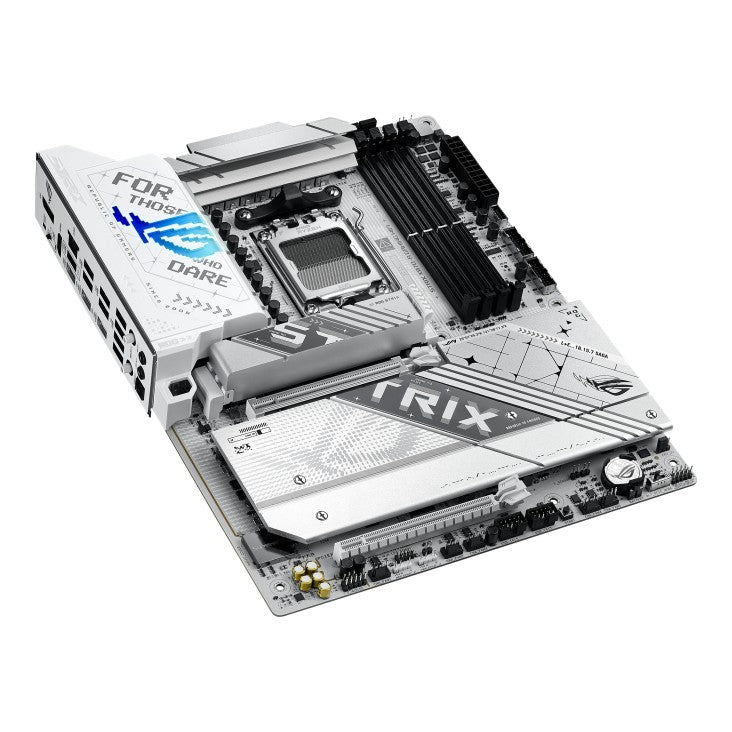

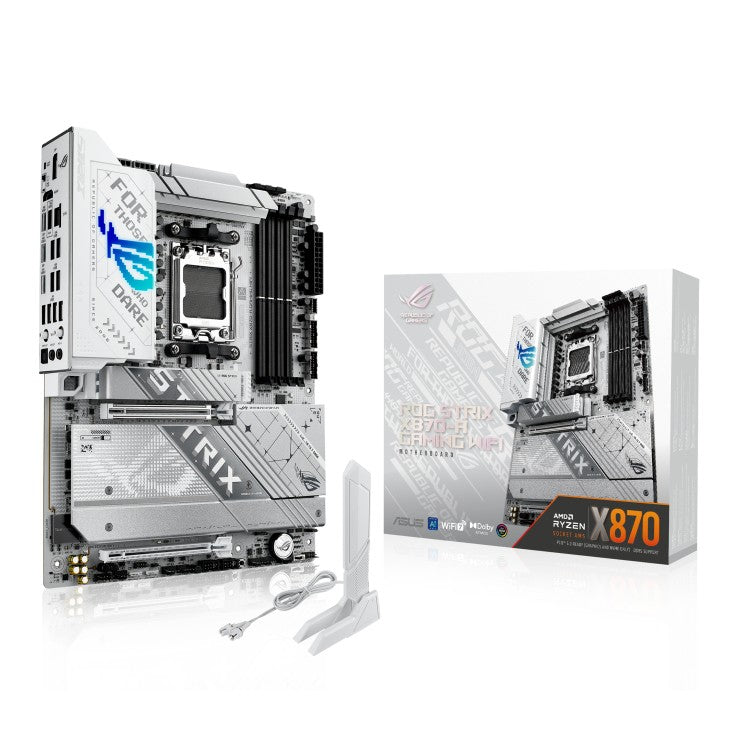

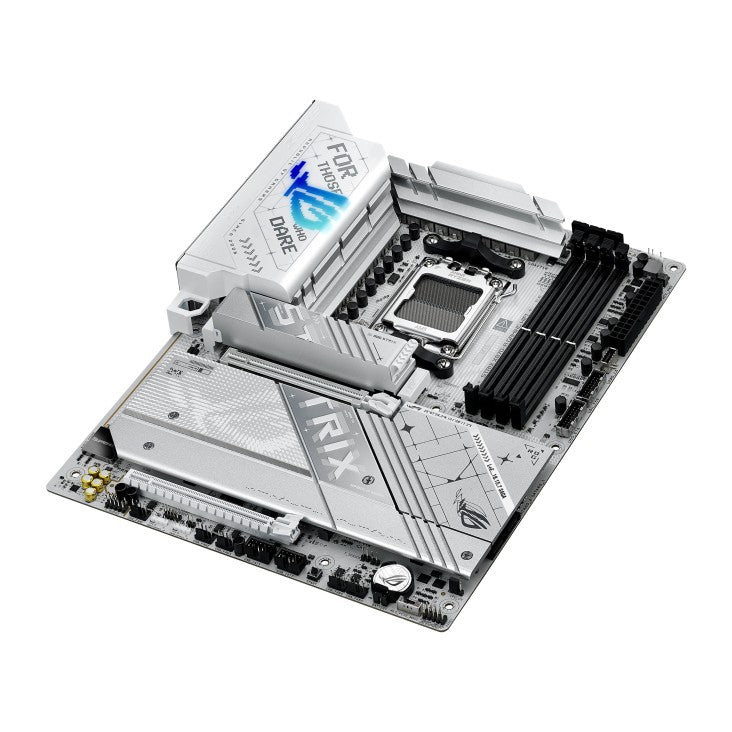

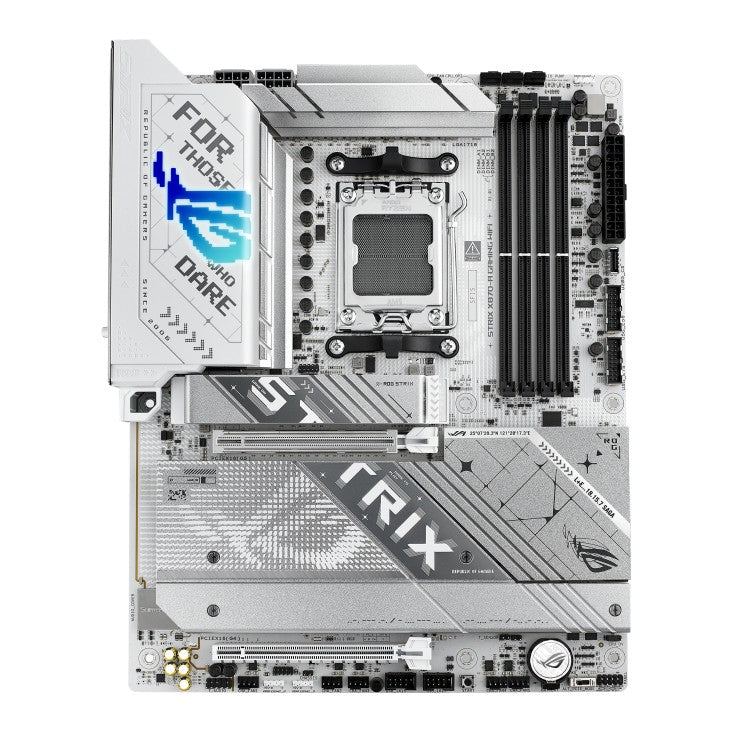

Asus Motherboard ROG STRIX X870-A GAMING WIFI AM5 4DDR5 HDMI/USB
Specifications
| Description | ROG STRIX X870-A gaming wifi Upgrade your rig with the ROG Strix X870-A Gaming WiFi. Featuring a sleek white PCB and supporting AMD Ryzen 9000 series processors, this motherboard delivers the power and connectivity you need for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, dual USB4 ports, and WiFi 7, it's the ultimate combination of style and performance. |
|---|---|
| Model | ROG STRIX X870-A GAMING WIFI |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 3 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 9000 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 8000 MHz |
| Max memory size | 192 |
| Expansion slots | 4 x M.2 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 2 x PCIe 4.0 x 16 |
| Max. number of SATA devices | 2 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Supports 4 x M.2 and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 and 7000 Series Desktop Processors* M.2_1 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 5.0 x4 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors** M.2_1 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4/x2 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280/22110 (not supported)**** AMD X870 Chipset M.2_3 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode)*** M.2_4 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * AMD RAIDXpert2 technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 function is only supported by AMD Ryzen 9000 series processors. ** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied by SSD, PCIEX16(G5) will only work in x8 mode. *** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied by SSD, PCIEX16(G4) will be disabled. **** M.2_2 will be disabled when using AMD Ryzen 8000 series desktop processors. |
| Graphics | 1 x DisplayPort 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display output |
| Sound card | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |
| USB ports at back panel | 12 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 8 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 7 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

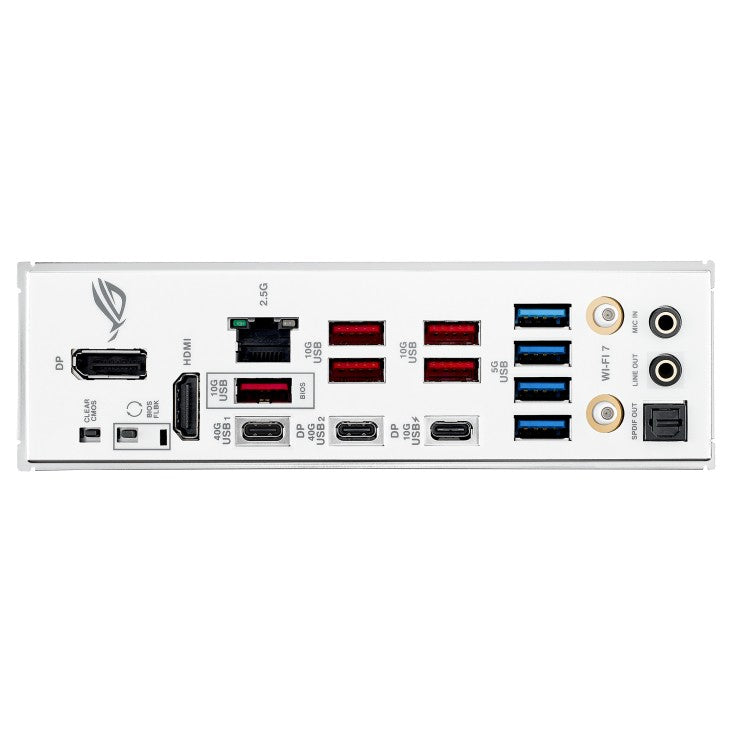

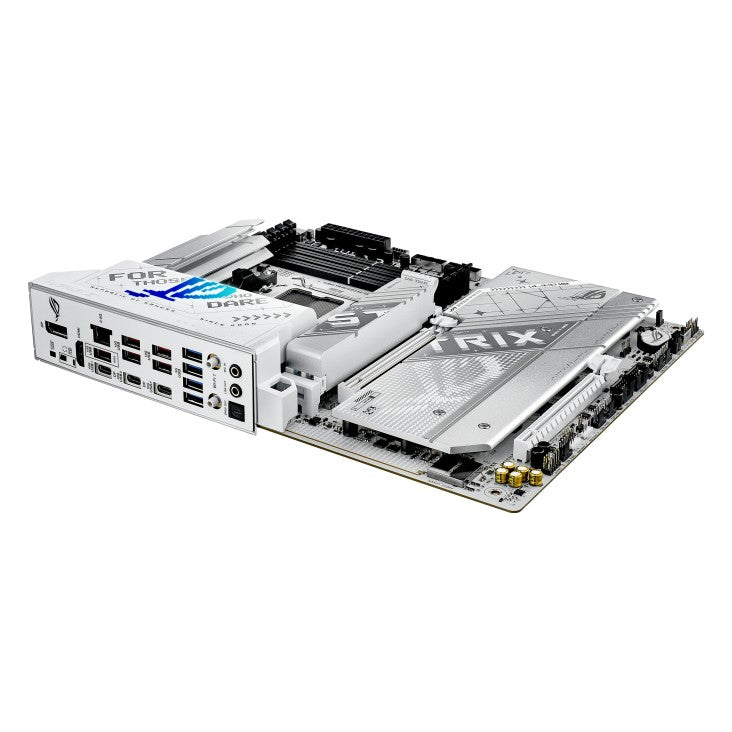

| External connectors | 2 x USB4 Type-C |
| External connectors | 5 x USB 3.1 |
| External connectors | 1 x HDMI |
| External connectors | 1 x DisplayPort |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 1 x Line Out (front) |
| External connectors | 4 x USB 3.0 |
| External connectors | 1 x USB 3.1 Type-C |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x MIC (front) |
| Onboard connectors | 2 x SATA III 6Gb/s |
| Onboard connectors | 4 x M.2 |
| Onboard connectors | 2 x USB 3.0 header |
| Onboard connectors | 5 x 4pin Chassis fan |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 1 x 4pin wentylator OPT CPU |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x OC PCIe switch |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x Thermal sensor connector |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |

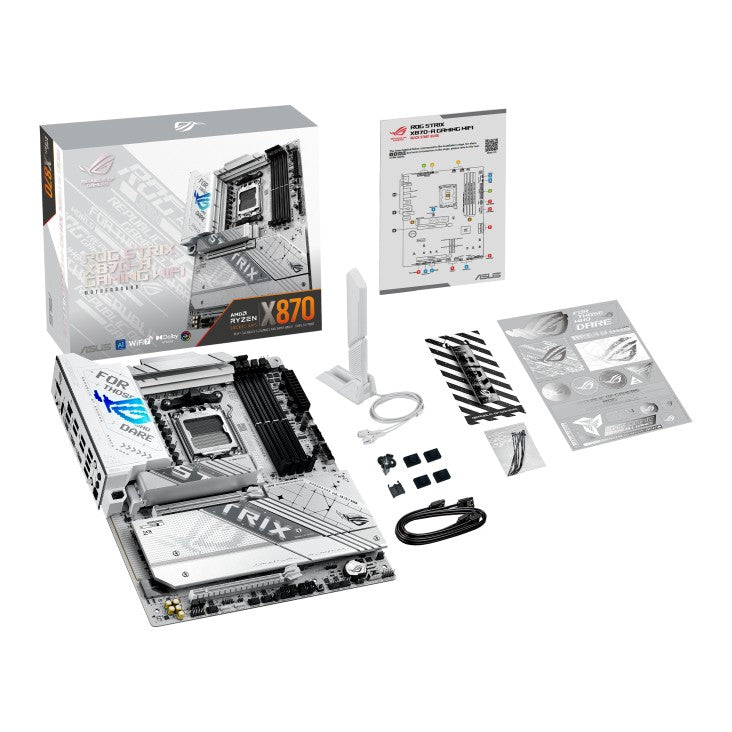

| Accessories included | 2 x SATA 6Gb/s cables 1 x M.2 22110 thermal pad 1 x ASUS WiFi Q-Antenna 1 x Cable Tie Pack 1 x M.2 Q-Latch Pack 1 x M.2 Q-Slide Pack 1 x ROG Keychain 1 x ROG Strix Stickers 4 x M.2 Rubber Packs 1 x Quick Start Guide |
| Supported operating systems | Windows 11 |
| Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armory Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) -GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey Dynamic OC Switcher FlexKey |
