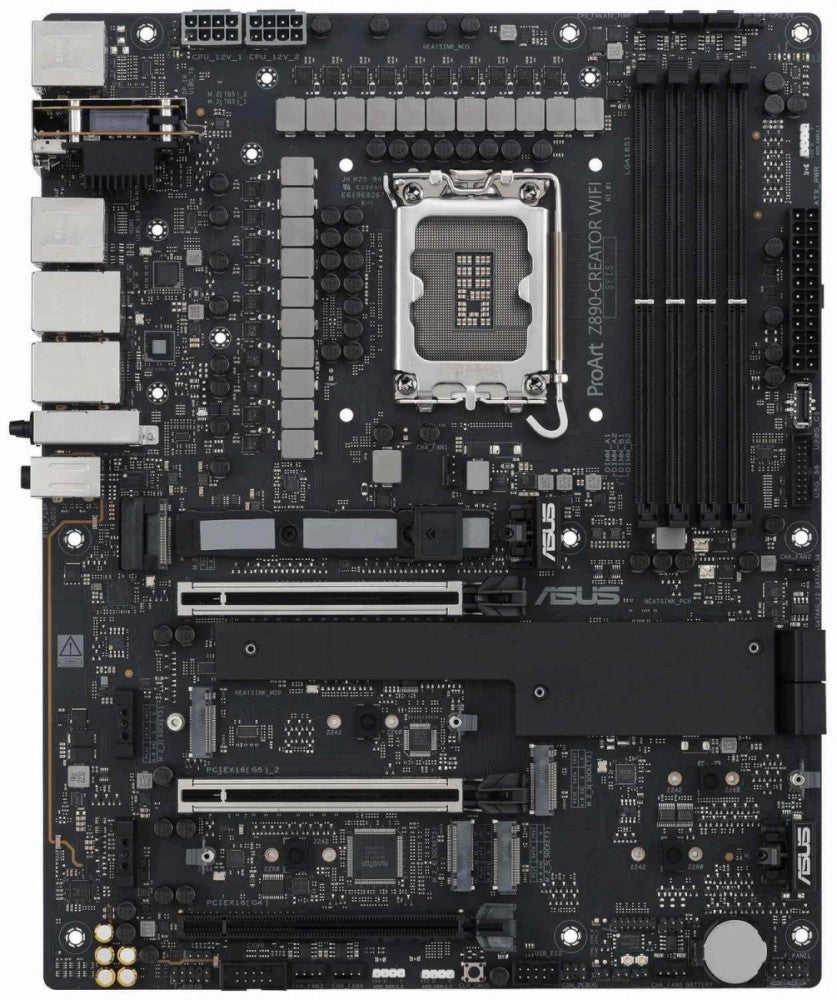

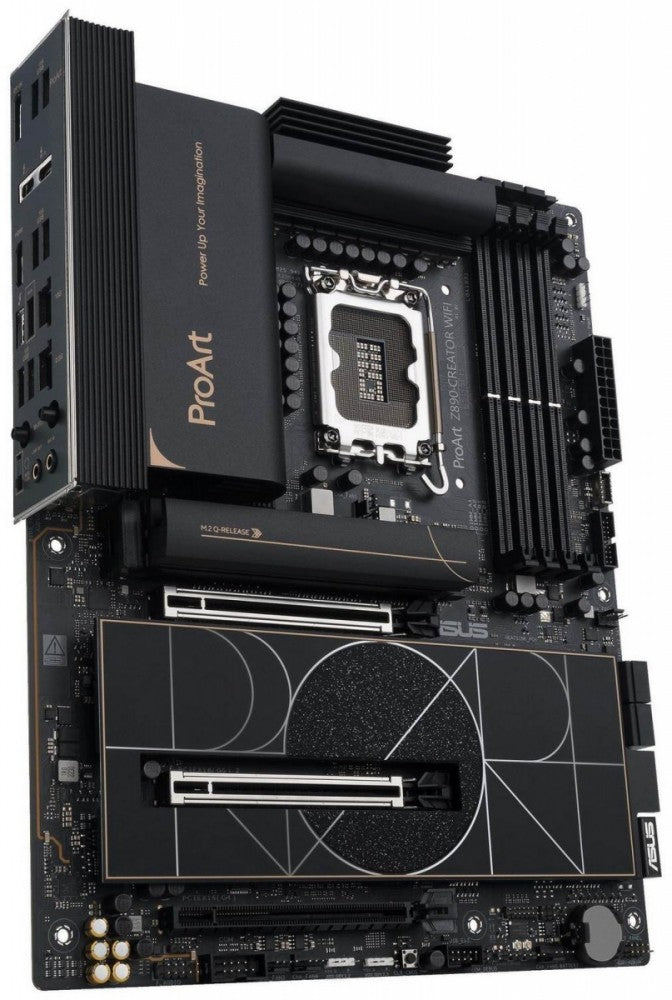

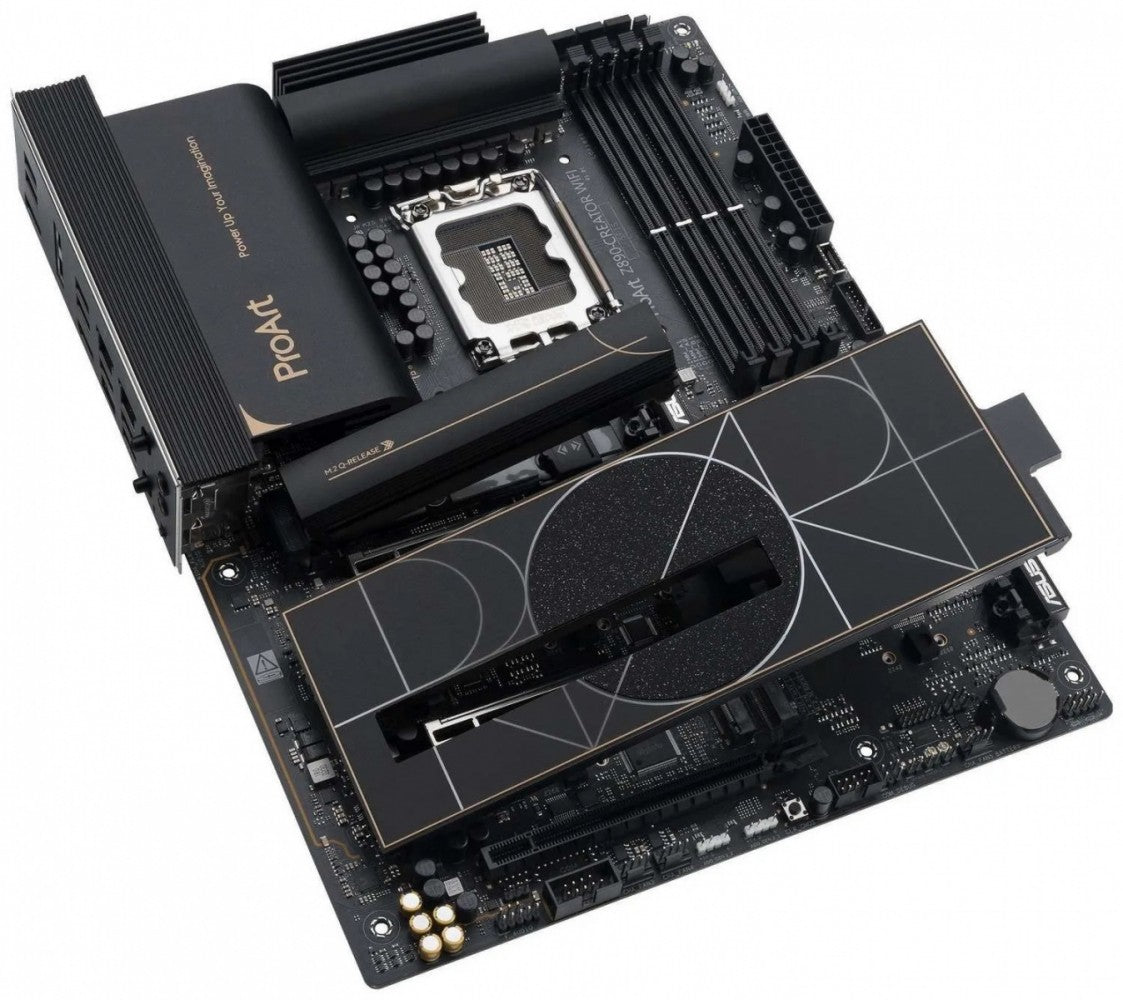

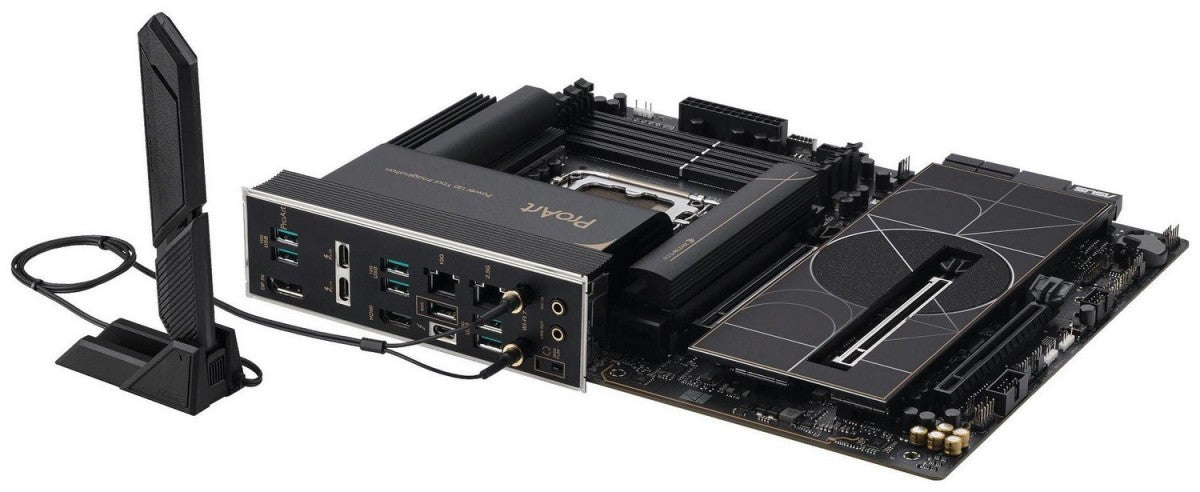

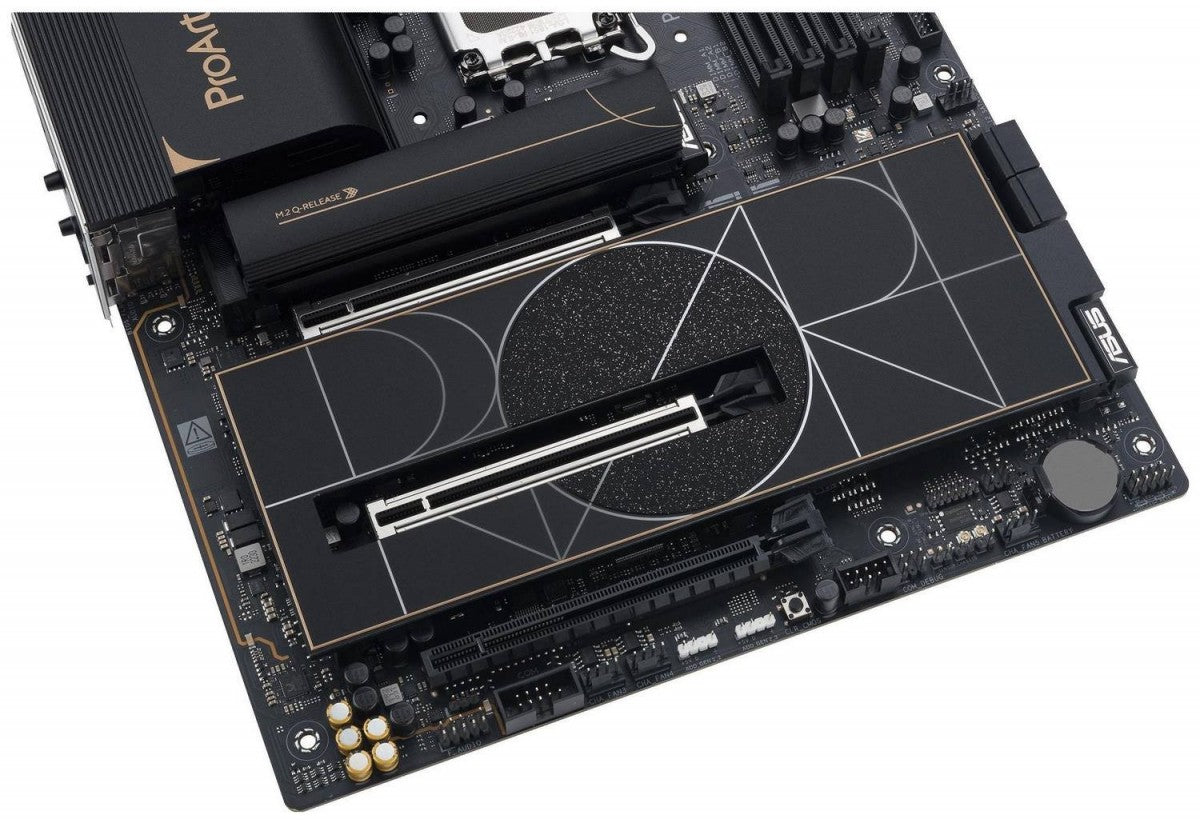

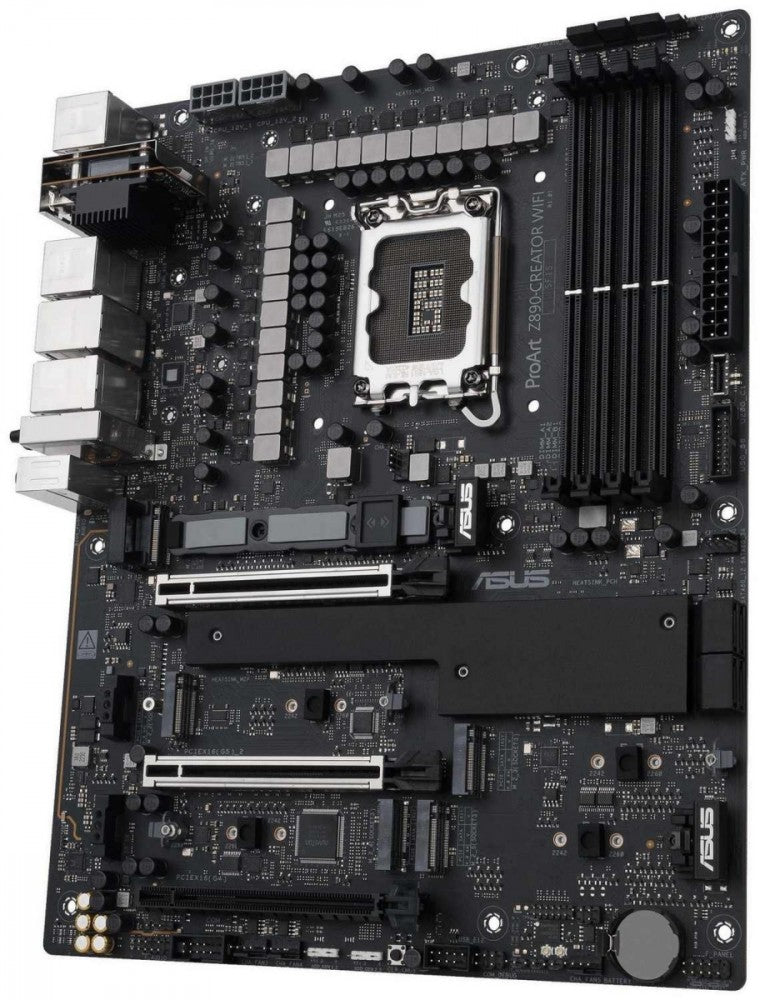

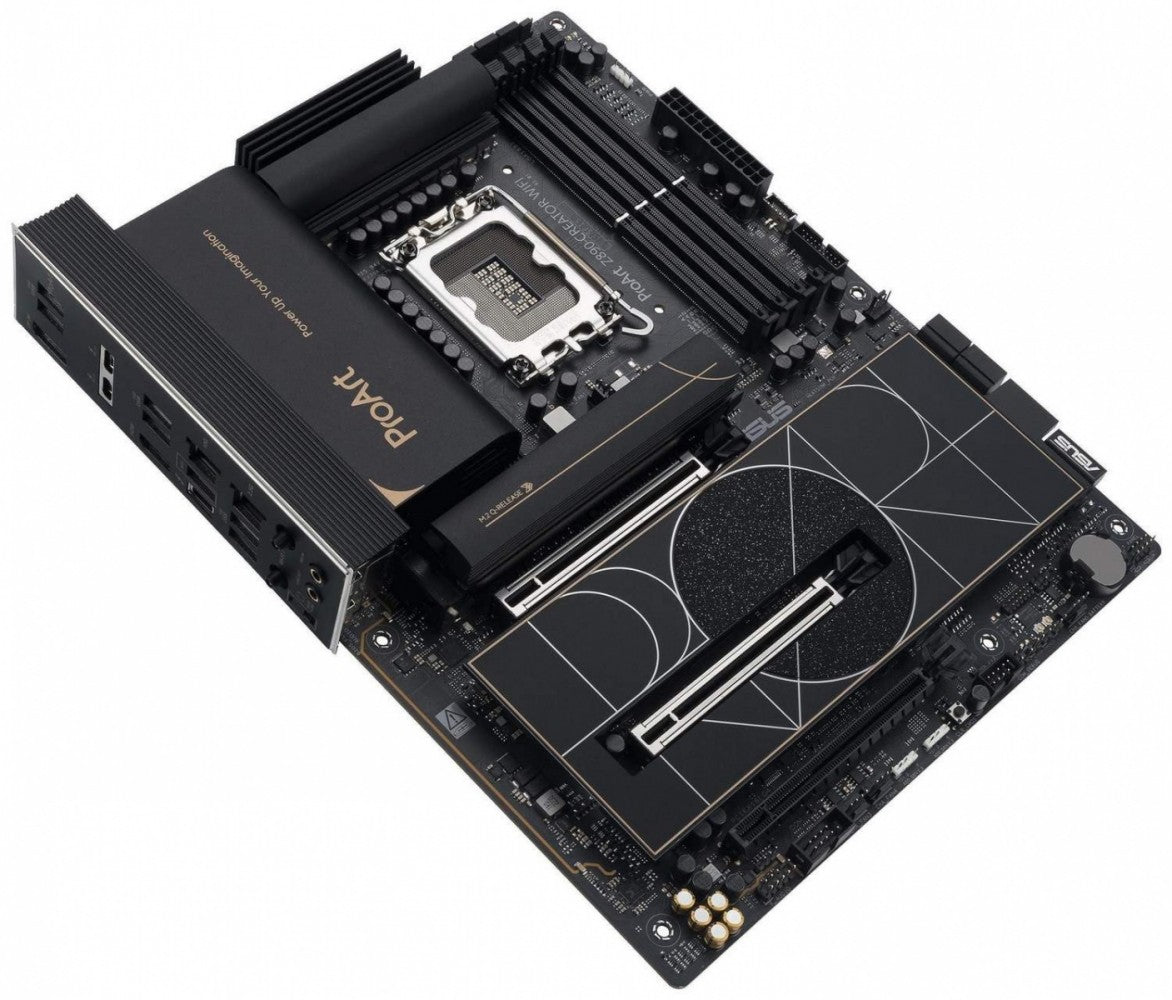

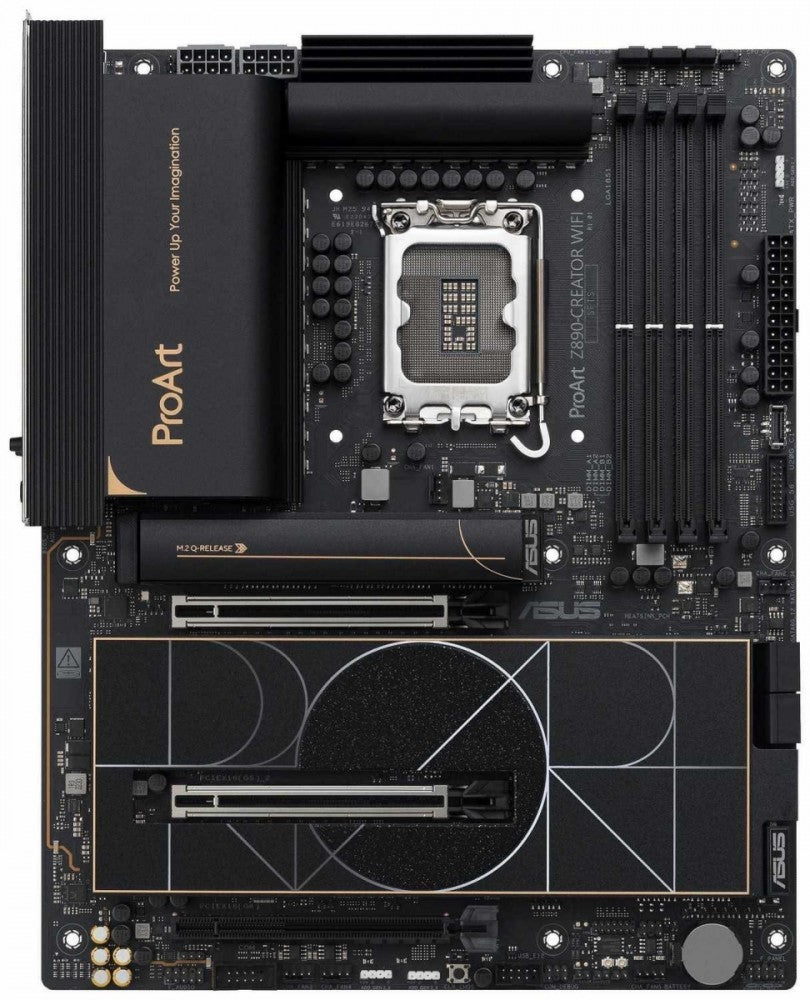

Asus Motherboard PROART Z890 CREATOR WIFI
Specifications
| Description | The ProArt Z890-CREATOR WIFI motherboard supports creators of all skill levels by maximizing the performance of the latest Intel Core Ultra Processors (Series 2) with 16+1+2+2 power stages, DDR5 slots, PCIe 5.0, and lightning-fast connectivity, including dual Thunderbolt 5 ports, 10G and 2.5G Ethernet, and Wi-Fi 7. This motherboard exudes professionalism, elegance, and precision, making it the perfect solution for a variety of content creators. Its distinctive style features harmonious color-coordinated layers with black accents and metallic gold accents. The translucent back panel allows users to view the stylish, high-quality connectors inside. |
|---|---|
| Model | PROART Z890-CREATOR WIFI |
| CPU socket | LGA1851 |
| Processor family | Intel Core Ultra |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| Chipset type | Intel Z890 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 9066 MHz |
| Max memory size | 192 |
| Expansion slots | 2 x PCIe 5.0 x16 |
| Expansion slots | 5 x M.2 |
| Max. number of SATA devices | 4 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Supports a total of 5 x M.2 slots and 4 x SATA 6 Gb/s ports* Intel Core Ultra (2-Series) Processors* M.2_1 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 5.0 x4 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) M.2_4 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) Socket M.2_5 (M Key), Type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes)** 4 x SATA 6 Gb/s ports |
| Graphics | 1 x HDMI port 2 x Intel Thunderbolt 5 (USB Type-C) ports supporting DisplayPort and Thunderbolt video output 1 x Intel Thunderbolt 4 (USB Type-C) ports supporting DisplayPort and Thunderbolt video output |
| Sound card | Realtek ALC1220P high-resolution audio codec with 7.1 multi-channel audio Impedance sensing on front and rear headphone outputs Internal audio amplifier for superior sound quality on headphones and speakers Supports: Jack detection, multi-streaming, and front panel port remapping High-quality stereo playback output with 120 dB SNR and recording input with 113 dB SNR (line-in) Supports playback up to 32-bit/192 kHz Gold-plated audio jacks High-quality audio capacitors Dedicated audio PCB layers |
| Network interface | 1 x 10/100/1000 Mbit/s |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless and Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands Supports 320 MHz Wi-Fi 7 bandwidth, maximum transfer speeds up to 5.8 Gbps. Bluetooth v5.4 |
| USB ports at back panel | 10 |
| USB ports on motherboard | 5 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 1 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 10 |
| FireWire (IEEE 1394) | No |
| COM connector / port | Yes |
| LPT connector / port | No |

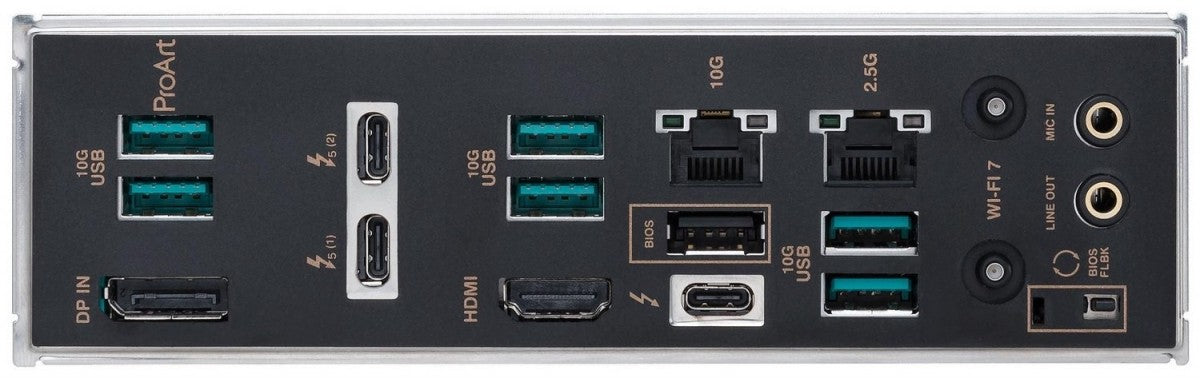

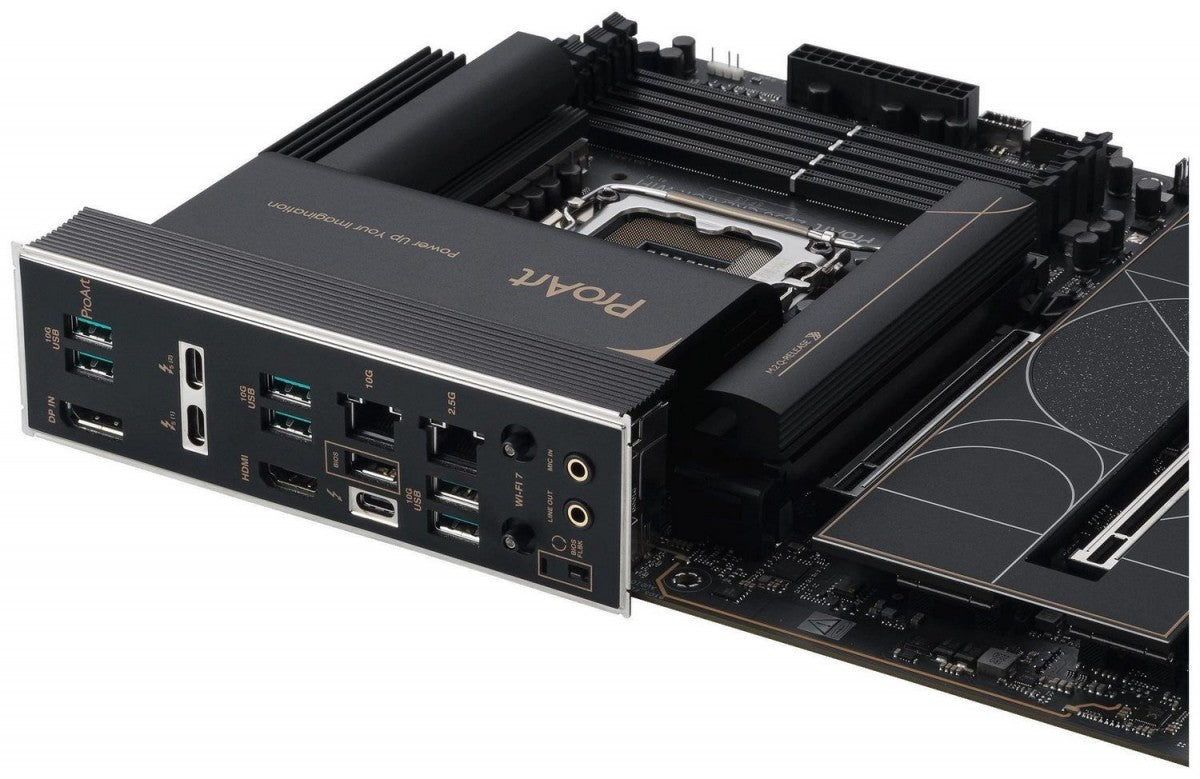

| External connectors | 6 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x HDMI |
| External connectors | 1 x DisplayPort |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x Line Out (front) |
| External connectors | 1 x MIC (front) |
| External connectors | 1 x Wi-Fi Module |
| External connectors | 2 x RJ-45 |
| External connectors | 1 x USB 2.0 |
| External connectors | 2 x USB 3.2 Gen 1 Type-C |
| External connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 1x CPU/DRAM overvoltage jumper |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x Serial port header |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 1 x 4pin wentylator OPT CPU |
| Onboard connectors | 5 x 4pin Chassis fan |
| Onboard connectors | 5 x M.2 |
| Onboard connectors | 1 x Clear CMOS button |
| Onboard connectors | 1 x Thermal sensor connector |
| Special functions | ASUS 5X PROTECTION III DIGI+ VRM (Digital Power System with DrMOS) ESD Guards LANGuard Surge Protection SafeSlot Stainless Steel I/O Back Panel ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Connector Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], system drive [yellow-green]) ASUS Cooling System M.2 Backplate M.2 Heatsink VRM Heatsink Design ASUS EZ DIY BIOS FlashBack Button BIOS FlashBack LED Box Headers Clear CMOS Button Slot Lever Protector CPU ProCool II Factory-installed back panel I/O shield SafeDIMM Aura Sync Addressable Gen2 headers Custom motherboard layout and business-oriented features 24/7 reliability - Overcurrent protection |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |

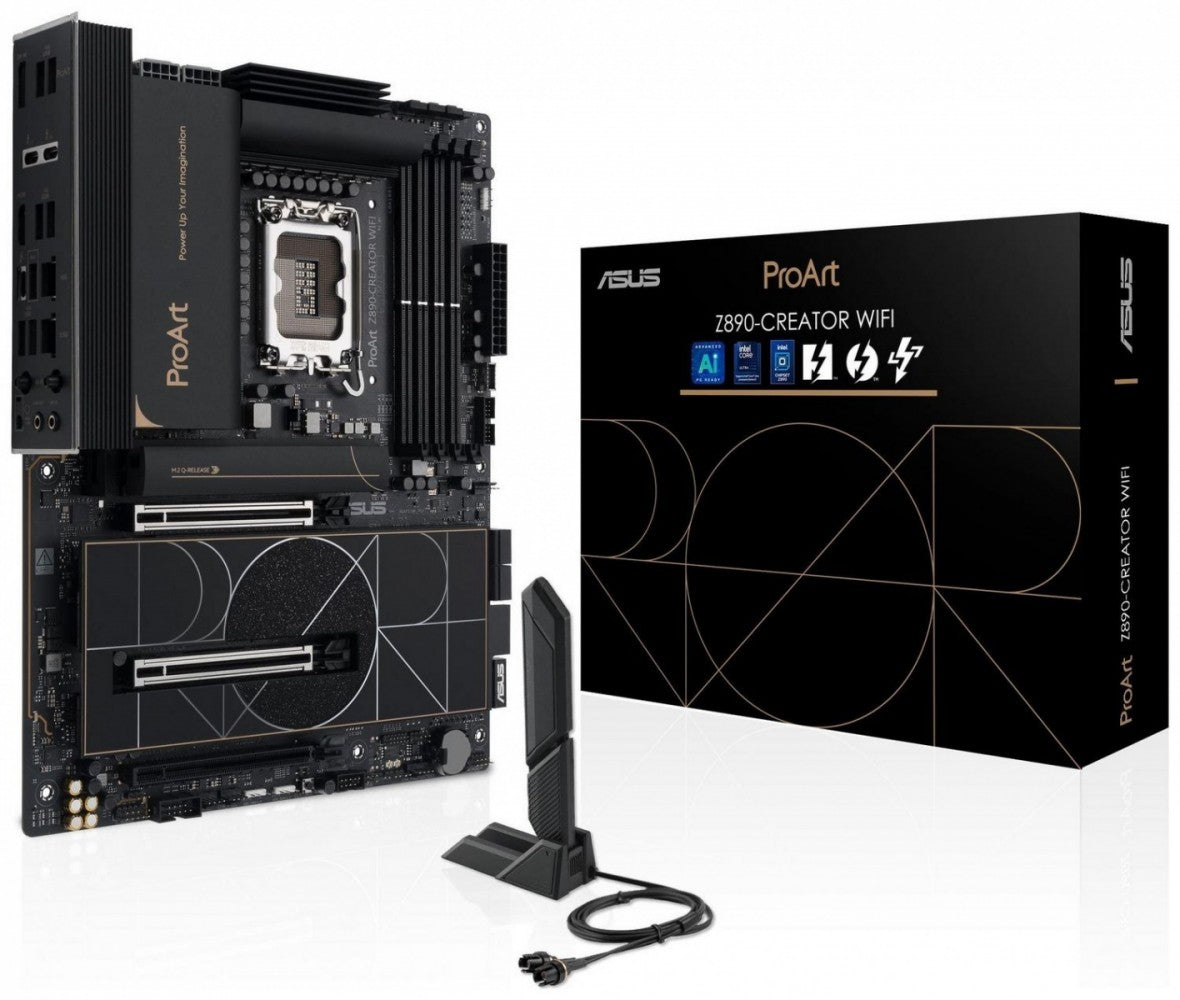

| Accessories included | 2 x SATA 6 Gb/s cables ASUS WiFi Q-Antenna Q-connector 2 x M.2 Q-Latch kit 2 x M.2 rubber grommets ProArt accessory bag ACC Express activation key card Quick start guide |
| Supported operating systems | Windows 11 |
