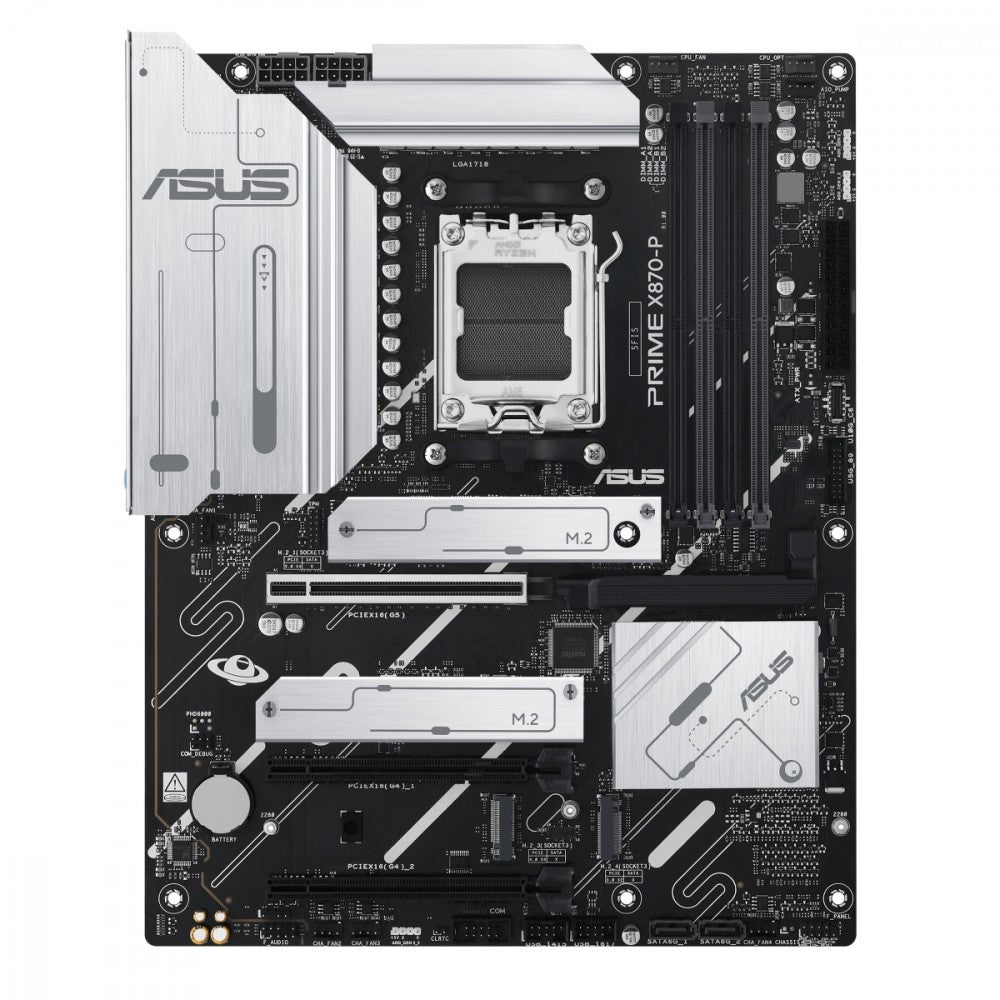

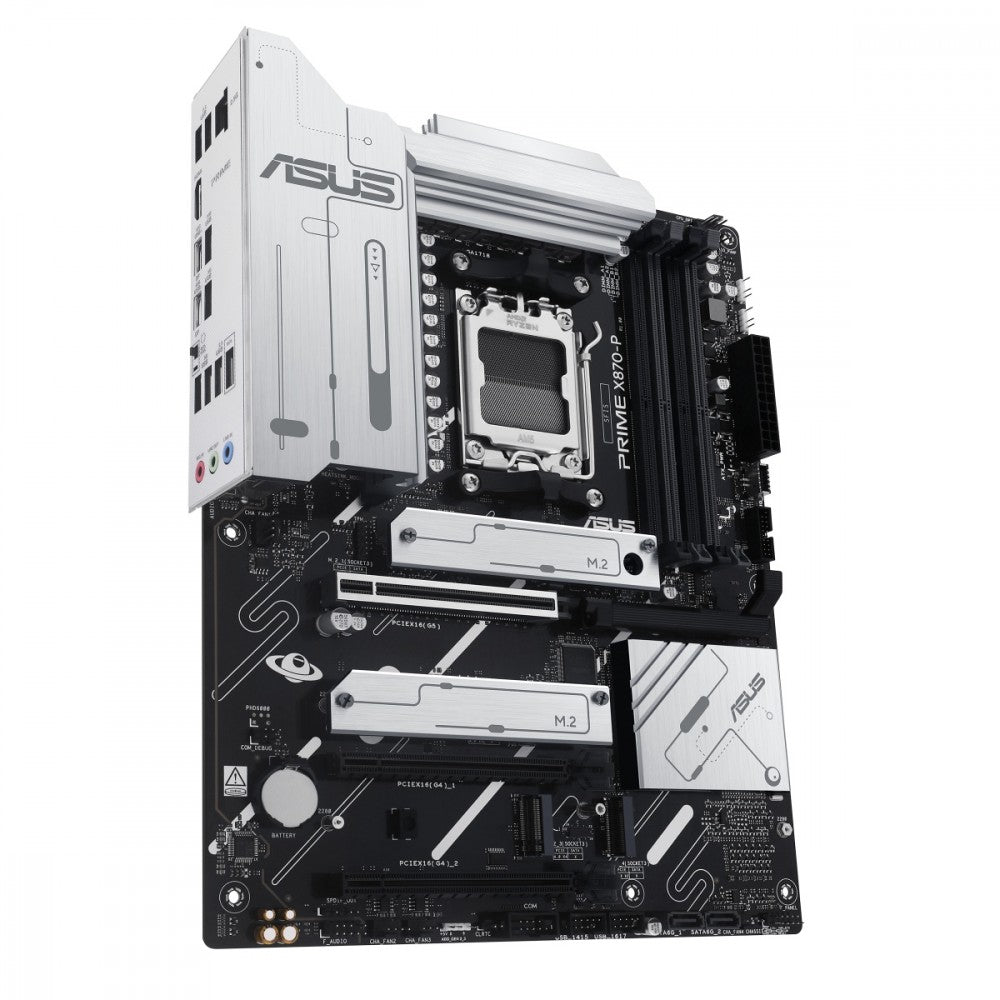

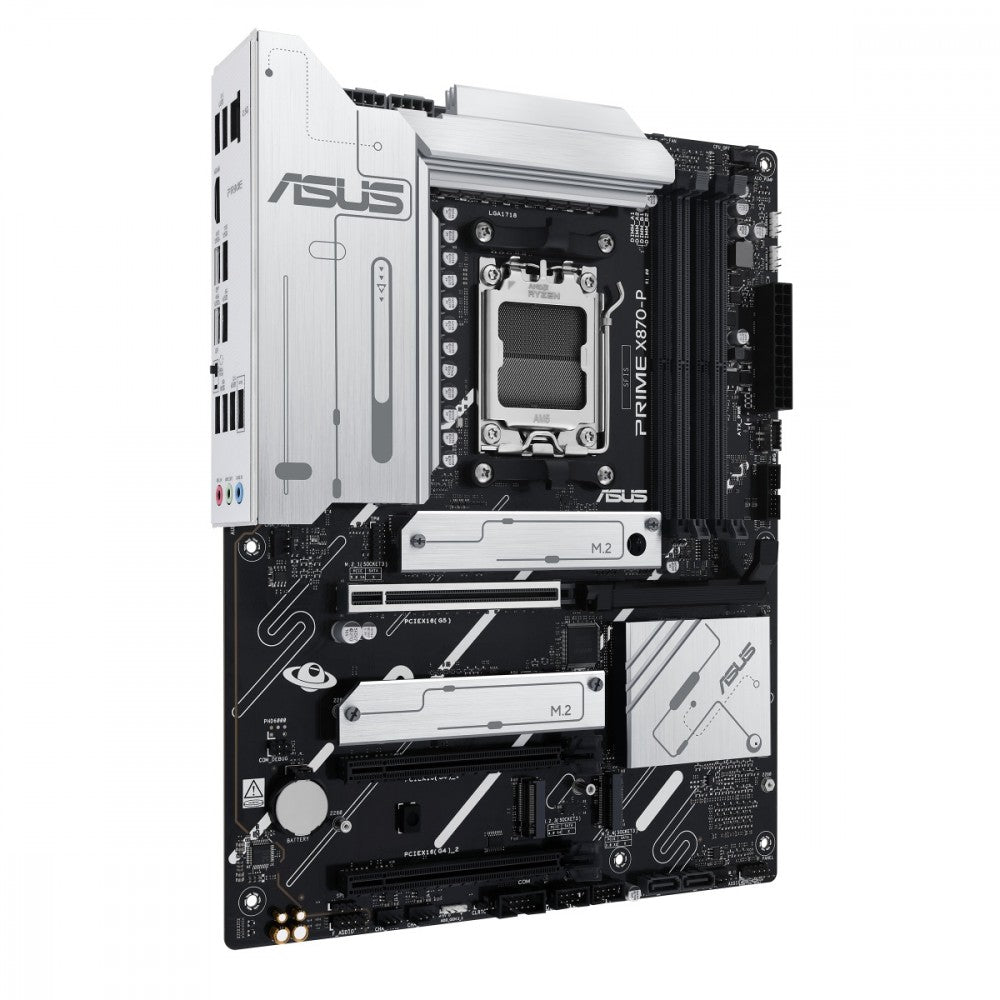

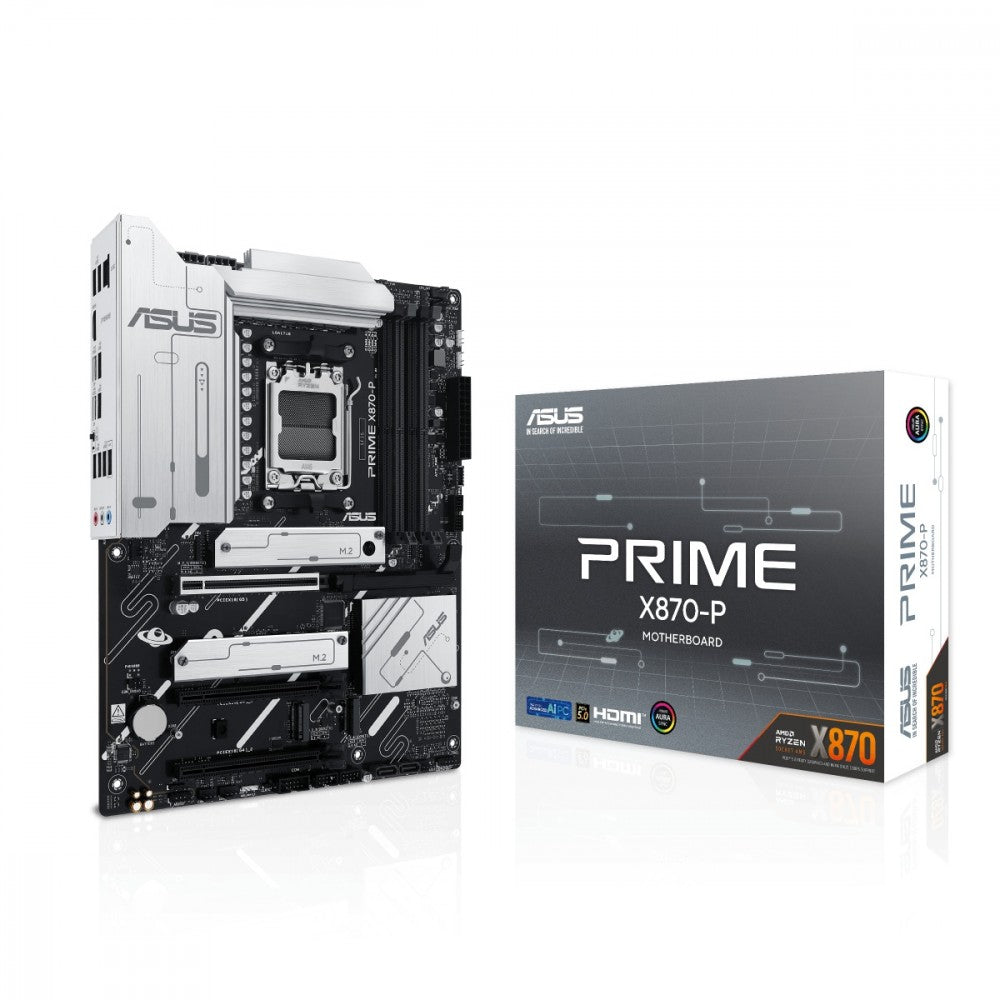

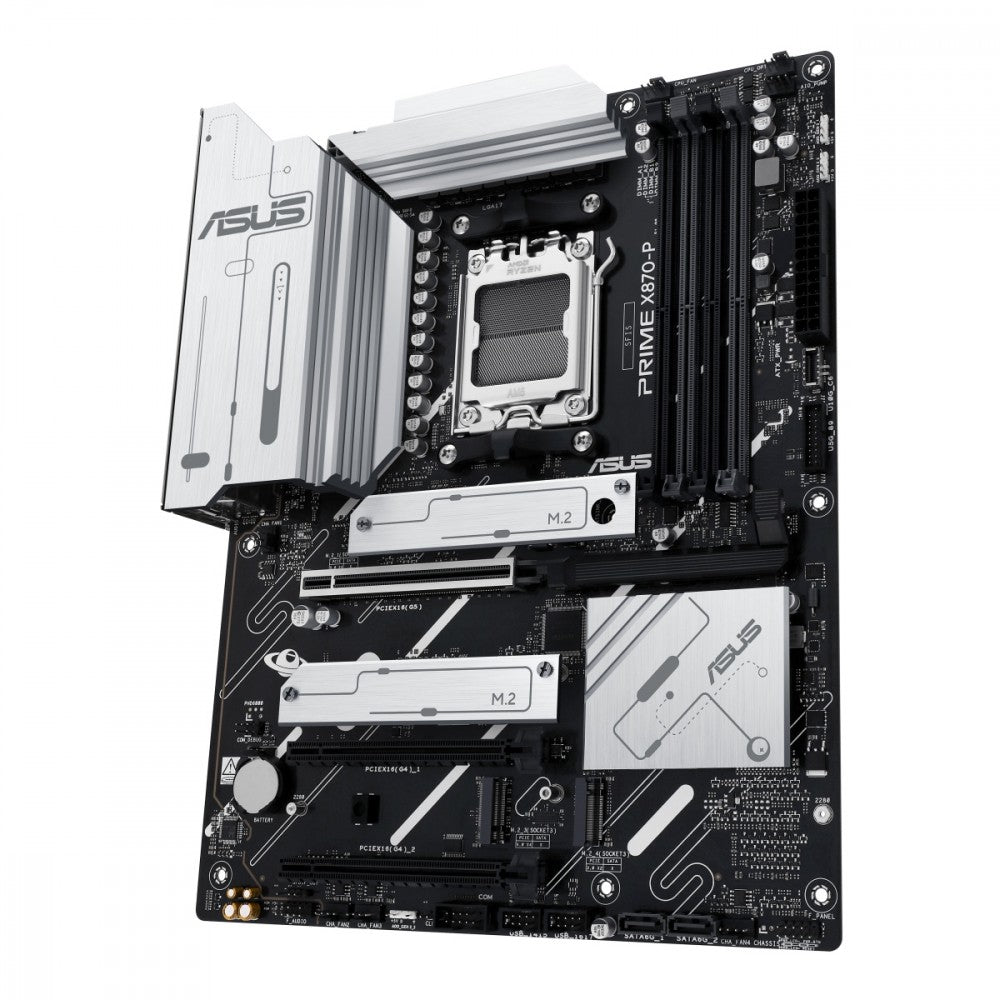

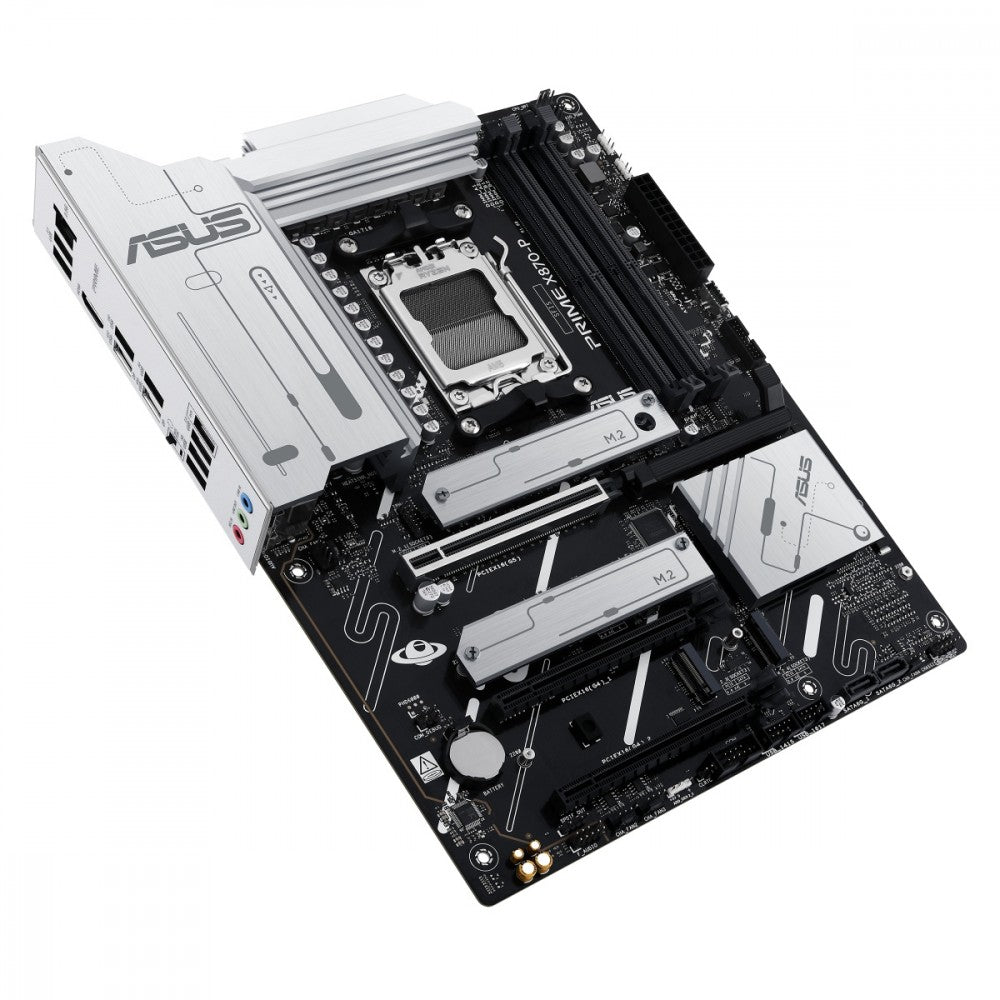

Asus Motherboard PRIME X870-P AM5 4DDR5 HDMI/USB-C ATX
Specifications
| Description | Prime X870-P ASUS Prime Series motherboards are expertly designed to unleash the full potential of AMD Ryzen 9000 Series processors. Featuring a solid power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME X870-P motherboard empowers PC users and DIY enthusiasts with a range of performance optimizations through intuitive software and firmware features. It's designed to be ready for Advanced AI PCs, with the power and connectivity you need for demanding AI applications. |
|---|---|
| Model | PRIME X870-P |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 3 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 9 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870 Chipset |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8000 MHz |
| Max memory size | 192 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 4 x M.2 |
| Expansion slots | 3 x PCIe 4.0 x 16 |
| Max. number of SATA devices | 2 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)** M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)*** 2 x SATA 6Gb/s ports*** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU. ** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs. *** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs. |
| Graphics | 1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Sound card | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack Detection, Streaming, Front Panel Jack Reassignment - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium Audio Capacitors - Dedicated PCB Audio Layers * A chassis with an HD audio module on the front panel is required to support 7.1 Surround Sound audio output. |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| USB ports at back panel | 10 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 5 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 4 |
| FireWire (IEEE 1394) | No |
| COM connector / port | Yes |
| LPT connector / port | No |

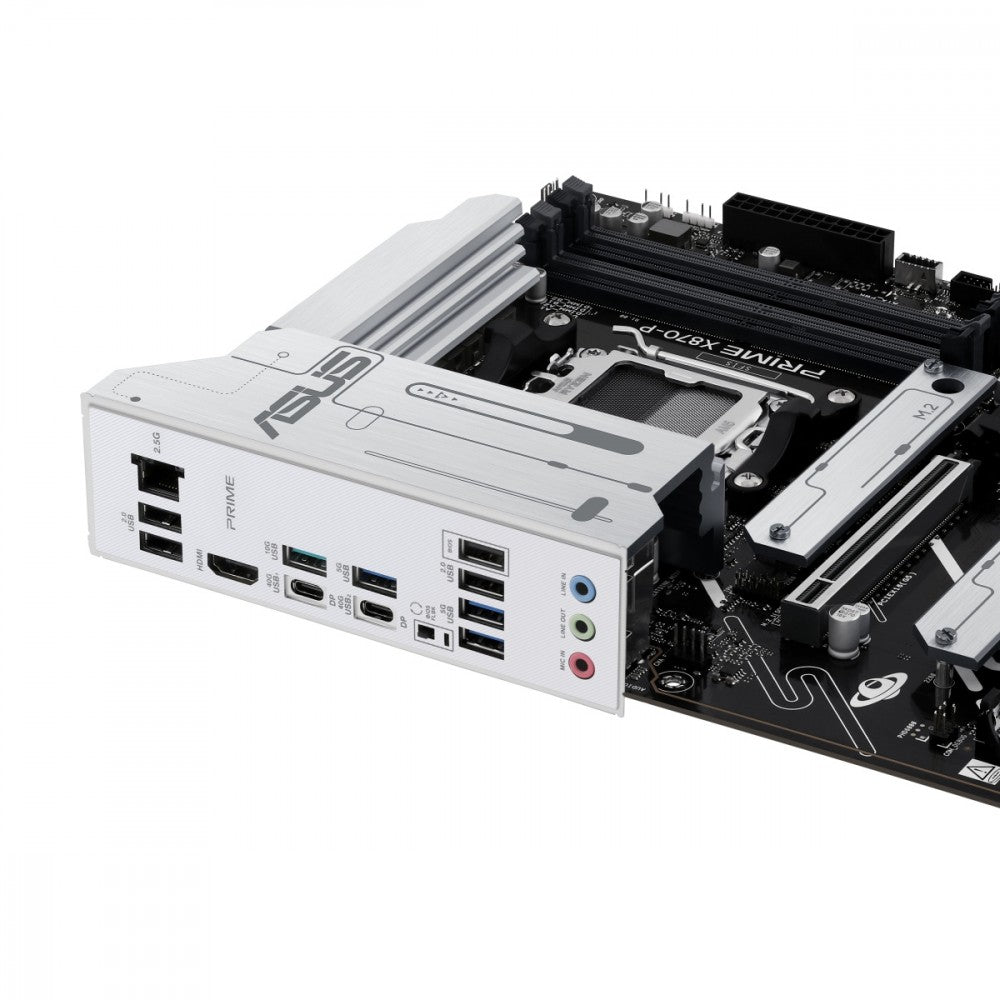

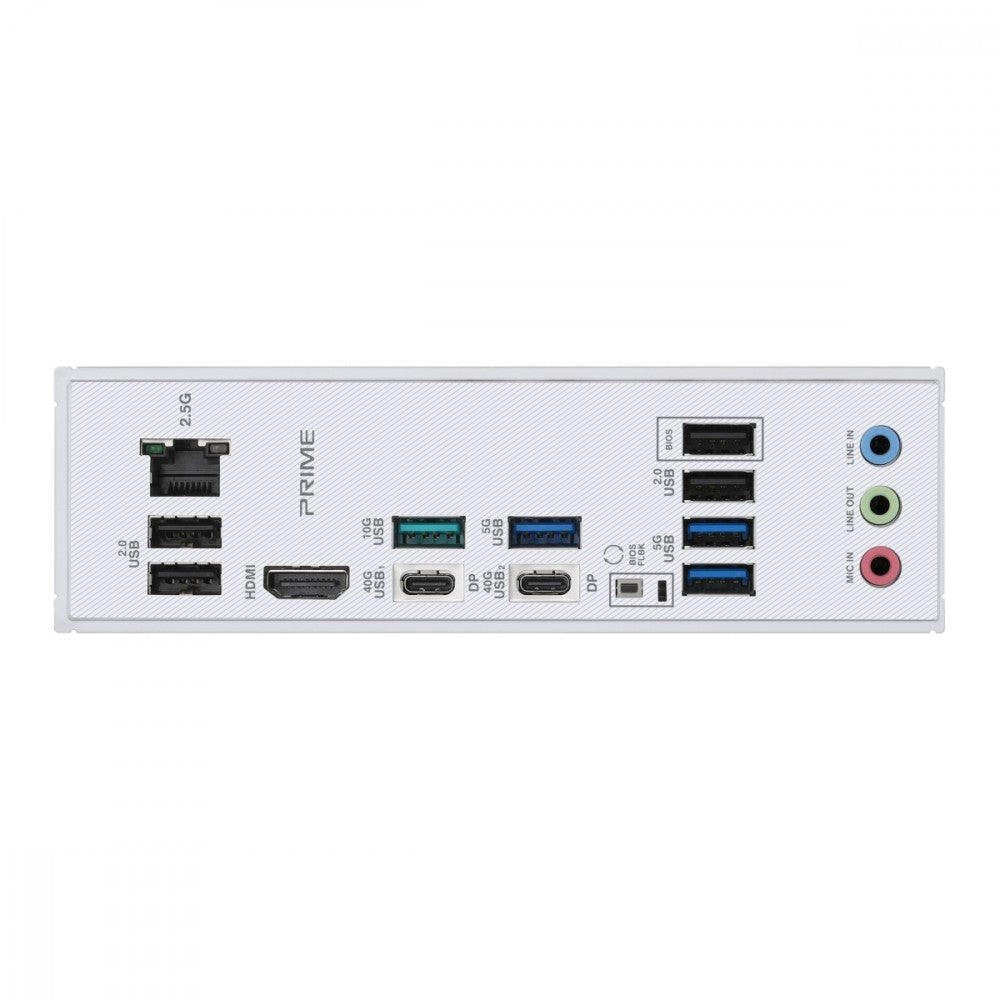

| External connectors | 4 x USB 2.0 |
| External connectors | 3 x USB 3.0 |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x USB 3.1 |
| External connectors | 2 x USB4 Type-C |
| External connectors | 1 x Flash BIOS Button |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 4pin wentylator OPT CPU |
| Onboard connectors | 4 x 4pin Chassis fan |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 4 x M.2 |
| Onboard connectors | 2 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.0 header |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x Serial port header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x S/PDIF Out header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 3 x Addressable LED |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |

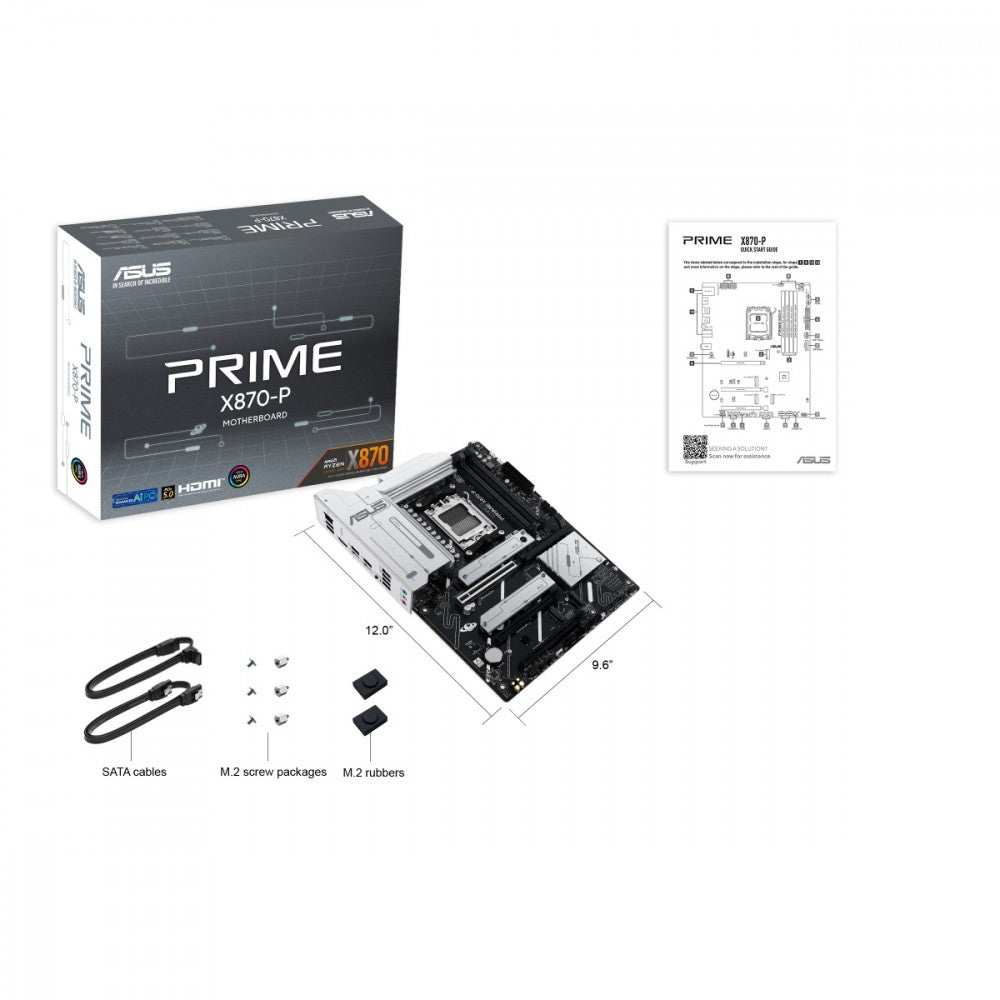

| Accessories included | 2 x SATA 6Gb/s Cables M.2 Rubber Pack 2 x M.2 SSD Screw Packs Quick Start Guide |
| Supported operating systems | Windows 10 |
| Supported operating systems | Windows 11 |
| Software | ASUS Exclusive Software Armory Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
