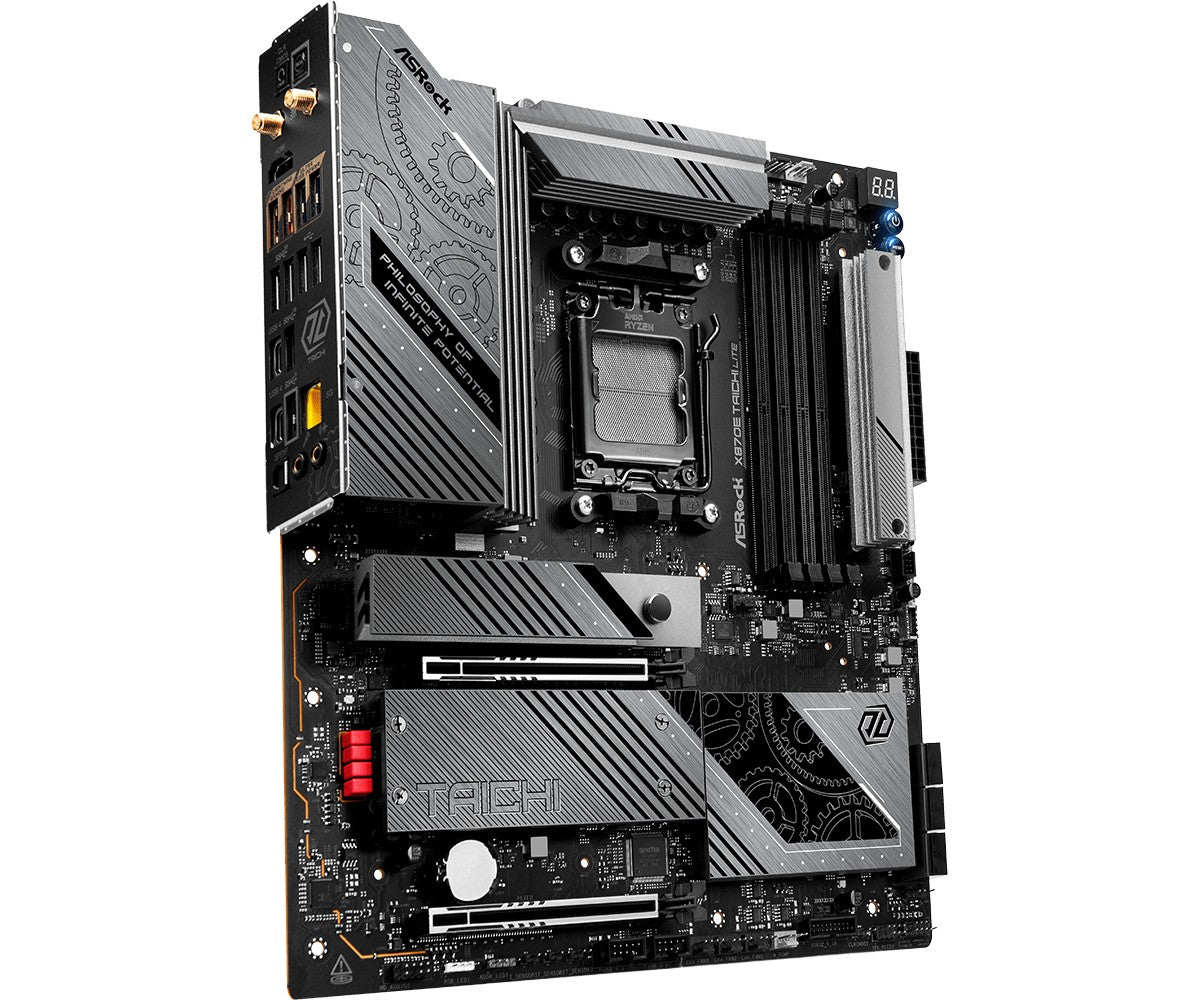

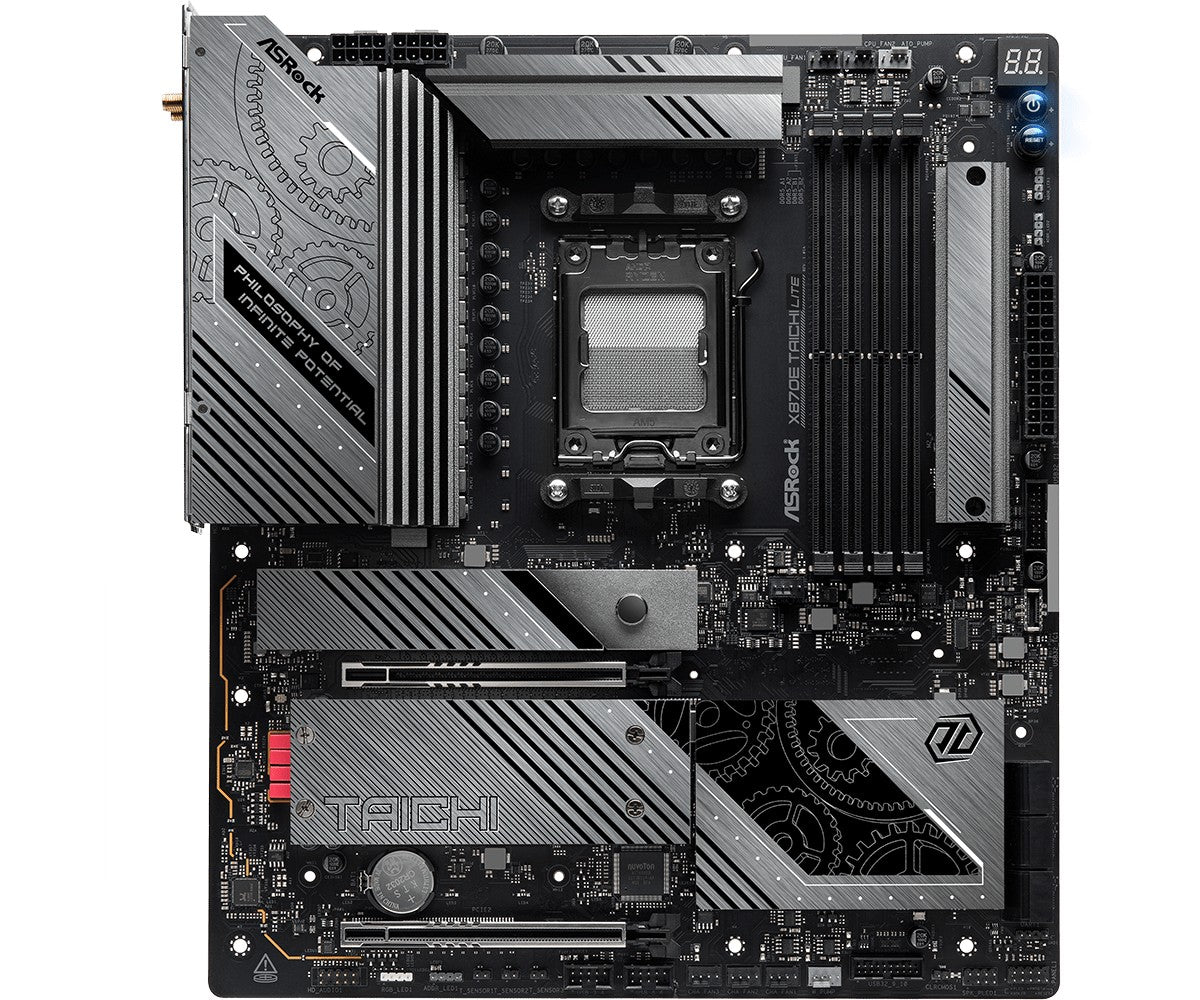

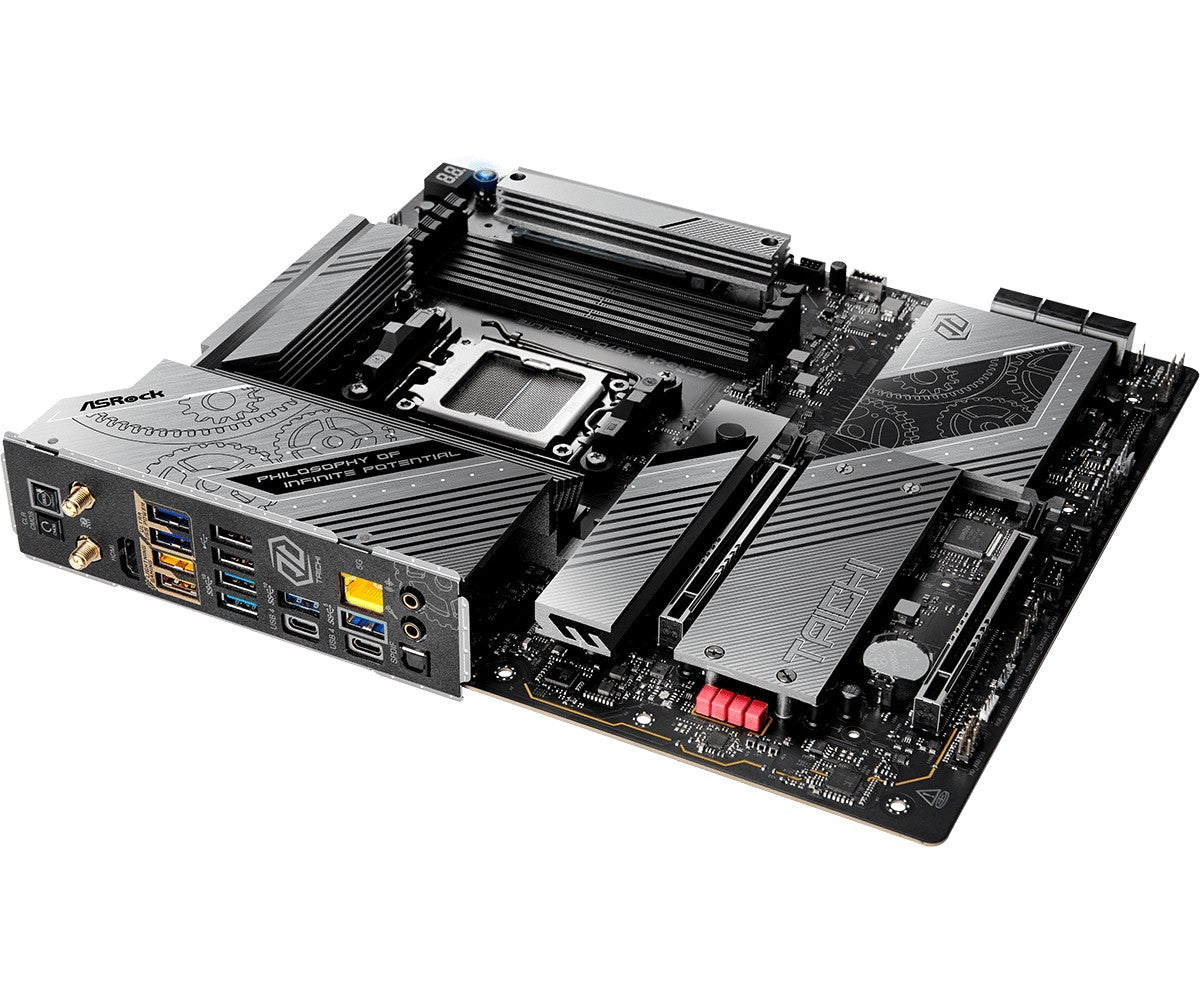

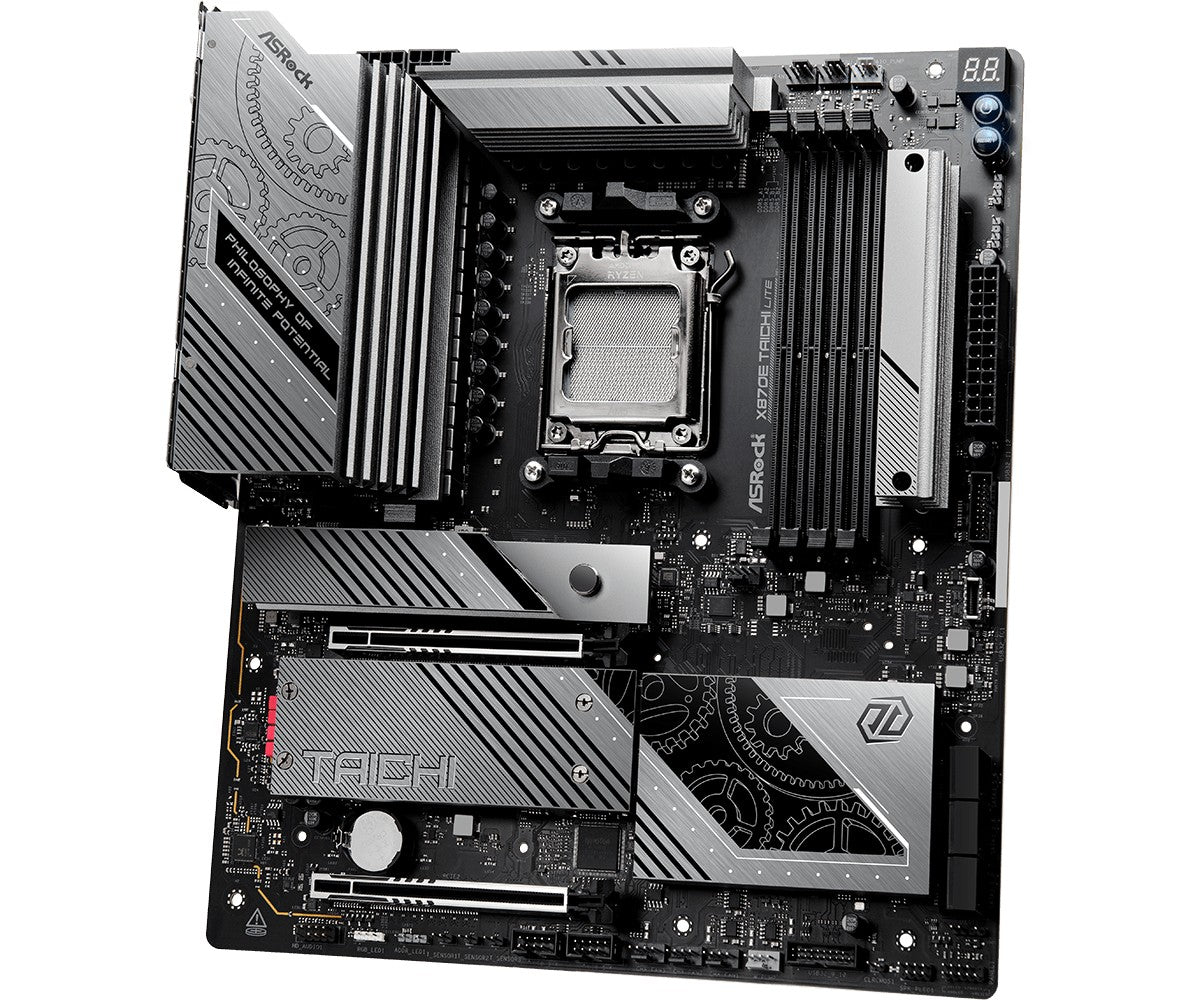

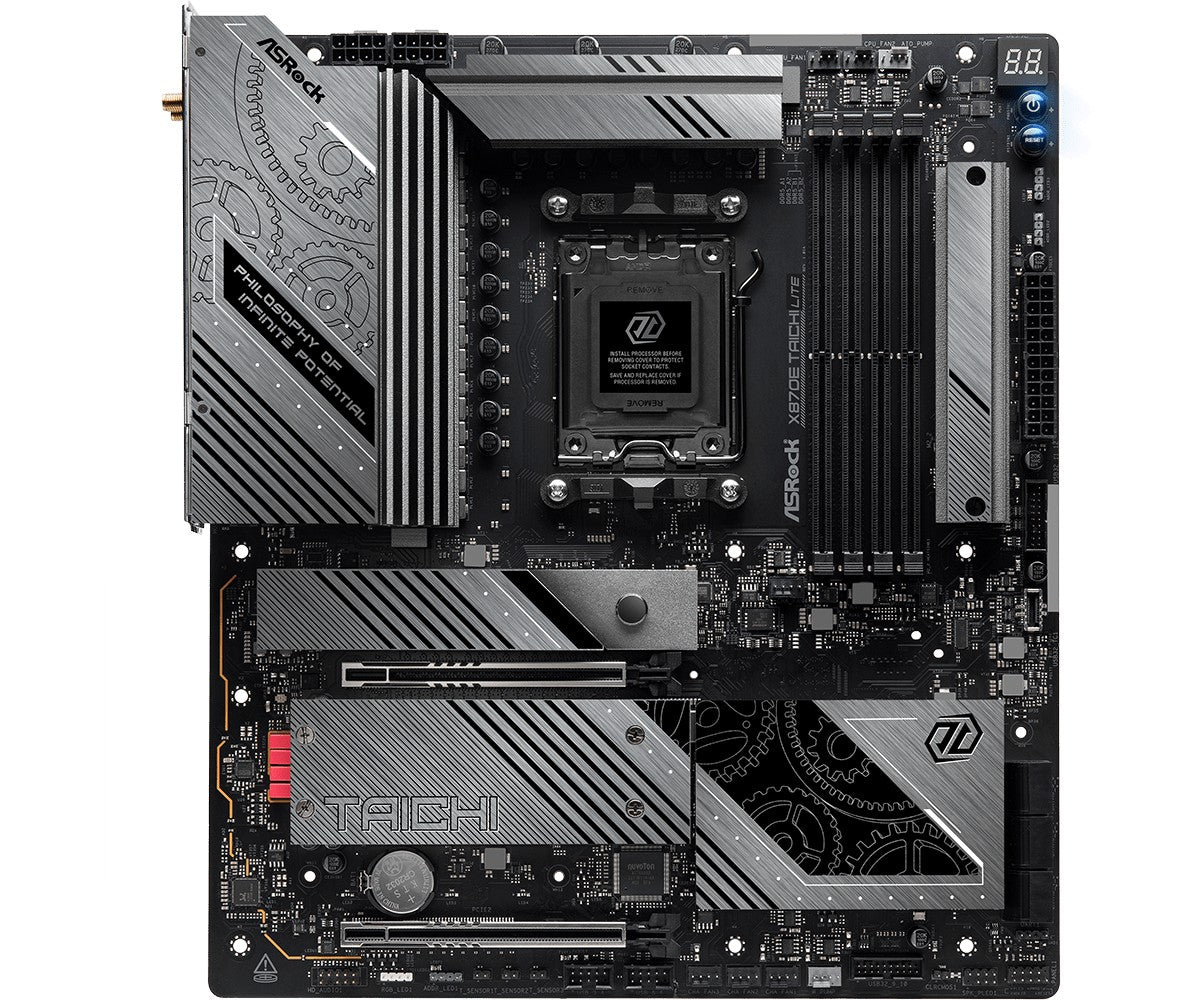

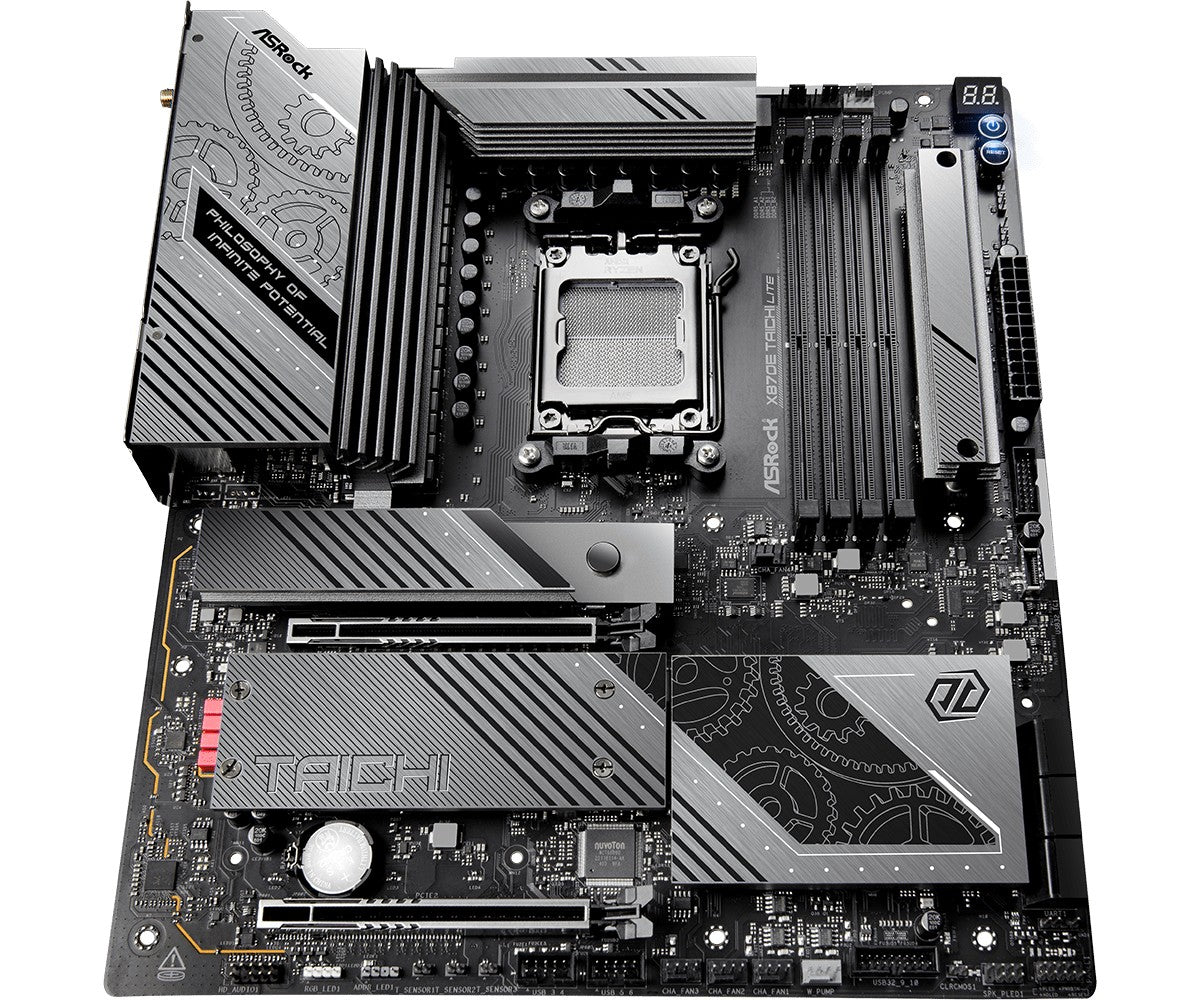

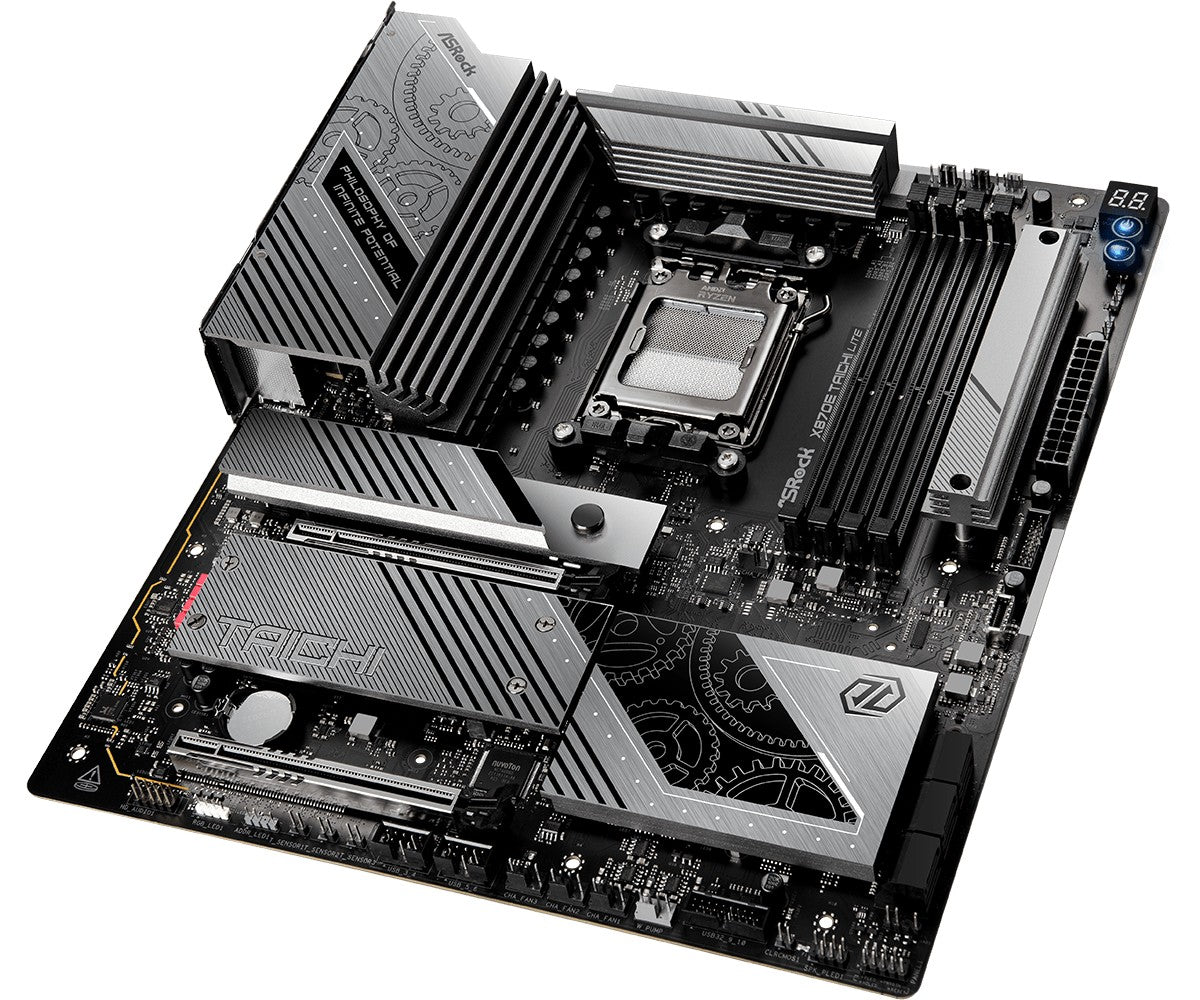

ASRock X870E TAICHI LITE AM5 4DDR5 M.2 EATX
Specifications
| Description | Exclusive 20K 1000uF Capacitor The upgraded 20K black capacitor not only extends the lifespan to 20,000 hours, but also increases the capacitance value from 560uF to 1000uF, which brings several benefits: Larger Capacity: Greater charge storage for better support under heavy loads. Lower Ripple: Reduced output power fluctuation, improving quality. More Stable Output Current: Stable power supply, minimizing the impact of voltage. Better System Efficiency and Stability: Increased reliability and consistent performance. Optimized 5Gbps LAN (Patent Pending) ASRock's 5Gbps LAN features a patented design that features excellent resistance to electromagnetic interference, ensuring fast and weak performance, and offering users a better networking experience. High Speed M.2 Solution Blazing M.2 supports the latest PCI Express 5.0 standard, providing twice the bandwidth of the previous generation, and with a blazing 128GB/s transfer speed, it is ready to unleash the full potential of future ultra-fast SSDs. Server-grade Low-Loss PCB Server-grade low-loss PCB improves signal integrity, allowing the motherboard to support PCIe 5.0 for both graphics card and M.2 SSD. It also improves memory OC potential to provide the highest memory performance. 8-Layer PCB Design + 20z Copper PCB 8-layer PCB and 20z copper inner layers provide weaker signal paths and power shapes for lower temperatures and higher power efficiency, ensuring a reliable and durable system while delivering the highest performance without any compromise. DDR5 XMP and EXPO Support Coming from the design concept of built for the underdog and reliable, ASRock doesn't compromise on details. This motherboard is built with high-quality materials, enthusiasts can enjoy enhanced DDR5 memory overclocking performance by including pre-tested profiles. Make sure your memory modules are Intel@ XMP/AMD EXPO TM compatible, and overclocking can be so affordable, satisfying and absolutely hassle-free. High Speed M.2 Solution The Blazing M.2 supports the latest PCI Express 5.0 standard, providing twice the bandwidth of the previous generation, and with a blazing 128GB/s transfer speed, it is ready to unleash the full potential of future ultra-fast SSDs. Enhanced USB4 Type-C USB4 technology brings the speed and versatility of the most advanced USB Type-C, offering a quick and easy level of connection for work or home. It enables lightning-fast 40Gbps data transmission speed. 802.11be Wi-Fi 7 Wi-Fi 7 offers higher data throughput, lower latency, and multi-link operation. These features provide a smooth and interactive experience in real time, making the VR/AR experience more immersive and connected. Composite VRM Heatsink It features a composite VRM heatsink that integrates a cooling fan, a larger aluminum heatsink, and a heat pipe to provide maximum heat dissipation. |
|---|---|
| Model | X870E TAICHI LITE |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 3 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 9 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8200 MHz |
| Max memory size | 256 |
| Expansion slots | 2 x PCIe 5.0 x16 |
| Expansion slots | 1 x M.2 |
| Max. number of SATA devices | 6 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 6 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Graphics | AMD RDNA Integrated Graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G, supports HDR, HDCP 2.3 and max resolution up to 4K 120Hz 2 x USB4, supports HDCP 2.3 and max resolution up to 8K 30Hz* *Only CPU built-in graphics can be displayed via USB4 ports. If you want to display on a Type-C monitor, use AM5 Ryzen 9000, 8000 and 7000 processors with built-in graphics. |
| Sound card | 5.1 CH HD Audio with Content Protection (Realtek ALC4082 audio codec) WIMA audio capacitors (for rear outputs) ESS SABRE9219 DAC for rear audio (SNR 130 dB) Individual PCB layers for R/L audio channel Direct Drive technology on front headphone port (supports up to 600 ohm headsets) Nahimic Audio |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | Bluetooth |
| Network interface | 5 Gigabit LAN 10/100/1000/2500/5000 Mbps Realtek RTL8126 Wireless LAN Wi-Fi 7 802.11be 2x2 module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4 GHz/5 GHz/6 GHz* frequency band Supports 160 MHz channel bandwidth with 6 GHz* frequency band 1 antenna supports 2 (transmit) x 2 (receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO |
| USB ports at back panel | 12 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 7 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 6 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

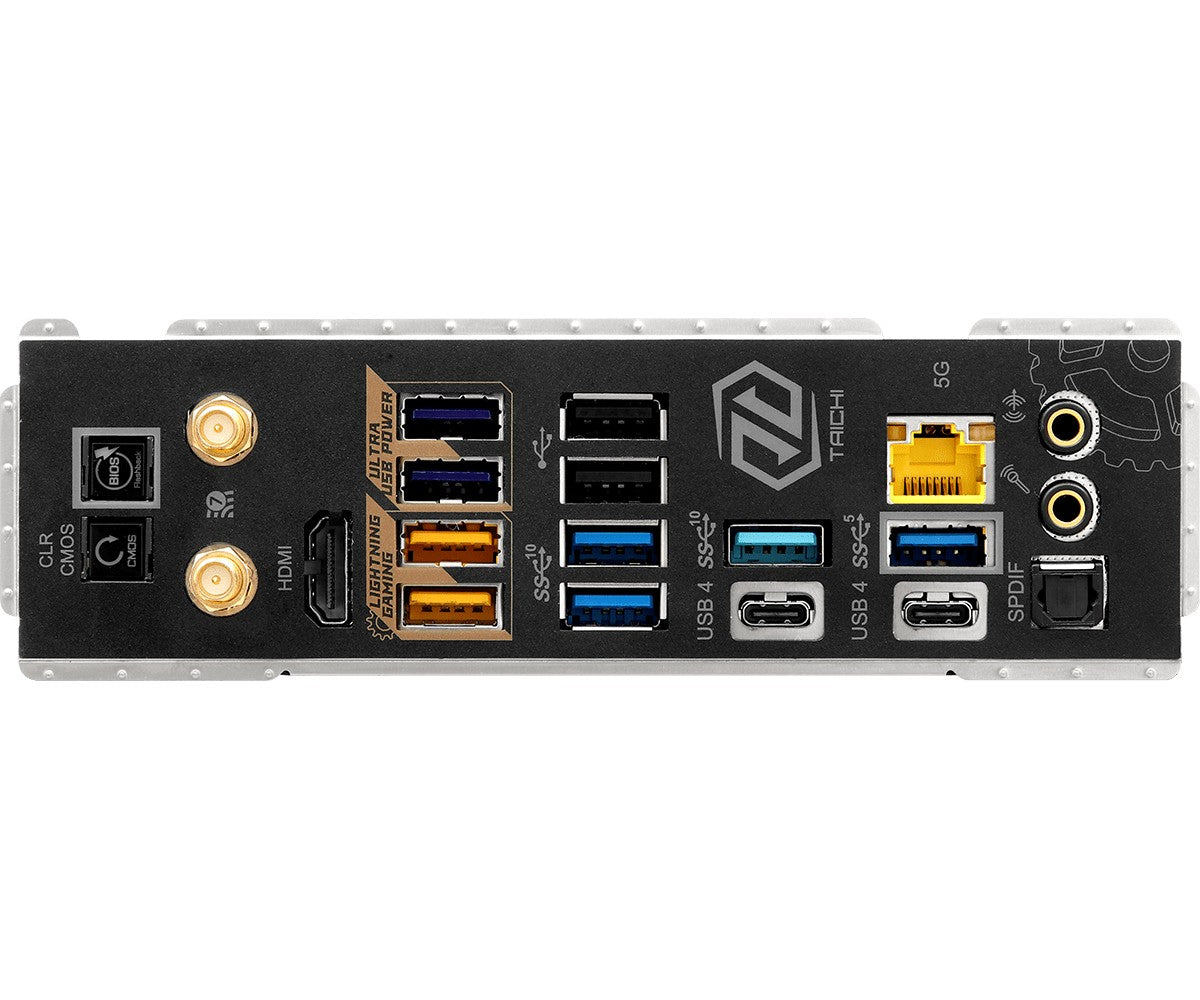

| External connectors | 2 x USB4 Type-C |
| External connectors | 2 x SMA |
| External connectors | 5 x USB 3.1 |
| External connectors | 3 x USB 3.0 |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 2 x USB 2.0 |
| External connectors | 1 x USB BIOS Flashback button |
| Onboard connectors | 1 x Reset button |
| Onboard connectors | 2 x 4pin wentylator CPU |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 4 x 4pin Chassis fan |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 2 x USB 3.0 header |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x Thermistor Cable Header |
| Onboard connectors | 1 x Debug card header |
| Onboard connectors | 1 x Power button |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 1 x Power LED and Speaker Header |
| Onboard connectors | 3 x Addressable LED |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form factor | E-ATX |
| Dimensions | 30.5 cm x 26.7 cm |

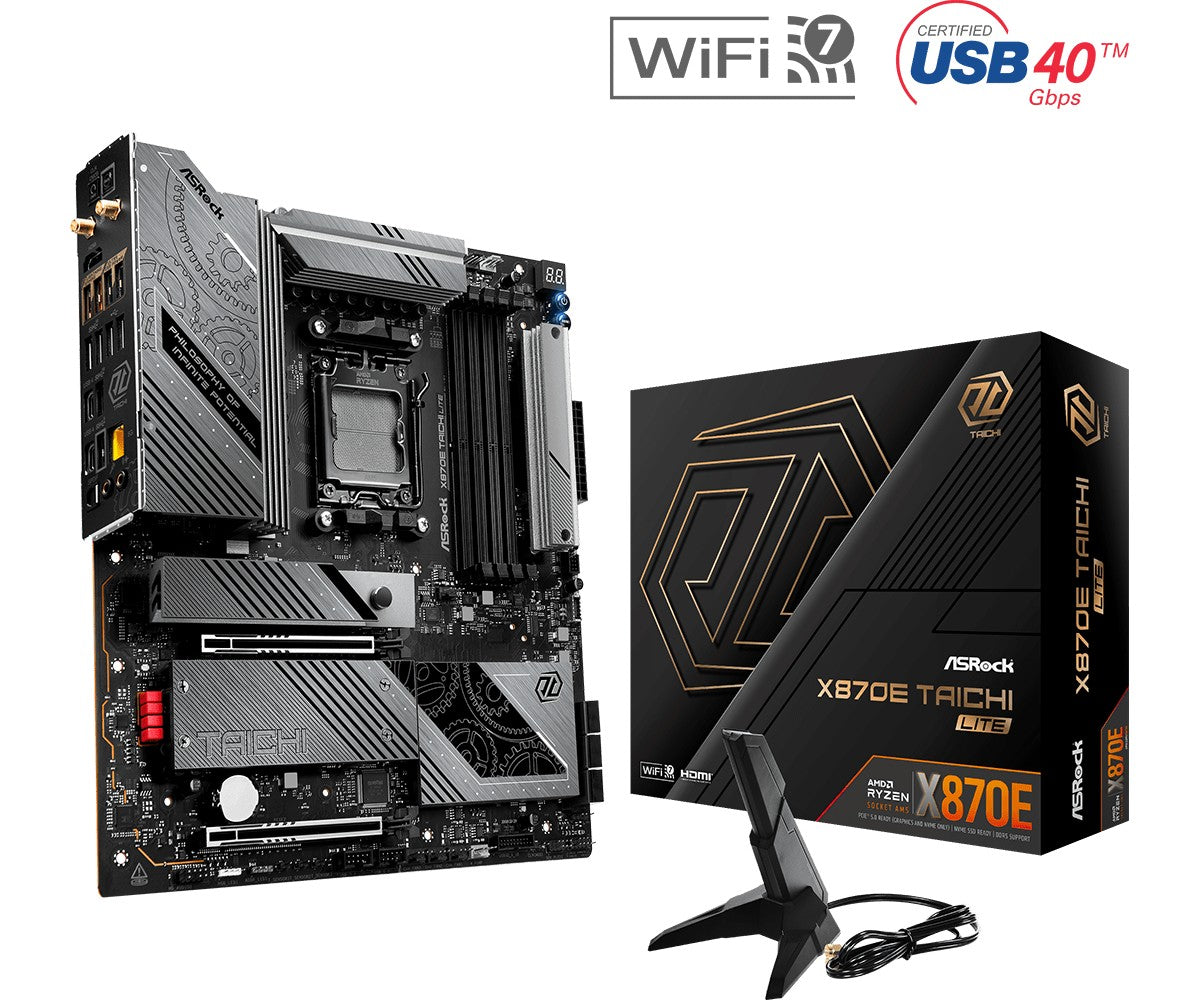

| Accessories included | 4 x SATA data cables 1 x ASRock WiFi 2.4/5/6 GHz antenna 1 x ARGB splitter cable 3 x thermistor cables |
| Supported operating systems | Windows 10 |
| Supported operating systems | Windows 11 |
| Software | Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash |
| Other information | 8 Layer PCB 2oz Copper PCB |
