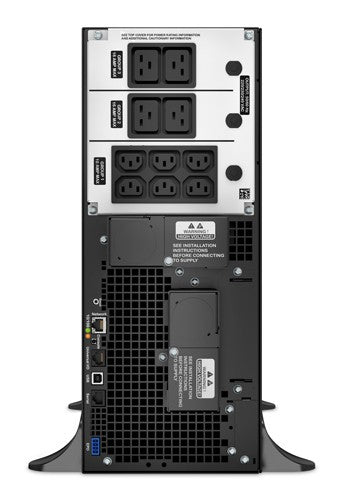

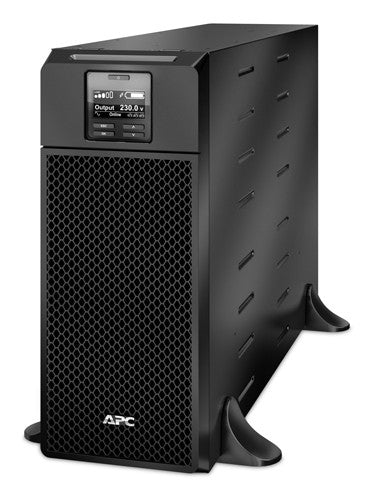

APC SRT6KXLI Smart-UPS SRT 6000VA Tower 230V
Specifications
| Description | APC Smart-UPS SRT 6000VA 230V APC Smart-UPS On-Line, 6000 Watts/6000 VA , input 230V /output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model |
|---|---|
| Apparent power | 6 kVA |
| Active power | 6000 |
| UPS Architecture | on-line double conversion |
| Number of phases input | 1 (230V) |
| Backup time (100% load) | 1.5 |
| Charging time | 3 |
| Chassis type | Tower |
| Input power ports | Hard Wire 3-wire (1PH + N + G) |
| Output power ports | 4 x IEC-C19 |
| Output power ports | 1 x Hard Wire 3-wire (1PH + N + G) |
| Output power ports | 6 x IEC-C13 |
| Connectors | RJ-45 |
| Connectors | SmartSlot |
| Connectors | 1 x USB (Typ B) |
| Environment requirements | - Operating Environment: 0 - 40 °C - Operating Relative Humidity: 0 - 95% no % - Operating Elevation: 0-3000 meters - Storage Temperature: -15 - 45 °C - Storage Relative Humidity: 0 - 95% no % - Storage Elevation: 0-15000 meters - Audible noise at 1 meter from surface of unit: 55.0 dBA - Online thermal dissipation: 1300.0 BTU/hr - Protection Class: IP 20 |
| Accessories included | - CD with software - Documentation CD - Installation guide - Removable support feet - Temperature Probe - USB cable - Warranty card - Web/SNMP Management Card |
| Color | Black |
| Dimensions | - Height: 432 mm - Width: 174 mm - Depth : 719 mm |
| Weight | 60 |
| Other features | - Nominal Output Voltage: 230V - Output Voltage Distortion: Less than 2% - Output Frequency (sync to mains): 50/60Hz +/- 3 Hz - Other Output Voltages: 220, 240 - Load Crest Factor: 3 : 1 - Topology: Double Conversion Online - Waveform type: Sine wave - Output Connections - Bypass: Internal Bypass (Automatic and Manual) - Nominal Input Voltage: 230V - Input frequency: 40 - 70 Hz (auto sensing) - Input Connections: Hard Wire 3 wire (1PH+N+G) - Input voltage range for main operations: 160 - 275 V - Input voltage adjustable range for mains operation: 100 - 275 (half load) V - Other Input Voltages: 220, 240 |
