Beschreibung

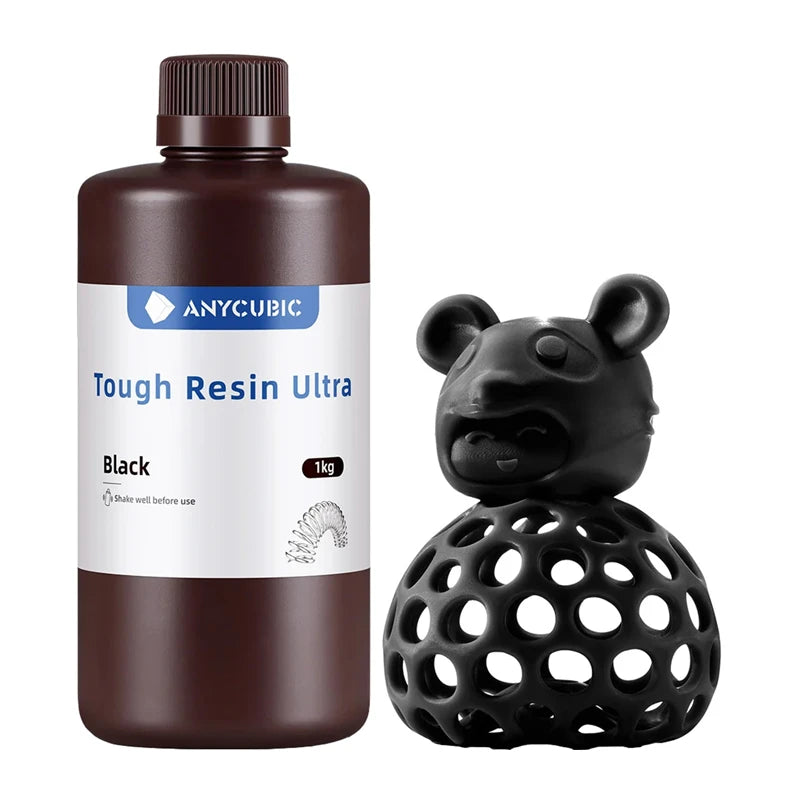

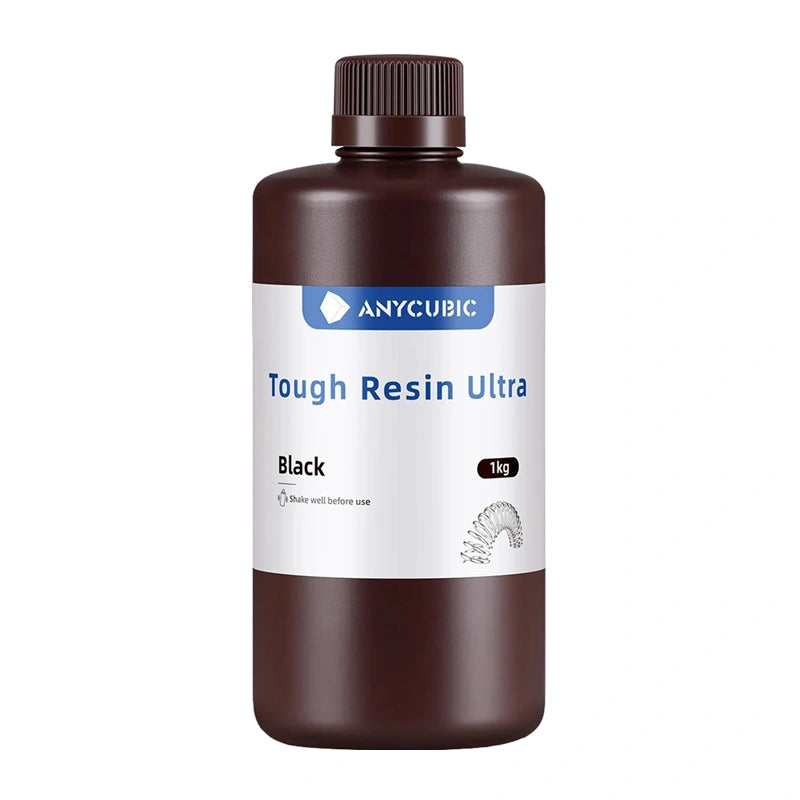

ANYCUBIC Tough Resin Ultra (Black)
ANYCUBIC Tough Resin Ultra is a photopolymer resin designed for LCD and DLP 3D printers, whose most notable feature is its exceptionally high flexibility and resistance to mechanical damage. With an elongation at break of 70% to 80%, the finished models retain high strength, are less prone to cracking, and quickly return to their original shape after deformation. The material was developed for creating durable functional models, moving parts, and prints that may be exposed to impacts, bending, and long-term use. An additional advantage is its specially formulated composition, which reduces odor intensity during printing, enhancing comfort during daily use.
Exceptional flexibility and high crack resistance
The resin is characterized by high elasticity, impact resistance, and the ability to maintain structural integrity even in thin-walled structures. The material effectively resists cracking under stress and quickly returns to its original shape after deformation. As a result, the finished models better withstand accidental drops, transport, and heavy use.
Precise detail reproduction and a wide range of applications
ANYCUBIC Tough Resin Ultra enables highly detailed prints that faithfully reproduce fine elements such as hair, textures, and small structural details. The resin also performs well when creating models with moving parts, allowing for easy adjustment and replacement of individual components.
Greater durability and resistance to external factors
The material has been formulated to minimize the impact of moisture and UV radiation on finished prints. The manufacturer claims high resistance to brittleness, corrosion, and deformation, even during long-term storage. Low moisture absorption helps maintain the dimensional stability of models over the long term.
Stand-alone use or as an additive to other resins
ANYCUBIC Tough Resin Ultra can be used both as a primary printing material and as an additive to other resins. When mixed with other materials, it increases the impact resistance of the finished models and improves their durability.
Wide Compatibility
The material has been optimized for Anycubic LCD printers, but it also works seamlessly with other LCD and DLP printers that use 405 nm UV light. This makes it compatible with many popular devices available on the market. It’s perfect for your workshop!
| Manufacturer | ANYCUBIC |
|---|---|
| Model | Tough Resin Ultra |
| Color | Black |
| Material | Photopolymer resin |
| Wavelength | 365–405 nm |
| Viscosity | 500–900 mPa·s (25°C) |
| Density | 1.05–1.25 g/cm³ |
| Hardness | 71–75 HD |
| Tensile strength | 20–28 MPa |
| Elongation at break | 70–80% |
| Flexural modulus | 15–25 MPa |
| Flexural strength | 350–800 MPa |
| Young’s modulus | 350–450 MPa |
| Volumetric shrinkage | 5.1–6.2% |
| Printing temperature | 20–50°C |
| Recommended ambient temperature during printing | 20–40°C |
| Exposure time for the first layer | 20–40 s |
| Exposure time for a standard layer | 1.5–3 s |
| Cleaning agent | 95% IPA |
| Cleaning time | ≥3 min |
| UV wavelength during curing | 405 nm |
| Curing temperature | 18–30°C |
| UV irradiance | 25,000–30,000 µW/cm² |
| Curing time | 3 min |
| Weight | 1 kg |
Producer: Shenzhen Anycubic Technology Co.,Ltd (CN)
Address: Ai'nan Road, Longdong, Baolong, Longgang, 90, Bldg 2, Tower A, 518172, Shenzhen
Email: support@anycubic.com
EU Responsible Person: Apex CE Specialists GmbH
Address: Habichtweg 1, 1, 41468, Neuss
Email: info@apex-ce.com
